Netapp NS0-162 NetApp Certified Data Administrator (ONTAP) Exam Practice Test

 The error message in the exhibit indicates that access to a specific file was denied. This is typically due to insufficient permissions. By setting the user’s permission for the share to write, it would allow them to save files on that share. References: Troubleshooting CIFS or SMB access denied, Shared folder “Access is Denied” between Windows computers

 FabricPool is a feature of ONTAP that allows you to tier cold data from a local tier (aggregate) to a capacity tier (object storage) in the cloud or on-premises. ONTAP 9.8 supports four types of capacity tiers: AWS S3, Azure Blob, Google Cloud Storage, and ONTAP S3. StorageGRID is a NetApp product that provides on-premises S3 object storage. Therefore, both StorageGRID and ONTAP S3 are supported as capacity tiers for FabricPool aggregates in ONTAP 9.8. SWIFT Object Store and NFS Export are not supported as capacity tiers for FabricPool aggregates. References :- Considerations and requirements for using FabricPool, Storage Efficiencies, FabricPool with StorageGRID Recommendation Guide

FC switch zoning is the process of assigning a set of WWPNs to a zone, which is a group of ports that can communicate with each other. Zoning is required for FC SAN hosts to access LUNs on the SVM. If the zoning is not done correctly, the host might not be able to discover the LUNs or might see LUNs that belong to other hosts. Therefore, FC switch zoning is a possible cause of the issue with SVM eplc_fcp when mapping a namespace to a host. References :- Configure an SVM for FC, Configure FC protocol and FCoE protocol on SVMs with System Manager

https://docs.netapp.com/us-en/ontap/data-protection/convert-mode-snapmirror-synchronous-task.html On the link above it states: You cannot modify the policy of a Snapmirror Synchronous relationship to convert its mode.

To delegate administration of the SVM to an SVM administrator, you need to create the vsadmin user account in the new SVM and configure role-based access control (RBAC) for the vsadmin user account. The vsadmin user account is the default SVM administrator account that has full access to the SVM resources and can perform all SVM-related tasks. RBAC is a feature that allows you to control the access and permissions of users and groups based on their roles. You can use RBAC to assign roles, capabilities, and access methods to the vsadmin user account. Creating a LIF for SVM management and setting a password for the vsadmin user account are optional tasks that you can perform after creating the vsadmin user account and configuring RBAC for it. References :- Delegate administration to SVM administrators with System Manager - ONTAP 9.7 and earlier, Create a new SVM, Role-Based Access Control (RBAC) Express Guide

IPspaces enable you to create multiple logical networks on a single physical network. Each IPspace contains a set of ports, broadcast domains, subnets, and routing groups that are isolated from other IPspaces. By using IPspaces, you can avoid IP address conflicts and routing issues when connecting to different networks that use the same or overlapping IP subnets. In this scenario, you can create a separate IPspace for the intercluster LIFs of AcmeClusOl and WidgetsClusOl, and assign them different subnets that do not overlap with the local subnet at your company. This way, the clusters can communicate with each other without interference from the local network traffic. References :- ONTAP 9 Network Management Guide, ONTAP 9 Cluster and SVM Peering Express Guide, ONTAP 9 Cluster and SVM Peering Guide

 You can use either XCP or the in-place conversion feature to move data from a FlexVol volume to a FlexGroup volume. XCP is a data migration tool that can copy data between different types of volumes, such as FlexVol and FlexGroup. The in-place conversion feature, introduced in ONTAP 9.7, allows you to convert a FlexVol volume to a FlexGroup volume without requiring a data copy or additional disk space. However, you cannot convert a FlexGroup volume back to a FlexVol volume. SnapMirror is not a valid option for this scenario, because it does not support replicating data from FlexVol to FlexGroup volumes. A FlexVol to FlexGroup conversion is supported, but only for transitioned volumes starting from ONTAP 9.8. References :- Converting FlexVol volumes to FlexGroup volumes overview, Can a FlexGroup be converted to a FlexVol?, Can I convert a Flexvol to FlexGroup without rewarming the tiered data?

The NetApp solution that fulfills the requirements is SnapMirror Business Continuity (SM-BC). SM-BC is a business continuity solution for zero RPO and near zero RTO that was introduced in ONTAP 9.8. SM-BC enables transparent application failover and failback between two ONTAP clusters without requiring any application reconfiguration. SM-BC supports ISCSI LUNs as well as NFS and SMB file shares. The other options are not suitable for this scenario because:

• SyncMirror is a local high availability solution that mirrors data within a single HA pair, not across clusters.
• SVM DR is a disaster recovery solution that replicates data and configuration of an SVM to another cluster, but requires manual intervention to activate the destination SVM and reconfigure the application.
• SMS is a synchronous replication solution that provides zero RPO, but not zero RTO, as it also requires manual intervention to activate the destination volume and reconfigure the application. References :- SnapMirror Business Continuity overview, SnapMirror Business Continuity for ONTAP 9.12, SnapMirror Business Continuity FAQ

 NetApp ONTAP Select is a software-only version of ONTAP that can run on commodity servers with direct-attached storage. It supports both block and file protocols, including NFS, NVMe, and CIFS. SCSI and FCP are not supported by ONTAP Select. References :- ONTAP Select overview, Client protocols, Software-Defined Storage with ONTAP Select

 Jumbo frames are Ethernet frames with a payload greater than the standard maximum transmission unit (MTU) of 1500 bytes. Jumbo frames can improve network performance by reducing the overhead of packet headers and increasing the efficiency of data transfer. However, to use jumbo frames, all the devices in the network path must support the same MTU size. Therefore, to connect NFS datastores over a 10-GbE network using jumbo frames, you need to enable jumbo frames with an MTU of 9000 for your ESXi hosts and your ONTAP cluster, and enable jumbo frames with an MTU of 9216 for your switches. This will ensure that the network can handle the larger frames without fragmentation or dropping. Note that the MTU of 9216 for the switches is slightly higher than the MTU of 9000 for the hosts and the cluster, to account for the additional overhead of VLAN tags or other encapsulations. References :- NFS configuration for ESXi using VSC overview, NS0-162: NetApp Data Administrator ONTAP Flashcards, NetApp Exam NS0-162 Topic 10 Question 20 Discussion, Which three configurations would accomplish this task?, NS0-162 NetApp Certified Data Administrator, ONTAP Exam

The space allocation option is a LUN attribute that enables the host to communicate with the storage system about the blocks that are no longer in use by the host file system. When the space allocation option is enabled, the host sends SCSI UNMAP commands to the storage system when files are deleted on the disk. The storage system then reclaims the space from the thin-provisioned LUN and makes it available for other LUNs or volumes. This process is also known as space reclamation or hole punching. If the space allocation option is disabled, the host does not send SCSI UNMAP commands and the storage system does not reclaim the space from the thin-provisioned LUN, resulting in a discrepancy between the host and the storage system. References :- Space reclamation, Enable or disable the space allocation option for a LUN

 The correct way to warm the cache before clients access the cache volume for the first time is to prepopulate the cache volume with data from the origin volume using the flexcache prepopulate start command. This command copies the data blocks from the origin volume to the cache volume in the background, without affecting the client access to the origin volume. The other options are not valid for this scenario because:

• Enabling block-level invalidation using the volume flexcache origin config modify command does not warm the cache, but rather allows the origin volume to invalidate the cached data blocks when they are modified or deleted.
• Copying the data from the origin volume to the cache volume with the NetApp XCP Migration Tool is not recommended, as it can cause data inconsistency and performance degradation. XCP is a data migration tool that can copy data between different types of volumes, such as FlexVol and FlexGroup, but not between FlexCache and origin volumes.
• Synchronizing the origin and cache first with the volume flexcache sync-properties command does not warm the cache, but rather ensures that the cache volume inherits the properties of the origin volume, such as size, security style, and export policy. References :- Prepopulate a FlexCache volume, FlexCache volume concepts, FlexCache volume best practices

 To troubleshoot the issue of iSCSI LUNs not visible on the host, you should verify that the iSCSI data protocol has been enabled on the ports and that the controller has not been taken over. If the iSCSI data protocol is disabled on the ports, the storage system will not accept iSCSI connections or requests over those ports. If the controller has been taken over by its partner, the iSCSI LUNs on the taken-over node will not be available to the host. You can use the vserver iscsi connection show command to check the status of the iSCSI connections and the storage failover show command to check the status of the controller. References :- Troubleshoot iSCSI LUNs not visible on the host, vserver iscsi connection show, storage failover show

SnapLock Compliance is the ONTAP feature that fulfills the requirement of WORM archiving of data on the ONTAP cluster. SnapLock Compliance is a high-performance compliance solution for organizations that use write once, read many (WORM) storage to retain critical files in unmodified form for a specified retention period. SnapLock Compliance prevents files from being deleted, overwritten, or modified, even by an administrator, until the retention period expires. SnapLock Compliance also provides a tamper-proof clock and audit logs to ensure the integrity and authenticity of the WORM data. References :- WORM storage - NetApp, Compliant WORM storage using NetApp SnapLock _ TR-4526 | NetApp

 Intercluster LIFs are used for communication between FlexCache clusters and for data transfer between origin and cache volumes. If the WAN connection drops, the intercluster LIFs on both sides of the FlexCache relationship will be marked as down. To troubleshoot the disconnect, you can ping the intercluster LIFs from another cluster or from a host on the same network to verify their reachability. You can also use the network ping-lif command to ping the intercluster LIFs from the cluster shell. References :- FlexCache overview, Unable to clean FlexCache relationship, FlexCache in ONTAP, What Is FlexCache?

To find out how many files are in the NAS volumes of the cluster and how old these files are, you can use the following two tools:

• ONTAP System Manager 9.8 provides a way for admins to find out file system information in any NAS storage volume quickly and easily by enabling a low-impact scanner for each volume. This scanner crawls the ONTAP file system in the background with a low priority job and delivers a wealth of information that is available as soon as you navigate to the volume details page. You can see the file and directory count, the file-age histograms, the capacity use, and other parameters for each volume1.
• ONTAP CLI provides the filestats command that can display a summary of file statistics within a volume on a storage system by reading the file information from a snapshot copy that you specify. You can use various options to filter the output by file size, file type, file age, and so on2.
• Active IQ Config Advisor and Active IQ Unified Manager are not the tools that can fulfill this requirement, as they are mainly used for monitoring and managing the health, performance, and configuration of the cluster, not the file system details of the volumes34. References :- Active IQ Config Advisor, Active IQ Unified Manager, How to report file sizes within a volume using the filestats command, ONTAP 9.8 Feature Overview.

To deploy a 2-node ONTAP Select cluster with synchronous mirroring and high availability, you need to take the following two steps:

• Ensure that the ONTAP Select Deploy VM resides at a third location other than the two data centers. This is because the Deploy VM includes a mediator service that connects to each node in the active two-node clusters to monitor the HA pairs and assist in managing failures. The mediator service maintains the HA state information at a dedicated iSCSI target associated with each two-node cluster. If the Deploy VM is halted or fails, the mediator service is unavailable and HA capability is lost for the two-node clusters1.
• Use ONTAP Mediator service to make sure that you have a quorum for the two nodes. When a cluster consists of two nodes, it is not possible to achieve the quorum required when a node fails or loses communication. To resolve these types of split-brain situations, the mediator service helps the surviving node to determine whether it should take over the partner node or halt itself1.
• You do not need to install the SnapMirror Sync license on the cluster, as it is not required for synchronous mirroring. You can use the SnapMirror Synchronous (SM-S) feature, which is included in the ONTAP Select Premium license, to create a zero-recovery point objective (RPO) mirror relationship between two volumes on different clusters2.
• You do not need to use ONTAP Select Deploy to install the nodes on the physical hardware, as ONTAP Select is a software-defined storage solution that runs on VMware ESXi hosts. You can use ONTAP Select Deploy to create and manage ONTAP Select clusters and nodes on the virtualized hardware3. References :- ONTAP Select two-node clusters with HA, SnapMirror Synchronous overview, Deploy an ONTAP Select cluster using the CLI.

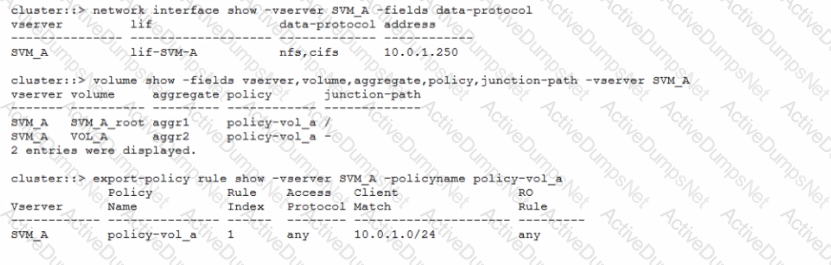

 The problem is that the host IP address does not match the export policy rule. The export policy rule shown in the exhibit specifies that any client with an IP address within the 10.0.1.0/24 subnet can access the volume using NFSv3, as indicated by “Access Protocol” set to “any” and “Client Match” set to “10.0.1.0/24”. However, the Linux host has an IP address of 10.0.1.24, which falls outside this range, leading to a mismatch between the host IP and export policy rule. To fix this problem, the export policy rule should be modified to include the host IP address or a broader subnet that covers it. References :- Add a rule to an export policy, vserver export-policy rule create, Create an export policy for the volume

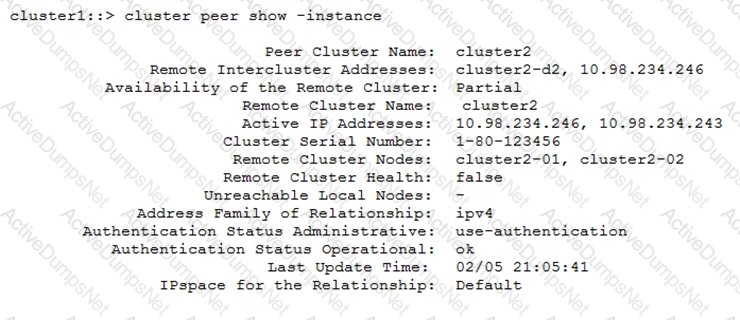

The availability of the remote cluster in the peering relationship shows “Partial” only if some nodes in the local cluster are not able to contact some or all nodes in the peer cluster1. This means that there is a network connectivity issue between some of the intercluster LIFs on the local and remote clusters. This can affect the data transfer and API communication between the clusters. The other options are not correct because they would result in different availability statuses, such as Unavailable, Pending, or Unidentified1. References :- cluster peer show, Cluster peering issues after upgrade to ONTAP 9.11.1, Output of “cluster peer health show” intermittently displays “session_reachable” for data ping

 NetApp’s All SAN Array (ASA) is a dedicated SAN-only solution that provides high performance and availability for mission-critical applications. ASA supports up to 2-node clusters, which can be either HA pairs or MetroCluster configurations. ASA does not support single node, 12-node, or 24-node clusters, as these are reserved for ONTAP systems that support both SAN and NAS protocols. References :- All-Flash SAN Array (ASA) A-Series Systems, All-Flash SAN Array software configuration overview, ASA system does not report as SAN optimized

When you perform an upgrade using ONTAP System Manager 9.8, you can use the automated nondisruptive update (ANDU) feature, which simplifies and streamlines the update process. The latest available images will appear in the ONTAP System Manager interface, and you can select the image you want to install. The update history is available within the ONTAP System Manager interface, and you can view the status and progress of the update. You do not need to manually upload the images to the cluster or download them from the NetApp Support site, as ONTAP System Manager will automatically download and upload the images as needed. References :- Automated nondisruptive ONTAP upgrade, How to Upgrade to ONTAP 9.8

The UTA2 ports are converged network adapters that can support either 10Gb Ethernet and FCoE or Fibre Channel modes. To use FCP over the UTA2 ports, there are two possible methods:

• Connect onboard UTA2 ports to a Nexus switch and enable FCP: This method allows the UTA2 ports to remain in the 10Gb Ethernet mode, but use the FCoE protocol to transport FC frames over the Ethernet network. The Nexus switch acts as a FCoE forwarder that bridges the FCoE traffic from the UTA2 ports to the FC fabric. This method requires the Nexus switch to support FCoE and the UTA2 ports to have the correct SFP+ transceivers for 10Gb Ethernet.
• Swap the Ethernet transceivers in the UTA2 ports for FC transceivers, and configure the ports as target ports: This method changes the UTA2 ports from the 10Gb Ethernet mode to the FC mode, which allows the UTA2 ports to directly connect to the FC fabric. This method requires the UTA2 ports to have the correct SFP+ transceivers for FC and the ports to be configured as target ports using the ucadmin command.

The other two options are not valid methods to use FCP over the UTA2 ports:

• Swap the Ethernet transceivers in the UTA2 ports for 1Gbps transceivers, and configure the ports as target ports: This method is not possible because the UTA2 ports do not support 1Gbps Ethernet mode. The UTA2 ports can only operate in 10Gb Ethernet or FC modes.
• Change the existing UTA2 ports from 10 Gbps speed to 8 Gb speed: This method is not possible because the UTA2 ports do not support changing the speed without changing the mode. The UTA2 ports can only operate in 10Gb Ethernet or FC modes, and the speed is determined by the mode and the transceiver type.

References :- What are Unified Target Adapter (UTA2)/CNA Ports and how to configure them?, Change the UTA2 port from CNA mode to FC mode, Netapp Exam NS0-162 Questions and Answers - Update Dec 2023 - DumpsMate

 Active IQ Unified Manager, Cloud Insights, and Active IQ OneCollect are three NetApp products that can export the monthly performance data of your ONTAP 9.8 cluster to a CSV file for further processing. Active IQ Unified Manager is a web-based application that monitors and manages the health and performance of your ONTAP clusters. You can export data to CSV and PDF files for reporting from the Active IQ Unified Manager web UI1. Cloud Insights is a cloud-based monitoring and optimization tool that provides insights into your hybrid cloud infrastructure. You can export data to CSV files from the Cloud Insights dashboard. Active IQ OneCollect is a data collection tool that gathers configuration and performance data from your NetApp and third-party storage systems. You can export data to CSV files from the Active IQ OneCollect GUI. References :- Performance monitoring and management overview, Exporting data to CSV files for reporting, Exporting data to CSV and PDF files for reporting, [Exporting data to CSV files], [Exporting data to CSV files]

 To increase access security in both NFS and iSCSI environments, you can use Kerberos and CHAP as authentication methods. Kerberos is a network authentication protocol that uses tickets to provide mutual authentication between clients and servers. CHAP is a challenge-response protocol that verifies the identity of a peer by using a shared secret. ONTAP supports Kerberos for NFS exports, which allows you to secure NFS traffic with encryption and integrity checking. ONTAP also supports CHAP for iSCSI LUN access, which prevents unauthorized access to iSCSI targets and initiators. References :- NFS security overview, iSCSI Security Configuration

Encrypted volumes are one of the possible causes of ONTAP upgrade pre-check failure. If the cluster has encrypted volumes, the pre-check verifies that the cluster has a valid external key manager (EKM) configuration and that the EKM server is reachable. If the EKM configuration is invalid or the EKM server is unreachable, the pre-check fails and the upgrade cannot proceed. To resolve this issue, the cluster administrator must ensure that the EKM configuration is correct and that the EKM server is accessible before retrying the upgrade12. References:- Execute ONTAP automated pre-upgrade checks before a planned upgrade, ONTAP upgrade pre-check validation fails with Error: The following nodes are not supported
