Aruba 9004 gateway supports ZTP on port G0/0/0 by default1. If the gateway is connected to a different port, such as G0/0/V1, it will not be able to communicate with Aruba Activate and Aruba Central, which are required for ZTP2. Moreover, port G0/0/V1 is configured as a DHCP server by default, which can cause IP address conflicts with the existing network3. Therefore, the technician should move the cable on the gateway to port G0/0/0, which will allow the gateway to obtain an IP address from the network DHCP server and start the ZTP process. The other options are not correct because they will not solve the issue or enable ZTP. For example, option D will not work because factory defaulting and rebooting the gateway will not change the port configuration or behavior3.

According to the Aruba Campus Access Professional documents1, WPA3-Enterprise is a security mode that supports 802.1X authentication and encryption with either AES-CCM or AES-GCMP. WPA3-Enterprise also optionally adds usage of Suite-B 192-bit minimum-level security suite that is aligned with Commercial National Security Algorithm (CNSA) for enterprise networks2. This mode provides the highest level of security and is suitable for government and financial institutions.

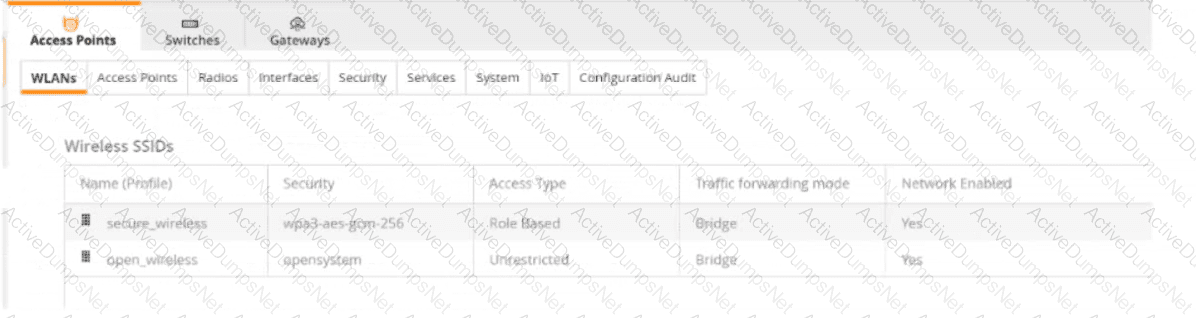

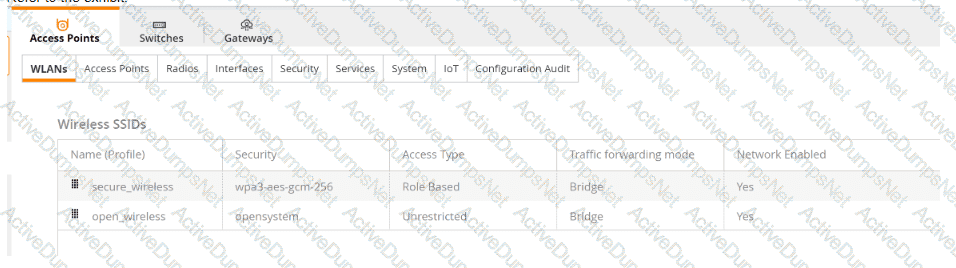

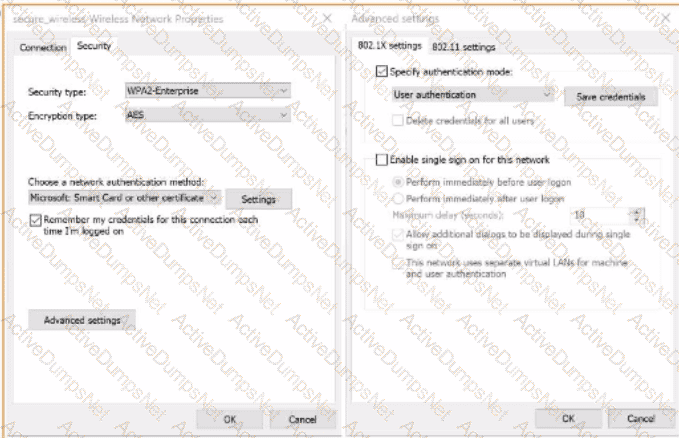

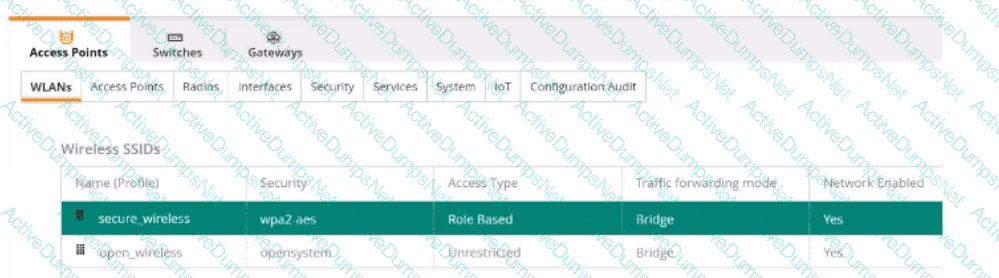

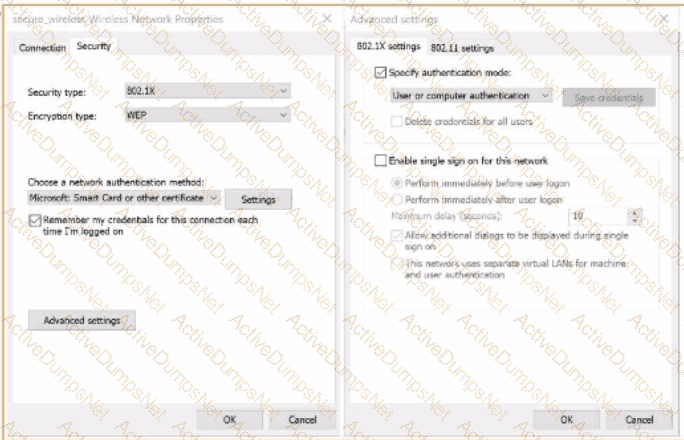

The exhibit shows that the SSID is configured with WPA3-Enterprise (CCM), which uses AES-CCM as the encryption protocol. However, this mode is not compatible with some devices that require CNSA compliance. Therefore, changing the SSID to WPA3-Enterprise (CNSA) would fix the issue and allow all devices to connect to the network.

The persona role option that should be selected to deploy a Gateway and take advantage of all the SD-WAN features is A. ArubaOS 10 Branch.

ArubaOS 10 Branch is a persona that enables the Gateway to provide both LAN and WAN functionality for branch networks. The Gateway can act as a wireless controller, a router, a firewall, and an SD-WAN device. The SD-WAN features include route and tunnel orchestration, dynamic path steering, forward error correction, SaaS traffic optimization, SASE orchestration, and more1.

The other options are incorrect because:

B. ArubaOS 10 VPN Concentrator: This is a persona that enables the Gateway to act as a VPN concentrator for remote access or site-to-site VPN connections. It does not provide SD-WAN features2.

C. ArubaOS 10 Wireless: This is a persona that enables the Gateway to act as a wireless controller for campus networks. It does not provide SD-WAN features3.

D. ArubaOS 10 Mobility: This is a persona that enables the Gateway to act as a mobility controller for campus networks. It does not provide SD-WAN features.

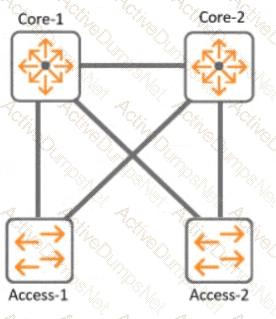

OSPF (Open Shortest Path First) is a routing protocol that uses link-state information to calculate the best path to each destination in the network. OSPF establishes adjacencies with neighboring routers to exchange routing information and maintain a consistent view of the network topology1.

To establish an OSPF adjacency, the routers need to have some common parameters, such as the area ID, the network type, the hello interval, the dead interval, and the authentication method2. The routers also need to have a matching subnet mask on the interface that connects them3.

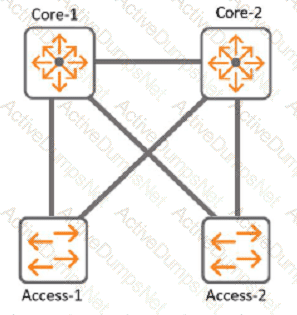

In this case, the Aruba CX 6300 VSF stack has an SVI (Switched Virtual Interface) on VLAN 10 with an IP address of 10.1.1.1/24 and a LAG (Link Aggregation Group) on port 1/1/1 and port 2/1/1 that connects to a neighboring device. The SVI is configured with OSPF area 0 and network type broadcast. The LAG is configured with OSPF passive mode, which means that it will not send or receive OSPF hello packets.

The neighboring device has an interface with an IP address of 10.1.1.2/24 and a LAG on port 1/0/1 and port 2/0/1 that connects to the Aruba CX 6300 VSF stack. The interface is configured with OSPF area 0 and network type broadcast.

Since the Aruba CX 6300 VSF stack and the neighboring device have the same area ID, network type, subnet mask, and default hello and dead intervals on their interfaces, they will be able to establish an OSPF adjacency over SVI 10 with LAG 1. The OSPF passive mode on the LAG will not affect the adjacency, because it only applies to the LAG interface, not the SVI interface.

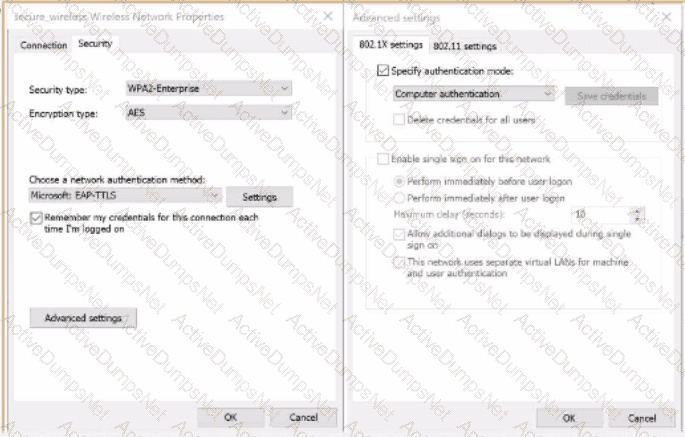

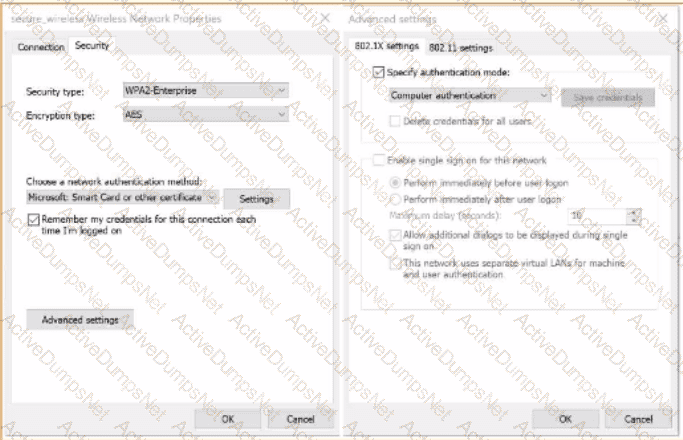

According to the Aruba Documentation Portal1, 802.1X is a standard for port-based network access control that uses a RADIUS server to authenticate and authorize wireless clients. 802.1X can be configured in different modes, such as bridge mode, tunnel mode, or split tunnel mode.

Option C: GRE tunnel

This is because option C shows how to configure an SSID in tunnel mode with the default AP-group settings on an Aruba switch. In tunnel mode, all client traffic from the access points is tunneled back to the controller and the controller would in turn put the client traffic onto the network2. The GRE protocol is used to encapsulate and decapsulate the traffic between the access points and the controller3.

Therefore, option C is correct.

1: https://www.arubanetworks.com/techdocs/AOS-CX/10.06/HTML/5200-7696/GUID-581D2976-694B-46C7-8497-F6B788AA05B2.html  2: https://community.arubanetworks.com/discussion/bridge-and-tunnel-mode  3: https://www.twingate.com/blog/ipsec-tunnel-mode

The primary benefit of BSS coloring is D. BSS color tags are applied to Wi-Fi channels and can reduce the threshold for interference.

BSS coloring is a mechanism that allows Wi-Fi 6 devices to mark each frame with a color code that identifies the BSS (Basic Service Set) it belongs to. This helps differentiate between frames from different BSSs that share the same channel and avoid unnecessary collisions and backoffs. BSS coloring also introduces an adaptive threshold for interference, which means that Wi-Fi 6 devices can adjust the signal strength value that determines whether a channel is busy or not based on the current network environment. This allows for more efficient use of spectrum and higher throughput in dense scenarios12.

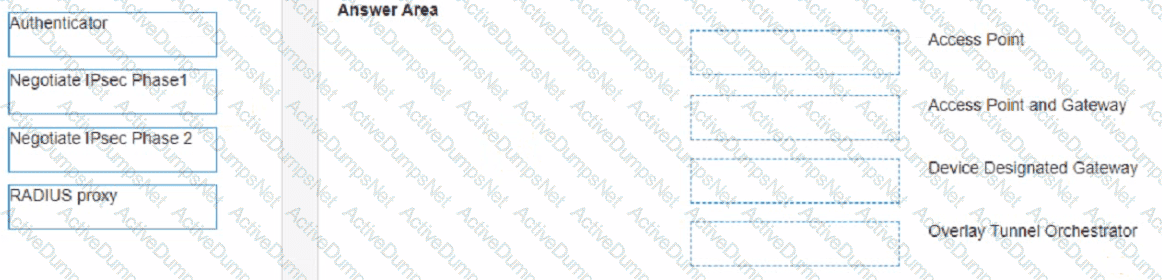

This is the appropriate solution for this scenario where wireless 802.1X authentication will be against a RADIUS server in the cloud and the security team is concerned that the traffic between the AP and the RADIUS server will be exposed. RadSec, also known as RADIUS over TLS, is a protocol that provides encryption and authentication for RADIUS traffic over TCP and TLS. RadSec can be configured on both the AP and the RADIUS server to establish a secure tunnel for exchanging RADIUS packets. The other options are incorrect because they either do not provide encryption or authentication for RADIUS traffic or do not involve RadSec. References: https://www.securew2.com/blog/what-is-radsec/ https://www.cloudradius.com/radsec-vs-radius/

The correct answer is A. SNMPv3.

SNMPv3 is a protocol that is used to retrieve data stored in a Management Information Base (MIB), which is a database of managed objects in a network. SNMPv3 provides security and access control features that are not available in earlier versions of SNMP. SNMPv3 can also use encryption to protect the data from unauthorized access or modification.

According to the Aruba Certified Professional – Campus Access document1, one of the skills that this certification validates is:

Implement and Analyze the output from common network monitoring tools

Configure Port Mirroring to collect PCAPs

Configure NAE agents 9.4

Configure UXI sensors for internal and external tests

Describe how API scan be used to configure, manage, monitor, and troubleshoot your network

The document also mentions that the candidate should have a distinguished understanding of different protocols across vendors, which implies that they should be familiar with SNMPv3 and how it can be used to access MIB data.

https://www.arubanetworks.com/techdocs/AOS-CX/10.07/HTML/5200-7885/Content/Chp_Mng_Use/bui-in-use-gro-the-pri-10.htm

The statements that are true regarding Aruba NAE agents are A and C.

A. A single NAE script can be used by multiple NAE agents. This means that you can create different instances of the same script with different parameters or settings. For example, you can use the same script to monitor different VLANs or interfaces on the switch1.

C. NAE agents will never consume more than 10% of switch processor resources. This is a built-in safeguard that prevents the agents from affecting the switch performance or stability. If an agent exceeds the 10% limit, it will be automatically disabled and an alert will be generated2.

The other options are incorrect because:

B. NAE agents are not active at all times. They can be enabled or disabled by the user, either manually or based on a schedule. They can also be disabled automatically if they encounter an error or exceed the resource limit1.

D. NAE scripts do not need to be reviewed and signed by Aruba before being used. You can create your own custom scripts using Python and upload them to the switch or Aruba Central. You can also use the scripts provided by Aruba or other sources, as long as they are compatible with the switch firmware version1.

E. A single NAE agent cannot be used by multiple NAE scripts. An agent is an instance of a script that runs on the switch. Each agent can only run one script at a time1.

The standard that is supported by some Aruba APs and can enable a customer to accurately locate wireless client devices within a few meters is A. 802.11mc.

802.11mc is an IEEE standard that enables computing devices to measure the distance to nearby Wi-Fi access points using a technique called Fine Timing Measurement (FTM). FTM uses precise timestamps to calculate the round-trip time of Wi-Fi frames between the device and the access point, and then converts it to a distance estimate. By using multiple access points and triangulation methods, the device can determine its location with high accuracy1.

According to the Aruba document 802.11mc Support, this feature is supported on 500 Series, 510 Series, 530 Series, 550 Series, 560 Series and 570 Series access points. These APs act as FTM responders to time measurement queries sent from a client. To configure the AP to send FTM responses, you need to enable the ftm-responder-enable parameter in the WLAN SSID profile1.

This is because Best Effort traffic is all other kinds of non-detrimental traffic that are not sensitive to Quality of Service metrics (jitter, packet loss, latency). A typical example would be peer-to-peer and email applications2. Background traffic is a type of traffic that is used for system maintenance or backup purposes and does not affect the performance or availability of the network3.

Therefore, Best Effort traffic has a higher priority than Background traffic in terms of network resources allocation and management.

1: https://www.arubanetworks.com/techdocs/ArubaDocPortal/content/docportal.htm  2: https://stackoverflow.com/questions/33854306/best-effort-traffic-and-real-time-traffic-difference  3: https://www.informit.com/articles/article.aspx?p=25315 &seqNum=4

Client IP address: This factor can be used to determine if the client is on the same VLAN as the AP or not. If the client IP address is on the same VLAN as the AP, then the client traffic is bridged locally. If the client IP address is on a different VLAN than the AP, then the client traffic is forwarded to the gateway cluster through a secure tunnel 12.

Client VLAN: This factor can be used to determine if the client belongs to a specific VLAN or not. If the client belongs to a specific VLAN, then the client traffic is forwarded to that VLAN based on its IP address and security profile 12.

QoS stands for Quality of Service and is a mechanism that allows network devices to prioritize and differentiate traffic based on certain criteria, such as application type, source, destination, etc3. QoS involves identifying specific traffic for special treatment and applying policies and actions to improve its performance or meet certain service level agreements (SLAs)3. QoS can help network devices to manage congestion, delay, jitter, packet loss, bandwidth allocation, etc., for different types of traffic3. QoS can be implemented at various layers of the network stack and across different network domains. References: 3 https://www.cisco.com/c/en/us/td/docs/ios-xml/ios/qos/configuration/15-mt/qos-15-mt-book/qos-overview.html

The default management role that should have been assigned for the user is B. operators.

The operators user role is a predefined role that allows users to view nonsensitive configuration information on the switch, such as interfaces, VLANs, routing protocols, statistics, and more. The operators user role has a privilege level of 1, which is the lowest level of access on the switch1.

The administrators user role is a predefined role that has full access to all switch configuration information and all REST API methods. This role is more than what the Director of Security requires1.

These are two correct statements regarding OSPFv2 route redistribution for Aruba OS CX switches. Route redistribution is a process that allows routes from one routing protocol or source to be injected into another routing protocol or destination. OSPFv2 is a link-state routing protocol that supports route redistribution from various sources, such as connected, static, BGP, etc. The “redistribute connected” command will redistribute all connected routes for the switch, including local loopback addresses, into OSPFv2. The “redistribute static route-map connected-routes” command will redistribute all static routes that have a matching permit statement in the route map named “connected-routes” into OSPFv2. The other statements are incorrect because they either do not reflect the correct behavior of route redistribution commands or do not exist as valid commands. References: https://www.arubanetworks.com/techdocs/AOS-CX/10.04/HTML/5200-6728/bk01-ch02.html https://www.arubanetworks.com/techdocs/AOS-CX/10.04/HTML/5200-6728/bk01-ch03.html

The best option to enhance security for the new IP cameras and scanners in this environment is C. MPSK provides for each device in the WLAN to have its own unique pre-shared key.

MPSK stands for Multi Pre-Shared Key, and it is a feature that allows different devices to connect to the same SSID with different pre-shared keys. This improves the security and scalability of the network, as each device can have its own key and role without requiring 802.1X authentication or an external policy engine. MPSK can be configured either locally on the AP or centrally on Aruba Central12.

The other options are incorrect because:

A. MPSK Local is a feature that allows the user to configure 24 PSKs per SSID locally on the device. These local PSKs would serve as an extension of the base MPSK functionality. However, MPSK Local is not suitable for this scenario, as it can only support up to 24 devices per SSID, while the client has 250 devices1.

B. Aruba ClearPass is a network access control solution that can perform 802.1X authentication and install certificates for devices. However, this option is not feasible for this scenario, as the new IP cameras and scanners do not support 802.1X authentication3.

D. MPSK Local will not allow the cameras to share a key and the scanners to share a different key. MPSK Local will assign a different key to each device, regardless of their type. Moreover, MPSK Local can only support up to 24 devices per SSID, while the client has 250 devices1.

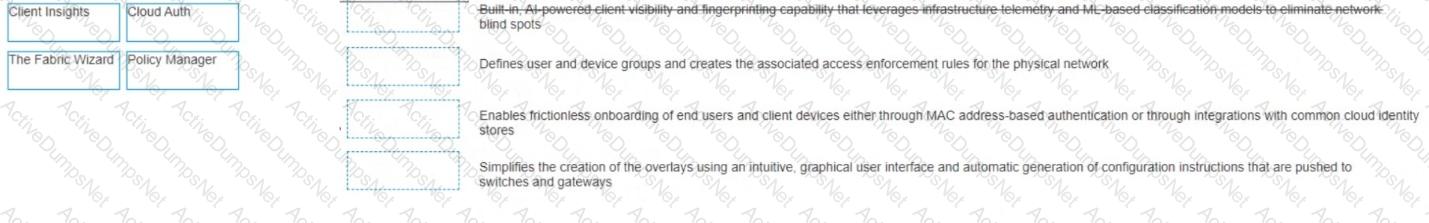

 Aruba Installer App is a mobile app that simplifies site installations and enables network connectivity for Aruba devices. The app allows the user to scan the barcode of the device and add it to the network using Aruba Central. The app also automates importing Aruba devices into Aruba NetEdit for intelligent configuration management and continuous conformance validation

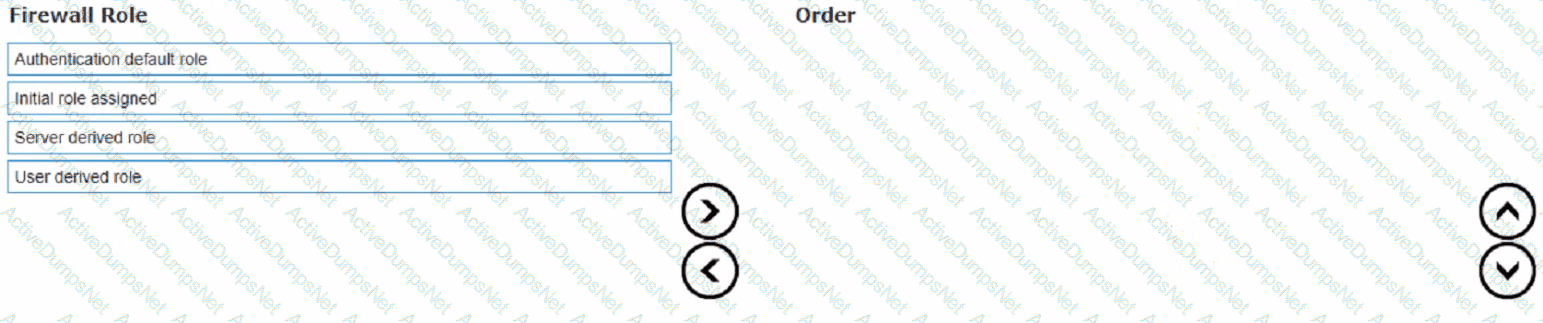

According to the Aruba Documentation Portal1, the firewall role derivation flow in the correct order is:

Server derived role

User derived role

Authentication default role

Initiation role assigned

MPSK Local is a feature that can reduce the IT administration overhead associated with deploying devices that do not support 802.1X authentication while maintaining a secure environment. MPSK Local allows the switch to automatically generate and assign unique pre-shared keys for devices based on their MAC addresses, without requiring any configuration on the devices or an external authentication server. The other options are incorrect because they either require manual intervention by the installers or the MPSK gateway, or they do not provide unique pre-shared keys for devices. References: https://www.arubanetworks.com/techdocs/AOS-CX_10_08/UG/bk01-ch05.html https://www.arubanetworks.com/techdocs/AOS-CX_10_08/UG/bk01-ch06.html

Multi-Domain Authentication is the feature that should be enabled to support the requirement that the switch must be able to authenticate a single computer connected through a VoIP phone. Multi-Domain Authentication is a feature that allows an Aruba CX switch to apply different authentication methods and policies to different devices connected to the same port. For example, a VoIP phone and a computer can be connected to the same port using a single cable, but they can be authenticated separately using different credentials and assigned to different VLANs. The other options are incorrect because they either do not support multiple devices on the same port or do not provide authentication. References: https://www.arubanetworks.com/techdocs/AOS-CX/10.05/HTML/5200-7540/GUID-7D9E9F6E-5C2A-4F7E-BE6D-A2C3A6C7B9F9.html https://www.arubanetworks.com/assets/tg/TB_ArubaCX_Switching.pdf

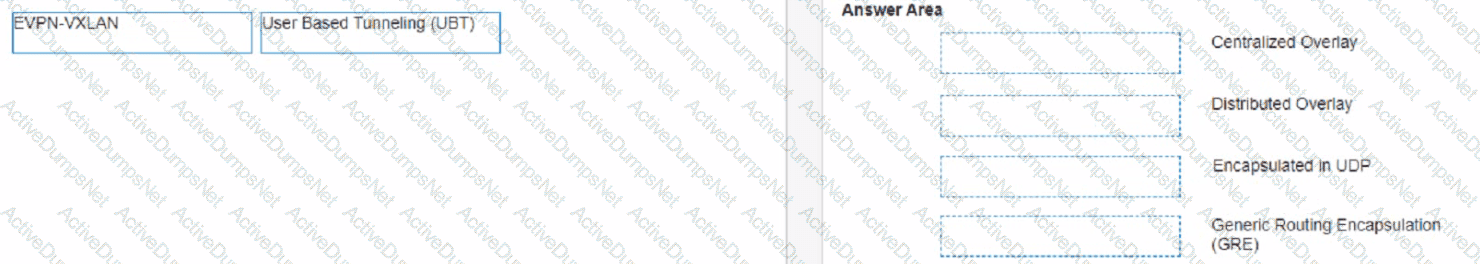

According to the Aruba Documentation Portal1, user-based tunneling (UBT) is a feature that uses GRE to tunnel ingress traffic on a switch interface to a gateway for further processing. UBT enables a switch to provide a centralized security policy, using per-user authentication and access control to ensure consistent access and permissions.

Option A: The switch will put the client on the access VLAN

This is because option A shows how UBT works on an Aruba switch. When a device connects to the network, it is authenticated using either MAC Authentication or 802.1X and triggers an enforcement policy from ClearPass, which contains an enforcement profile with a user role configuration. The user role can be assigned locally on the switch or on ClearPass as part of an enforcement profile. The user role determines the VLAN that the device belongs to and the access policies that apply to it23.

Therefore, option A is correct.

1: https://www.arubanetworks.com/techdocs/central/latest/content/nms/aos-cx/cfg/conf-cx-ubt.htm  2: https://www.arubanetworks.com/techdocs/AOS-CX/10.06/HTML/5200-7696/GUID-581D2976-694B-46C7-8497-F6B788AA05B2.html  3: https://community.arubanetworks.com/viewdocument/?DocumentKey=c740df4e-3e26-4cc5-9126-355a18709c44 &CommunityKey=2fd943a6-8898-4dbe-915f-4f09e4d3c317&tab=librarydocuments

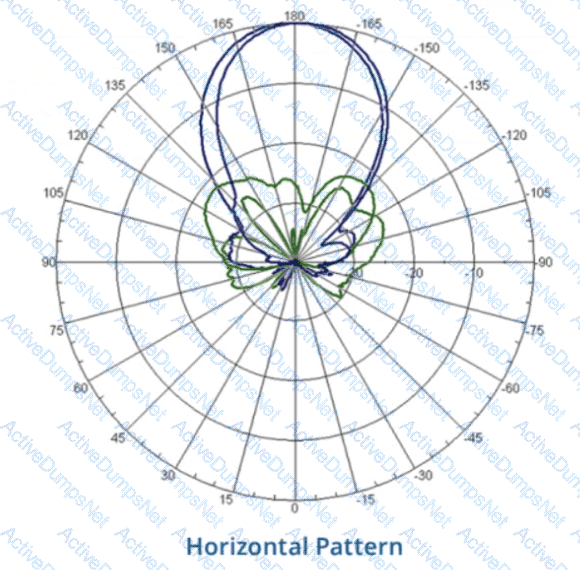

The Equivalent Isotropic Radiated Power (EIRP) is the measured radiated power of an antenna in a specific direction. It is also called Equivalent Isotropic Radiated Power. It is the output power when a signal is concentrated into a smaller area by the Antenna. The EIRP can take into account the losses in transmission line, connectors and includes the gain of the antenna. It is represented in dB2. The formula for EIRP is:

EIRP=PT−Lc+Ga

where PT is the output power of the transmitter in dBm, Lc is the cable and connector loss in dB, and Ga is the antenna gain in dBi.

For AP1, the EIRP can be calculated as:

EIRP=16−4+8=20 dBm

Therefore, the answer B is correct.

This is the correct explanation of how roles can help keep consistent policy enforcement in a distributed overlay fabric. Roles are used to assign group based policy IDs (GBPs) to devices after they authenticate with ClearPass or a local database. GBPs are then used to tag the traffic from the devices and send them to the ingress VTEP, which applies the GBP on the VXLAN header. The egress VTEP then enforces the policy based on the GBP and the destination device. The other options are incorrect because they either do not describe the correct sequence of events or do not use the correct terms. References: https://www.arubanetworks.com/techdocs/AOS-CX/10.04/HTML/5200-6728/bk01-ch03.html https://www.arubanetworks.com/techdocs/AOS-CX/10.04/HTML/5200-6728/bk01-ch05.html

MPSK Local is a feature that can be used to set up 15 headless IoT devices that do not support 802.1X authentication. MPSK Local allows the switch to automatically generate and assign unique pre-shared keys for devices based on their MAC addresses, without requiring any configuration on the devices or an external authentication server. The other options are incorrect because they either require 802.1X authentication, which is not supported by the IoT devices, or WPA3 encryption, which is not supported by Aruba CX switches. References: https://www.arubanetworks.com/techdocs/AOS-CX/10.04/HTML/5200-6728/bk01-ch05.html https://www.arubanetworks.com/techdocs/AOS-CX/10.04/HTML/5200-6728/bk01-ch06.html

The correct answer is C. Create a new SVI and use attach command.

To create a new SVI for a separate routing table, you need to use the attach command to associate the SVI with a VRF (Virtual Routing and Forwarding) instance. A VRF is a logical entity that allows multiple routing tables to coexist on the same switch. Each VRF has its own set of interfaces, routing protocols, and routes that are isolated from other VRFs.

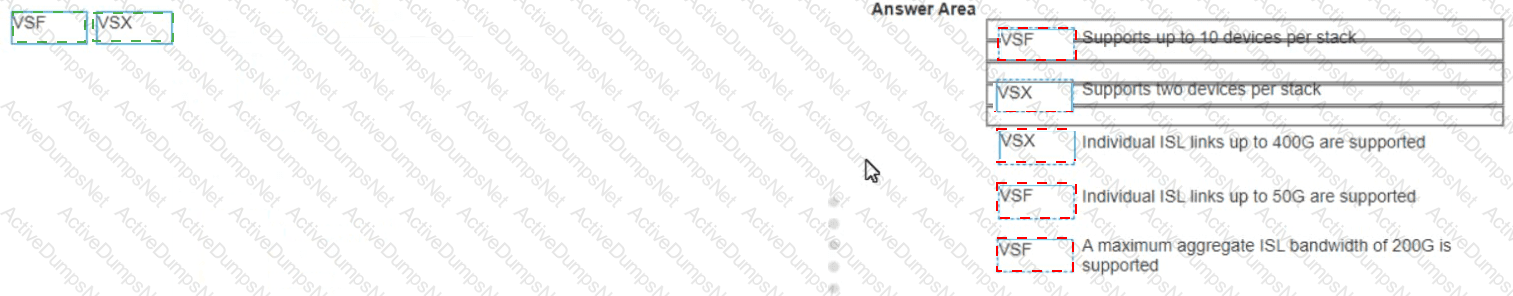

According to the AOS-CX Virtual Switching Framework (VSF) Guide1, one of the steps to configure VRF-aware VSF is:

Configure the VRFs on each member switch and assign the SVIs to the respective VRFs using the attach command. For example:

switch(config)# vrf red

switch(config-vrf)# exit

switch(config)# interface vlan 10

switch(config-if-vlan)# ip address 10.1.1.1/24

switch(config-if-vlan)# attach vrf red

The above commands create a VRF named red and assign VLAN 10 SVI to it. The SVI has an IP address of 10.1.1.1/24.

The other options are incorrect because:

A. You cannot attach a VRF to a VLAN directly. You need to create an SVI for the VLAN and then attach the VRF to the SVI.

B. You cannot create a new routing table manually. You need to create a VRF and then use routing protocols or static routes to populate the routing table for the VRF.

D. You cannot attach a routing table to a VLAN directly. You need to create an SVI for the VLAN and then attach a VRF that has a routing table associated with it.

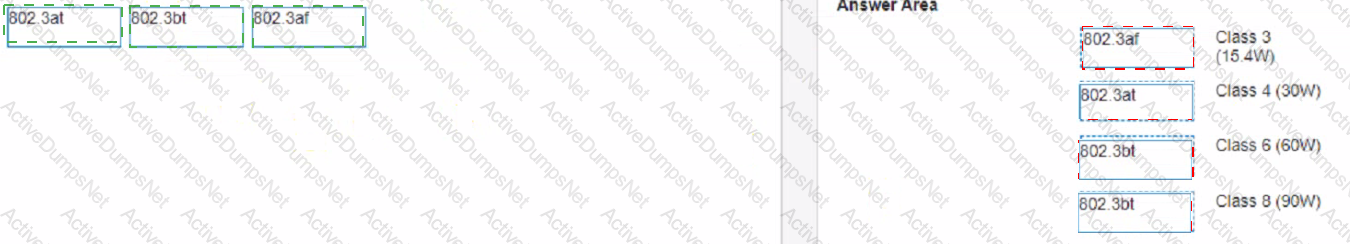

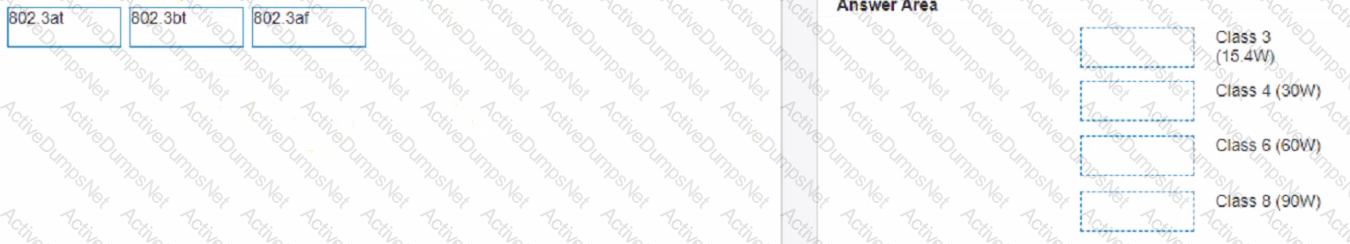

According to the Aruba Documentation Portal1, the Aruba 6300 CX switches support various features to control the PoE devices on specific ports, such as device profiles and classifier policies. These features can help reduce the power consumption and improve the performance of the PoE devices.

1: https://www.arubanetworks.com/techdocs/AOS-CX/10.10/HTML/monitoring_6300-6400/Content/Chp_LEDs/fro-pan-led-630.htm  2: https://www.arubanetworks.com/products/switches/6300-series/  3: https://docs.samsungknox.com/admin/knox-manage/configure/profile/configure-profile-policies/configure-profile-policies-by-device-platform/

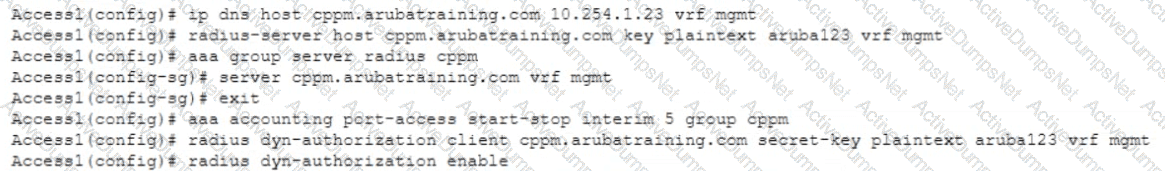

Change of Authorization (CoA) is a feature that allows ClearPass Policy Manager (CPPM) to send messages to network devices such as switches to change the authorization state of a user session. CoA requires that both CPPM and the network device support this feature and have it enabled. For AOS-CX switches, CoA must be globally enabled using the command radius-server coa enable. If CoA is not enabled on the switch, the disconnect CoA message from CPPM will be ignored and the user session will not be terminated. References: https://www.arubanetworks.com/techdocs/ClearPass/6.7/PolicyManager/index.htm#CPPM_UserGuide/Admin/ChangeOfAuthorization.htm https://techhub.hpe.com/eginfolib/Aruba/OS-CX_10.04/5200-6692/GUID-9B8F6E8F-9C7A-4F0D-AE7B-9D8E6C5B6A7F.html

These are the correct statements regarding the ERSPAN session that needs to be established on an AOS-CX switch for a network administrator to examine the packets over a period of time from their desktop. ERSPAN (Encapsulated Remote Switched Port Analyzer) is a feature that allows an AOS-CX switch to mirror traffic from one or more source ports or VLANs to a remote destination IP address over a GRE (Generic Routing Encapsulation) tunnel. The destination IP address must be the IP address of the administrator’s desktop, which must have a packet capture tool installed to receive and analyze the mirrored traffic. The encapsulation protocol used for ERSPAN is GRE, which adds a header to the mirrored packets with information such as source and destination IP addresses, session ID, etc. The other statements are incorrect because they either do not specify the correct destination IP address or do not use ERSPAN or GRE. References: https://www.arubanetworks.com/techdocs/AOS-CX/10.04/HTML/5200-6728/bk01-ch02.html https://www.arubanetworks.com/techdocs/AOS-CX/10.04/HTML/5200-6728/bk01-ch03.html

The calculated Equivalent Isotropic Radiated Power (EIRP) for AP1 is 17 dBm.

EIRP is the measured radiated power of an antenna in a specific direction. It is equal to the input power to the antenna multiplied by the gain of the antenna. It can also take into account the losses in transmission line, connectors, and other components. The formula for EIRP is:

EIRP = P + G - L

where P is the output power of the radio, G is the gain of the antenna, and L is the loss of the cable and connectors.

For AP1, we have:

P = 10 dBm G = 9 dBi L = 2 dB

Therefore,

EIRP = 10 + 9 - 2 EIRP = 17 dBm

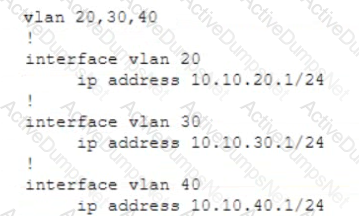

The other options either use more commands or do not create the VRF or the VLAN.

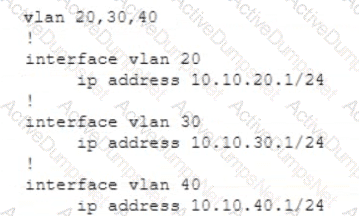

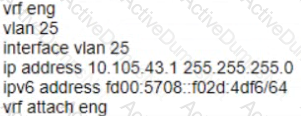

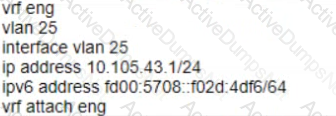

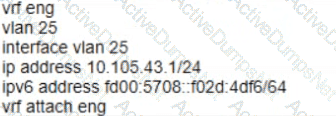

Option C uses the following commands:

vrf eng: This command creates a VRF named eng and enters the VRF configuration mode1.

vlan 25: This command creates a VLAN with ID 25 and enters the VLAN configuration mode2.

interface vlan 25: This command creates an SVI on VLAN 25 and enters the interface configuration mode3.

ip address 10.105.43.1/24 ipv6 address fd00:5780::102d:4df6/64 vrf attach eng: This command assigns an IPv4 address of 10.105.43.1 with a subnet mask of 255.255.255.0 and an IPv6 address of fd00:5780::102d:4df6 with a prefix length of 64 to the SVI, and attaches it to the VRF eng.

OCSP is a protocol that allows clients to query the CA or a trusted responder for the status of a specific certificate. OCSP requests and responses are smaller and faster than CRLs, and they can provide real-time information about the revocation status of a certificate12. CRLs are lists of all revoked certificates that are downloaded from the CA. CRLs can present issues, as they can become outdated and have to be downloaded frequently13. Therefore, OCSP reduces latency between the time a certificate is revoked and validation reflects this status. References: 1 https://sectigostore.com/blog/ocsp-vs-crl-whats-the-difference/  2 https://www.keyfactor.com/blog/what-is-a-certificate-revocation-list-crl-vs-ocsp/  3 https://www.fortinet.com/resources/cyberglossary/ocsp

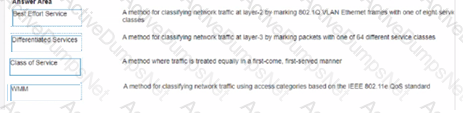

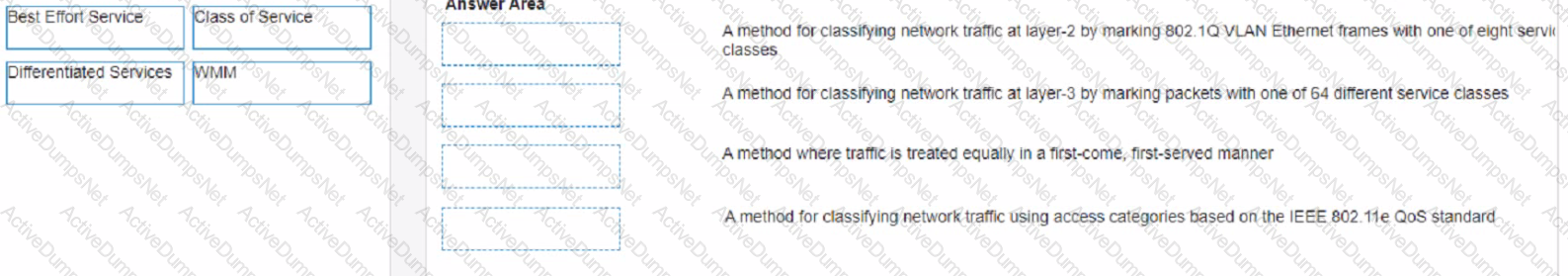

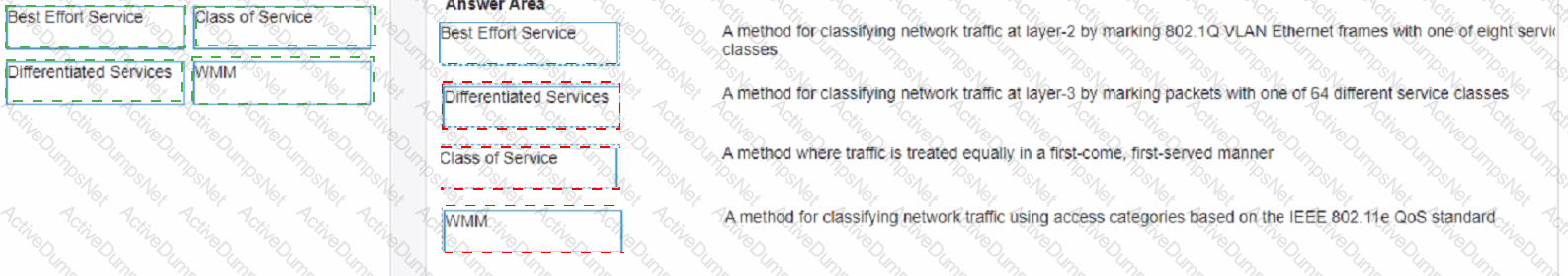

CoS and DSCP are both methods of marking packets for quality of service (QoS) purposes. QoS is a mechanism that allows network devices to prioritize and differentiate traffic based on certain criteria, such as application type, source, destination, etc. CoS stands for Class of Service and is a 3-bit field in the 802.1Q VLAN tag header. CoS can only be used on Ethernet frames that have a VLAN tag, and it can only be preserved within a single VLAN domain. DSCP stands for Differentiated Services Code Point and is a 6-bit field in the IP header. DSCP can be used on any IP packet, regardless of the underlying layer 2 technology, and it can be preserved throughout the IP packet flow, unless it is modified by intermediate devices. References: https://www.cisco.com/c/en/us/td/docs/ios-xml/ios/qos/configuration/15-mt/qos-15-mt-book/qos-overview.html https://www.cisco.com/c/en/us/support/docs/lan-switching/8021q/17056-741-4.html https://www.cisco.com/c/en/us/support/docs/quality-of-service-qos/qos-packet-marking/10103-dscpvalues.html

VXLAN is a technology that can be used to meet the requirement of using a legacy application that communicates at layer-2 across a layer-3 network. Static VXLAN is a feature that allows the creation of layer-2 overlay networks over a layer-3 underlay network using VXLAN tunnels. Static VXLAN does not require any control plane protocol or VTEP discovery mechanism, and can be configured manually on the Aruba CX 6200 switches. The other options are incorrect because they either do not support layer-2 communication over layer-3 network or are not supported by Aruba CX 6200 switches. References: https://www.arubanetworks.com/techdocs/AOS-CX/10.04/HTML/5200-6728/bk01-ch03.html https://www.arubanetworks.com/techdocs/AOS-CX/10.04/HTML/5200-6728/bk01-ch05.html
