Aruba Central supports site-to-site VPNs between AOS 10 gateways, which are Aruba devices that provide routing, firewall, and VPN functions. Aruba Central can automatically provision and manage the site-to-site VPNs using the VPN Manager feature. The VPN Manager allows you to create VPN groups that consist of one or more hubs and branches, and define the VPN settings for each group1

Aruba Central uses IPsec as the protocol to secure the site-to-site connections between the AOS 10 gateways. IPsec is a standard protocol that provides encryption, authentication, and integrity for IP packets. Aruba Central automatically establishes IPsec tunnels for all site-to-site connections using keys that are securely distributed by Central. The keys are generated by Central and pushed to the gateways using a secure channel. The keys are rotated periodically to enhance security2

BPDU (Bridge Protocol Data Unit) is a message that is exchanged between switches to maintain the spanning tree topology and prevent loops. BPDU protection and BPDU filtering are two features that can be configured on AOS-CX switch ports to enhance security and performance.

BPDU protection is a feature that disables a port if it receives a BPDU, indicating that an unauthorized switch or device has been connected to the port. BPDU protection is typically used on edge ports, which are ports that connect to end devices such as PCs or printers, and are not expected to receive BPDUs. BPDU protection prevents rogue devices from connecting to the network and affecting the spanning tree topology.

BPDU filtering is a feature that prevents a port from sending or receiving BPDUs, effectively isolating the port from the spanning tree topology. BPDU filtering is typically used on inter-switch ports, which are ports that connect to other switches, for specialized use cases such as creating a separate spanning tree domain or reducing the overhead of BPDUs. BPDU filtering should be used with caution, as it can create loops or inconsistencies in the network.

You can find more information about how to configure BPDU protection and BPDU filtering on AOS-CX switch ports in the [Configuring Spanning Tree Protocol - Aruba] page and the [AOS-CX Switching Configuration Guide] page. The other options are not correct because they either use BPDU protection or BPDU filtering on the wrong type of ports or for the wrong purpose. For example, using BPDU protection on inter-switch ports would disable the ports if they receive BPDUs, which are expected in normal operation. Using BPDU filtering on edge ports would allow rogue devices to connect to the network and create loops or affect the spanning tree topology.

The exhibit shows a screenshot of a certificate that has the following information:

• The subject common name (CN) is *.clearpass.local, which is a wildcard domain name that matches any subdomain under clearpass.local.
• The subject alternative names (SANs) are DNS Name=clearpass.local and DNS Name=*.clearpass.local, which are the same as the subject CN.
• The issuer CN is clearpass.local, which is the same as the subject domain name.
• The key usage (KU) is Digital Signature and Key Encipherment, which are required for RADIUS/EAP and RadSec usages.
• The extended key usage (EKU) is Server Authentication and Client Authentication, which are also required for RADIUS/EAP and RadSec usages.

The issue with this certificate is that it uses a fully qualified the ‘.local’ domain name, which is a reserved domain name for local networks that cannot be registered on the public Internet. This means that the certificate cannot be verified by any public certificate authority (CA), and therefore cannot be trusted by any external devices or servers that communicate with ClearPass. This could cause problems for RADIUS/EAP and RadSec usages, as they rely on secure and authenticated connections between ClearPass and other devices or servers.

To avoid this issue, the certificate should use a valid domain name that can be registered on the public Internet, such as clearpass.com or clearpass.net. This way, the certificate can be issued by a public CA that is trusted by most devices and servers, and can be verified by them. Alternatively, if the certificate is intended to be used only within a private network, it should be issued by a private CA that is trusted by all devices and servers within that network.

The correct answer is D. Enabling alerts and email notifications for events related to gateway IPS engine utilization and errors.

Gateway IDS/IPS is a feature that allows the Aruba gateways to monitor and block malicious or unwanted traffic based on predefined or custom rules 1. The Fail Strategy is a setting that determines how the gateways handle traffic when the IPS engine fails or crashes 2. The Block option means that the gateways will stop forwarding traffic until the IPS engine recovers, while the Bypass option means that the gateways will continue forwarding traffic without inspection 2.

The Block option provides more security, but it also increases the risk of network outages if the IPS engine fails frequently or for a long time 2. To minimize this risk, it is recommended to enable alerts and email notifications for events related to gateway IPS engine utilization and errors 3. This way, the network administrators can be informed of any issues with the IPS engine and take appropriate actions to restore or troubleshoot it 3.

The other options are not correct or relevant for this issue:

• Option A is not correct because configuring a relatively high threshold for the gateway threat count alerts would not help minimize unexpected outages caused by using the Block option. The gateway threat count alerts are used to notify the network administrators of the number of threats detected by the IPS engine, but they do not affect how the gateways handle traffic when the IPS engine fails 4.
• Option B is not correct because making sure that the gateways have formed a cluster and operate in default gateway mode would not help minimize unexpected outages caused by using the Block option. The gateway cluster mode is used to provide high availability and load balancing for the gateways, but it does not affect how the gateways handle traffic when the IPS engine fails . The default gateway mode is used to enable routing and NAT functions on the gateways, but it does not affect how the gateways handle traffic when the IPS engine fails .
• Option C is not correct because setting the IDS or IPS policy to the least restrictive option, Lenient, would not help minimize unexpected outages caused by using the Block option. The IDS or IPS policy is used to define what rules are applied by the IPS engine to inspect and block traffic, but it does not affect how the gateways handle traffic when the IPS engine fails 2. The Lenient option contains fewer and older rules than the Moderate or Strict options, which means that it provides less security and more false negatives .

 This is because this URI specifies the exact attribute that contains the number of access rejects from the RADIUS server, which is the information that the NAE script needs to monitor and trigger an alert.

A. /rest/v1/system/vrfs/mgmt/radius/servers/cp.acnsxtest.local/2083/tcp?attributes=authstatistics. This is not the correct URI because it returns the entire authstatistics object, which contains more information than the access rejects, such as access accepts, challenges, timeouts, etc. This might make the NAE script more complex and inefficient to parse and process the data.

B. /rest/v1/system/vrfs/mgmt/radius/servers/cp.acnsxtest.local/2083/tcp?attributes=authstatistics?attributes=access_rejects. This is not a valid URI because it has two question marks, which is a syntax error. The question mark is used to indicate the start of the query string, which can have one or more parameters separated by ampersands. The correct way to specify multiple attributes is to use a comma-separated list after the question mark, such as ?attributes=attr1,attr2,attr3.

C. /rest/v1/system/vrfs/mgmt/radius/_servers/cp.acnsxtest.local/2083/tcp. This is not a valid URI because it has an extra underscore before servers, which is a typo. The correct resource name is servers, not _servers. Moreover, this URI does not specify any attributes, which means it will return the default attributes of the RADIUS server object, such as name, port, protocol, etc., but not the authstatistics or access_rejects.

7of30

The RAPIDS Security Dashboard is a feature of Aruba Central that provides a comprehensive view of the network security status, including IDS/IPS events, rogue APs, and wireless intrusion detection. By viewing the RAPIDS Security Dashboard, you can see if the threat sources are rogue APs that are spoofing legitimate DNS servers or clients. This can give you valuable context about the incident and help you identify the root cause of the attack1

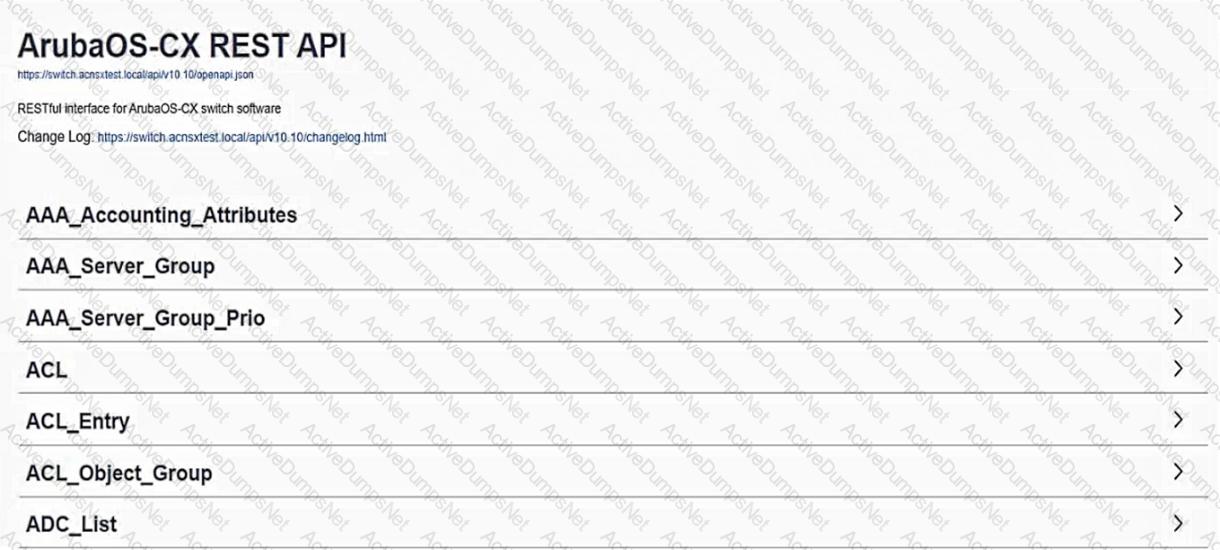

The exhibit shows the ArubaOS-CX REST API documentation interface, which allows you to explore the available resources and try out the API calls using the “Try it out” button. However, before you can use this feature, you need to authenticate yourself with your Aruba passport account and collect a token that will be used for subsequent requests. This token will expire after a certain time, so you need to refresh it periodically. You can find more details about how to use the documentation interface and collect a token in the ArubaOS-CX REST API Guide1.

According to the Aruba Cloud Authentication and Policy Overview1, Device Insight tags are stored in the Endpoint Repository and can be used as conditions within CPPM role mapping or enforcement policy rules. The rule condition type should be Endpoint, and the attribute should be Device Insight Tags. No extra authorization source is required for services that use policies with these rules. Therefore, option D is the correct answer.

Option A is incorrect because creating an HTTP authentication source to the Central API is not necessary to use Device Insight tags as conditions. Device Insight tags are already synchronized between Central and CPPM, and can be accessed from the Endpoint Repository.

Option B is incorrect because using the Application type for the rule conditions is not applicable to Device Insight tags. The Application type is used to match attributes from the Application Authentication source, which is used to integrate with third-party applications such as Microsoft Intune or Google G Suite.

Option C is incorrect because using the Endpoints Repository type for the rule conditions is not valid for Device Insight tags. The Endpoints Repository type is used to match attributes from the Endpoints Repository source, which is different from the Endpoint type. The Endpoints Repository source contains information about endpoints that are manually added or imported into CPPM, while the Endpoint type contains information about endpoints that are dynamically discovered and profiled by CPPM or Device Insight. Adding Endpoints Repository as a secondary authentication source for services that use policies with these rules is also unnecessary and redundant.

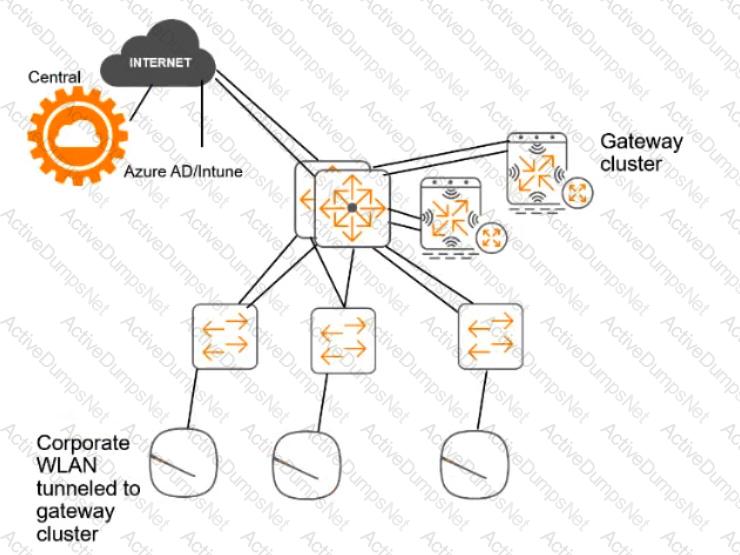

The UBT solution requires that the edge ports on the switches are configured in VLAN trunk mode, not access mode. This is because the UBT solution uses a special VLAN (VLAN 4095 by default) to encapsulate the user traffic and tunnel it to the gateway. The edge ports need to allow this VLAN as well as any other VLANs that are used for management or control traffic. Therefore, the edge ports should be configured as VLAN trunk ports and allow the necessary VLANs1

EAP (Extensible Authentication Protocol) is a framework that allows different authentication methods to be used for network access. EAP is used for RADIUS/EAP authentication, which is a common method for authenticating domain users on domain computers using certificates. EAP requires that the RADIUS server, such as ClearPass Policy Manager (CPPM), validates the certificates presented by the clients and verifies their identity against an identity source, such as Windows AD. Therefore, the root certificate for the Windows CA that issues the certificates to the clients should have the EAP usage in the ClearPass CA Trust list.

Radsec (RADIUS over TLS) is a protocol that allows secure and encrypted communication between RADIUS servers and clients using TLS. Radsec is used for encrypting all communications between CPPM and the domain controllers, which act as RADIUS clients. Radsec requires that both the RADIUS server and the RADIUS client validate each other’s certificates and establish a TLS session. Therefore, the root certificate for the Windows CA that issues the certificates to the domain controllers should have the Radsec usage in the ClearPass CA Trust list.

This is because ARP inspection is a security feature that validates ARP packets in a network and prevents ARP poisoning attacks12 ARP inspection works by intercepting, logging, and discarding ARP packets with invalid IP-to-MAC address bindings1 To enable ARP inspection, the switch needs to know which ports are trusted and which are untrusted. Trusted ports are those that connect to authorized DHCP servers or other network devices that are not vulnerable to ARP spoofing. Untrusted ports are those that connect to end hosts or devices that might send forged ARP packets13

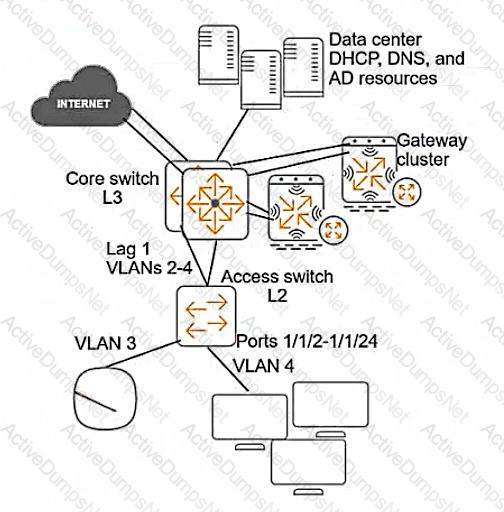

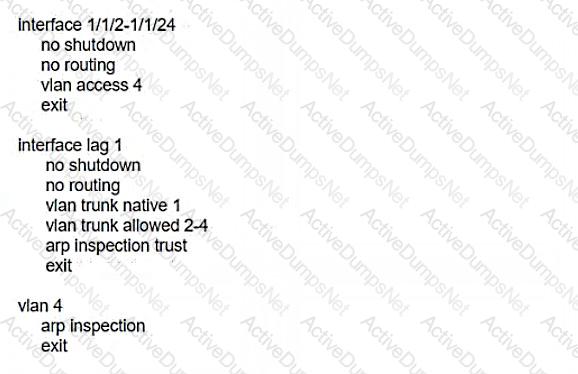

In the exhibit, LAG 1 is configured as a trusted port for ARP inspection, which is correct because it connects to the core switch. However, the edge ports (1/1/1-1/1/24) are not configured as untrusted ports for ARP inspection, which is incorrect because they connect to end hosts that might be compromised by an attacker. By default, all ports are untrusted for ARP inspection, but this can be changed by using the command ip arp inspection trust on the interface configuration mode3 Therefore, to protect VLAN 4 against ARP poisoning, the edge ports should be configured as untrusted for ARP inspection by using the command no ip arp inspection trust on the interface configuration mode. This way, the switch will validate the ARP packets received on these ports against the DHCP snooping database or an ARP access-list and drop any invalid packets34

A. ARP proxy is not enabled on VLAN 4. This is not an issue because ARP proxy is an optional feature that allows the switch to respond to ARP requests on behalf of hosts in different subnets5 It is not related to ARP poisoning or ARP inspection.

B. LAG 1 is configured as trusted for ARP inspection but should be untrusted. This is not an issue because LAG 1 connects to the core switch, which is a trusted device that does not send forged ARP packets.

C. DHCP snooping is not enabled on VLAN 4. This is not an issue because DHCP snooping is a separate feature that prevents rogue DHCP servers from offering IP addresses to clients6 It is not directly related to ARP poisoning or ARP inspection, although it can provide information for ARP inspection validation if enabled

This is because the Live Events monitoring tool is a feature that allows you to view and filter real-time events and alerts from your network devices and clients on Aruba Central. You can use the Live Events monitoring tool to detect which IoT clients have used SSH by applying the following filters:

• Category: IoT
• Application: SSH

The Live Events monitoring tool will then display a list of all the IoT clients that have used SSH, along with other information such as their IP address, MAC address, hostname, SSID, AP name, etc. You can also export the list as a CSV file for further analysis or reporting.

A. Create and apply a Central client profile tag that selects the SSH application and the clients’ category. This is not the fastest way to find a list of all the IoT clients that have used SSH because creating and applying a client profile tag is a process that involves several steps and might take some time to take effect. A client profile tag is a feature that allows you to group and classify clients based on various criteria, such as device type, OS, category, application, etc. To create and apply a client profile tag that selects the SSH application and the clients’ category, you need to do the following:

• Navigate to Clients > Client Profile Tags on Aruba Central.
• Click Add Tag and enter a name and description for the tag.
• Click Add Rule and select Application as the attribute and SSH as the value.
• Click Add Rule again and select Category as the attribute and IoT as the value.
• Click Save to create the tag.
• Navigate to Clients > Client List on Aruba Central.
• Select the clients that you want to apply the tag to and click Assign Tag.
• Select the tag that you created and click Apply.

After applying the tag, you can then filter the client list by the tag name and see a list of all the IoT clients that have used SSH. However, this method might not be as fast or accurate as using the Live Events monitoring tool, as it depends on how often the client profile tags are updated and synchronized with Aruba Central.

B. Run a search for SSH traffic and loT client IDs in Aruba ClearPass Policy Manager’s (CPPM’s) accounting information. This is not the fastest way to find a list of all the IoT clients that have used SSH because running a search in CPPM’s accounting information is a process that involves accessing another system and querying a large amount of data. Accounting information is a feature that allows CPPM to collect and store data about network sessions, such as start time, end time, duration, bytes sent/received, etc. To run a search for SSH traffic and IoT client IDs in CPPM’s accounting information, you need to do the following:

• Log in to CPPM and navigate to Monitoring > Live Monitoring > Accounting.
• Click on Advanced Search and enter SSH as the value for Service Name.
• Click on Add Filter and enter IoT as the value for Endpoint Category.
• Click on Search to run the query.

The query will then return a list of all the network sessions that involved SSH traffic and IoT clients. However, this method might not be as fast or convenient as using the Live Events monitoring tool, as it requires logging in to another system and searching through a large amount of data that might not be relevant or current.

D. Use Central’s Gateway IDS/IPS Security Dashboard to search for SSH events and sources. This is not a valid way to find a list of all the IoT clients that have used SSH because the Gateway IDS/IPS Security Dashboard is a feature that only applies to wired network devices connected to Aruba gateways, not wireless devices connected to Aruba APs. The Gateway IDS/IPS Security Dashboard is a feature that allows you to monitor and manage security events and alerts from your wired network devices on Aruba Central. You can use the Gateway IDS/IPS Security Dashboard to search for security events related to SSH, such as brute force attacks or unauthorized access attempts, but not for normal SSH traffic from wireless IoT devices. Therefore, this method will not help you find a list of all the IoT clients that have used SSH.

According to the AOS 10 documentation1, WIDS is a feature that monitors the radio spectrum for the presence of unauthorized, rogue access points and the use of wireless attack tools. WIDS can be configured at different levels, such as low, medium, high, or custom. The higher the level, the more checks are enabled and the more alerts are generated. However, not all checks are equally relevant or indicative of real threats. Some checks may generate false positives or unnecessary alerts that can overwhelm the administrators and reduce the effectiveness of WIDS.

Therefore, one step that could be recommended to reduce the number of email notifications is to change the WIDS level to custom, and enable only the checks most likely to indicate real threats. This way, the administrators can fine-tune the WIDS settings to suit their network environment and security needs, and avoid getting flooded with irrelevant or redundant alerts. Option C is the correct answer.

Option A is incorrect because sending the email notifications directly to a specific folder and only checking the folder once a week is not a good practice for security management. This could lead to missing or ignoring important alerts that require immediate attention or action. Moreover, this does not solve the problem of getting too many emails in the first place.

Option B is incorrect because disabling email notifications for Rogue AP, but leaving the Infrastructure Attack Detected and Client Attack Detected notifications on, is not a sufficient solution. Rogue APs are unauthorized access points that can pose a serious security risk to the network, as they can be used to intercept or steal sensitive data, launch attacks, or compromise network performance. Therefore, disabling email notifications for Rogue APs could result in missing critical alerts that need to be addressed.

Option D is incorrect because disabling just the Rogue AP and Client Attack Detected alerts, as they overlap with the Infrastructure Attack Detected alert, is not a valid assumption. The Infrastructure Attack Detected alert covers a broad range of attacks that target the network infrastructure, such as deauthentication attacks, spoofing attacks, denial-of-service attacks, etc. The Rogue AP and Client Attack Detected alerts are more specific and focus on detecting and classifying rogue devices and clients that may be involved in such attacks. Therefore, disabling these alerts could result in losing valuable information about the source and nature of the attacks.

 This is because an Endpoint Context Server (ECS) is a feature that allows ClearPass to receive contextual information from external sources, such as Aruba Central, and use it for policy enforcement and reporting. An ECS can be configured to point to the Aruba Central API and fetch data such as device type, category, OS, applications, traffic flows, etc.

An ECS can be used to communicate the information that an IoT client has used SSH to Aruba ClearPass Policy Manager (CPPM). The ECS can query the Aruba Central API and retrieve the network traffic flows of the wireless IoT devices that are categorized as “Raspberry Pi” clients. The ECS can then filter the traffic flows by the SSH protocol and send the relevant information to CPPM. CPPM can then use this information for policy decisions, such as allowing or denying SSH access, or triggering alerts or actions.

B. On CPPM enable Device Insight integration. This is not a valid step because Device Insight is a feature that allows ClearPass to discover, profile, and fingerprint devices on the network using deep packet inspection (DPI) and machine learning (ML). Device Insight does not communicate with Aruba Central or receive information from it. Moreover, Device Insight might not be able to detect SSH traffic on encrypted wireless IoT devices without decrypting it first.

C. On Central configure APs and gateways to use CPPM as the RADIUS accounting server. This is not a valid step because RADIUS accounting is a feature that allows network devices to send periodic updates about the status and activity of authenticated users or devices to a RADIUS server, such as CPPM. RADIUS accounting does not communicate with Aruba Central or receive information from it. Moreover, RADIUS accounting might not be able to capture SSH traffic on wireless IoT devices without inspecting it first.

D. On Central set up CPPM as a Webhook application. This is not a valid step because Webhook is a feature that allows Aruba Central to send notifications or events to external applications or services using HTTP requests. Webhook does not communicate with CPPM or send information to it. Moreover, Webhook might not be able to send SSH traffic information on wireless IoT devices without filtering it first.

The UBT solution requires that the VLAN assignments for the wired clients are done by the gateway, not by the switch. Therefore, the role configurations on the gateways should not have any VLAN assignments, as they would override the VLAN 20 that is specified in the enforcement profile. Instead, the role configurations should only have policies that define the access rights for the clients in the “eth-internet” role. This way, the gateway can assign the clients to VLAN 20 and apply the appropriate policies based on their role1
