HP HPE0-S60 Delta - HPE Compute Solutions Exam Practice Test

One of the key benefits of using HPE Composer 2 is its enhanced scalability. A pair of HPE Composer 2 modules can manage up to 42 frames, which is double the capacity managed by the previous generation HPE Composer (which manages up to 21 frames). This increased capacity allows for more efficient and large-scale management of HPE Synergy environments.

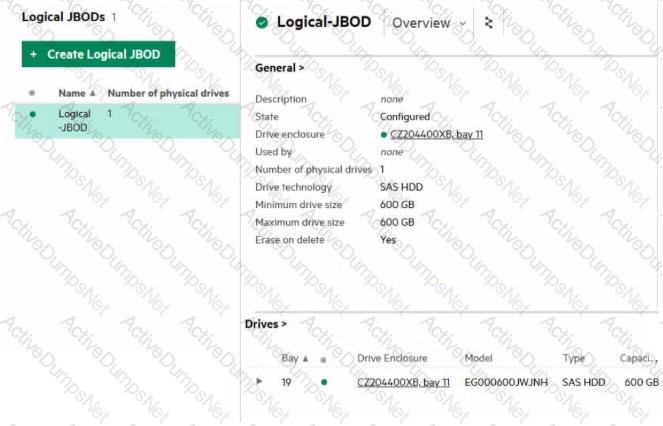

In HPE Synergy, logical JBODs (Just a Bunch of Disks) can be configured to be accessible by compute nodes across different frames. This flexibility allows for the logical JBOD to be presented to compute nodes that are not in the same frame as the storage module, facilitating better resource utilization and workload management.

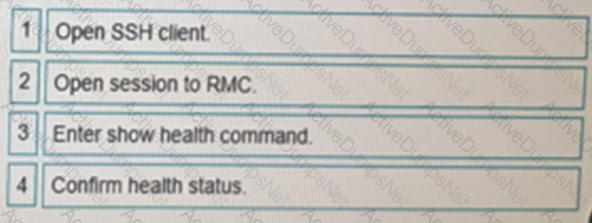

Open SSH client:Begin by opening an SSH client on your computer. This client will be used to establish a secure connection to the Rack Management Controller (RMC).

Open session to RMC:Use the SSH client to open a session to the RMC. The RMC is the central management component for the HPE Superdome Flex system.

Enter show health command:Once connected to the RMC, enter theshow healthcommand. This command will provide detailed information about the health status of various components within the Superdome Flex system.

Confirm health status:Review the output of theshow healthcommand to confirm the health status of the Superdome Flex components. This step ensures that all components are functioning correctly and identifies any potential issues.

Port flap protection is a feature of the HPE Virtual Connect SE 100Gb F32 Module for HPE Synergy that can be configured to disable ports experiencing frequent up and down transitions. This feature helps to stabilize the network by preventing the disruptive effects of port flapping.

When migrating an application from an HPE Synergy 480 Gen10 Compute Module to an HPE Synergy 660 Gen10 Compute Module, the recommended approach is to copy the server profile and assign the clone to the new hardware. This ensures that all the necessary configuration settings, including network and storage configurations, are retained and applied to the new compute module. Since the switch zoning is manually configured outside of HPE OneView, copying the server profile helps in maintaining consistency in the network settings during the migration.

When troubleshooting the deployment of HPE Synergy compute nodes using HPE OneView for VMware vCenter Server (HPE OV4VC), it's essential to verify that HPE OneView credentials are correctly added in the vCenter Server. Proper integration and authentication are necessary for HPE OV4VC to communicate and manage the compute nodes effectively.

A limitation when creating a server profile in HPE OneView is that it is not possible to create shared volumes on demand directly through a server profile. Server profiles in HPE OneView are used to define and manage the configuration of compute nodes, including network connections, BIOS settings, and boot order, but they do not have the capability to dynamically create or manage shared storage volumes.

When adding a new HPE Synergy frame to an existing logical enclosure, it is essential to stack the HPE Synergy Virtual Connect SE 32Gb FC Modules from both frames. Stacking these modules ensures consistent management and redundancy across the logical enclosure, providing seamless integration and optimal performance.

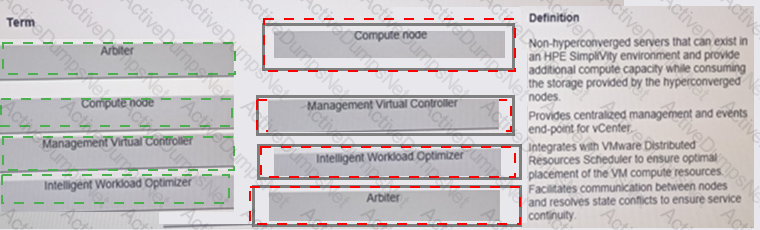

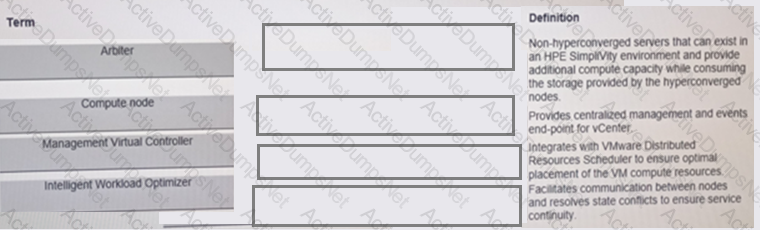

Here are the correct matches for each HPE SimpliVity term with their respective definitions:

ArbiterDefinition:Facilitates communication between nodes and resolves state conflicts to ensure service continuity.

Compute nodeDefinition:Non-hyperconverged servers that can exist in an HPE SimpliVity environment and provide additional compute capacity while consuming the storage provided by the hyperconverged nodes.

Management Virtual ControllerDefinition:Provides centralized management and events end-point for vCenter.

Intelligent Workload OptimizerDefinition:Integrates with VMware Distributed Resources Scheduler to ensure optimal placement of the VM compute resources.

Arbiter:This component is essential for ensuring that the HPE SimpliVity nodes communicate properly and that any state conflicts are resolved, which is critical for maintaining service continuity.

Compute node:These are non-hyperconverged servers that add additional compute capacity to the HPE SimpliVity environment. They utilize the storage resources provided by the hyperconverged nodes.

Management Virtual Controller:This controller is responsible for centralized management and acts as the events end-point for vCenter, allowing for streamlined management of the SimpliVity environment.

Intelligent Workload Optimizer:This tool integrates with VMware's Distributed Resources Scheduler (DRS) to ensure that virtual machine (VM) compute resources are placed optimally across the infrastructure.

A milestone release in HPE OneView refers to a version that includes significant architectural enhancements and updates. It serves as a prerequisite for subsequent updates, ensuring that the system is prepared for the next set of features and improvements. This type of release is essential for maintaining compatibility and stability as new hardware components and features are introduced.

A restriction of using a RoCE (RDMA over Converged Ethernet) network is that it does not support smart link and private network features. These features are essential for certain network configurations and use cases, but they are not available in RoCE networks, which are designed for high-performance, low-latency communication.

HPE Superdome Flex allows for the expansion of powered-on nPars (nPartitions), but this capability is subject to certain conditions. One of these conditions is that the nPar does not use HPE Persistent Memory. Expanding an nPar with Persistent Memory typically requires a shutdown to reconfigure the memory settings safely.

For HPE Virtual Connect Fibre Channel (VC FC) modules, utilization sampling is always enabled by default and cannot be disabled. This feature ensures continuous monitoring of the module's performance and utilization, providing valuable insights for managing the Fibre Channel network.

The HPE Storage Integration Pack for VMware vCenter is designed to provide management capabilities for HPE storage arrays within the VMware vCenter environment. However, it does not support MSA arrays. This means that while you can manage HPE Synergy Gen10 compute modules and HPE ProLiant Gen10 servers, the MSA array will not be manageable through the HPE Storage Integration Pack.

Manual orchestration during a firmware update allows administrators to control the update process more precisely. Specifically, it enables the selection and update of one side of the interconnect topology at a time. This capability is particularly useful in maintaining network availabilityand minimizing downtime during the update process, as one side can be updated and verified before proceeding to the other side.

To configure a RoCE (RDMA over Converged Ethernet) network for HPE J2000 Flash Enclosure support, you need interconnects that support high-bandwidth, low-latency Ethernet connections. The HPE Virtual Connect SE 40Gb F8 Module and the HPE Virtual Connect SE 100Gb F32 Module for HPE Synergy are suitable choices, as they provide the necessary capabilities for RoCE and lossless networking.

The HPE Superdome Flex 280 is the appropriate hardware platform for a customer requiring up to 24 TB of physical memory. This system is designed for high scalability and performance, supporting large memory configurations suitable for demanding applications and workloads.

When a logical interconnect group (LIG) that is used to configure logical interconnects in multiple logical enclosures is modified, all logical interconnects configured using this LIG will report inconsistency. This is because the configuration of the logical interconnects will no longer match the new settings defined in the modified LIG, and the inconsistencies must be resolved to ensure the configurations are synchronized.

HPE Synergy allows scaling of logical enclosures up to 5 frames. Given the current setup of three frames fully populated with HPE Synergy 480 Gen10 Plus modules and other specified components, the customer can add another frame to the existing logical enclosure. This flexibility in scaling ensures that the logical enclosure can be expanded without the need to create a new logical enclosure, provided that the necessary interconnect modules are in place.

The server hardware type in HPE OneView captures parameters such as the mezzanine card configuration. This information is crucial for defining the connectivity and expansion capabilities of the compute node, ensuring that the appropriate resources are available for specific workloads.

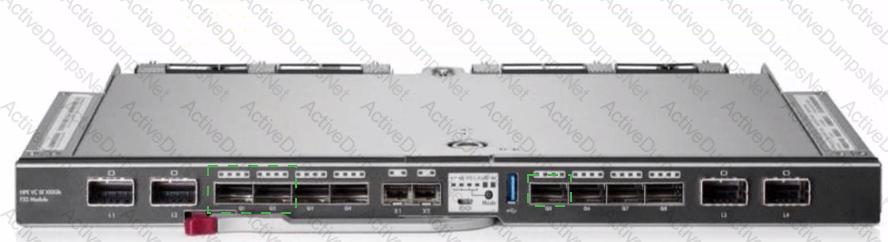

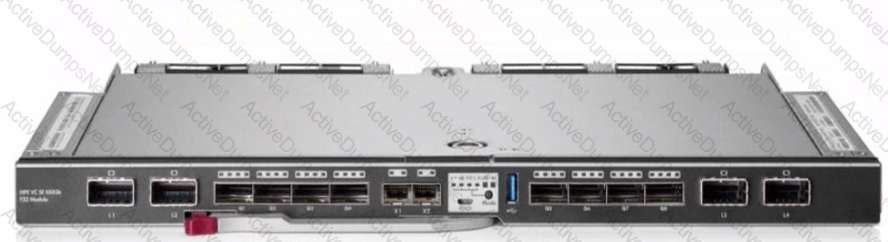

The QSFP+ ports (Q1 and Q2) on the HPE Virtual Connect SE 100Gb F32 Module for HPE Synergy can be used to connect satellite modules. These ports are designed to handle high-speed connectivity required for linking additional frames and expanding the Synergy infrastructure.

When compute nodes cannot access the D3940 Storage Module in an HPE Synergy environment, the first thing to check is whether a logical interconnect has been created based on the 12Gb SAS switches. Logical interconnects are essential for defining the connection and communication pathways between the compute nodes and the storage module. Without a proper logical interconnect configuration, the compute nodes will not be able to access the storage module.

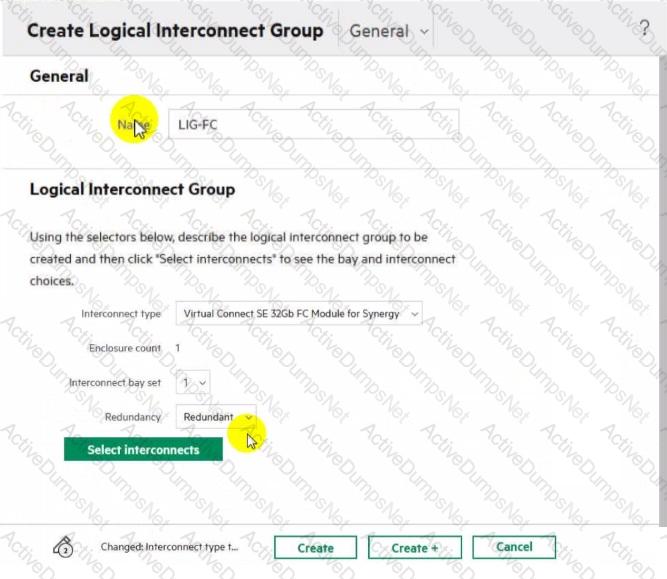

In the HPE Synergy setup shown in the exhibit, the interconnect type is Virtual Connect SE 32Gb FC Module for Synergy with an enclosure count of 1 and interconnect bay set 1. Typically, in such configurations, the interconnect modules are installed in bays 1 and 4 for redundancy. This placement ensures high availability and failover capabilities.
