Fortinet NSE8_812 Network Security Expert 8 Written Exam Exam Practice Test

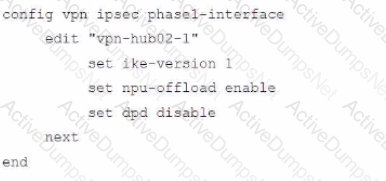

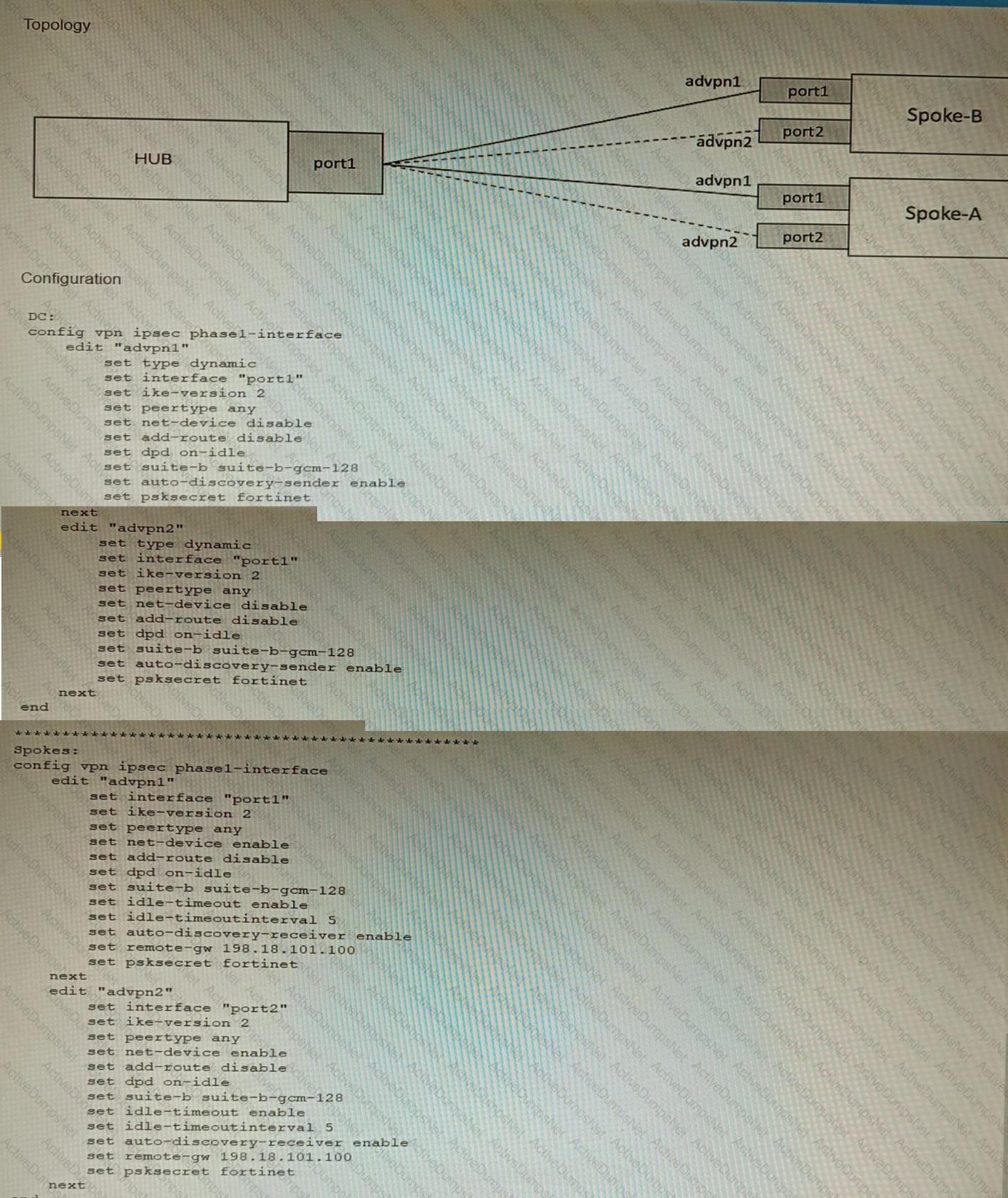

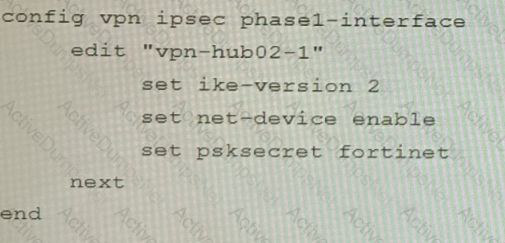

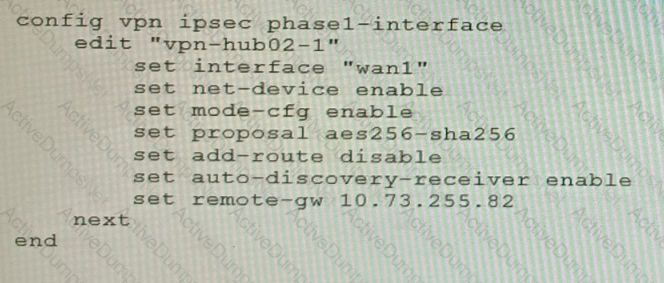

B must be set to enable mode-cfg, which is required for injecting IKE routes on the ADVPN shortcut tunnels.

D must be set to enable add-route, which is the command that actually injects the IKE routes.

E must be set to enable mode-cfg-allow-client-selector, which allows custom phase 2 selectors to be configured.

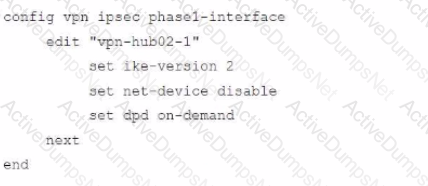

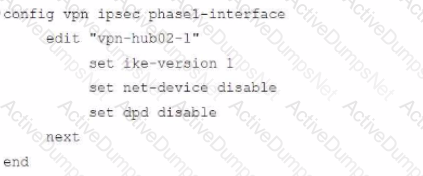

The other options are incorrect. Option A is incorrect because net-device disable is not required for injecting IKE routes on the ADVPN shortcut tunnels. Option C is incorrect because IKE version 1 is not supported for ADVPN.

References:

Phase 2 selectors and ADVPN shortcut tunnels | FortiGate / FortiOS 7.2.0

Configuring SD-WAN/ADVPN with FortiGate | FortiGate / FortiOS 7.2.0

https://help.fortinet.com/fddos/4-3-0/FortiDDoS/Built_in_bypass.htm

https://docs.fortinet.com/document/fortigate/7.4.0/administration-guide/489324/failover-protection

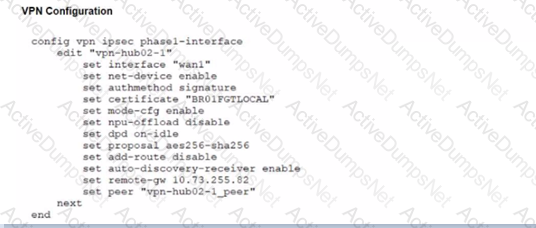

A is correct because using network-overlay id allows you to configure multiple ADVPN tunnels on a single interface with a single IP address on the DC FortiGate. This is explained in the FortiGate Administration Guide under ADVPN > Configuring ADVPN > Configuring ADVPN on the hub. References: https://docs.fortinet.com/document/fortigate/7.4.0/administration-guide/978793/advpn https://docs.fortinet.com/document/fortigate/7.4.0/administration-guide/978793/advpn/978794/configuring-advpn

https://community.fortinet.com/t5/FortiGate/Technical-Tip-Use-case-of-Network-Ids-with-ADVPN-shortcut/ta-p/241025

The FortiGate VM is a virtual firewall appliance that can run on various hypervisors, such as ESXi, Hyper-V, KVM, etc. The adapter type for NICs on a FortiGate VM determines the performance and compatibility of the network interface cards with the hypervisor and the physical network. There are different adapter types available for NICs on a FortiGate VM, such as E1000, VMXNET3, SR-IOV, etc. If performance is the main concern and cost is not a factor, one option is to use native ESXi networking with VMXNET3 adapter type for NICs on a FortiGate VM that will run on an ESXi hypervisor. VMXNET3 is a paravirtualized network interface card that is optimized for performance in virtual machines and supports features such as multiqueue support, Receive Side Scaling (RSS), Large Receive Offload (LRO), IPv6 offloads, and MSI/MSI-X interrupt delivery. Native ESXi networking means that the FortiGate VM uses the standard virtual switch (vSwitch) or distributed virtual switch (dvSwitch) provided by the ESXi hypervisor to connect to the physical network. This option can provide high performance and compatibility for NICs on a FortiGate VM without requiring additional hardware or software components. References: https://docs.fortinet.com/document/fortigate/7.0.0/vm-installation-for-vmware-esxi/19662/installing-fortigate-vm-on-vmware-esxi https://docs.fortinet.com/document/fortigate/7.0.0/vm-installation-for-vmware-esxi/19662/networking

https://community.fortinet.com/t5/FortiAuthenticator/Technical-Tip-FortiToken-Push-on-FortiAuthenticator-operation/ta-p/190810

SD-WAN is a feature that allows users to optimize network performance and reliability by using multiple WAN links and applying rules based on various criteria, such as latency, jitter, packet loss, etc. One way to ensure that the FortiGate DNS resolution times are as low as possible with the least amount of work is to configure local out traffic to use the outgoing interface based on SD-WAN rules with the interface IP and configure an SD-WAN rule to the DNS server. This means that the FortiGate will use the best WAN link available to send DNS queries to the DNS server according to the SD-WAN rule, and use its own interface IP as the source address. This avoids NAT issues and ensures optimal DNS performance. References: https://docs.fortinet.com/document/fortigate/7.0.0/sd-wan/19662/sd-wan

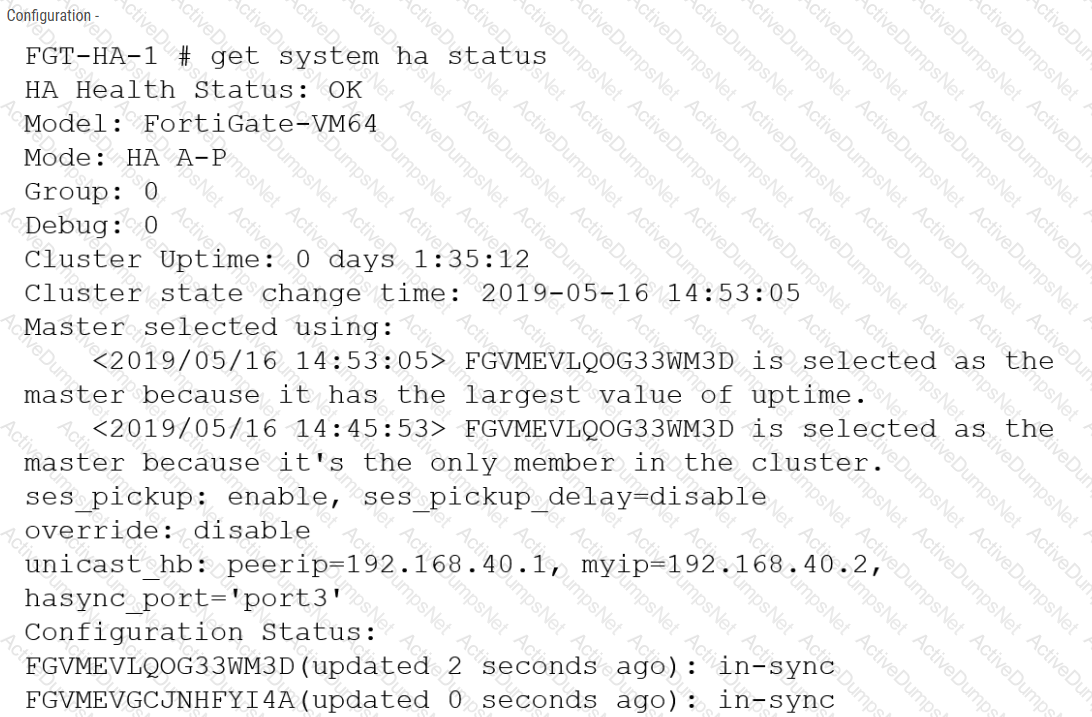

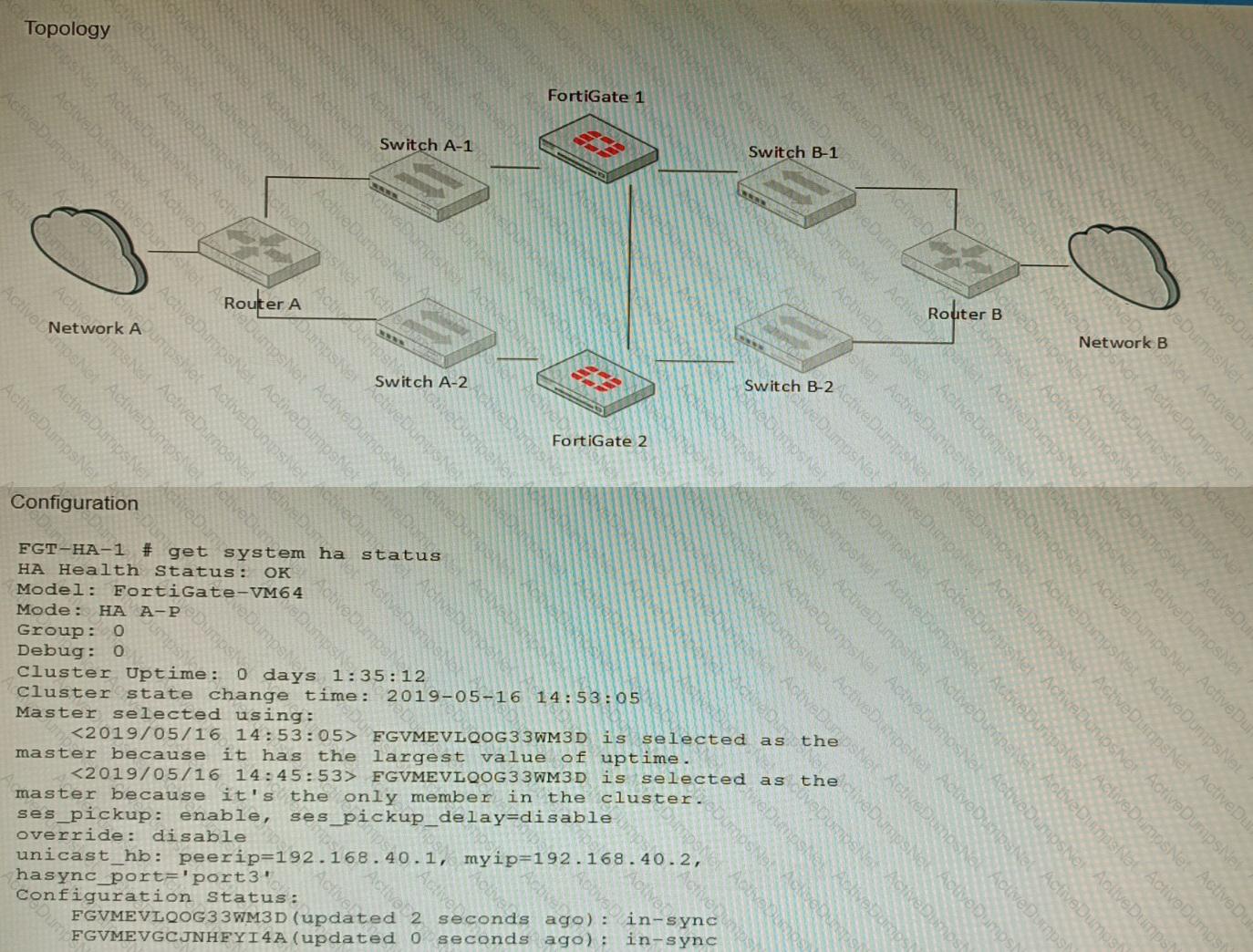

The output of the status of high availability on the FortiGate shows that the cluster mode is active-passive, which means that only one FortiGate unit is active at a time, while the other unit is in standby mode. The active unit handles all traffic and also sends HA heartbeat packets to monitor the standby unit. The standby unit becomes active if it stops receiving heartbeat packets from the active unit, or if it receives a higher priority from another cluster unit. In active-passive mode, all cluster units share a virtual MAC address for each interface, which is used as the source MAC address for all packets forwarded by the cluster. References:https://docs.fortinet.com/document/fortigate/6.4.0/cookbook/103439/high-availability-with-two-fortigates

References:

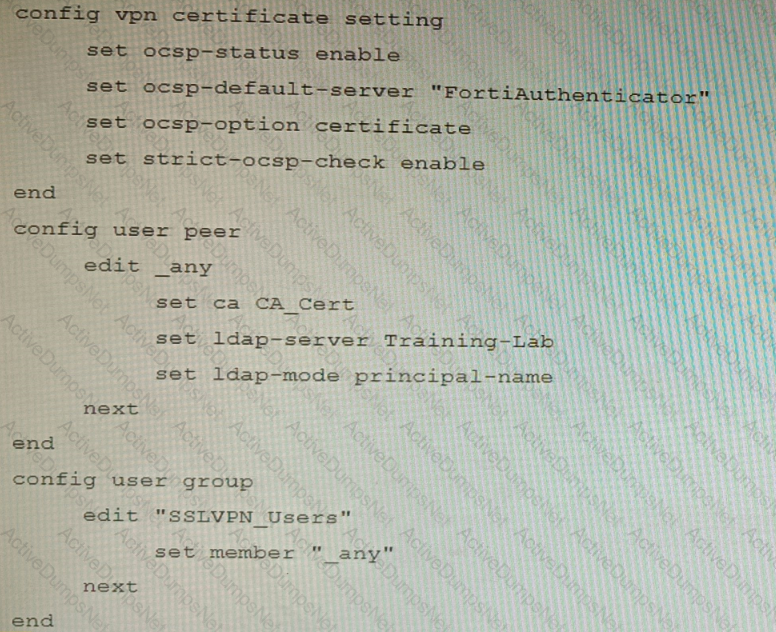

Configuring SSL VPN authentication using digital certificates | FortiGate / FortiOS 7.2.0 - Fortinet Document Library

Online Certificate Status Protocol (OCSP) | FortiGate / FortiOS 7.2.0 - Fortinet Document Library

Certificate Revocation Lists (CRLs) | FortiGate / FortiOS 7.2.0 - Fortinet Document Library

The MTA adapter feature on FortiSandbox is a feature that allows FortiSandbox to act as a mail transfer agent (MTA) that can receive, inspect, and forward email messages from external sources. The MTA adapter feature can be used to integrate FortiSandbox with third-party email security solutions that do not support direct integration with FortiSandbox, such as Microsoft Exchange Server or Cisco Email Security Appliance (ESA). The MTA adapter feature can also be used to enhance email security by adding an additional layer of inspection and filtering before delivering email messages to the final destination. The MTA adapter feature can be enabled on FortiSandbox in an HA-Cluster, which is a configuration that allows two FortiSandbox units to synchronize their settings and data and provide high availability and load balancing for sandboxing services. However, one statement about this solution that is true is that the MTA adapter is only available in the primary node. This means that only one FortiSandbox unit in the HA-Cluster can act as an MTA and receive email messages from external sources, while the other unit acts as a backup node that can take over the MTA role if the primary node fails or loses connectivity. This also means that only one IP address or FQDN can be used to configure the external sources to send email messages to the FortiSandbox MTA, which is the IP address or FQDN of the primary node. References: https://docs.fortinet.com/document/fortisandbox/3.2.0/administration-guide/19662/mail-transfer-agent-mta https://docs.fortinet.com/document/fortisandbox/3.2.0/administration-guide/19662/high-availability-ha

https://docs.fortinet.com/document/fortisandbox/4.4.3/administration-guide/877925/mta-adapter

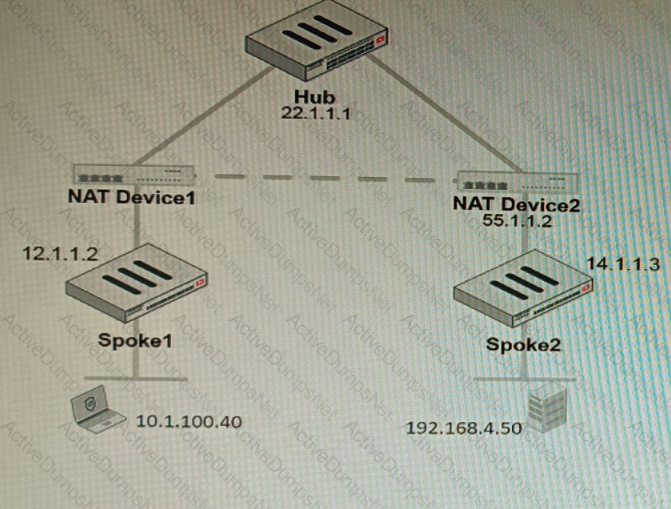

D is correct because Spoke1 will establish an ADVPN shortcut to Spoke2 when it detects that there is a demand for traffic between them. This is explained in the Fortinet Community article on Technical Tip: Fortinet Auto Discovery VPN (ADVPN) under Summary - ADVPN sequence of events. References:https://community.fortinet.com/t5/FortiGate/Technical-Tip-Fortinet-Auto-Discovery-VPN-ADVPN/ta-p/195698

C. The IP address of the FortiSwitch is 10.12.240.2:This statement is correct based on the exhibit and your clarification. The exhibit lists the "IP Address" as 10.12.240.2 across multiple entries, including ports and VLANs associated with the device "sup-fgt-hw" (FortiSwitch). Your reasoning indicates that this IP is the management address of the FortiSwitch, as it is consistently shown as the IP for the device containing the ports. In Fortinet’s architecture, as described in the NSE 8 study guide, the management IP of a FortiSwitch is typically configured and visible in such configurations, especially when integrated with FortiGate and FortiNAC. The "Device" column labeling "sup-fgt-hw" further supports that this is the FortiSwitch, and the IP 10.12.240.2 is its management address. This aligns with FortiSwitch management and integration details in the NSE 8 study guide.

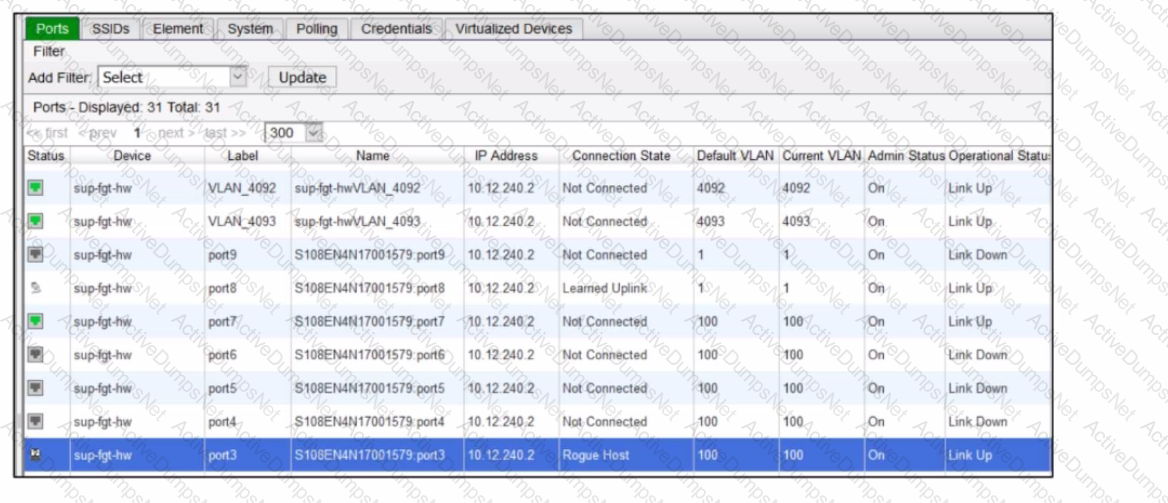

D. An unknown host is connected to port3:This statement is correct as the exhibit highlights port3 under the "Name" column for the device "sup-fgt-hw" with a "Rogue Host" status in the "Connection" column, an IP address of 10.12.240.2, a Default VLAN of 100, and an Operational Status of "Link Up." In FortiNAC, a "Rogue Host" indicates an unknown or unauthorized device connected to the network, which FortiNAC identifies for further action or isolation. This is consistent with FortiNAC’s capabilities for detecting and classifying unknown devices, as detailed in the NSE 8 study guide under network access control and rogue device detection.

Why A and B are incorrect:

A. A device that is modeled in FortiNAC is connected on VLAN_4093: This is incorrect based on your clarification that there is no device connected on that port—it is simply the default VLAN (4093) for that entry. The exhibit shows VLAN_4093 with a "Not Connected" status and "Link Up" operational status, but no active device connection is indicated. The NSE 8 study guide emphasizes that FortiNAC requires an active connection and device profiling for a device to be considered "connected," which is not evident here for VLAN_4093.

B. Port8 is connected to a FortiGate in FortiLink mode: This is incorrect because the exhibit shows port8 with a "Learned Uplink" status, which, as you noted, refers to any kind of uplink and does not specifically indicate FortiLink mode. FortiLink mode is a specific configuration between FortiGate and FortiSwitch requiring explicit settings, which are not mentioned or implied in the exhibit. The NSE 8 study guide clarifies that FortiLink mode involves distinct configuration details (e.g., FortiLink interfaces), which are absent here.

Fortinet Network Security Expert 8 Study Guide References:

FortiNAC 7.2 Admin Guide (NSE 8): Sections on Device Visibility, VLAN Management, and Rogue Device Detection.

FortiSwitch 7.2 Admin Guide (NSE 8): Sections on FortiLink Configuration, Network Segmentation, and Management IP Configuration.

FortiGate 7.2 Admin Guide (NSE 8): Sections on Integration with FortiNAC and FortiSwitch for Network Security.

To implement security for the traffic between two VPCs in AWS, while keeping separate management of each department’s VPC, two possible actions are:

Create a transit VPC with a FortiGate HA cluster, connect to the other two using VPC peering, and use routing tables to force traffic through the FortiGate cluster. This option allows the cybersecurity department to manage the transit VPC and apply security policies on the FortiGate cluster, while the other departments can manage their own VPCs and instances. The VPC peering connections enable direct communication between the VPCs without using public IPs or gateways. The routing tables can be configured to direct all inter-VPC traffic to the transit VPC.

Create a VPC with a FortiGate auto-scaling group with a Transit Gateway attached to the three VPCs to force routing through the FortiGate cluster. This option also allows the cybersecurity department to manage the security VPC and apply security policies on the FortiGate cluster, while the other departments can manage their own VPCs and instances. The Transit Gateway acts as a network hub that connects multiple VPCs and on-premises networks. The routing tables can be configured to direct all inter-VPC traffic to the security VPC. References: https://docs.fortinet.com/document/fortigate-public-cloud/7.2.0/aws-administration-guide/506140/connecting-a-local-fortigate-to-an-aws-vpc-vpn https://docs.fortinet.com/document/fortigate-public-cloud/7.0.0/sd-wan-architecture-for-enterprise/166334/sd-wan-configuration

https://docs.fortinet.com/document/fortigate/7.4.1/administration-guide/822087/automatically-provision-a-certificate

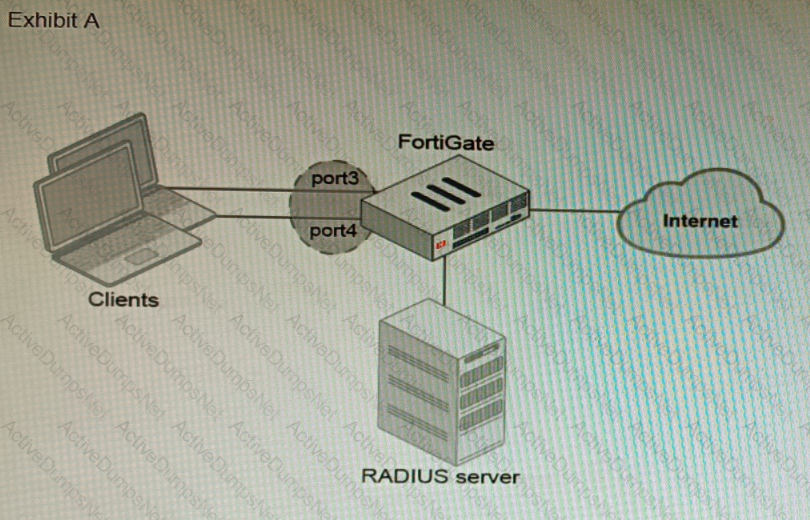

The customer wants to deploy a solution to authenticate the clients connected to a hardware switch interface of a FortiGate 400E device. A hardware switch interface is an interface that combines multiple physical interfaces into one logical interface, allowing them to act as a singleswitch with one IP address and one set of security policies. The customer wants to use 802.1X authentication for this solution, which is a standard protocol for port-based network access control (PNAC) that authenticates clients based on their credentials before granting them access to network resources. One condition that allows authentication to the client devices before assigning an IP address is that devices connected directly to ports 3 and 4 can perform 802.1X authentication. This is because ports 3 and 4 are part of the hardware switch interface named “lan”, which has an IP address of 10.10.10.254/24 and an inbound SSL inspection profile named “ssl-inspection”. The inbound SSL inspection profile enables the FortiGate device to intercept and inspect SSL/TLS traffic from clients before forwarding it to servers, which allows it to apply security policies and features such as antivirus, web filtering, application control, etc. However, before performing SSL inspection, the FortiGate device needs to authenticate the clients using 802.1X authentication, which requires the clients to send their credentials (such as username and password) to the FortiGate device over a secure EAP (Extensible Authentication Protocol) channel. The FortiGate device then verifies the credentials with an authentication server (such as RADIUS or LDAP) and grants or denies access to the clients based on the authentication result. Therefore, devices connected directly to ports 3 and 4 can perform 802.1X authentication before assigning an IP address. Another condition that allows authentication to the client devices before assigning an IP address is that client devices must have 802.1X authentication enabled. This is because 802.1X authentication is a mutual process that requires both the client devices and the FortiGate device to support and enable it. The client devices must have 802.1X authentication enabled in their network settings, which allows them to initiate the authentication process when they connect to the hardware switch interface of the FortiGate device. The client devices must also have an 802.1X supplicant software installed, which is a program that runs on the client devices and handles the communication with the FortiGate device using EAP messages. The client devices must also have a trusted certificate installed, which is used to verify the identity of the FortiGate device and establish a secure EAP channel. Therefore, client devices must have 802.1X authentication enabled before assigning an IP address. References: https://docs.fortinet.com/document/fortigate/7.0.0/administration-guide/19662/hardware-switch-interfaces https://docs.fortinet.com/document/fortigate/7.0.0/administration-guide/19662/802-1x-authentication

https://docs.fortinet.com/document/fortigate/7.2.0/new-features/959502/support-802-1x-on-virtual-switch-for-certain-np6-platforms

https://docs.fortinet.com/document/fortigate/6.2.0/new-features/238665/authentication-policy-extensions

According to the exhibit, the SD-WAN configuration has two rules: one for traffic to 10.1.100.0/24 subnet, and one for traffic to 10.1.100.16/28 subnet. The first rule uses the best quality strategy, which selects the SD-WAN member with the best measured quality based on performance SLA metrics. The second rule uses the manual strategy, which specifies port1 as the SD-WAN member to select. Therefore, if an internal user pings 10.1.100.2 and 10.1.100.22 from subnet 172.16.205.0/24, the outgoing interfaces will be port16 and port1 respectively, assuming that port16 has the best quality among the SD-WAN members. References:https://docs.fortinet.com/document/fortigate/6.2.14/cookbook/218559/configuring-the-sd-wan-interface

https://docs.fortinet.com/document/fortigate/7.2.8/administration-guide/686587/ecmp-support-for-the-longest-match-in-sd-wan-rule-matching
