Fortinet NSE6_WCS-7.0 Fortinet NSE 6 - Cloud Security 7.0 for AWS Exam Practice Test

Scalability:

FortiGate Cloud-Native Firewall (CNF) is designed to scale seamlessly with your cloud infrastructure, providing the necessary protection without requiring manual intervention for scaling (Option B).

Firewall-as-a-Service:

FortiGate CNF is offered as a Firewall-as-a-Service (FWaaS), which simplifies the deployment and management of firewall capabilities directly in the cloud environment (Option D).

Management:

FortiGate CNF can be managed using FortiManager and AWS Firewall Manager, providing comprehensive management capabilities both from Fortinet's platform and AWS's native management tools (Option E).

Other Considerations:

Option A (carrier-grade protection) is not specifically highlighted as a feature of FortiGate CNF.

Option C (uses AWS Elastic Load Balancing) is incorrect as FortiGate CNF operates independently of AWS ELB, although it can integrate with various AWS services.

References:

FortiGate CNF Documentation: FortiGate CNF

AWS Firewall Manager: AWS Firewall Manager

Understanding the Requirement:

The organization needs to connect a data VPC to the on-premises infrastructure with high bandwidth.

The solution should avoid multiple connections between sites.

Transit Gateway Connect:

Transit Gateway Connect is designed to integrate with SD-WAN networks and provides scalable bandwidth using GRE tunnels.

It simplifies hybrid cloud connectivity by allowing high bandwidth connections without the need for multiple physical connections.

Benefits of Transit Gateway Connect:

Supports scalable bandwidth through GRE tunnels.

Facilitates seamless integration with on-premises and cloud environments.

Reduces complexity by avoiding the need for multiple VPN connections.

Comparison with Other Options:

Option A (Transit VPC with IPSec) is not preferred due to complexity and potential limitations in bandwidth scalability.

Option B (Internet Gateway) is not suitable for private, high-bandwidth connections.

Option C (Transit Gateway multicast) does not address the requirement for high bandwidth in a hybrid cloud setup.

References:

AWS Transit Gateway Documentation: AWS Transit Gateway Connect

Hybrid Cloud Connectivity: AWS Hybrid Cloud

Enhanced Redundancy:

Deploying an active-passive (A-P) FortiGate cluster across two availability zones (AZs) provides enhanced redundancy by ensuring that if one AZ fails, the other can take over, maintaining high availability and uptime.

IP Addressing and Subnetting:

One of the major differences when deploying across different AZs compared to the same AZ is that IP addressing and subnetting are not shared between the instances. Each AZ operates independently with its own set of subnets and IP addresses, which must be managed separately (Option D).

Other Options Analysis:

Option A is incorrect because the FortiGate devices in an A-P setup do not act as a single logical instance; they operate in a failover setup.

Option B is incorrect because secondary IP address configuration is used in both single AZ and multi-AZ deployments.

Option C is incorrect because the number of subnets required is typically more when deploying across multiple AZs for redundancy.

References:

FortiGate HA Configuration Guide: FortiGate HA

AWS Availability Zones: AWS AZ

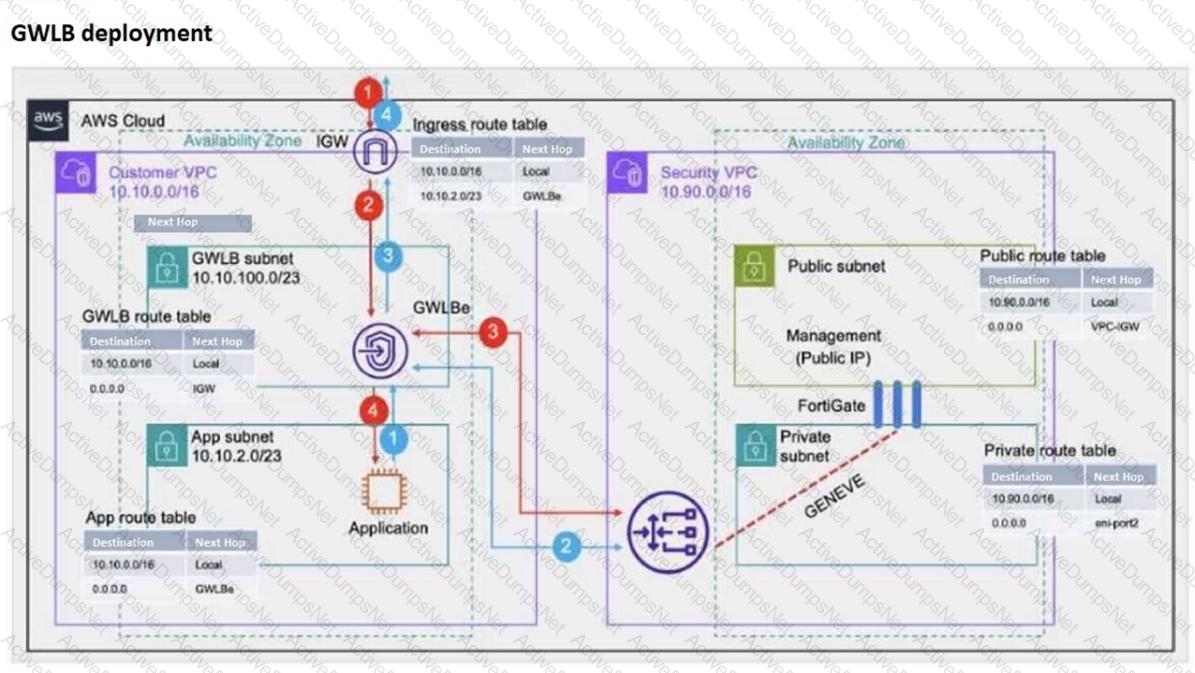

Traffic Direction through GWLB Endpoint:

The ingress route table directs inbound traffic to the GWLB through a GWLB endpoint (GWLBe). This endpoint is responsible for directing traffic to the Gateway Load Balancer for further processing (Option B).

GENEVE Encapsulation:

The GWLB encapsulates the inbound traffic using the GENEVE protocol. This encapsulated traffic is then sent to FortiGate instances for security inspection. The use of GENEVE ensures that the original traffic context is preserved and can be analyzed by FortiGate (Option D).

Other Options Analysis:

Option A is incorrect because GWLB does not forward traffic without encapsulation in its dedicated subnet.

Option C is incorrect as the inbound traffic is directed to the GWLB endpoint first, not directly to the application subnet.

References:

AWS Gateway Load Balancer Documentation: AWS GWLB

GENEVE Protocol Overview: GENEVE Protocol

Internet Gateway Requirement:

For an Elastic IP (EIP) to be assigned to an instance's primary ENI, the VPC must have an Internet Gateway (IGW) attached. The IGW enables the VPC to communicate with the internet, allowing the EIP to function properly (Option C).

Process of Assigning EIP:

Once the Internet Gateway is attached to the VPC, the EIP can be successfully assigned to the primary ENI of the FortiGate VM, providing it with internet access.

Other Options Analysis:

Option A is incorrect because the primary ENI is already in a public subnet.

Option B is not necessary and may not solve the issue without an attached Internet Gateway.

Option D is partially correct about the routing table but does not address the primary issue of needing an Internet Gateway.

References:

AWS Elastic IP Documentation: Elastic IP

AWS Internet Gateway: Internet Gateway

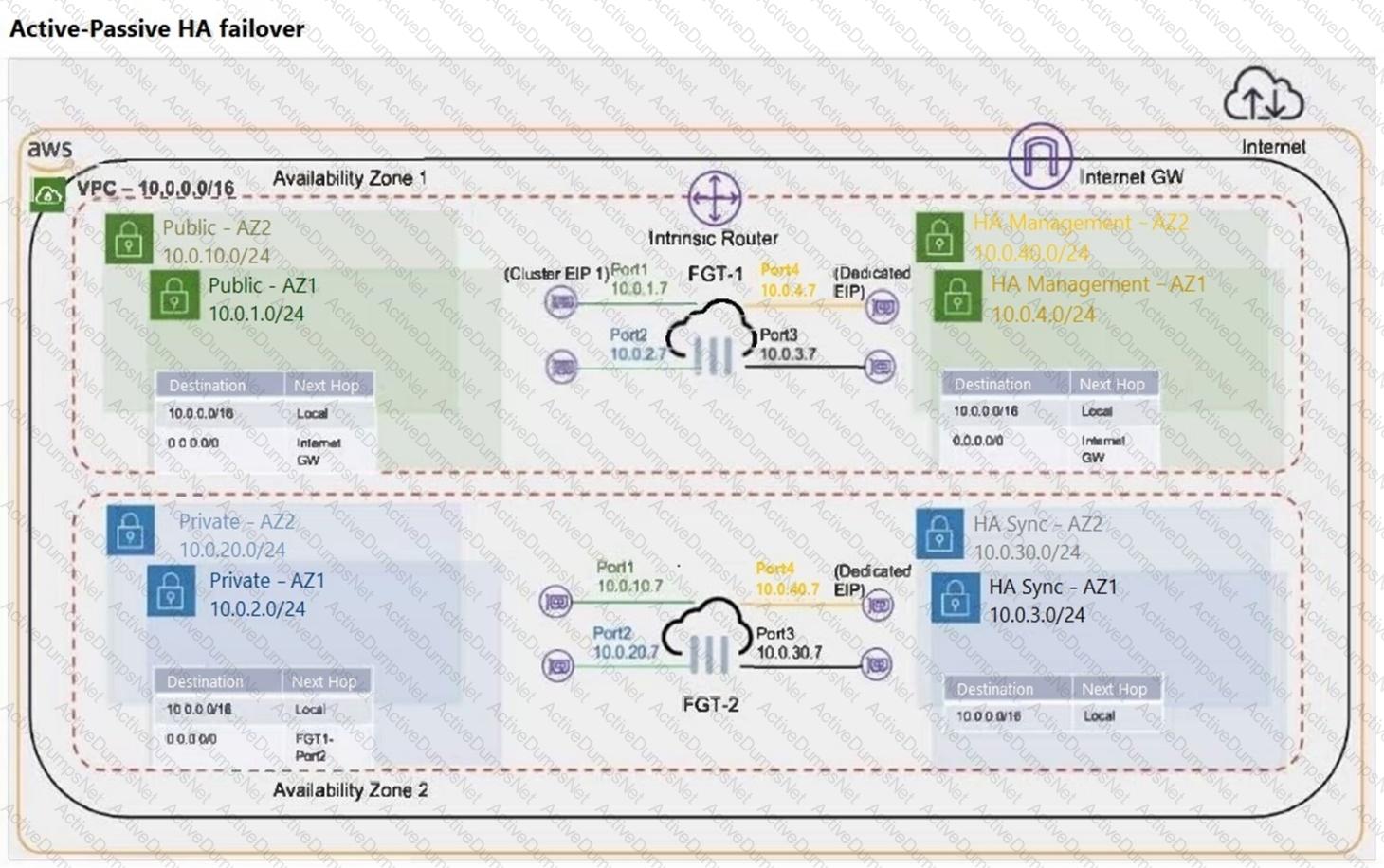

Cluster Elastic IP Address (EIP) Movement:

During a failover in an active-passive (A-P) cluster, the Elastic IP (EIP) associated with the active FortiGate instance (FGT-1) needs to be moved to the passive instance (FGT-2), which becomes the new active instance. This ensures that the traffic directed to the EIP is now handled by FGT-2 (Option A).

Secondary IP Address Movement:

The secondary IP address on Port2 of the current active instance (FGT-1) is moved to the same port on the new active instance (FGT-2). This step is crucial to ensure seamless network traffic redirection and connectivity for the services relying on that IP address (Option B).

Other Options Analysis:

Option C is incorrect because the static route modification mentioned is not directly related to the failover process described.

Option D is incorrect because no additional route needs to be added to the HA Sync AZ2 subnet route table to forward traffic to the Internet Gateway during a failover.

References:

FortiGate HA Configuration Guide: FortiGate HA

AWS Elastic IP Documentation: Elastic IP

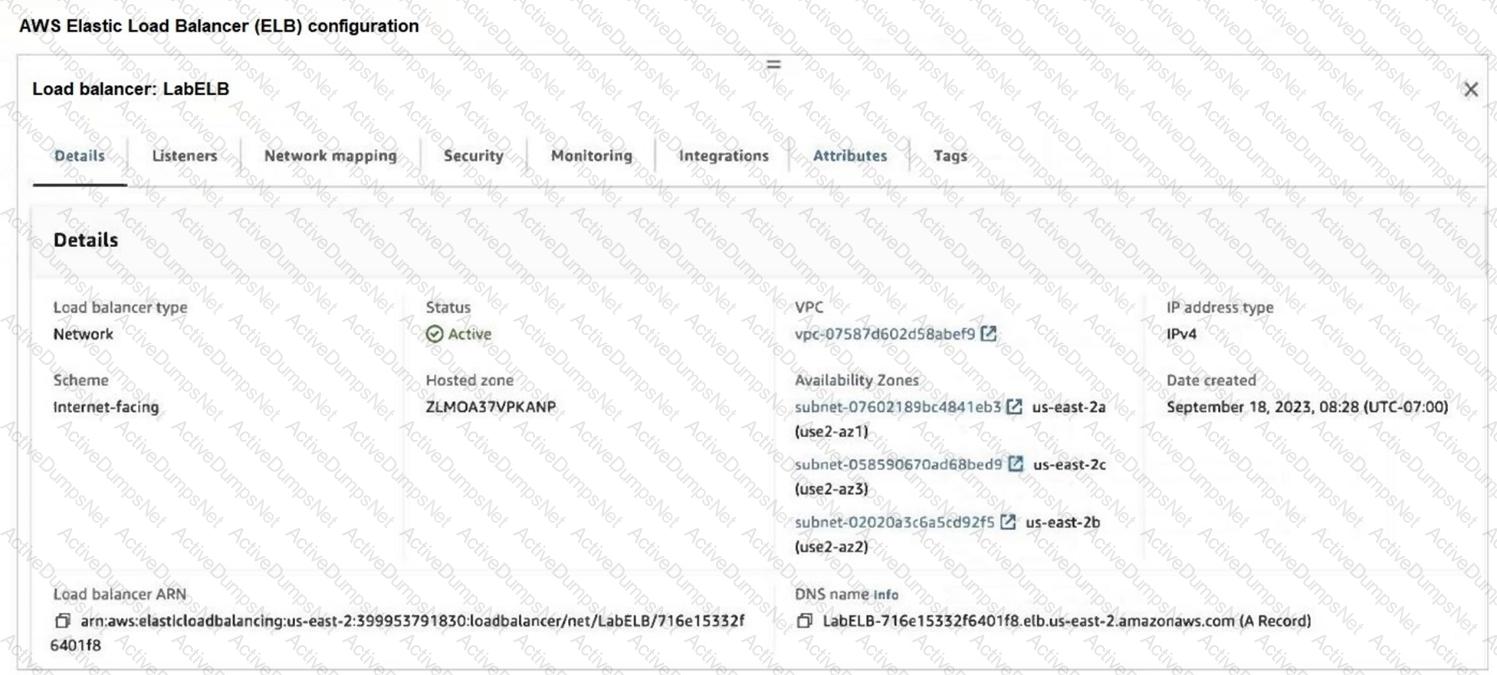

Load Balancer Configuration Overview:

The provided configuration indicates that the ELB is an internet-facing load balancer.

Multi-AZ Load Balancing:

The load balancer is configured to distribute traffic across multiple availability zones (A, B, and C), ensuring high availability and fault tolerance (Option A).

Accessing Targets via DNS:

The DNS name of the load balancer (LabELB-716e15332f6401f8.elb.us-east-2.amazonaws.com) can be used to reach the targets behind the ELB, facilitating traffic routing to the appropriate instances (Option C).

Comparison with Other Options:

Option B is incorrect as the ARN is not used to access the load balancer directly.

Option D is incorrect because the load balancer is configured for internet-facing traffic, not just internal VPC traffic.

References:

AWS Elastic Load Balancer Documentation: AWS ELB

Understanding ELB DNS: AWS ELB DNS

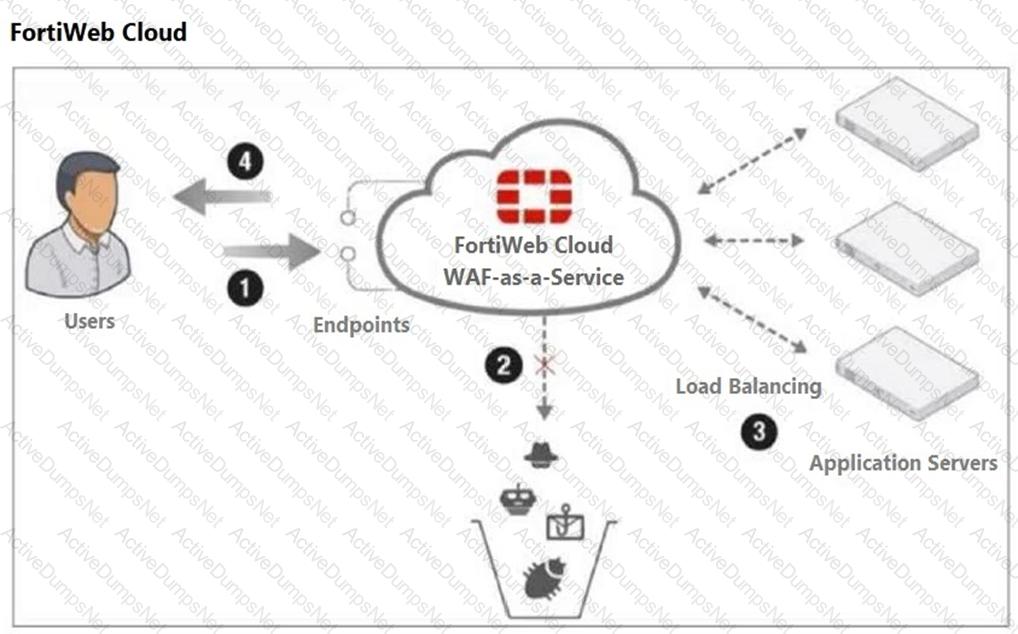

DNS Configuration:

For FortiWeb Cloud to effectively protect web applications, the DNS records for the application servers must be configured to point to FortiWeb Cloud. This ensures that all incoming traffic is routed through FortiWeb Cloud for inspection and protection (Option A).

Traffic Filtering:

FortiWeb Cloud provides robust protection by filtering incoming traffic to block the OWASP Top 10 attacks, zero-day threats, and other application layer attacks. This ensures the security and integrity of the web applications it protects (Option B).

Other Options Analysis:

Option C is incorrect because FortiWeb Cloud can protect application servers across different VPCs or regions, not just within the same VPC.

Option D is incorrect because step 2 does not require an AWS S3 bucket; it refers to the inspection and filtering of incoming traffic.

References:

FortiWeb Cloud Overview: FortiWeb Cloud

DNS Configuration for Web Applications: DNS Configuration

Same Region Deployment:

Deploying FortiWeb Cloud in the same AWS region as your web application minimizes latency and ensures faster response times by reducing the distance data needs to travel (Option A).

Content Delivery Network (CDN):

Enabling a CDN can significantly improve response times by caching content closer to the end-users, reducing the load on the origin server, and speeding up content delivery (Option B).

Other Options Analysis:

Option C is incorrect because modifying DNS entries to directly point to your web server bypasses the WAF protection, which is not advisable for security reasons.

Option D is incorrect because disabling WAF functionality would expose your web application to vulnerabilities and threats, compromising security.

References:

AWS Regions and Availability Zones: AWS Regions

Content Delivery Network Overview: AWS CloudFront

FortiSandbox Deployment:

FortiSandbox for AWS deploys new EC2 instances to create isolated environments where it can safely execute and analyze suspicious files. These instances run custom Windows and Linux virtual machines specifically configured for sandboxing (Option D).

Sandboxing Process:

The process involves sending potential malware to these isolated VMs, executing it, and monitoring its behavior to detect malicious activities. The results are then captured and analyzed to provide detailed threat intelligence.

Other Options Analysis:

Option A is incorrect because FortiSandbox for AWS operates entirely within the AWS environment and does not require an on-premises manager.

Option B is incorrect as the FortiSandbox manager is not installed on the AWS platform for managing on-premises instances.

Option C is incorrect because FortiSandbox requires sufficient resources to perform the actual sandboxing and analysis tasks.

References:

FortiSandbox for AWS Documentation: FortiSandbox

Sandboxing Concepts: Sandboxing
