Fortinet FCSS_SASE_AD-23 FCSS FortiSASE 23 Administrator Exam Practice Test

To resolve internal hostnames using internal DNS servers for remotely connected endpoints, the following two components must be configured on FortiSASE:

Split DNS Rules:

Split DNS allows the configuration of specific DNS queries to be directed to internal DNS servers instead of public DNS servers.

This ensures that internal hostnames are resolved using the organization's internal DNS infrastructure, maintaining privacy and accuracy for internal network resources.

Split Tunneling Destinations:

Split tunneling allows specific traffic (such as DNS queries for internal domains) to be routed through the VPN tunnel while other traffic is sent directly to the internet.

By configuring split tunneling destinations, you can ensure that DNS queries for internal hostnames are directed through the VPN to the internal DNS servers.

References:

FortiOS 7.2 Administration Guide: Provides details on configuring split DNS and split tunneling for VPN clients.

FortiSASE 23.2 Documentation: Explains the implementation and configuration of split DNS and split tunneling for securely resolving internal hostnames.

FortiSASE brings the following advantages to businesses with multiple branch offices:

Centralized Management for Simplified Administration:

FortiSASE provides a centralized management platform that allows administrators to manage security policies, configurations, and monitoring from a single interface.

This simplifies the administration and reduces the complexity of managing multiple branch offices.

Eliminates the Need for On-Premises Firewalls:

FortiSASE enables secure access to the internet and cloud applications without requiring dedicated on-premises firewalls at each branch office.

This reduces hardware costs and simplifies network architecture, as security functions are handled by the cloud-based FortiSASE solution.

References:

FortiOS 7.2 Administration Guide: Provides information on the benefits of centralized management and cloud-based security solutions.

FortiSASE 23.2 Documentation: Explains the advantages of using FortiSASE for businesses with multiple branch offices, including reduced need for on-premises firewalls.

To configure a Secure Private Access (SPA) solution to share endpoint information between FortiSASE and a corporate FortiGate, you need to take the following steps:

Add the FortiGate IP address in the secure private access configuration on FortiSASE:

This step allows FortiSASE to recognize and establish a connection with the corporate FortiGate.

Use the FortiClient EMS cloud connector on the corporate FortiGate to connect to FortiSASE:

The EMS (Endpoint Management Server) cloud connector facilitates the integration between FortiClient endpoints and FortiSASE, enabling seamless sharing of endpoint information.

Register FortiGate and FortiSASE under the same FortiCloud account:

By registering both FortiGate and FortiSASE under the same FortiCloud account, you ensure centralized management and synchronization of configurations and policies.

References:

FortiOS 7.2 Administration Guide: Provides details on configuring Secure Private Access and integrating with FortiGate.

FortiSASE 23.2 Documentation: Explains how to set up and manage connections between FortiSASE and corporate FortiGate.

To block all video and audio application traffic while granting access to videos from CNN, you need to configure an application override action in the Application Control with Inline-CASB. Here is the step-by-step detailed explanation:

Application Control Configuration:

Application Control is used to identify and manage application traffic based on predefined or custom application signatures.

Inline-CASB (Cloud Access Security Broker) extends these capabilities by allowing more granular control over cloud applications.

Blocking Video and Audio Applications:

To block all video and audio application traffic, you can create a policy within Application Control to deny all categories related to video and audio streaming.

Granting Access to Specific Videos (CNN):

To allow access to videos from CNN specifically, you must create an override rule within the same Application Control profile.

The override action "Exempt" ensures that traffic to specified URLs (such as those from CNN) is not subjected to the blocking rules set for other video and audio traffic.

Configuration Steps:

Navigate to the Application Control profile in the FortiSASE interface.

Set the application categories related to video and audio streaming to "Block."

Add a new override entry for CNN video traffic and set the action to "Exempt."

References:

FortiOS 7.2 Administration Guide: Detailed steps on configuring Application Control and Inline-CASB.

Fortinet Training Institute: Provides scenarios and examples of using Application Control with Inline-CASB for specific use cases.

Based on the provided exhibits and the configuration details, the reason why users are still able to download the eicar.com-zip file despite having an antivirus profile applied is due to the Web Filter allowing the traffic. Here is the step-by-step detailed explanation:

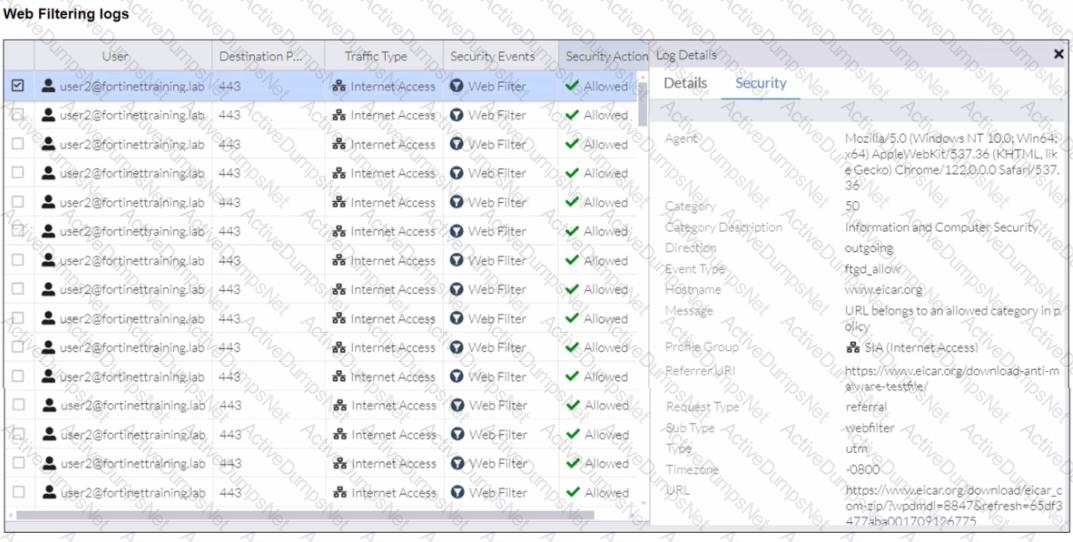

Web Filtering Logs Analysis:

The logs show that the traffic to the destination port 443 (which is HTTPS) is allowed and the security event triggered is Web Filter.

The log details indicate that the URL belongs to an allowed category in the policy and thus, the traffic is permitted by the Web Filter.

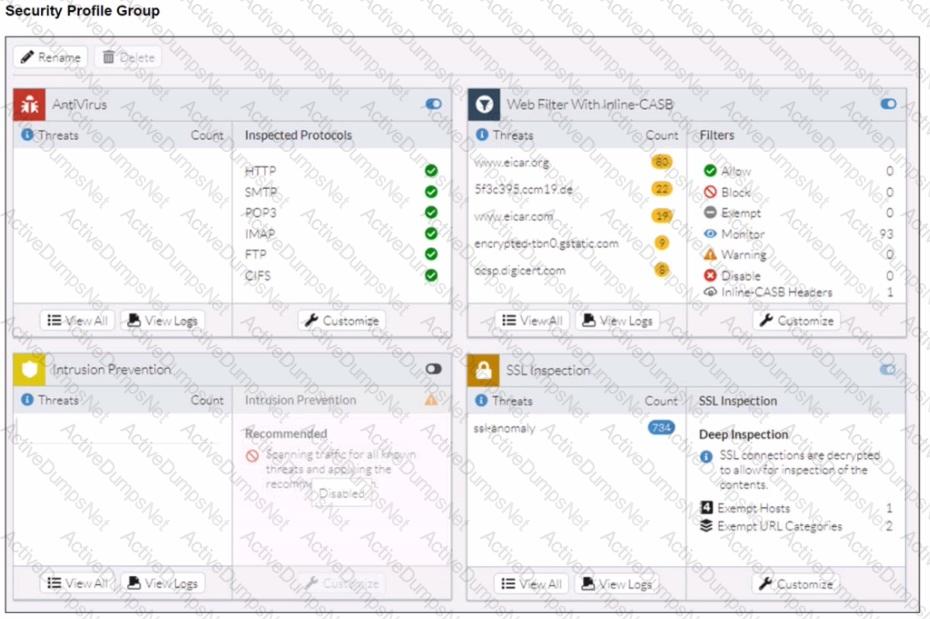

Security Profile Group Configuration:

The Web Filter with Inline-CASB section indicates that the sitewww.eicar.org is being monitored (93 occurrences) and not blocked.

Since the Web Filter is set to allow traffic from this site, the antivirus profile will not block it because the Web Filter decision takes precedence.

Antivirus Profile Configuration:

Although the antivirus profile is configured, the logs do not show any antivirus actions being triggered. This indicates that the web filter is overriding the antivirus action.

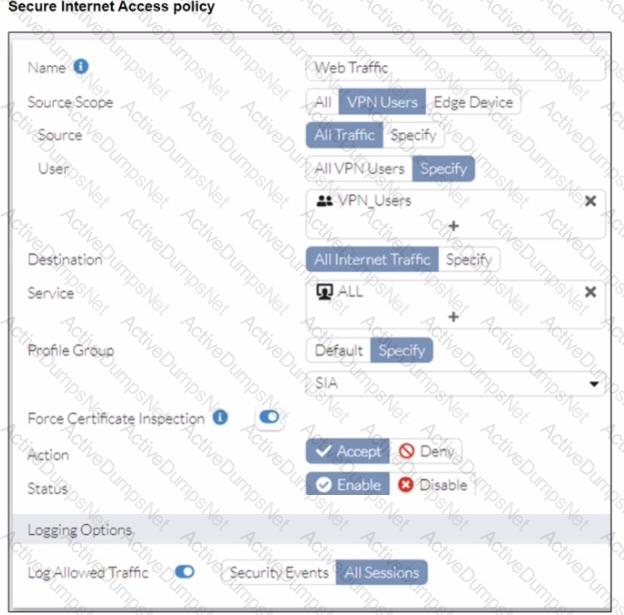

Policy Configuration:

The policy named "Web Traffic" shows that it has logging enabled and is set to accept traffic.

The profile group "SIA" applied to this policy includes both Web Filter and Antivirus settings. However, since the Web Filter is allowing the traffic, the antivirus profile does not get the chance to inspect it.

References:

FortiGate Security 7.2 Study Guide: Provides details on the precedence of web filtering over antivirus in security profiles.

Fortinet Knowledge Base: Detailed explanation of web filtering and antivirus profiles interaction.

During FortiSASE provisioning, the FortiSASE administrator needs to configure at least one security point of presence (PoP). A single PoP is sufficient to get started with FortiSASE, providing the necessary security services and connectivity for users.

Security Point of Presence (PoP):

A PoP is a strategically located data center that provides security services such as secure web gateway, firewall, and VPN termination.

Configuring at least one PoP ensures that users can connect to FortiSASE and benefit from its security features.

Scalability:

While only one PoP is required to start, additional PoPs can be added as needed to enhance redundancy, load balancing, and performance.

References:

FortiOS 7.2 Administration Guide: Provides details on the provisioning process for FortiSASE.

FortiSASE 23.2 Documentation: Explains the configuration and role of security PoPs in the FortiSASE architecture.

Zero Trust Network Access (ZTNA) private access provides the most efficient and secure method for remote users to access a TCP-based application hosted on a private web server. ZTNA ensures that only authenticated and authorized users can access specific applications based on predefined policies, enhancing security and access control.

Zero Trust Network Access (ZTNA):

ZTNA operates on the principle of "never trust, always verify," continuously verifying user identity and device security posture before granting access.

It provides secure and granular access to specific applications, ensuring that remote users can securely access the TCP-based application hosted on the private web server.

Secure and Efficient Access:

ZTNA private access allows remote users to connect directly to the application without needing a full VPN tunnel, reducing latency and improving performance.

It ensures that only authorized users can access the application, providing robust security controls.

References:

FortiOS 7.2 Administration Guide: Provides detailed information on ZTNA and its deployment use cases.

FortiSASE 23.2 Documentation: Explains how ZTNA can be used to provide secure access to private applications for remote users.

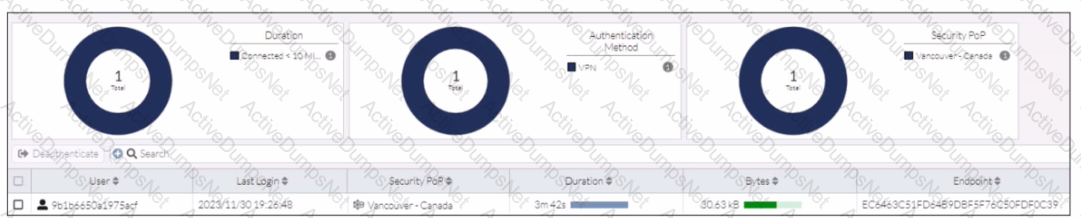

In the user connection monitor, the random characters shown for the username indicate that log anonymization is enabled. Log anonymization is a feature that hides the actual user information in the logs for privacy and security reasons. To display proper user information, you need to disable log anonymization.

Log Anonymization:

When log anonymization is turned on, the actual usernames are replaced with random characters to protect user privacy.

This feature can be beneficial in certain environments but can cause issues when detailed user monitoring is required.

Disabling Log Anonymization:

Navigate to the FortiSASE settings.

Locate the log settings section.

Disable the log anonymization feature to ensure that actual usernames are displayed in the logs and user connection monitors.

References:

FortiSASE 23.2 Documentation: Provides detailed steps on enabling and disabling log anonymization.

Fortinet Knowledge Base: Explains the impact of log anonymization on user monitoring and logging.

The Secure Web Gateway (SWG) policy is used to control traffic between the FortiClient endpoint and FortiSASE for secure internet access. SWG provides comprehensive web security by enforcing policies that manage and monitor user access to the internet.

Secure Web Gateway (SWG) Policy:

SWG policies are designed to protect users from web-based threats and enforce acceptable use policies.

These policies control and monitor user traffic to and from the internet, ensuring that security protocols are followed.

Traffic Control:

The SWG policy intercepts all web traffic, inspects it, and applies security rules before allowing or blocking access.

This policy type is crucial for providing secure internet access to users connecting through FortiSASE.

References:

FortiOS 7.2 Administration Guide: Details on configuring and managing SWG policies.

FortiSASE 23.2 Documentation: Explains the role of SWG in securing internet access for endpoints.
