Fortinet FCSS_EFW_AD-7.4 FCSS - Enterprise Firewall 7.4 Administrator Exam Practice Test

IKEv2 (Internet Key Exchange version 2) is an improvement over IKEv1, offering enhanced security, efficiency, and flexibility in VPN configurations.

It includes stronger Diffie-Hellman (DH) groups, such as Elliptic Curve (ECP) groups.

IKEv2 supports stronger cryptographic algorithms, includingElliptic Curve Diffie-Hellman (ECDH)groups such asECP256 and ECP384, providing improved security compared to IKEv1.

It supports the extensible authentication protocol (EAP).

IKEv2 natively supports EAP authentication, which allows integration with external authentication mechanisms such asRADIUS, certificates, and smart cards. This is particularly useful forremote access VPNswhere user authentication must be flexible and secure.

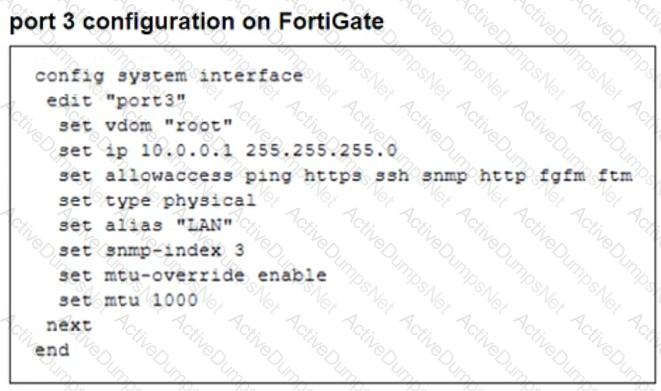

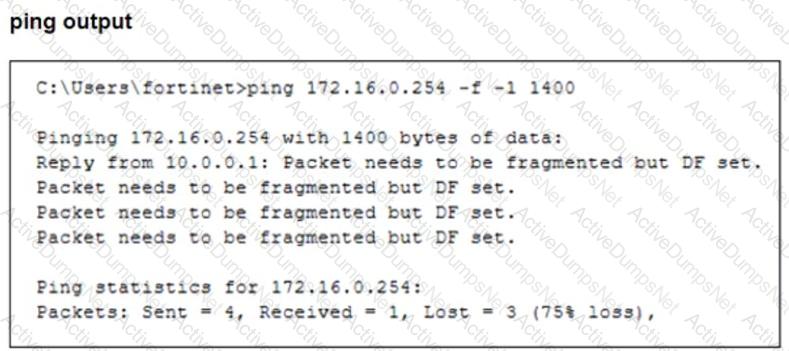

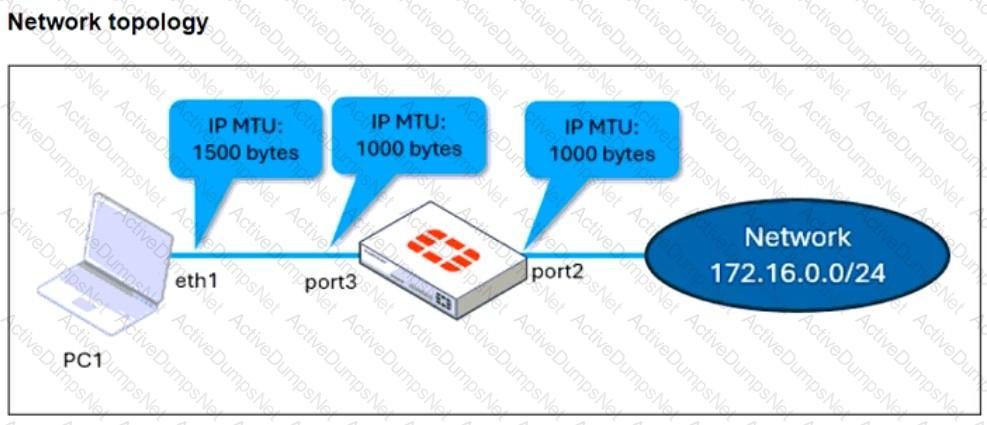

The issue occurs because FortiGate enforces the "do not fragment" (DF) bit in the packet, and the packet size exceeds the MTU of the network path. When the Windows PC1 (with an MTU of 1500 bytes) attempts to send a 1400-byte packet, the FortiGate interface (with an MTU of 1000 bytes) needs to fragment it. However, since the DF bit is set, FortiGate drops the packet instead of fragmenting it.

To resolve this, the user should adjust the ping packet size to fit within the path MTU. In this case, reducing the packet size to972 bytes(1000 bytes MTU minus 28 bytes for the IP and ICMP headers) should allow successful transmission.

Whenadding an additional FortiGateto an enterprise network that is already reaching itsresource limits, the goal is to distribute traffic efficiently and ensurehigh availability.

FGSP (FortiGate Session Life Support Protocol) with external load balancers

FGSP allowssession-aware load balancingbetween multiple FortiGate units without requiring them to be in an HA (High Availability) cluster.

Withexternal load balancers, incoming traffic isevenly distributedacross multiple FortiGate devices.

This approach is useful forscaling outtraffic handling capacity while ensuring that sessions remainsynchronizedbetween firewalls.

FGSP is effectivewhen stateful failover is requiredbut without the constraints of traditional HA.

FGCP (FortiGate Clustering Protocol) in active-active mode and with switches

FGCPactive-active modeenables multiple FortiGate devices toshare traffic loads, increasing throughput and efficiency.

Active-active mode is suitable forbalancing UTM processingacross multiple FortiGates, making it ideal whenresource limits are a concern.

Usingswitchesensures redundancy and avoids single points of failure in the network.

This mode is commonly used inenterprise networkswhere bothscalability and redundancyare required.

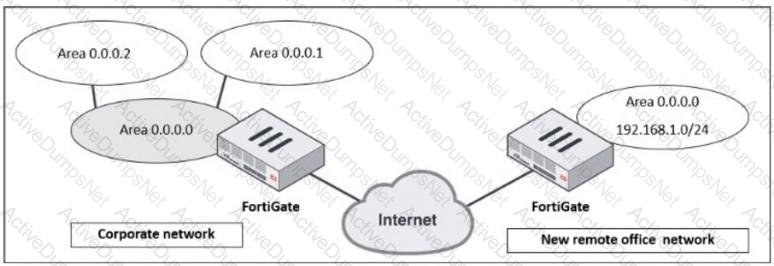

In this scenario, thecorporate networkand thenew remote office networkneed to communicate over theInternet, which requires asecure and dynamic routing method. Since both networks are usingOSPF (Open Shortest Path First)as the routing protocol, the best approach is to establish anOSPF over IPsec VPNto ensure secure and dynamic route propagation.

OSPF is already running on the corporate network, and extending it over an IPsec tunnel allows dynamic route exchange between the corporate FortiGate and the remote office FortiGate.IPsec provides encryptionfor traffic over the Internet, ensuring secure communication.OSPF over IPsec eliminates the need for manual static routes, allowing automatic route updates if networks change.

The new remote office's192.168.1.0/24 subnetwill be advertised dynamically to the corporate network without additional configuration.

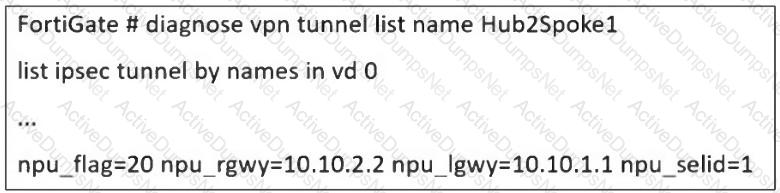

The diagnose vpn tunnel list name Hub2Spoke1 command output provides key information about the offloading status of an IPsec VPN tunnel to the Network Processing Unit (NPU).

● npu_flag=20:

● This flag indicates that both inbound and outbound IPsec Security Associations (SAs) have been offloaded to the NPU, meaning the VPN traffic is processed in hardware instead of the CPU.

● npu_rgwy=10.10.2.2 and npu_lgwy=10.10.1.1:

● These IPs represent the remote gateway (rgwy) and local gateway (lgwy), confirming that the tunnel is successfully offloaded.

● npu_selid=1:

● This value means the session selector for the NPU offloaded SA is active.

Since both inbound and outbound SAs are offloaded, the administrator can conclude that the FortiGate NPU is handling IPsec encryption and decryption efficiently, reducing CPU load and improving VPN performance.

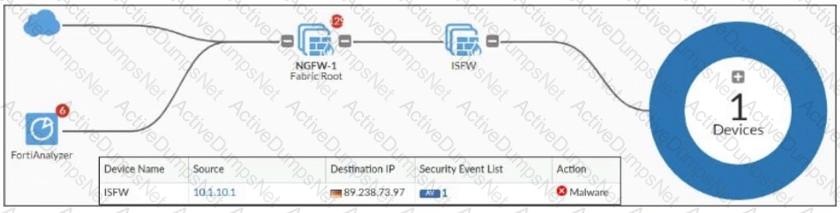

From the exhibit, ISFW is part of a Security Fabric environment with NGFW-1 as the Fabric Root. In this architecture, FortiGate devices share security intelligence, including logs and detected threats.

ISFW is in a Security Fabric environment:

● Security Fabric allows devices like ISFW toreceive threat intelligencefrom NGFW-1, even if UTM is not enabled locally.

● If NGFW-1 detects malware fromIP 10.1.10.1 to 89.238.73.97, this information can bepropagated to ISFW and FortiAnalyzer.

The firewall policy in NGFW-1 has UTM enabled:

● Even thoughISFW does not have UTM enabled, NGFW-1 (which sits between ISFW and the external network)does have UTM enabledand is scanning traffic.

● Since NGFW-1 detects malware in the session, it logs the event, which is then sent toFortiAnalyzer.

Applying anaggressive IPS profilewithout prior testing candisrupt legitimate applicationsby incorrectly identifying normal traffic as malicious. To prevent disruptions while still monitoring for threats:

●Enable IPS in "Monitor Mode" first:

● This allows FortiGate tolog and analyzepotential threatswithout actively blockingtraffic.

● Administrators can review logs and fine-tune IPS signatures to minimize false positives before switching to blocking mode.

●Verify and adjust signature patterns:

● Some signatures might trigger unnecessary blocks for legitimate application traffic.

● By analyzing logs, administrators candisable or modifyspecific rules causing false positives.

In anIBGP (Internal BGP) network, all routers must befully meshed, meaning every router must establish a BGP session with every other router in the sameautonomous system (AS). Thisdoes not scale wellin large networks due to the exponential increase in BGP sessions.

Tooptimize and scale IBGP,Route Reflectors (RRs)are used. ARoute Reflector (RR)reduces the number ofIBGP peer connectionsby allowing acentralized router (RR)to redistribute IBGP routes to other IBGP peers (calledclients). This eliminates the need for afull mesh, significantlyreducing BGP session overhead.

By configuring theroute-reflector-clientsetting on IBGP peers, an administrator can:

●Scale IBGP sessionsby reducing the number of direct BGP peer connections.

●Optimize the routing tableby ensuring routes are efficiently propagated within the IBGP network.

●Eliminate the need for full mesh topology, making IBGP more manageable.

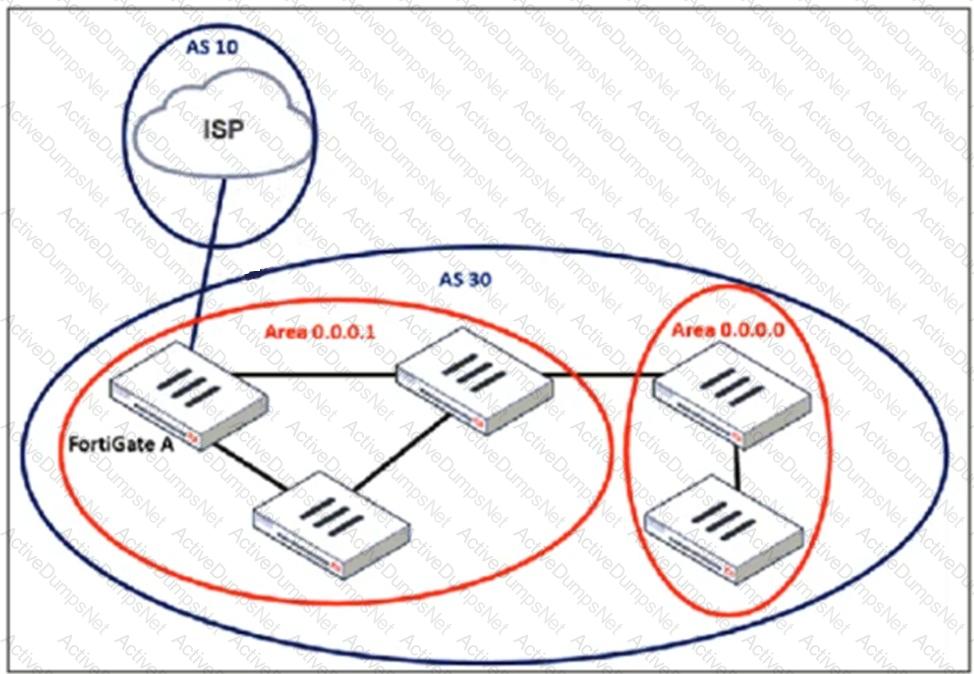

When configuring aloopback interface as the BGP sourceforconnecting to an ISP, two important settings must be applied:

1.Enable EBGP Multihop (ebgp-enforce-multihop)

BGP normally expects directly connected neighbors, but since the ISP and FortiGate A are usingloopback interfaces,packets will not be sent directly between their physical interfaces.

Theebgp-enforce-multihopcommandallows BGP to form an eBGP peering over multiple hops.

2.Set the Update Source (update-source)

Since FortiGate is using aloopback interface as the source, theupdate-sourcecommand ensures thatBGP updates originate from the loopback interfacerather than a physical interface.

This is essential becauseBGP peers must match the source IP with the configured neighbor address.

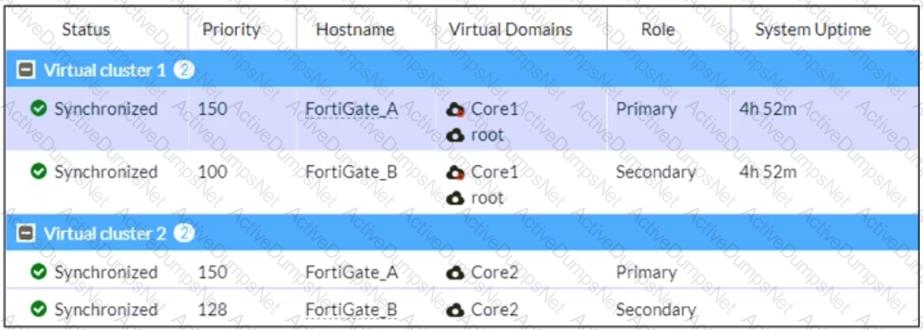

The exhibit shows anactive-passive HA (high availability) clusterwith two virtual clusters, where FortiGate_A is the primary device for both Core1 and Core2. If the goal is to haveFortiGate_B take over Core2 traffic, itspriority must be higherthan FortiGate_A forVirtual Cluster 2.

Currently, FortiGate_A has a priority of150for Core2, while FortiGate_B has128. IncreasingFortiGate_B’s priority to 200ensures it becomes theprimary for Virtual Cluster 2, taking over the Core2 VDOM traffic while keeping Core1 traffic on FortiGate_A.

Disabling override would prevent forced failovers but wouldn’t change the role distribution. Adjusting the load-balancing method is irrelevant in anactive-passive setup, as it only applies to active-active configurations.

When FortiGate processes the first packets of a session, it follows a sequence of steps to determine how the traffic should be handled before establishing a session. The initial step involves:

● Access Control List (ACL) checks: Determines if the traffic should be allowed or blocked based on predefined security rules.

● Hardware Packet Engine (HPE) inspections: Ensures that packet headers are valid and comply with protocol standards.

● IP Integrity Header Checking: Verifies if the IP headers are intact and not malformed or spoofed.

Once these security inspections are completed and the session is validated, FortiGate then installs the session in hardware (if offloading is enabled) or processes it in software.

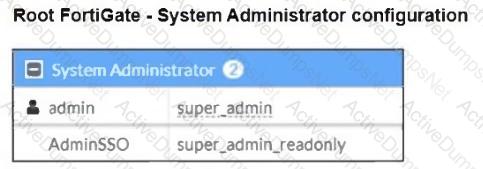

From theRoot FortiGate - System Administrator Configurationexhibit:

● TheAdminSSOaccount has thesuper_admin_readonlyrole.

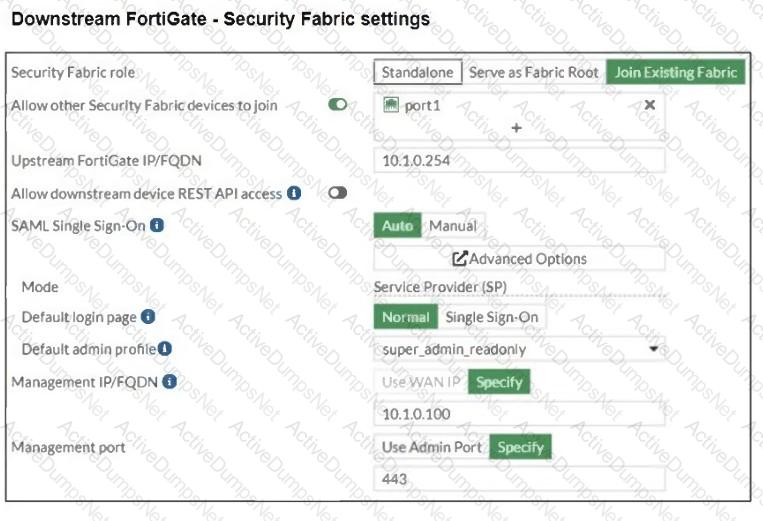

From theDownstream FortiGate - Security Fabric Settingsexhibit:

● TheSecurity Fabric roleis set toJoin Existing Fabric, meaning it will authenticate with the root FortiGate.

●SAML Single Sign-On (SSO) is enabled, and thedefault admin profileis set tosuper_admin_readonly.

When theAdminSSOuser logs into the downstream FortiGate usingSSO, the authentication request is sent to the root FortiGate, where AdminSSO hassuper_admin_readonlypermissions. Since the downstream FortiGate inherits this permission through the Security Fabric configuration, the user will be grantedsuper_admin_readonlyaccess.

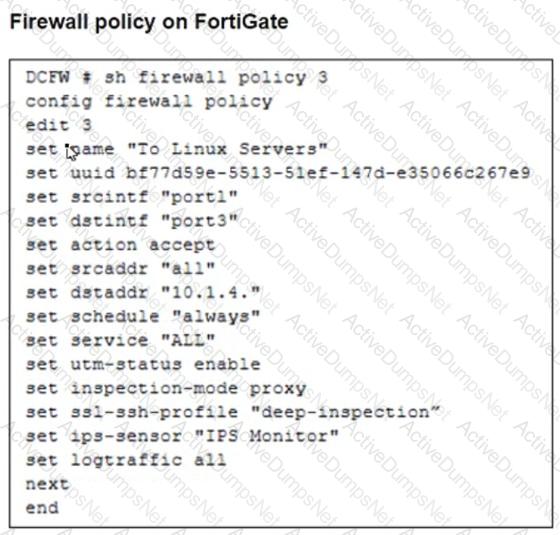

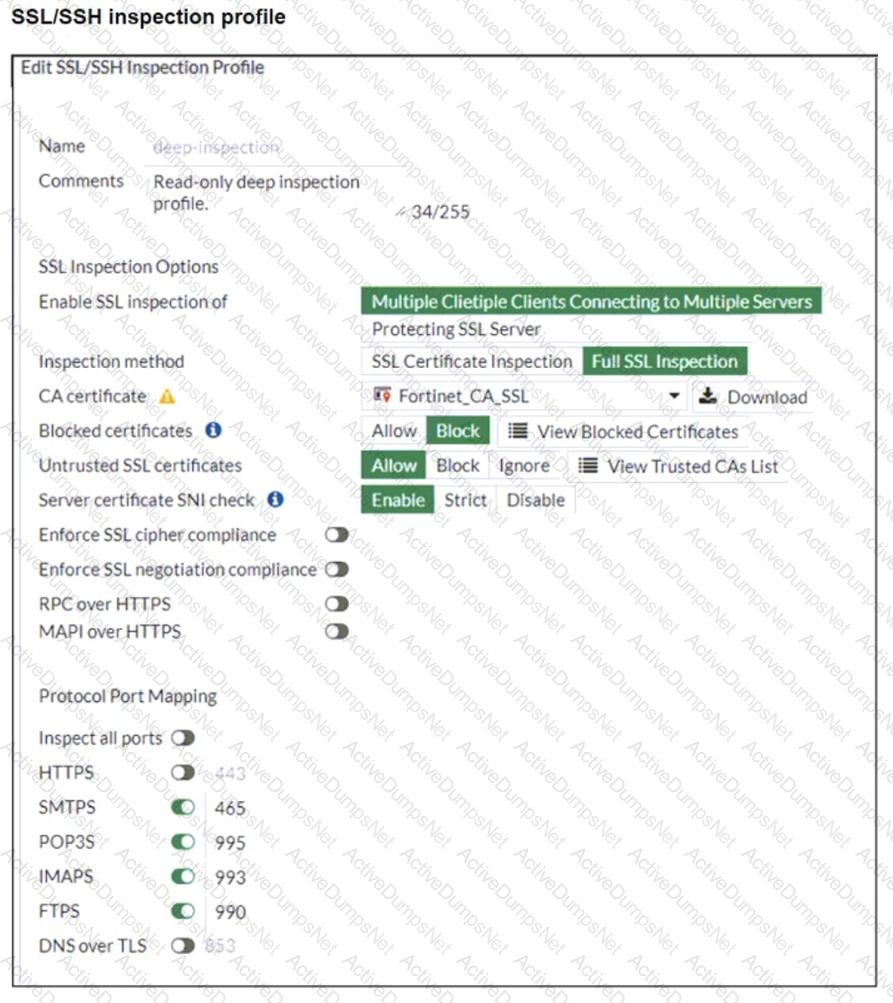

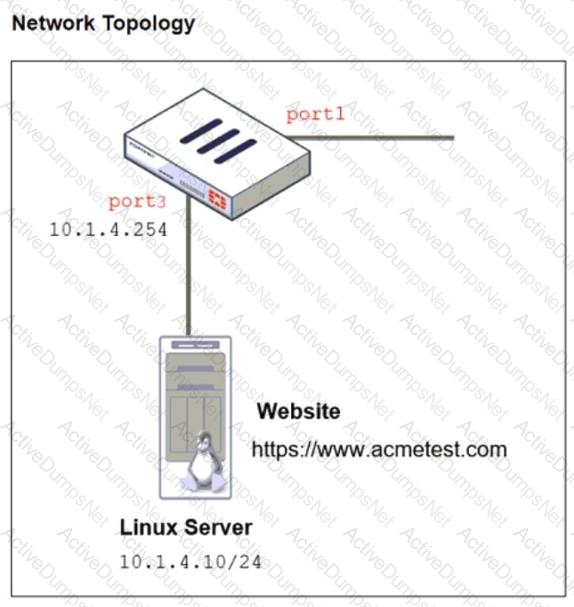

The FortiGateSSL/SSH inspection profileis configured forFull SSL Inspection, which is necessary to analyze encrypted HTTPS traffic. However, the firewallpolicy is protecting an SSL server (the Linux server hosting the website), and currently, the SSL/SSH profileonly applies to client-side SSL inspection.

To detect HTTPS-based attacks targeting the Linux server:

●FortiGate must act as an SSL intermediaryto inspect encrypted traffic destined for the web server.

● The administratormust upload the SSL certificate of the Linux web serverto FortiGate so that theserver-side SSL inspectioncan decrypt incoming HTTPS traffic before analyzing it.

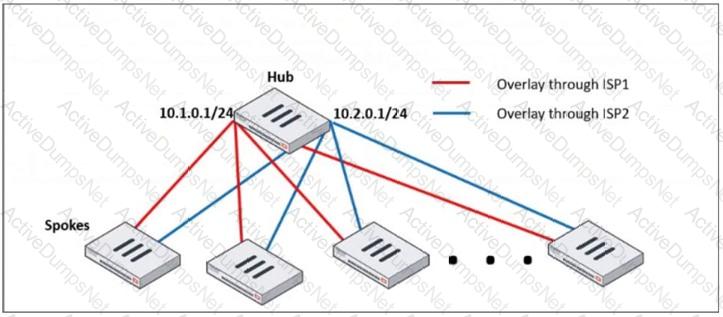

neighbor-group:

● This command is used to group multipleBGP neighborswith the same configuration, reducing redundant configuration.

● Instead of defining individual BGP settings for each spoke, the administrator can create aneighbor-groupand apply the same policies, reducing manual work.

neighbor-range:

● This command allows the configuration ofa range of neighbor IPs dynamically, reducing the need to manually define each spoke neighbor.

● It automatically addsBGP neighborsthat match a given prefix, simplifying deployment.

The excessiveDNS log requests with random subdomainssuggest aDNS exfiltration attack, where attackers encode and transmit data via DNS queries. Since this technique can useboth UDP and TLS (DoH - DNS over HTTPS), a comprehensive security approach is needed.

Using anIPS profile with DNS exfiltration-specific signaturesallows FortiGate to:

●Detect and block abnormal DNS query patternsoften used in exfiltration.

●Inspect encrypted DNS (DoH, DoT) trafficif SSL inspection is enabled.

●Identify known exfiltration domains and techniquesbased on FortiGuard threat intelligence.

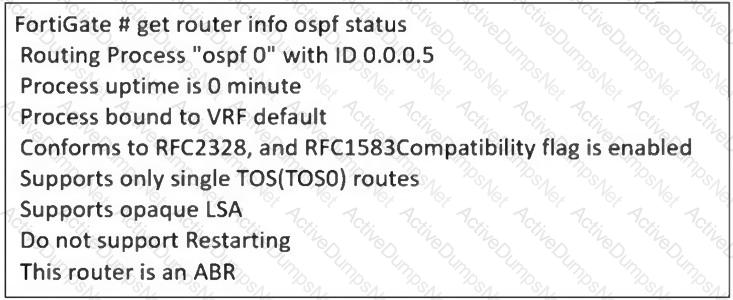

The output of the get router info ospf status command provides key information about the OSPF (Open Shortest Path First) configuration on the FortiGate device.

The FortiGate device is connected to multiple areas

● The output states: "This router is an ABR"

●ABR (Area Border Router)means the device is connected tomultiple OSPF areasand maintains routing information between them.

● This confirms that the FortiGate isnot just in one area, but at leastone backbone area (Area 0) and another OSPF area.

The FortiGate device injects external routing information

● The output states: "Supports opaque LSA"

●Opaque LSAs(Type 9, 10, and 11) are used inOSPF extensions, including those that support external route injection.

● Typically, ABRs or ASBRs (Autonomous System Boundary Routers)inject external routes, allowing routes fromother routing protocols (such as BGP or static routes) to be advertised into OSPF.

InADVPN (Auto-Discovery VPN) configurations, security concerns includeprotecting peer IDsduring VPN establishment. Peer IDs are exchanged in theIKE (Internet Key Exchange) negotiation phase, and their exposure could lead toprivacy risks or targeted attacks.

●IKEv2 encrypts peer IDs, making itmore securecompared to IKEv1, where peer IDs can beexposed in plaintextin aggressive mode.

●IKEv2 also provides better performance and flexibilitywhile supporting dynamic tunnel establishment in ADVPN.
