Ericsson ECP-206 Ericsson Certified Associate - IP Networking Exam Practice Test

MTU mismatch would cause an IS-IS adjacency between two routers to fail. MTU stands for maximum transmission unit, which is the maximum size of a packet that can be transmitted on a link. IS-IS hellos are padded to the full MTU size, partly to allow a router to implicitly communicate its MTU to its neighbors. If two routers have different MTUs on their interfaces, they will not be able to exchange hellos properly, and their adjacency will not form or will be dropped34. To solve this problem, the MTUs on both interfaces must be configured to match.

SEL, context, and SysID are not fields that would cause an IS-IS adjacency failure. SEL stands for selector, which is a one-octet field that identifies the network layer service to which a packet should be sent. For IS-IS routers, the SEL must always be 005. Context is not a field in IS-IS packets, but rather a term used to describe the scope of routing information in different levels or areas6. SysID stands for system identifier, which is a six-octet field that uniquely identifies a router within an area. SysID does not have to match between two routers for them to form an adjacency7.

References: MTU Mismatch Problem in IS-IS - Cisco, IS-IS adjacency is not formed due to MTU mismatch - Cisco Community, IS-IS NSAP address - Cisco Community, Understanding IS-IS Routing Contexts - Juniper Networks, IS-IS - Nokia

The correct order of DiffServ priority (highest to lowest) for the DiffServ classes: Default Forwarding (DF), Network Control (NC), Assured Forwarding (AF), and Expedited Forwarding (EF) is EF, NC, AF, DF. DiffServ is a QoS model that classifies and prioritizes traffic into different service classes based on the DSCP field in the IP header. The DSCP field is a 6-bit field that can encode up to 64 different per-hop behaviors (PHBs). The DiffServ classes are predefined groups of PHBs that have similar characteristics and requirements. The four main DiffServ classes are:

• EF: This class provides the highest priority and lowest delay for real-time applications such as voice and video. The DSCP value for EF is 101110 or 46 in decimal12.
• NC: This class provides the second highest priority and low delay for network control traffic such as routing protocols and network management. The DSCP value for NC is 110000 or 48 in decimal12.
• AF: This class provides four levels of assured forwarding with different drop probabilities for each level. AF is suitable for applications that require guaranteed bandwidth and delivery assurance, such as web browsing and email. The DSCP values for AF range from 001010 to 011110 or 10 to 46 in decimal12.
• DF: This class provides the lowest priority and best-effort service for applications that can tolerate packet loss and delay, such as file transfer and backup. The DSCP value for DF is 000000 or 0 in decimal12.

References: Differentiated Services - Wikipedia, DSCP - Differentiated Services Code Point - Mpirical

The route type that is restricted in an OSPF stub area is type 5. Type 5 LSAs are external LSAs that are generated by ASBRs to advertise routes from other routing domains or protocols into OSPF. Type 5 LSAs are flooded throughout the OSPF domain by default, except in stub areas. Stub areas are special OSPF areas that block type 5 LSAs from entering the area in order to reduce the size of the LSDB and the routing table. Stub areas only receive information about intra-area routes (type 1 and 2 LSAs), inter-area routes (type 3 LSAs), and a default route (type 3 LSA with destination 0.0.0.0/0) from the ABRs910.

References: Introduction to OSPF Stub Areas - NetworkLessons.com, What Are OSPF Areas and Virtual Links? - Cisco

A network operator who wants to make sure voice data is prioritized should assign it to Ethernet traffic class 6. Ethernet traffic class is a term used to refer to the priority code point (PCP) field in the VLAN header of an Ethernet frame. The PCP field is a 3-bit field that can encode up to eight different priority levels, ranging from 0 (lowest) to 7 (highest). The PCP values can be mapped to different types of traffic according to their QoS requirements. The recommended mapping is as follows :

• PCP 0: Best effort (default)
• PCP 1: Background
• PCP 2: Spare
• PCP 3: Excellent effort
• PCP 4: Controlled load
• PCP 5: Video
• PCP 6: Voice
• PCP 7: Network control

Voice data is a type of real-time traffic that requires the highest priority and lowest delay in the network. Therefore, it should be assigned to PCP 6, which corresponds to Ethernet traffic class 6 .

References: [IEEE 802.1Q - Wikipedia], [What is “link aggregation” and how does it benefit your network? | PC Gamer]

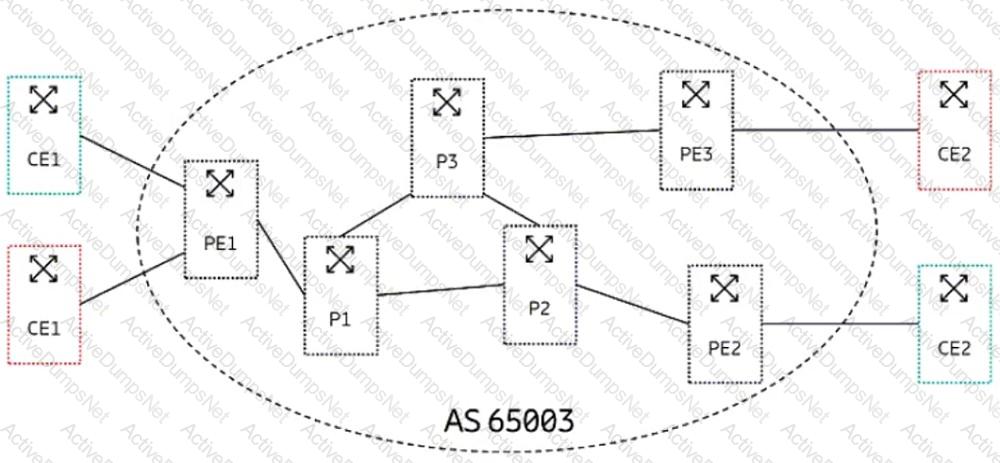

Referring to the exhibit, the service provider should implement L3VPN using the MP-BGP protocol to connect the sites for two customers (indicated in red and green in theexhibit). L3VPN is a type of VPN that uses MPLS to provide IP connectivity between customer sites across a service provider network. L3VPN allows customers to use overlapping or identical IP addresses without causing conflicts or requiring NAT. L3VPN uses MP-BGP to exchange VPN routes between PE routers, which are routers that connect customer networks to the service provider network. MP-BGP is an extension of BGP that can carry multiple address families, such as VPNv4 or VPNv6, along with additional attributes, such as route distinguisher (RD) and route target (RT). RD is used to make customer routes unique within the service provider network, while RT is used to control which routes are imported or exported between different VPNs3 .

References: L3VPN - Layer 3 Virtual Private Networks - Mpirical, [Use of MP-BGP Extensions for IPv6 Interdomain Routing]

Within an IGP area, routers advertise information about themselves and relay information delivered by neighbors. This is how link-state routing protocols such as OSPF and IS-IS work. They flood information about the network topology to all routers in the same area or domain. That information is then used to build a complete network connectivity map and to calculate the shortest path to destinations. Routers do not summarize or discard information within an area, unless they are configured to do so by some filtering mechanism. References: Ericsson IP Networking - Routing Protocols, IP Routing: ISIS Configuration Guide - IS-IS Overview and Basic Configuration

The conceptual table created by routing protocols that is used when processing an IP packet is the forwarding information base (FIB). The FIB is a table that contains the bestroutes to reach each destination network prefix, along with the outgoing interface and the next-hop address for each route. The FIB is derived from the routing information base (RIB), which is a table that contains all the routes learned from different routing protocols and sources. The FIB is used by the router to make fast forwarding decisions for each incoming packet, based on its destination address12.

References: Security Hardening Checklist Guide for Cisco Routers/Switches in 10 Steps, VLAN - Wikipedia

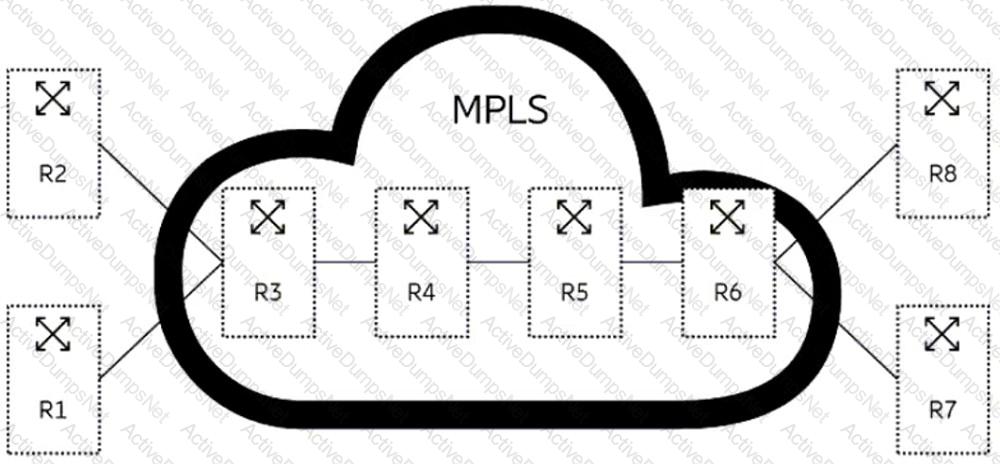

In the exhibit, the action performed by router R3 for traffic arriving from router R2 towards router R4 is PHP, which stands for penultimate hop popping. PHP is a process in which the penultimate hop router (the router before the egress router) removes the top label from an MPLS packet before forwarding it to the egress router. This reduces the label stack depth of the packet and relieves the egress router from performing a label lookup operation. In the exhibit, router R3 is the penultimate hop for traffic arriving from router R2 towards router R4. Router R3 will perform a PHP operation, removing the top label from the incoming packet before forwarding it to router R478.

References: PHP Tutorial - W3Schools, PHP: Downloads

The CLI command to obtain the software version in Ericsson Router 6000 products is show version. This command displays information about the software release, the hardware model, the serial number, the uptime, and the boot image of the router. References: [ERICSSON SMARTEDGE 600 HARDWARE MANUAL Pdf Download | ManualsLib], Ericsson Router 6000 Series - Ericsson

 A reason for using VLANs in an IP network is to isolate hosts within the same IP subnet. VLANs (Virtual LANs) are logical grouping of devices in the same broadcast domain. VLANs are usually configured on switches by placing some interfaces into one broadcast domain and some interfaces into another. Each VLAN acts as a subgroup of the switch ports in an Ethernet LAN. VLANs allow network administrators to group hosts together even if the hosts are not directly connected to the same network switch. By using VLANs, hosts within the same IP subnet can be separated into different broadcast domains, which enhances security, reduces network congestion, and simplifies network management78.

References: 8 Different Types of VLANs in TCP/IP Networks, What is a VLAN? - Study-CCNA

A BGP session is established between two routers by sending a unicast OPEN message. BGP uses TCP as its transport protocol, which means that before exchanging any BGP information, a TCP connection must be established between the routers. The TCP connection uses port 179 as both source and destination port. After establishing a TCP connection, each router sends an OPEN message to its neighbor, containing parameters such as BGP version number, AS number, hold time, BGP identifier, and optional capabilities. The OPEN message also serves as a keepalive message for BGP. If both routers agree on these parameters, they proceed to exchange UPDATE messages containing routing information and establish a BGP session.

A BGP router does not send a NOTIFICATION message to establish a session, but rather to terminate a session due to an error or a manual shutdown. A BGP router does not send a CONNECT message, as this is a TCP state, not a BGP message. A BGP router does not send a multicast HELLO packet, as this is an OSPF message, not a BGP message. References: BGP Neighbor States > BGP Fundamentals | Cisco Press, Demystifying BGP Session Establishments - Packet Pushers, The TCP/IP Guide - BGP Connection Establishment: Open Messages

 IPv6 link-local addresses are designed to be used in three situations: for neighbor discovery, for local IP communication on the IPv6 capable routers, and for addressing on a single link for purposes such as auto-address configuration. Neighbor discovery is a protocol that allows IPv6 nodes to discover each other and learn their link-layer addresses on a local network. Neighbor discovery uses link-local addresses to send and receive messages such as router advertisements, router solicitations, neighbor advertisements, and neighbor solicitations34. Local IP communication on the IPv6 capable routers refers to the ability of routers to exchange routing information or management traffic using their link-local addresses as source and destination addresses. This reduces the need for global unicast addresses on router interfaces that are not reachable from outside the local network35. Addressing on a single link for purposes such as auto-address configuration refers to the use of link-local addresses to enable IPv6 nodes to obtain an address without manual configuration or a DHCP server. Link-local addresses can be automatically derived from the interface identifier in the modified EUI-64 format or randomly generated. Link-local addresses can also be used to test the connectivity of a link before obtaining a global unicast address36.

References: Understand the IPv6 Link-Local Address - Cisco, Link Local Address - GeeksforGeeks, IPv6 Address Types | Link-Local, Global Unicast, etc.⋆ IPCisco, MPLS Label Distribution Protocol Commands - Cisco

Penultimate hop popping (PHP) is a function performed by certain routers in an MPLS enabled network. It refers to the process whereby the outermost label of an MPLS tagged packet is removed by a label switch router (LSR) before the packet is passed to an adjacent label edge router (LER). The purpose of PHP is to reduce the load on the LER, as it saves one cycle of label lookup. The LER can forward the packet based on its IP header or another label in the stack, without having to process the outer label. PHPfunctionality is achieved by the LER advertising a label with a value of 3 to its neighbors. This label is defined as "implicit-null" and informs the neighboring LSRs to perform PHP12.

References: Penultimate hop popping - Wikipedia, MPLS Penultimate hop popping - NetworkLessons.com

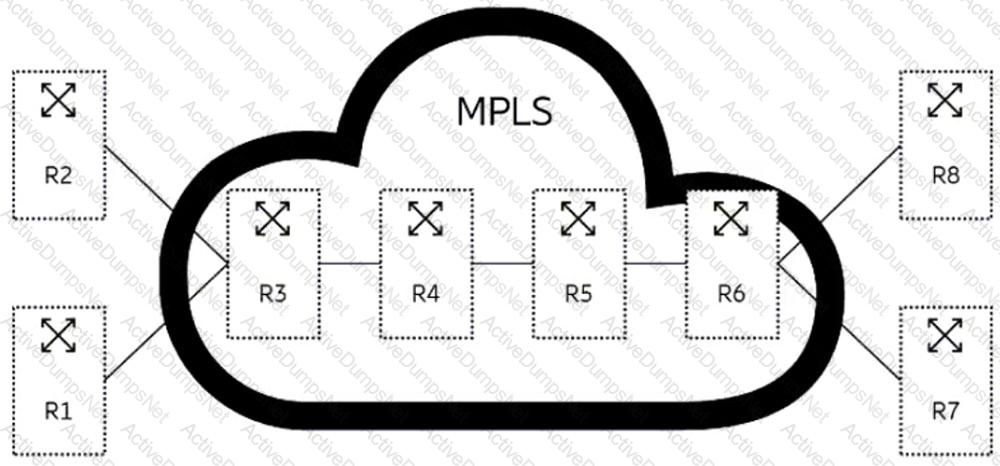

In the exhibit, router R4 is performing a swap action. This means that router R4 is replacing the incoming label with a new label and forwarding the packet to the next hop along the LSP. In this case, router R4 receives a packet with label 20 from router R3 and swaps it with label 30 before sending it to router R5.

The exhibit shows an example of an MPLS network with four routers: R1, R2, R3, and R4. Router R1 is the ingress PE router and router R4 is the egress PE router. Router R2 and R3 are P routers. Router R1 assigns label 10 to the packet and sends it to router R2. Router R2 swaps label 10 with label 20 and sends it to router R3. Router R3 swaps label 20 with label 30 and sends it to router R4. Router R4 removes label 30 from the packet and forwards it based on its IP header or another label in the stack.

Therefore, the answer is D.

References: MPLS Label Switching | MPLS Operation | Push, Swap,Push ⋆ IPCisco, A Complete Guide to Multiprotocol Label Switching (MPLS) - G2, Multiprotocol Label Switching - Wikipedia

The code that is commonly used to assign higher priority to VoIP traffic is EF, which stands for Expedited Forwarding. EF is a per-hop behavior (PHB) defined by the Differentiated Services (DiffServ) model for QoS. EF provides low delay, low jitter, and low loss for real-time applications such as VoIP. EF is marked by setting the DSCP value to 101110, which corresponds to decimal 4678. AF31, which stands for Assured Forwarding class 3 low drop probability, is another PHB defined by DiffServ, but it provides lower priority than EF. AF31 is marked by setting the DSCP value to 011010, which corresponds to decimal 2678. DF, which stands for Default Forwarding, is a PHB defined by DiffServ that provides best-effort service for unmarked traffic. DF is marked by setting the DSCP value to 000000, which corresponds to decimal 078. AF11, which stands for Assured Forwarding class 1 low drop probability, is another PHB defined by DiffServ, but it provides lower priority than EF and AF31. AF11 is marked by setting the DSCP value to 001010, which corresponds to decimal 1078.

References: Differentiated services - Wikipedia, Solved: Cisco VoIP Phone traffic marking - Cisco Community

The correct abbreviation for the IP address BFEA:DACA:0000:0000:9390:0000:0000:D91 is BFEA:DACA::9390:0:D91. IPv6 addresses are represented in hexadecimal notation, with eight 16-bit segments separated by colons. To simplify the address representation, IPv6 supports two types of abbreviations. The first abbreviation allows us to skip leading zeros within a segment, while the second abbreviation allows us to drop one or more consecutive segments that contain only zeros, using a double colon (::) instead. However, the double colon can be used only once in an address, to avoid ambiguity34.

References: IPv6 Address Types, Notation, and Structure Explained, IPv6 address - Wikipedia

The Area ID to which the router belongs is 49.00F0.0100. The Area ID is a variable-length field in the NSAP address that identifies the area to which the router belongs. The Area ID can be between 1 and 13 bytes long, but it must start and end with an octet (8 bits). The NSAP address is composed of three parts: the authority and format identifier (AFI), the area ID, and the system ID. The AFI is a one-octet field that indicates the format and authority of the rest of the address. The system ID is a fixed-length field of six octets that uniquely identifies the router within an area. The NSAP address also has a network selector (NSEL) field, which is a one-octet field that identifies the network layer service to which a packet should be sent. For IS-IS routers, the NSEL must always be 00.

In this question, the NSAP address is 49.00F0.0100.5012.3010.00. This means that:

• The AFI is 49, which indicates a private address.
• The Area ID is 00F0.0100, which is four octets long and starts and ends with an octet.
• The system ID is 5012.3010, which is six octets long and identifies the router within the area.
• The NSEL is 00, which indicates IS-IS.

Therefore, the answer is B.

References: Ericsson IP Networking - Routing Protocols, IS-IS NSAP address - Cisco Community, Understanding IS-IS NSAP Addresses - Todd Lammle, LLC, IS-IS - Nokia, Network service access point address - Wikipedia

An LDP implicit null label causes penultimate hop popping by a downstream router. LDP is a protocol that distributes labels for MPLS forwarding along the shortest path calculated by an IGP. An implicit null label is a special label value of 3 that indicates that the downstream router does not need a label to forward the packet to its destination. When an upstream router receives an implicit null label from a downstream router, it removes (or pops) the label from the packet before sending it to the downstream router. This process is called penultimate hop popping (PHP) and it reduces the load on the downstream router, which can forward the packet based on its IP header or another label in the stack59.

References: MPLS Label Distribution Protocol Commands - Cisco, Solved: Implicit null and Explicit null - Cisco Community
