EMC D-XTR-OE-A-24 Dell XtremIO Operate Achievement Exam Practice Test

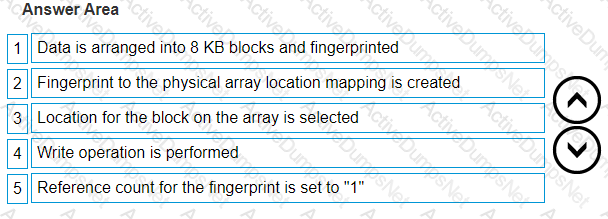

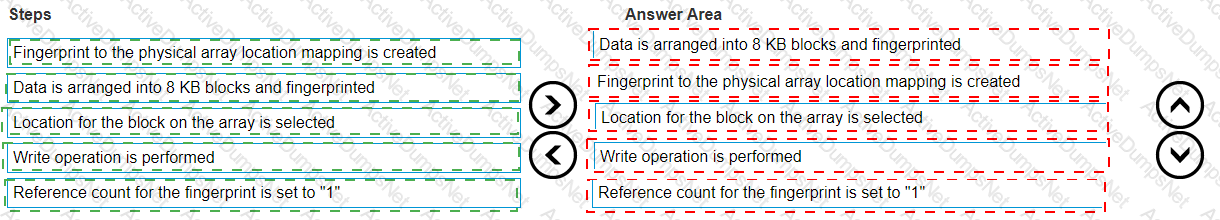

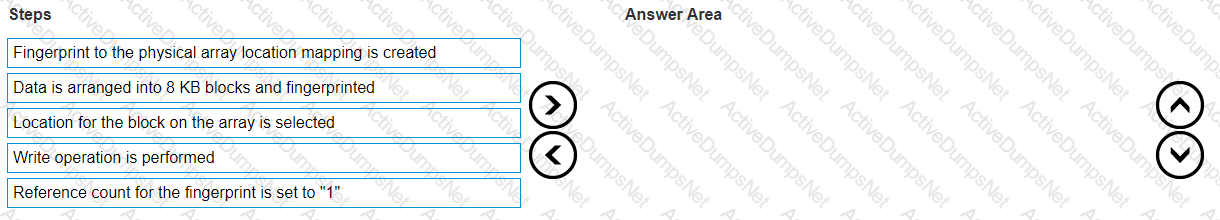

The correct sequence of operations when a host writes a unique data block to an XtremIO X1 array is as follows:

Data is arranged into 8 KB blocks and fingerprinted.

Fingerprint to the physical array location mapping is created.

Location for the block on the array is selected.

Write operation is performed.

Reference count for the fingerprint is set to “1”.

Data Arrangement and Fingerprinting: Initially, the data received from the host is organized into 8 KB blocks.Each block is then fingerprinted, which involves creating a unique identifier for the data block that can be used to detect duplicates and manage data more efficiently1.

Mapping Creation: After fingerprinting, a mapping between the fingerprint and its physical location on the XtremIO array is established.This step is crucial for the array to know where each data block is stored and to retrieve it quickly when needed1.

Location Selection: The XtremIO system then selects the most appropriate location for the data block on the array.This decision is based on various factors, including space availability and optimization algorithms1.

Write Operation: Once the location is determined, the actual write operation takes place.The data block is written to the selected spot on the SSD within the array1.

Reference Count Setting: Finally, a reference count for the data block’s fingerprint is set to “1”. This indicates that there is currently one instance of this data block stored on the array.The reference count is used to manage data deduplication and ensure efficient storage utilization1.

To provision XtremIO volumes to servers, the following steps are typically required:

Host Configuration: This involves setting up the host with the necessary drivers and tools to communicate with the XtremIO storage system.It may include installing HBAdrivers, multipathing software, and configuring host parameters to optimize performance1.

SAN Connectivity: Establishing SAN connectivity is crucial for the host to access the XtremIO volumes.This step involves zoning in the SAN switches to ensure that the host can see the XtremIO storage controllers1.

Initiator Group: An initiator group is a collection of host initiators (WWNs or IQNs) that are allowed to access a set of volumes.Creating and configuring an initiator group in the XtremIO system is necessary to control access to the volumes1.

Volumes Mapping: The final step is to map the volumes to the host. This is done by associating the volumes with the initiator group that contains the host’s initiators.Once mapped, the volumes will be accessible to the host for data storage and retrieval1.

The other options, such as RAID groups (OA), creating pools (OB), and encryption (OC), are not directly related to the provisioning process of XtremIO volumes to servers.RAID groups and pools are typically managed within the storage system itself, while encryption is a data security feature that may be configured as part of the overall storage setup1.

In a fully-populated Data Protection Group (DPG) with sufficient capacity, nine disk drives need to fail sequentially to stop the XtremIO X2 data services.

XtremIO is designed with high fault tolerance, and its architecture can withstand multiple disk failures while continuing to operate.

The system uses RAID and other data protection mechanisms to ensure data availability and integrity even in the event of multiple drive failures.

References:

Dell XtremIO X2 Technical Specifications

XtremIO Data Protection Documentation

When dealing with misaligned partitions on XtremIO volumes after upgrading from Windows Server 2003 to Windows Server 2008, the following steps should be taken to realign the data:

Backup the Data: The first and most crucial step is to ensure that all data on the existing partitions is backed up. This is to prevent any data loss during the alignment process.

Run Diskpart: After backing up, use the Diskpart utility, which is a command-line disk partitioning tool that allows you to manage your disk’s partitions.

Recreate the Partition: With Diskpart, delete the existing misaligned partition and then create a new partition.When creating the new partition, ensure that it is aligned correctly, typically to a 1MB boundary, which is the default alignment for Windows Server 2008 and newer versions1.

Restore the Data: Once the new partition is created and aligned properly, restore the data from the backup to the newly aligned partition.

This process ensures that the partitions are aligned optimally for the XtremIO storage system, which can help improve performance and efficiency. It’s important to note that while tools like Disk Management and Mbralign can be used for managing partitions, they may not provide thenecessary functionality to realign existing partitions on Windows Server 2008.Therefore, using Diskpart is the recommended approach1.

In addition to PowerPath, the supported multipathing software for VMware ESXi hosts connecting to XtremIO is Native Multipathing (NMP).

NMP is integrated with VMware and provides basic multipathing capabilities, allowing for path redundancy and load balancing.

Properly configuring multipathing is crucial for achieving high availability and optimal performance in a VMware environment with XtremIO storage.

References:

Dell EMC Host Connectivity Guide for VMware ESXi

XtremIO Multipathing Configuration Documentation

The XtremIO X2-S storage array is designed to support a significant amount of capacity per volume.Based on the information available, the largest size supported for each volume in a single X-Brick cluster is 64 TB1. Here’s a detailed explanation:

XtremIO X2-S Capacity: The XtremIO X2-S array allows for scaling up with additional SSDs to increase capacity.A single X-Brick can support a considerable number of SSDs, which contributes to the total volume size it can support1.

Volume Size: The volume size refers to the amount of data storage space that can be allocated for use by applications and services.In the case of XtremIO X2-S, the maximum volume size is designed to accommodate large-scale storage needs1.

Configuration: When configuring volumes on the XtremIO X2-S, administrators can specify the desired size up to the maximum supported limit.This ensures that the storage can be tailored to the specific requirements of the environment1.

Largest Supported Size: The option of 64 TB (OB) aligns with the high-capacity design of the XtremIO X2-S array, making it the correct answer for the largest volume size supported per volume on a single X-Brick cluster1.

The RESTful API method used to retrieve an existing configuration from a system like XtremIO is the HTTP GET methD.The GET method is used to request data from a specified resource and is one of the most common HTTP methods used in RESTful APIs1.

In the context of the XtremIO REST API, the GET method would be used to access various types of information about the array’s configuration.For example, to retrieve details about the volumes configured on an XtremIO array, you would issue a GET request to the appropriate endpoint of the XtremIO REST API2.

The HTTP POST method, on the other hand, is typically used to send data to the server to create or update a resource.The terms HTTP RETRIEVE and HTTP GATHER are not standard RESTful API methods and are not used in the context of the XtremIO REST API or any RESTful API1.

In the XtremIO X2 WebUI cluster security settings, the available configuration options include LDAP, Login Banner, and Inactivity Timeout.

These settings provide administrators with the ability to manage user authentication, customize login messages, and set inactivity timeouts for enhanced security.

Configuring these options helps in maintaining a secure and compliant storage environment.

References:

Dell XtremIO X2 Administration Guide

XtremIO X2 Security Configuration Documentation

Misalignment of data, particularly to the 4k boundaries, can significantly impact write operations on a Linux server connected to an XtremIO storage system. Here’s why:

Block Size Alignment: Modern storage systems, including SSDs used in XtremIO arrays, typically use a 4k (4096 bytes) block size for data storage1. This is the smallest unit of data that can be read or written to the storage.

Misalignment Issues: When data is misaligned, it means that the file system’s blocks do not line up with the storage device’s blocks.This misalignment can cause additional read-modify-write cycles, which can degrade performance and increase latency for write operations1.

Effect on Write Operations: If data is not aligned to the 4k boundaries, the storage system may need to perform extra work to handle the writes, as each write operation could span multiple physical blocks.This results in inefficient use of the storage array’s resources and can lead to reduced throughput and increased wear on the SSDs1.

Linux Server Configuration: On a Linux server, ensuring proper alignment is crucial for optimal performance. This can involve configuring the file system and partition alignment during the setup and using tools that can check and correct alignment issues.

In conclusion, misaligned data to the 4k boundaries (OA) is a non-optimal configuration that can have a significant effect on write operations on a Linux server connected to XtremIO.Proper alignment to the storage system’s block size is essential for maintaining high performance and longevity of the storage media1.

For synchronous replication from an XtremIO X1 cluster to a third-party array, the solution that enables this operation isVPLEX with RecoverPoint. Here’s why:

VPLEX: Dell EMC VPLEX is a virtualization and data mobility solution that allows for continuous availability and data mobility across arrays within a data center and over distance.It is often used in conjunction with RecoverPoint to provide synchronous replication1.

RecoverPoint: Dell EMC RecoverPoint offers continuous data protection with multiple replication options, including synchronous and asynchronous replication.It is designed to work with various storage arrays, including third-party arrays, providing flexibility in replication strategies1.

Combination of VPLEX and RecoverPoint: When combined, VPLEX and RecoverPoint offer a comprehensive solution that supports synchronous replication, ensuring zero data loss (RPO=0) and enabling consistency across sites.This combination is particularly useful when integrating XtremIO with third-party arrays1.

Native XtremIO Replication: While XtremIO does offer native replication capabilities, these are typically asynchronous and are designed to work within the XtremIO ecosystem.For synchronous replication, especially to a third-party array, the native replication may not be sufficient1.

RecoverPoint for VMs: This variant of RecoverPoint is specifically designed for virtual environments and may not be the best fit for array-based synchronous replication requirements1.

Therefore, the correct answer isVPLEX with RecoverPoint(OD), as it provides the necessary infrastructure and capabilities for synchronous replication from an XtremIO X1 cluster to a third-party array, ensuring data consistency and zero data loss during the replication process1.

The design concept of the XtremIO X2-S X-Brick configuration is to provide high logical capacity.

This allows for efficient storage management and data reduction technologies, enabling organizations to maximize their storage resources.

The high logical capacity supports extensive data consolidation and improved storage utilization.

References:

Dell XtremIO X2-S Configuration Guide

XtremIO Product Documentation

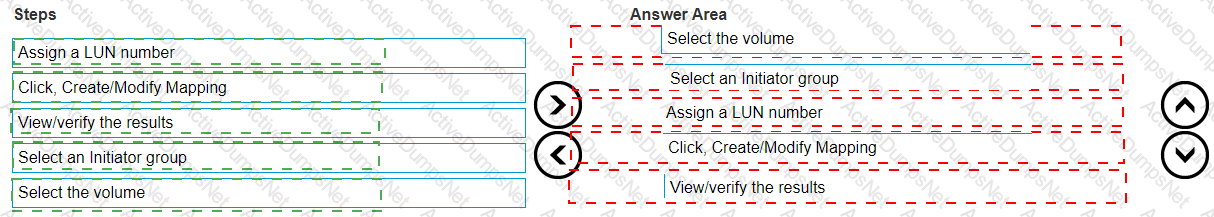

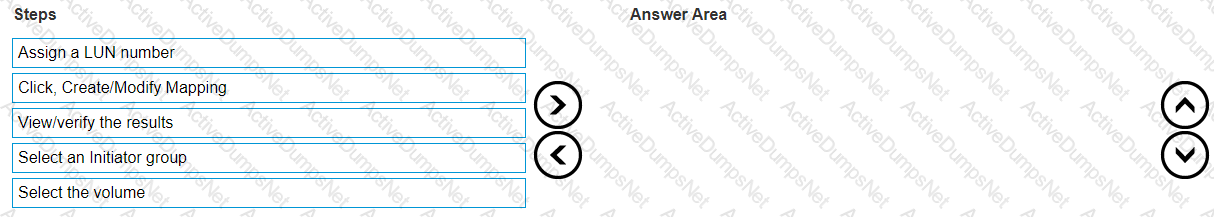

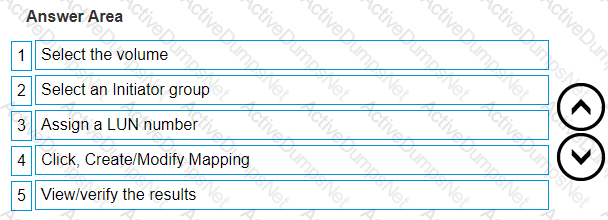

The correct sequence of steps to map a volume to a host using the XtremIO WebUI is:

Select the volume.

Select an initiator group.

Assign a LUN number.

Click ‘Create/Modify Mapping’.

View/verify the results.

To map a volume to a host in the XtremIO WebUI, you would follow these steps:

Select the volume: Navigate to the volume you wish to map and select it. This is the first step because you need to specify which volume you’re working with.

Select an initiator group: Choose the initiator group that corresponds to the host to which you want to map the volume. An initiator group contains one or more initiators that uniquely identify the host in the storage environment.

Assign a LUN number: Specify a Logical Unit Number (LUN) for the volume in this mapping. The LUN is an identifier for the volume in the context of the host to which it’s being mapped.

Click ‘Create/Modify Mapping’: After selecting the volume, initiator group, and assigning a LUN, you’ll execute the command to create the mapping by clicking this button.

View/verify the results: Finally, check the mapping to ensure that it has been successfully created and is functioning as expected.

This sequence of steps ensures that the volume is properly configured and connected to the host, allowing for efficient data management and access within the Dell XtremIO storage system.

When an XtremIO snapshot is taken of a production volume, it creates two snapshot entities.

These snapshots are identified as S1 and S2.

The creation of S1 and S2 ensures that the data consistency and integrity are maintained while providing a point-in-time copy of the production volume.

These snapshots can be used for various purposes such as backup, testing, or disaster recovery without impacting the performance of the production volume.

References:

Dell XtremIO Snapshots Guide

XtremIO Best Practices for Snapshot Management

In the context of XtremIO storage systems, creating reports typically requires administrative privileges. The role of an Administrator is usually necessary to access and manage the full range of system functionalities, including the generation of new reports. Here’s why:

Configuration Role (OA): While this role may allow for some system configurations, it might not have the necessary permissions to create new reports, which often involve accessing and manipulating system-wide data.

Read-Only Role (B): This role is typically limited to viewing configurations and reports that already exist within the system. It does not permit the creation of new reports or modification of existing ones.

Administrator Role (OC): An Administrator role usually has the highest level of access within a system, including the ability to create, modify, and delete reports. This role can access all areas of the system and make changes as required.

Technician Role (OD): The Technician role may have permissions for certain operational tasks and troubleshooting but is not typically empowered to create system reports.

Therefore, the minimum account role required to create a new XtremIO report would be the Administrator role (OC), as it provides the necessary access and permissions to perform such tasks within the storage system.

Minimum 4 Datastores:Based on best practices for VMware Horizon environments, with 1000 linked clones, it is recommended to have a minimum of 4 datastores connected to XtremIO.

This configuration helps distribute the load and ensures optimal performance and manageability.

References:

Dell XtremIO Best Practices for VDI

VMware Horizon Deployment Guide

When "Small IO Alerts" are set to "enabled," an administrator will receive an alert when I/Os smaller than 8 KB are detected.

This setting helps in monitoring and managing small I/O operations that might affect performance and efficiency on the XtremIO array.

Detecting small I/O operations is crucial for maintaining optimal performance, as these can create overhead and impact the array's efficiency.

References:

Dell XtremIO Monitoring Guide

XtremIO Alerts Configuration Documentation

The SuperCapacitor (SuperCap) in an XtremIO X2 NVRAM card is designed to provide power to the card in the event of a power failure.When there is a power failure, the SuperCap discharges to maintain power to the NVRAM card long enough to ensure that all data in transit is written to flash storage, preventing data loss1.

Here’s the sequence of events during a power failure:

Power Failure Detected: The system detects a loss of power to the NVRAM card.

SuperCap Discharge: The SuperCap begins to discharge, providing backup power to the NVRAM card.

Data Write: The NVRAM card uses the power from the SuperCap to write any data in transit to the SSDs in the storage array.

Data Secured: Once the data is safely written to the SSDs, the NVRAM card can safely shut down without risking data loss.

The SuperCap is a critical component that ensures data integrity during unexpected power interruptions. It is not used during normal operation (OB), after data is secured (OC), or when power is restored (OD).Its primary function is to protect data during power failures (OA)1.

XtremIO implements Data at Rest Encryption (DARE) to secure data on its SSDs.

This encryption method is designed to prevent unauthorized access to data if the physical media is stolen or lost.

The encryption process involves using a Data Encryption Key (DEK) for each drive, ensuring that data cannot be read without proper authentication.

This feature is crucial for maintaining data integrity and security, especially in scenarios involving sensitive or critical information.

References:

Dell XtremIO Security Guide

Data Encryption at Rest Technical Overview
