Before an XtremIO X1 cluster can start, it is required that the Battery Backup Units (BBUs) are charged to at least 70%. This ensures that there is sufficient power reserve to maintain data integrity and allow for safe shutdown procedures in case of an unexpected power loss.The BBUs provide power to the Storage Processors and other critical components during an outage, allowing them to complete any in-progress operations and commit data to SSDs1.

The startup process checks the BBU charge level and will only proceed if the minimum charge requirement is met. This is a safety feature designed to protect the system and the data it holds.If the BBUs are not adequately charged, the system will not start, preventing potential data loss or corruption that could occur if the system were to lose power without the ability to properly shut down1.

=========================

An extra rack unit space is used between X-Bricks when installing a multi X-Brick XtremIO X2 to accommodate the cable management duct. This space is essential for organizing and managing the cables, ensuring proper airflow, and making maintenance tasks easier.

The XtremIO X2 storage system can be expanded for capacity (Scale-Up) or both capacity and performance (Scale-Out). The system begins with a single building block, called an X-Brick, with a minimum of 18 SSDs.When additional capacity is required, the system scales up, with up to 72 SSDs for a single X-Brick1. Therefore, to upgrade a single X-Brick XtremIO X2 cluster that already contains 36 SSDs, the minimum number of SSDs required would be 18, which is the base configuration for an X-Brick.

=========================

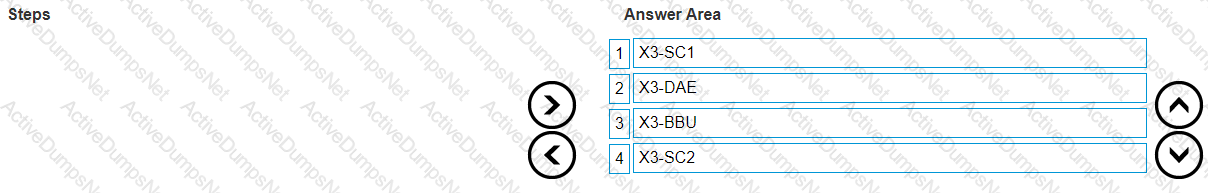

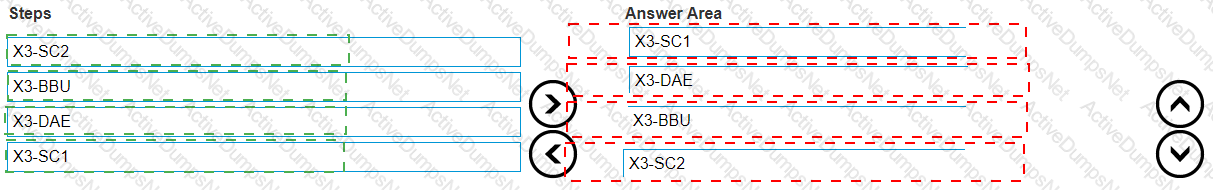

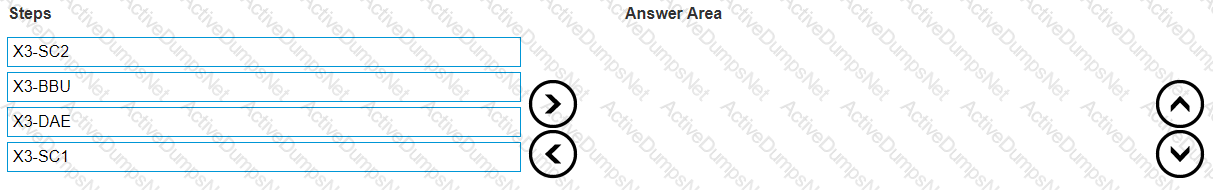

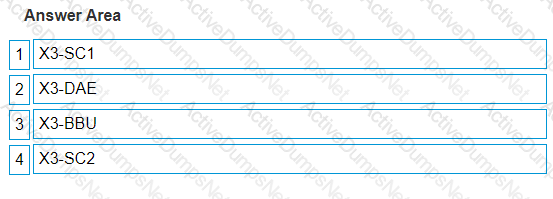

The correct racking order from bottom to top to expand an XtremIO X1 configuration from a dual X-Brick to a quad X-Brick is as follows:

X3-SC1

X3-DAE

X3-BBU

X3-SC2

As per the image provided, which appears to be a list or part of a document detailing the steps for racking components, the order listed for expanding an XtremIO X1 configuration is:

Begin with the bottom component, which is ‘X3-SC1’ (Storage Controller 1).

Above ‘X3-SC1’, install ‘X3-DAE’ (Disk Array Enclosure).

Next, install ‘X3-BBU’ (Battery Backup Unit) above ‘X3-DAE’.

Finally, at the top, place ‘X3-SC2’ (Storage Controller 2).

This order ensures that the heavier components are at the bottom for stability and likely follows Dell’s official guidelines for proper airflow and cable management within the rack1.

=========================

In Dell XtremIO X2 arrays, the Disk Protection Groups (DPGs) are organized in such a way that each DPG spans multiple rows of drives. Specifically, DPG-2 in an XtremIO-X2 DAE (Disk Array Enclosure) uses the drives in Row 1 and Row 2. This configuration is designed toensure redundancy and fault tolerance. The drives in these rows collectively form the DPG, which is responsible for data protection and performance optimization.

In a multi X-Brick XtremIO X1 cluster, the failure of more than half of the COM (communication) cables forces the cluster into a degraded mode. This degraded mode is a protective measure to ensure that the cluster can continue operating with reduced performance and redundancy until the issues with the COM cables are resolved.

When the NVRAM status LED on an XtremIO X2 is flashing red at one-second intervals, it indicates an uncorrectable error. This is a critical status that typically signifies a hardware malfunction or failure within the NVRAM module, which requires immediate attention.NVRAM, or Non-Volatile Random Access Memory, is crucial for retaining data integrity during power losses or system crashes1.

The steps to address this issue usually involve:

Investigating the system logs to identify the specific nature of the error.

Contacting Dell EMC support for guidance on diagnosing and resolving the issue.

Following the recommended procedures for troubleshooting or replacing the affected NVRAM module, as per the support team’s instructions.

It is important to resolve such errors promptly to prevent potential data loss and to maintain the overall health and performance of the storage system1.

=========================

For an XtremIO cluster to use FTPS (File Transfer Protocol Secure) for the Connect Home feature, the firewall ports that need to be opened are989 and 990.These ports are used for data connections and control connections under implicit security for FTPS1.

When using explicit security, FTPS can also use port 21, but since the question specifies FTPS for Connect Home, which typically uses implicit security, the correct ports are989 for data transmissionand990 for the control connection1. It’s important to ensure these ports are open to allow secure file transfer capabilities for the XtremIO cluster.

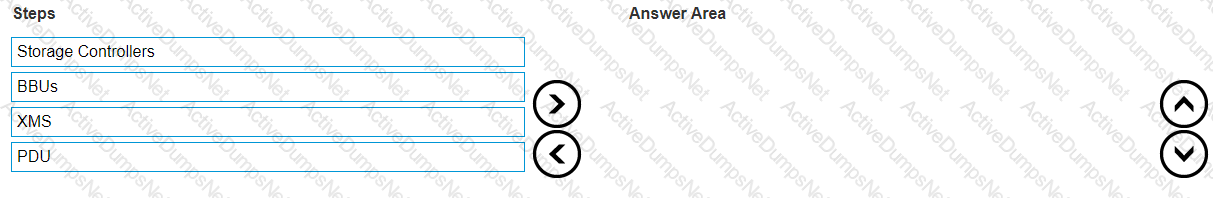

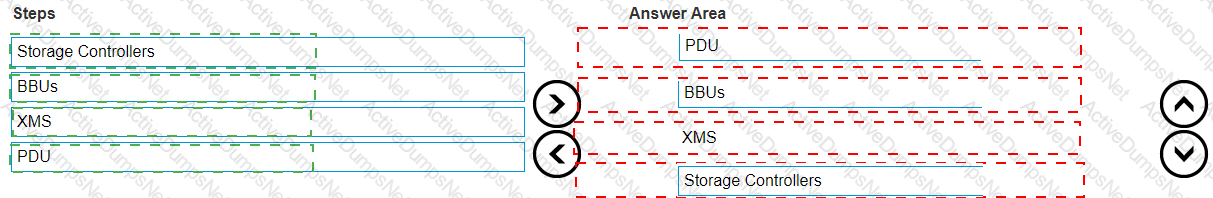

The correct order in which the XtremIO X1 cluster components should be powered on for the first time is:

PDU (Power Distribution Unit)

BBUs (Battery Backup Units)

XMS (XtremIO Management Server)

Storage Controllers

Detailed Explanation with References:

PDU (Power Distribution Unit): Begin by powering on the PDU to provide power to the entire rack.

BBUs (Battery Backup Units): Next, power on the BBUs to ensure power protection for the system.

XMS (XtremIO Management Server): Power up the XMS to allow management and monitoring of the storage system.

Storage Controllers: Finally, power on the Storage Controllers to bring the storage system online.

When creating a cluster, in addition to the cluster name, the following parameters are required: the expected number of X-Bricks, the IP address of X1-SC1 (the first Storage Controller), and the package name. These parameters are essential for setting up the cluster configuration and ensuring proper communication between components.

When deploying a virtual XtremIO Management Server (XMS), the template uses the file name extension.ova. This is a standard format for virtual appliances, which are pre-configured virtual machines that can be imported and run on various virtualization platforms.The .ova file extension stands for Open Virtual Appliance (or Application) and is typically used for packaging and distributing software to be run in virtual machines1.

The deployment process using an .ova file typically involves the following steps:

Download the .ova file from the official source or portal.

Import the .ova file into the virtualization platform (such as VMware vSphere or Oracle VM VirtualBox).

Follow the prompts to configure the virtual machine settings as needed.

Once the import is complete, power on the virtual machine to begin the initial setup and configuration of the virtual XMS server.

This information is consistent with the practices outlined in the Official Dell XtremIO Maintenance Achievement document, ensuring that the deployment of the virtual XMS server aligns with Dell’s recommended procedures2.

When submitting a Request for Product Qualification (RPQ) prior to a dispersed XtremIO cluster installation, it is necessary to include a wiring diagram and an X-Brick component location diagram. The wiring diagram provides a detailed representation of the electrical connections between the components, while the X-Brick component location diagram shows the physical placement of the X-Brick components within the installation environment.These documents are essential for planning the installation to ensure that all components are correctly positioned and connected for optimal performance and serviceability1.

The process for preparing these documents typically involves:

Creating a detailed wiring diagram that outlines all the necessary connections between the X-Brick components and other infrastructure elements.

Developing an X-Brick component location diagram that illustrates where each component will be physically located in the data center.

Reviewing the diagrams to ensure they meet the technical requirements and specifications for a dispersed XtremIO cluster installation.

Submitting the diagrams along with the RPQ for approval before proceeding with the installation.

These steps are crucial for a successful installation and are outlined in the Official Dell XtremIO Maintenance Achievement document1.

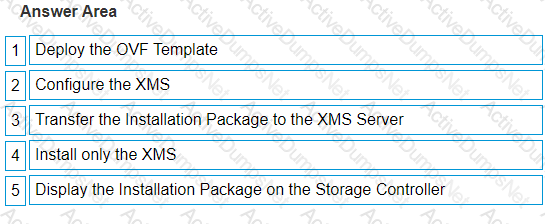

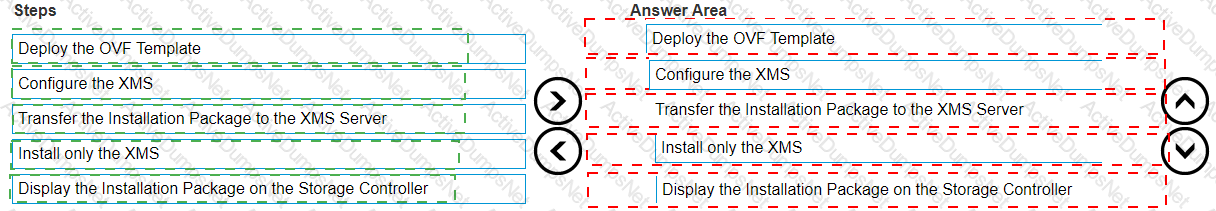

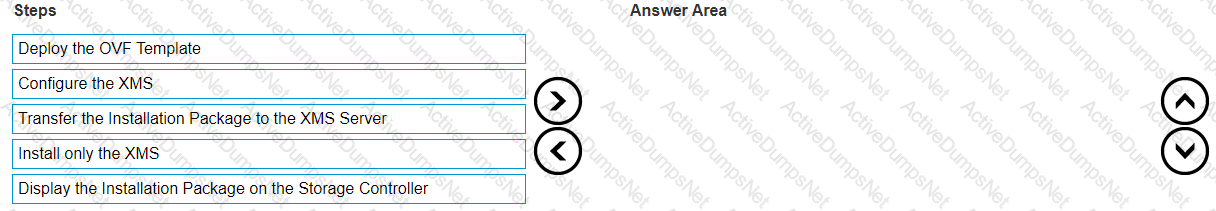

The correct sequence of steps to install a virtual XMS prior to creating the cluster on an XtremIO X2 is:

Deploy the OVF Template

Configure the XMS

Transfer the Installation Package to the XMS Server

Install only the XMS

Display the Installation Package on the Storage Controller

Deploy the OVF Template: Begin by deploying the Open Virtualization Format (OVF) template which is a pre-configured virtual machine that contains all necessary installation files.

Configure the XMS: After deployment, configure XtremIO Management Server (XMS) which involves setting up network configurations and other system settings.

Transfer the Installation Package to the XMS Server: The next step is transferring all necessary installation files for XtremIO to your newly configured XMS server.

Install only the XMS: Proceed with installing only XtremIO Management Server software on your server.

Display the Installation Package on Storage Controller: Finally, ensure that your storage controller can access and display all relevant installation packages for further processes.

These steps are outlined in the Dell XtremIO Maintenance Achievement document and provide a systematic approach to installing a virtual XMS, which is essential for managing and creating an XtremIO X2 cluster.

For uploading the XtremApp to the XtremIO Management Server (XMS), the recommended tool isWinSCP.WinSCP is a popular SFTP client and FTP client for Microsoft Windows that allows for secure file transfer between a local and a remote computer1. It is particularly useful for uploading files like XtremApp due to its graphical user interface, which simplifies the process of transferring files.

The steps for uploading the XtremApp to the XMS using WinSCP are as follows:

Download and install WinSCP on your local machine.

Open WinSCP and enter the XMS’s hostname or IP address, as well as the username and password.

Navigate to the XtremApp file on your local machine within the WinSCP interface.

Drag and drop the XtremApp file to the desired directory on the XMS.

Verify that the upload was successful by checking the file size and timestamp on the XMS.

This method is recommended in the Official Dell XtremIO Maintenance Achievement document as it provides a secure and reliable way to manage files on the XMS1.

=========================

In preparation for a single-to-dual online cluster expansion, the power cables that are pre-staged by being connected to Power Distribution Unit B (PDU-B) only are for the right-side Power Supply Units (PSUs) of the Storage Controllers (SCs). Specifically, these would be the power cables for X2-SC1-PSU-R and X2-SC2-PSU-R.This configuration ensures that there is a balanced power distribution across the PDUs and that the new cluster components will have power connectivity once they are physically installed1.

The process typically involves:

Identifying the correct power cables for the SCs’ PSUs.

Connecting these cables to the designated ports on PDU-B.

Ensuring that the cables are properly managed and labeled for easy identification during the expansion process.

This procedure is part of the standard practices for expanding an XtremIO cluster, as detailed in the Official Dell XtremIO Maintenance Achievement document1.

In an XtremIO X1 cluster, the system is designed to tolerate the failure of one DAE Controller SAS port without any impact on the service or data integrity. This is because the architecture of the XtremIO X1 includes redundancy and failover mechanisms that ensure continuous operation even when individual components fail.The failure of a single SAS port would trigger these mechanisms, allowing the system to maintain normal operations and prevent data loss, service degradation, or loss of service1.
