Cable Management: Proper cable management is crucial for maintaining an organized and efficient data center environment.

Rack Units: For an XtremIO X2-R four X-Brick cluster, it is recommended to allocate 6U for the cable management ducts.

Space Allocation: This ensures that there is enough space to manage and organize cables without causing congestion or interfering with airflow.

References:

Dell XtremIO Hardware Installation Guide

Dell XtremIO Rack and Cable Management Documentation

Checking Connectivity: Before creating a cluster, it is crucial to ensure that all components such as DAE controllers, IB switches, IPMI, and BBU are correctly connected and operational.

Technician Advisor Tool: This tool is specifically designed to assist with installation and validation of hardware components in an XtremIO environment. It provides comprehensive checks and ensures all components are correctly connected and operational.

Other Options:

WebUI: Typically used for management and monitoring after cluster creation.

Easy-Install Menu: Helps in initial setup but may not provide detailed connectivity checks.

XMCLI: Can be used for various configurations and checks, but the Technician Advisor Tool is more specialized for this purpose.

References:

Dell XtremIO Installation and Setup Guide

Technician Advisor Tool Documentation

Dell XtremIO Deployment Services

The best practice for creating a snapshot of a 10-volume database and presenting them to a backup server at a scheduled time is to use a Consistency Group in conjunction with the Scheduler. This approach ensures that all volumes in the snapshot are consistent with each other, as they are taken at the same point in time. The Scheduler allows for the automation of this process, ensuring that the snapshot is created at exactly 1:00 AM without manual intervention. This method is recommended for maintaining consistency across multiple volumes, which is crucial for databases to ensure transactional integrity1.

In an Oracle environment integrated with XtremIO, it is a best practice to increase the queue depth and execution throttle to the maximum values supported by the HBA (Host Bus Adapter) drivers. This configuration helps to optimize the performance by allowing more I/O operations to be processed simultaneously, which is crucial for handling the demanding workloads typically associated with Oracle databases. References := Dell Deployment Services

When powering up an XtremIO X2 multi X-Brick cluster, both the Disk Array Enclosures (DAEs) and the Storage Controllers will automatically power up once the rack Power Distribution Units (PDUs) are turned on. This process ensures that the essential components for storage and data management are operational immediately, facilitating a seamless startup of the storage environment. The DAEs contain the SSDs for data storage, while the Storage Controllers manage the data operations, ensuring high performance and reliability.

References:

Dell EMC XtremIO X2 documentation explains that upon powering the PDUs, the DAEs and Storage Controllers automatically power up as part of the system's startup process​

To interact with an XtremIO cluster using the REST API, the application that can be used is cURL. cURL is a command-line tool and library for transferring data with URLs and is commonly used for various types of HTTP requests.

The steps to use cURL with the XtremIO REST API are as follows:

Install cURL: Ensure that cURL is installed on your system. It is available for a variety of platforms including Windows, Mac, and Linux.

Prepare the API Request: Formulate your REST API request. This will include the XtremIO cluster’s endpoint and the specific API call you wish to make.

Execute the cURL Command: Use the cURL command in your terminal or command prompt to execute the API request. The general syntax for a cURL request is:

curl [options] [URL]

For example, to list all volumes on an XtremIO cluster, you might use:

curl -u username:password -X GET "https://XMS_IP_Address/api/json/v2/types/volumes "

Replace username:password with your actual credentials and XMS_IP_Address with the IP address of your XtremIO Management Server (XMS).

Analyze the Response: The response from the XtremIO cluster will be output to your terminal. It will typically be in JSON format, which you can then parse and analyze as needed.

Reference Documentation: For detailed information on the REST API calls available and their usage, refer to the official Dell XtremIO Deploy Achievement document1. This document will provide comprehensive guidance on implementing solutions using XtremIO systems, including the use of REST API for cluster interaction.

By following these steps and referring to the official documentation, you can successfully use cURL to interact with an XtremIO cluster via the REST API.

When adding a user account in the XtremIO X2 XMS, the required information includes a unique user name, account type, and e-mail notification settings. Here’s a detailed explanation:

Unique User Name: A unique identifier for the user account. This is essential to distinguish between different users and manage permissions accordingly.

Account Type: Specifies the level of access or role assigned to the user account, such as administrator, viewer, or custom roles with specific privileges.

E-mail Notification: Configuration settings for sending alerts and notifications to the user’s e-mail address. This is important for monitoring and managing the system effectively.

The XtremIO X2 WebUI provides various cluster security settings configurations. These include LDAP (Lightweight Directory Access Protocol) for authentication, Login Banner for security notices, and Inactivity Timeout to log out idle sessions automatically, ensuring the security of the management interface. References := Dell Deployment Services

Understanding XtremIO XMS Requirements: The XtremIO Management Server (XMS) is a dedicated server that manages one or more XtremIO clusters. Each XMS can manage multiple clusters, but there are limitations depending on the software version.

Software Version Compatibility:

XtremIO Software 4.0.4-41: This version can manage multiple clusters with a single XMS server.

XtremIO Software 3.0.3-11: This version has more stringent requirements and typically requires a separate XMS server for each cluster due to its older architecture and limitations.

Cluster Configuration:

For the two clusters running 4.0.4-41, a single XMS server can manage both.

For the two clusters running 3.0.3-11, each cluster will require its own XMS server.

Calculation of Minimum XMS Servers:

1 XMS server for the two clusters with software version 4.0.4-41.

2 XMS servers for the two clusters with software version 3.0.3-11.

Therefore, the total minimum number of XMS servers required = 1 (for 4.0.4-41) + 2 (for 3.0.3-11) = 3.

References:

Dell XtremIO Deployment Guide

XtremIO Management Server (XMS) Documentation

Dell XtremIO Deployment Services

To align the partitions on XtremIO volumes after an upgrade from Windows Server 2003 to Windows Server 2008, the following steps should be taken:

Backup the Data: First, ensure that all data on the existing misaligned partitions is backed up to a secure location to prevent any data loss.

Run Diskpart: Use the Diskpart utility, which is a command-line tool in Windows, to delete the existing partitions and create new aligned partitions. Diskpart allows for more control over the alignment process compared to graphical tools.

Recreate the Partition: After deleting the misaligned partitions, create new partitions using Diskpart with the correct alignment settings as per the XtremIO best practices.

Restore the Data: Once the new partitions are created and properly aligned, restore the data from the backup to the newly aligned partitions.

This process ensures that the partitions are aligned correctly, which can significantly improve performance due to more efficient disk access patterns1. It’s important to follow the detailed procedures outlined in the official Dell XtremIO Deploy Achievement documentation to ensure proper alignment and to avoid any potential issues during the process.

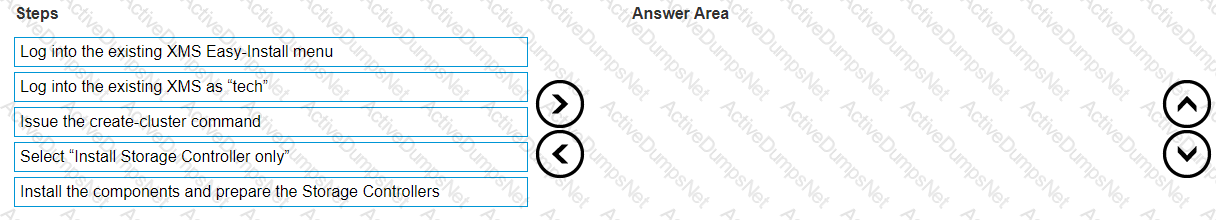

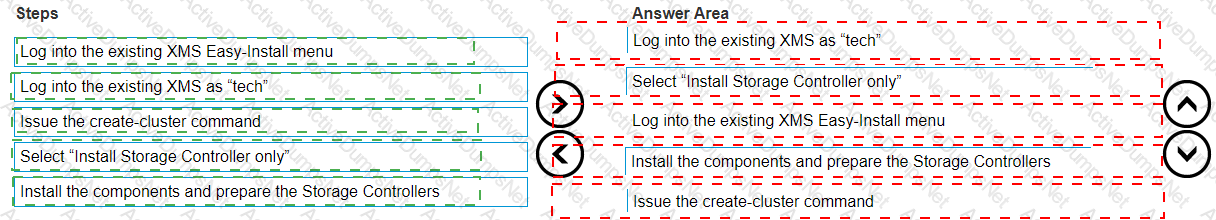

 Log into the existing XMS as "tech"

 Select “Install Storage Controller only”

 Log into the existing XMS Easy-Install menu

 Install the components and prepare the Storage Controllers

 Issue the create-cluster command

Log into the existing XMS as "tech": Begin by logging into the existing XtremIO Management Server (XMS) using the "tech" user account, which has the necessary privileges to perform installation and configuration tasks.

Select “Install Storage Controller only”: Choose the option to install only the storage controller to ensure the proper setup of the storage controllers in the cluster.

Log into the existing XMS Easy-Install menu: Access the Easy-Install menu on the XMS to guide you through the setup process.

Install the components and prepare the Storage Controllers: Follow the instructions to install all necessary components and prepare the storage controllers for integration into the cluster.

Issue the create-cluster command: Finally, execute the create-cluster command to officially create and configure the new XtremIO X1 cluster within the XMS.

References:

Dell XtremIO Installation and Setup Guide

Dell XtremIO Deployment Services

XtremIO Management Server (XMS) Documentation

Identify the Components: According to the Dell XtremIO Deploy Achievement document, the XtremIO X1 system includes a Storage Controller (SC) and a Battery Backup Unit (BBU)1.

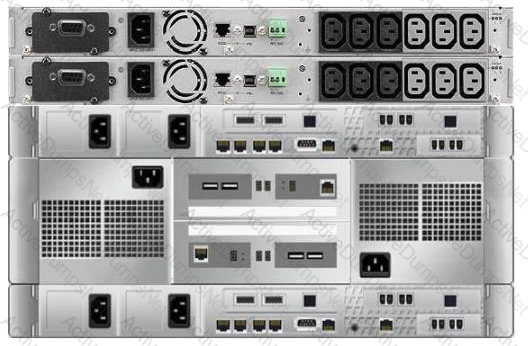

Understand the Configuration: For a single X-Brick cluster, the left power supply in Storage Controller 1 (X1-SC1-PSU-L) should be connected to the corresponding BBU to ensure proper power redundancy and failover capabilities1.

Determine the Correct Connection: The document specifies that each Storage Controller’s left power supply connects to Output1 of the BBU within the same X-Brick cluster1.

Verify the Answer: Based on the information provided, the correct power cable connection for the left power supply in Storage Controller 1 to the Battery Backup Unit in an XtremIO X1 single X-Brick cluster is to BBU1-Output1, which corresponds to option OB1.

After creating volumes on an XtremIO system, the steps required to provision these volumes to the servers involve host configuration, establishing SAN connectivity, setting up an Initiator group, and mapping the volumes.

Host Configuration: Configure the host’s HBA (Host Bus Adapter) to ensure it can connect to the SAN (Storage Area Network). This involves setting the correct parameters such as data transfer rates and queue depths.

SAN Connectivity: Establish connectivity between the host and the SAN. This includes zoning in a Fibre Channel network or setting up the appropriate network configurations for iSCSI.

Initiator Group: Create an Initiator group within the XtremIO system. This group will contain the identifiers (WWPN for Fibre Channel or IQN for iSCSI) of the host’s HBA.

Volumes Mapping: Map the volumes to the host by creating a LUN (Logical Unit Number) mapping that associates the volumes with the Initiator group. This allows the host to see and access the volumes.

These steps ensure that the XtremIO volumes are correctly provisioned and accessible to the servers1. It’s important to follow the specific procedures outlined in the official Dell XtremIO Deploy Achievement documentation to ensure proper configuration and to avoid any potential issues during the provisioning process.

The largest size supported for each volume in a new XtremIO X2-S single X-Brick cluster, as per the Official Dell XtremIO Deploy Achievement documents, is 64 TB. This information is verified through the official documentation which outlines the capabilities and specifications of the XtremIO X2 systems. The documents provide a detailed description of the critical components, features, and implementation solutions in customer environments, which includes the storage capacity specifications for XtremIO systems1.

For an XtremIO X2 two X-Brick system installation, only two IP addresses are required because the entire system is managed through the first X-Brick. This is in line with the design of the XtremIO X2 architecture, which allows for a single management point for multiple X-Bricks. The XMS (XtremIO Management Server) manages multiple XtremIO arrays and requires an IP address for each X-Brick in the cluster1. In a two X-Brick system, the first X-Brick acts as the primary management point, and the second X-Brick is managed through it, thus only necessitating two IP addresses for management purposes2.

The Dell XtremIO Deploy Achievement documents specify different numbers for the maximum volumes in various contexts. However, for the XtremIO Consistency Group, the supported and QA certified number of volumes is 512. This is based on the authoritative information provided in the official release notes and support documents from Dell. It’s important to note that while there may be higher numbers mentioned in some technical documents or API responses, such as 60000 or 32000, these are either not recommended or pertain to different aspects of the XtremIO system, not specifically to the Consistency Group1.

Power Connectors for XtremIO X2 Dual X-Brick Configuration: Each X-Brick typically requires multiple power connections for redundancy and reliability. A dual X-Brick configuration without a physical XMS would need to account for these requirements.

Calculation:

Each X-Brick has 2 storage controllers, each requiring 2 power connections, totaling 4 power connections per X-Brick.

For a dual X-Brick configuration: 4 power connections per X-Brick * 2 X-Bricks = 8 power connections.

Each DAE (Disk Array Enclosure) typically requires 2 power connections. In a dual X-Brick setup, there are 4 DAEs, totaling 8 power connections.

Total power connections: 8 (for X-Bricks) + 8 (for DAEs) = 16 power connections.

References:

Dell XtremIO X2 Installation Guide

XtremIO User Guide

Dell XtremIO Deployment Services

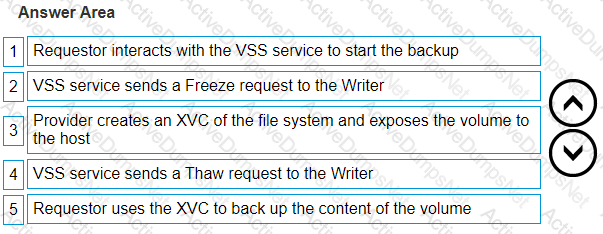

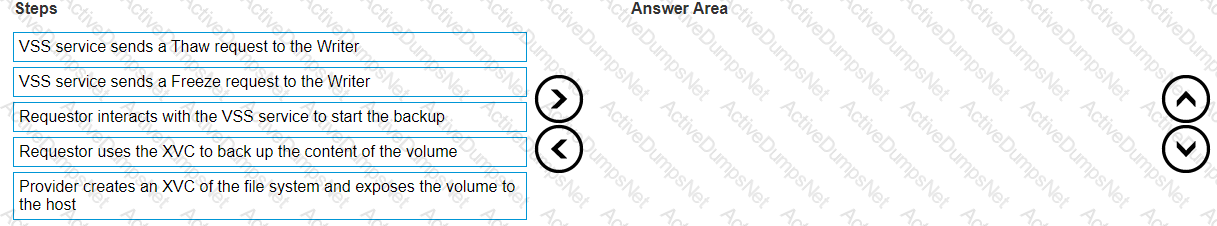

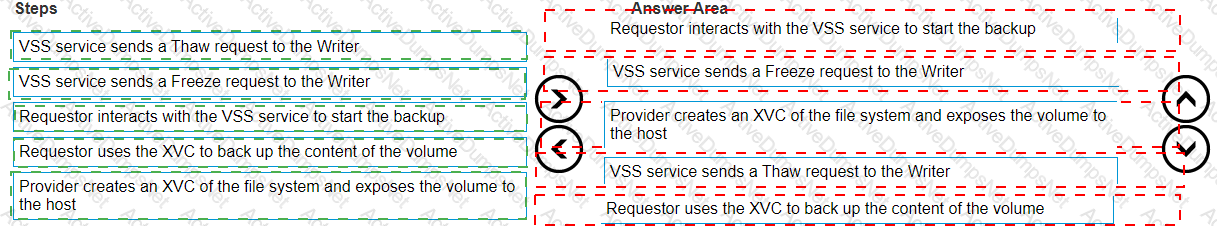

The correct sequence of steps to create a Windows volume backup using the Microsoft VSS Framework with an XtremIO cluster is as follows:

Requestor interacts with the VSS service to start the backup.

VSS service sends a Freeze request to the Writer.

Provider creates an XVC of the file system and exposes the volume to the host.

VSS service sends a Thaw request to the Writer.

Requestor uses the XVC to back up the content of the volume.

The Requestor, typically a backup application, initiates the process by interacting with Microsoft’s Volume Shadow Copy Service (VSS) to commence a snapshot backup.

The VSS service then issues a Freeze request to its Writers, which are responsible for ensuring data consistency for applications during backups.

An XtremIO Provider, which interfaces between the XtremIO storage and VSS, creates an XtremIO Virtual Copy (XVC) of the file system. This copy is then made accessible to the host system for backup purposes.

After the XVC is created, the VSS sends a Thaw request to the Writers, allowing them to resume normal operations while maintaining data integrity.

Finally, the Requestor uses the XVC to back up the content of the volume, ensuring a consistent and recoverable backup is made.

Please note that this sequence is based on the standard operation of Microsoft VSS with storage systems like XtremIO and should be verified against the most current Dell XtremIO Deploy Achievement documentation for any updates or specific instructions related to your environment.
