Understanding Switches:

Layer 2 (Data Link Layer): Traditional switches operate primarily at Layer 2, where they use MAC addresses to forward frames within a local network.

Layer 3 (Network Layer): Layer 3 switches, also known as multilayer switches, can perform routing functions using IP addresses to forward packets between different networks.

Capabilities of Multilayer Switches:

VLANs and Inter-VLAN Routing: Multilayer switches can handle VLAN (Virtual Local Area Network) configurations and perform inter-VLAN routing, enabling communication between different VLANs.

Routing Protocols: They can run routing protocols like OSPF (Open Shortest Path First) and EIGRP (Enhanced Interior Gateway Routing Protocol) to manage traffic between networks.

Comparison with Other Devices:

Hub: Operates only at Layer 1 (Physical Layer) and simply repeats incoming signals to all ports.

Transceiver: Also operates at Layer 1, converting electrical signals to optical signals and vice versa.

Modem: Primarily operates at Layer 1 and Layer 2, modulating and demodulating signals for transmission over different types of media.

Practical Application:

Multilayer switches are commonly used in enterprise networks to optimize performance and manage complex routing and switching requirements within a single device.

References:

CompTIA Network+ study materials on network devices and the OSI model.

802.1Q tagging, also known as VLAN tagging, is used to identify VLANs on a trunk link between switches. This allows the switches to transfer data for multiple VLANs (or networks) over a single physical connection. This method ensures that traffic from different VLANs is properly separated and managed across the network.References: CompTIA Network+ study materials.

SNMPv3 is the version of the Simple Network Management Protocol that introduces security enhancements, including message integrity, authentication, and encryption. Unlike previous versions (v1 and v2c), SNMPv3 supports encrypted communication, ensuring that data is not transmitted in plaintext. This provides confidentiality and protects against eavesdropping and unauthorized access.References: CompTIA Network+ study materials.

(Note: Ips will be change on each simulation task, so we have given example answer for the understanding)

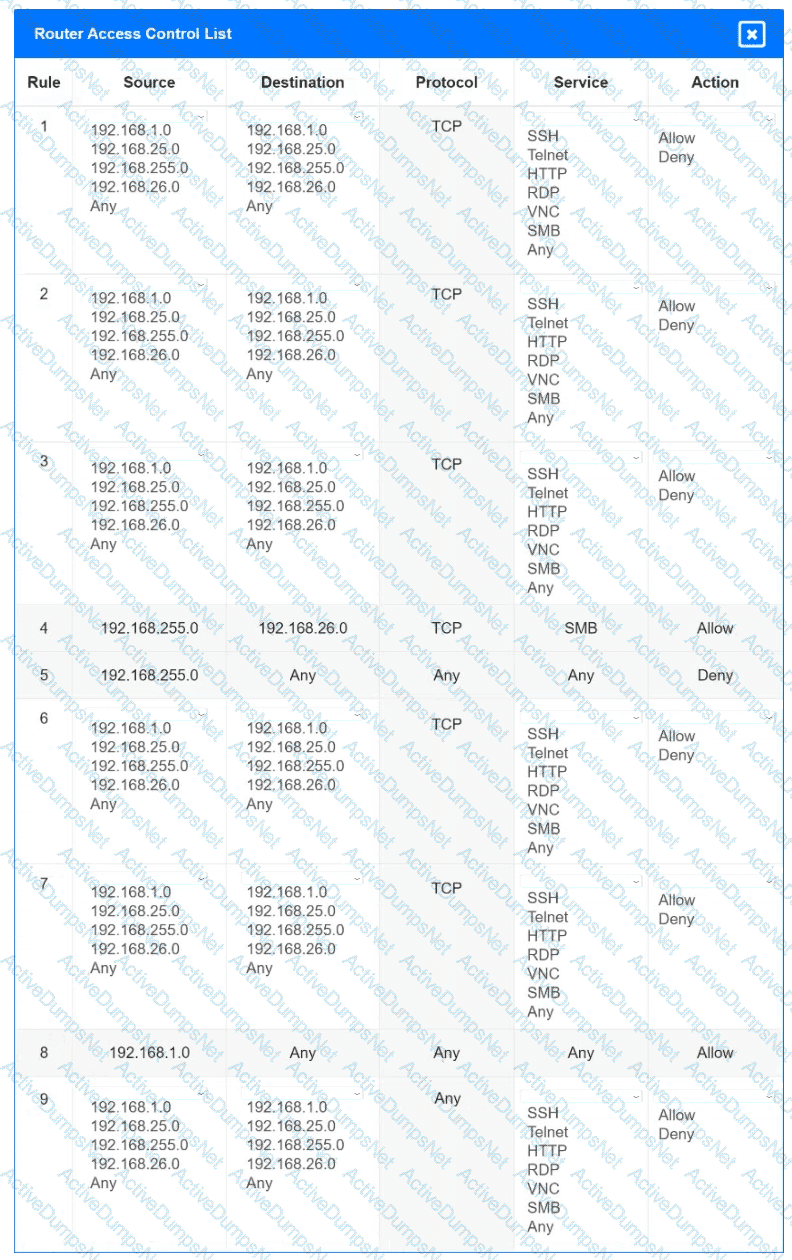

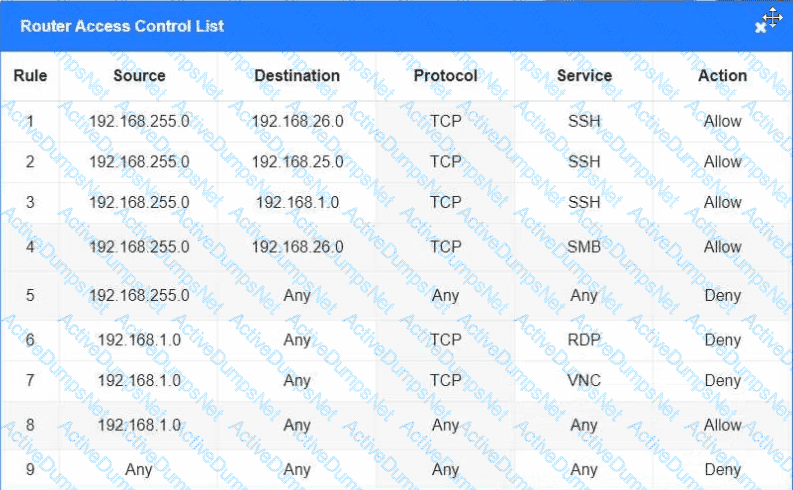

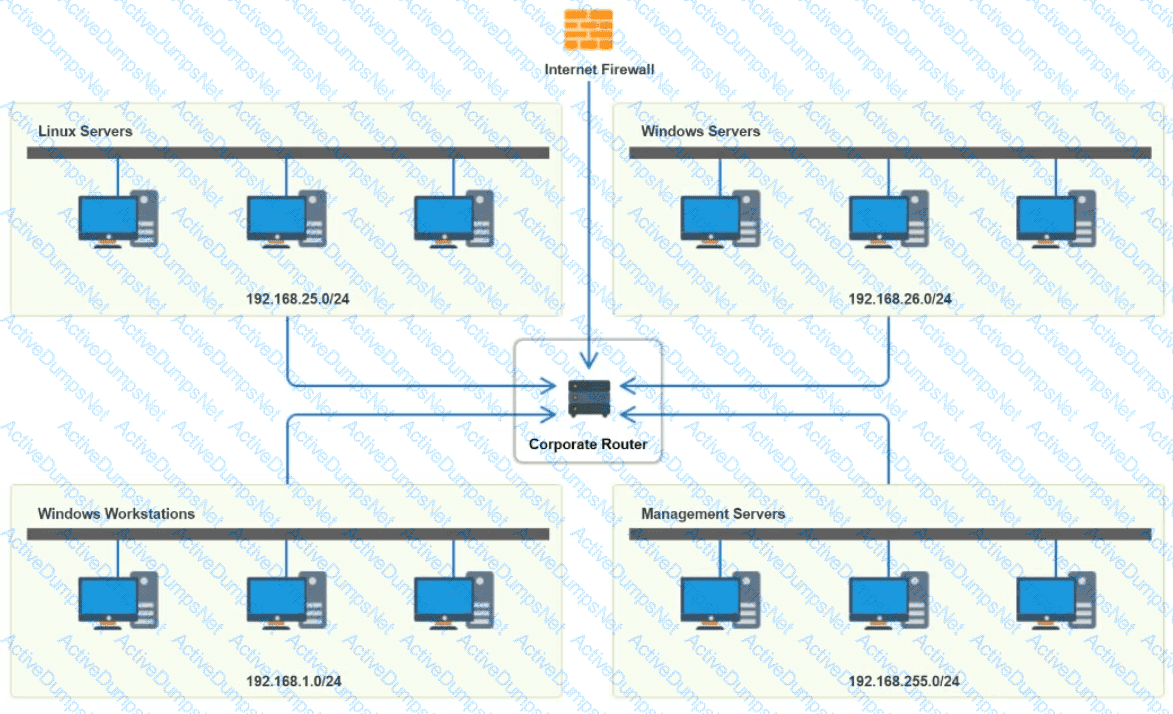

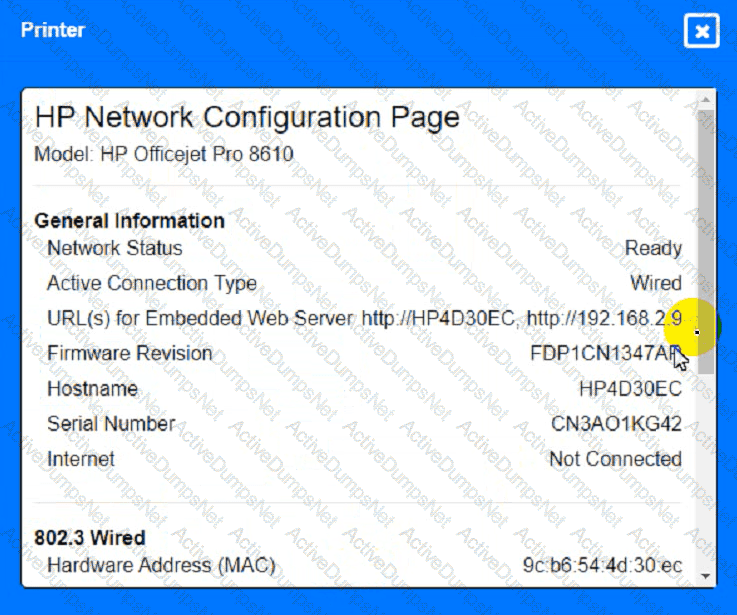

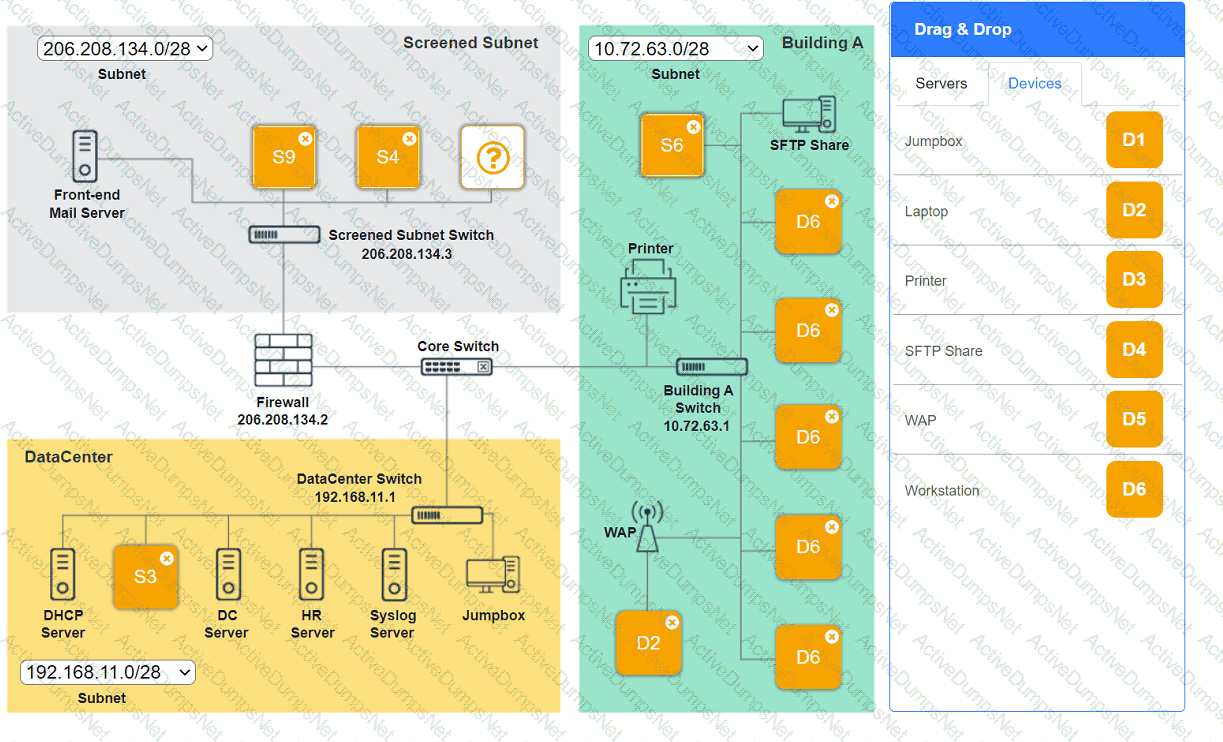

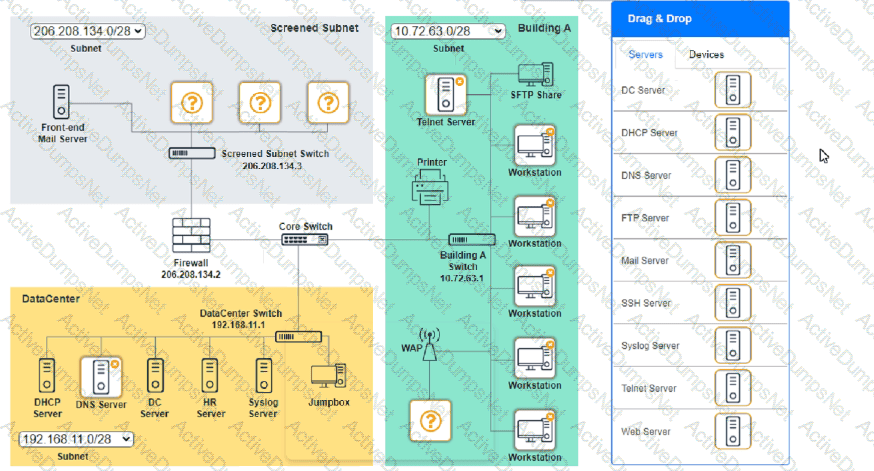

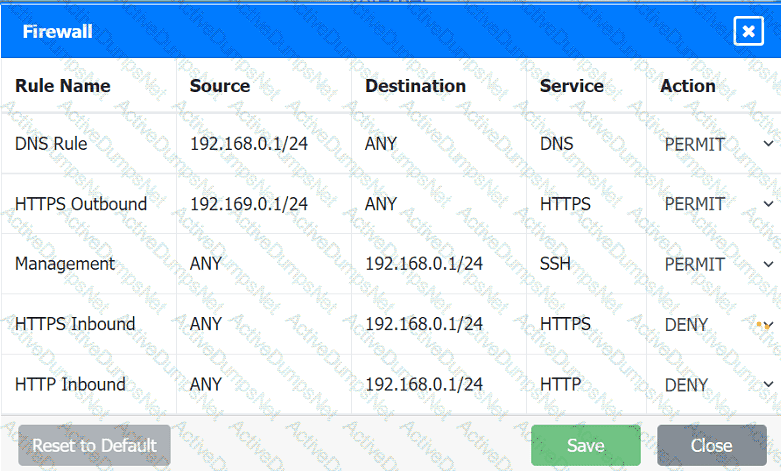

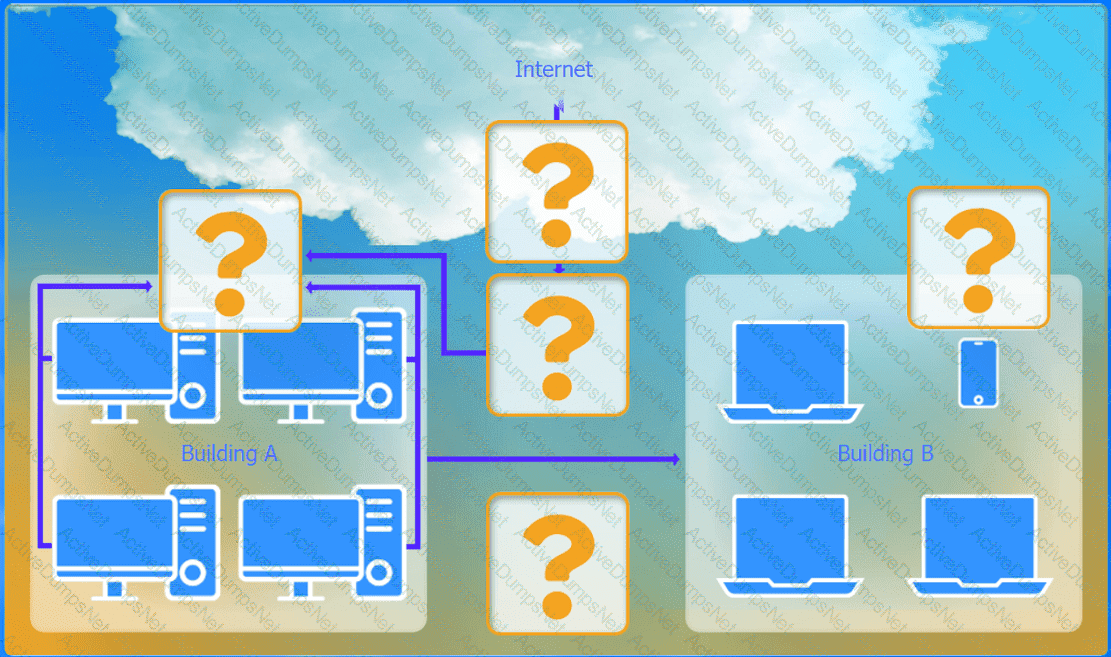

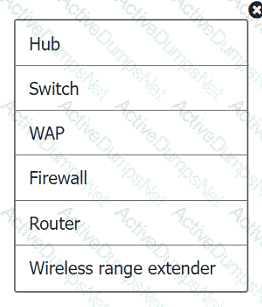

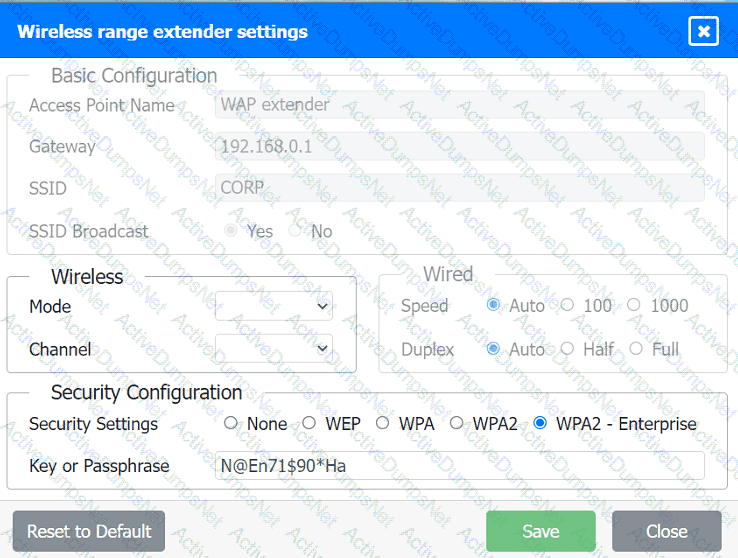

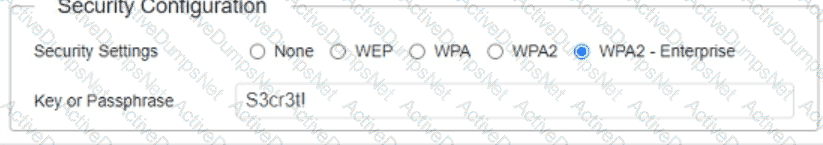

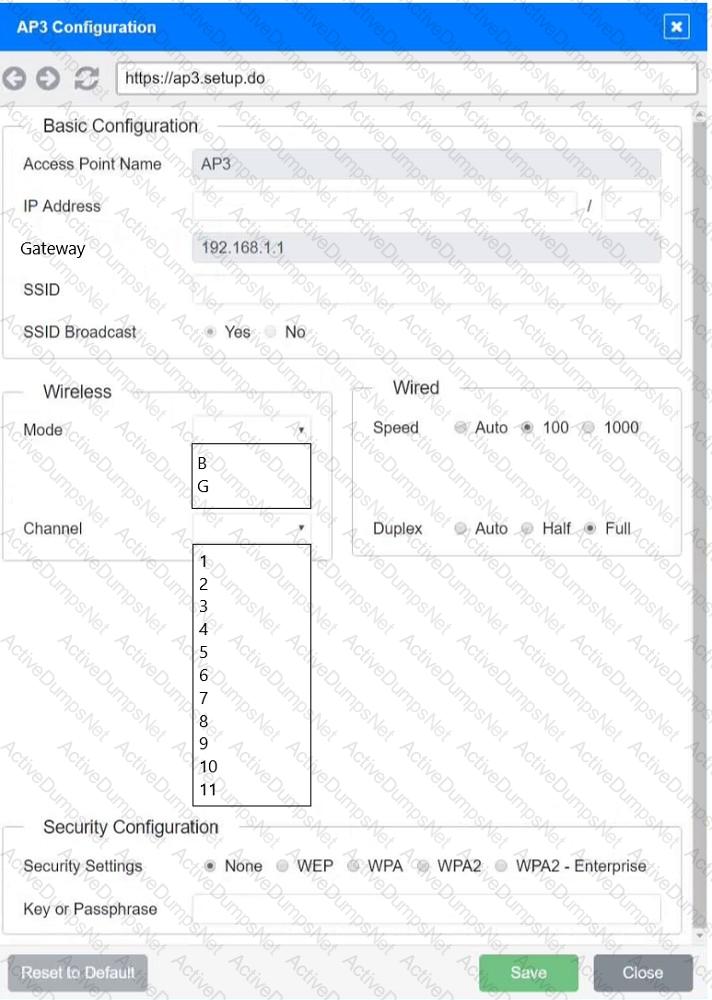

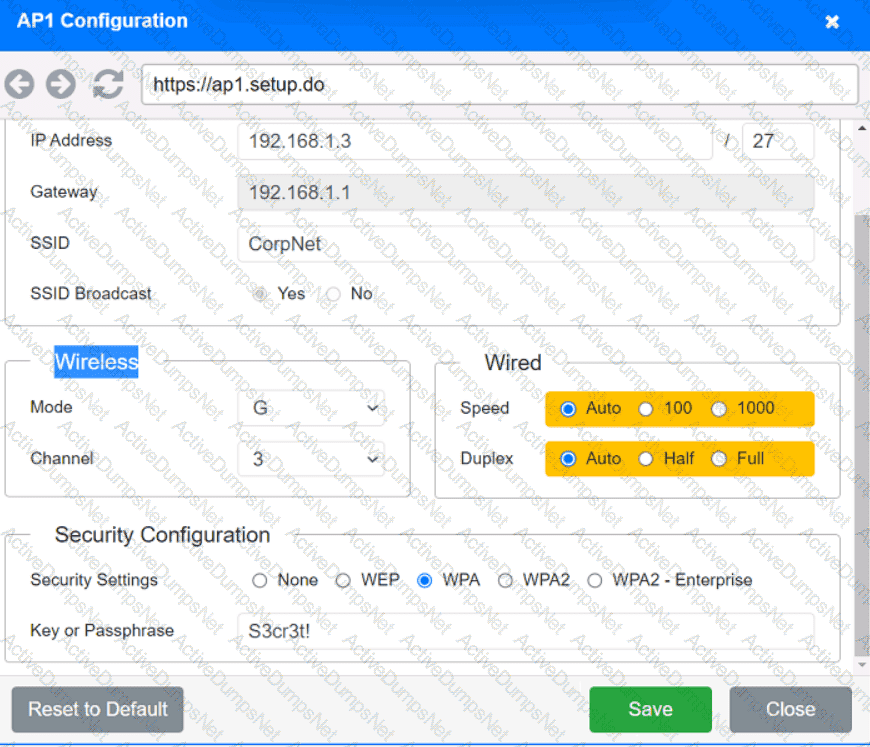

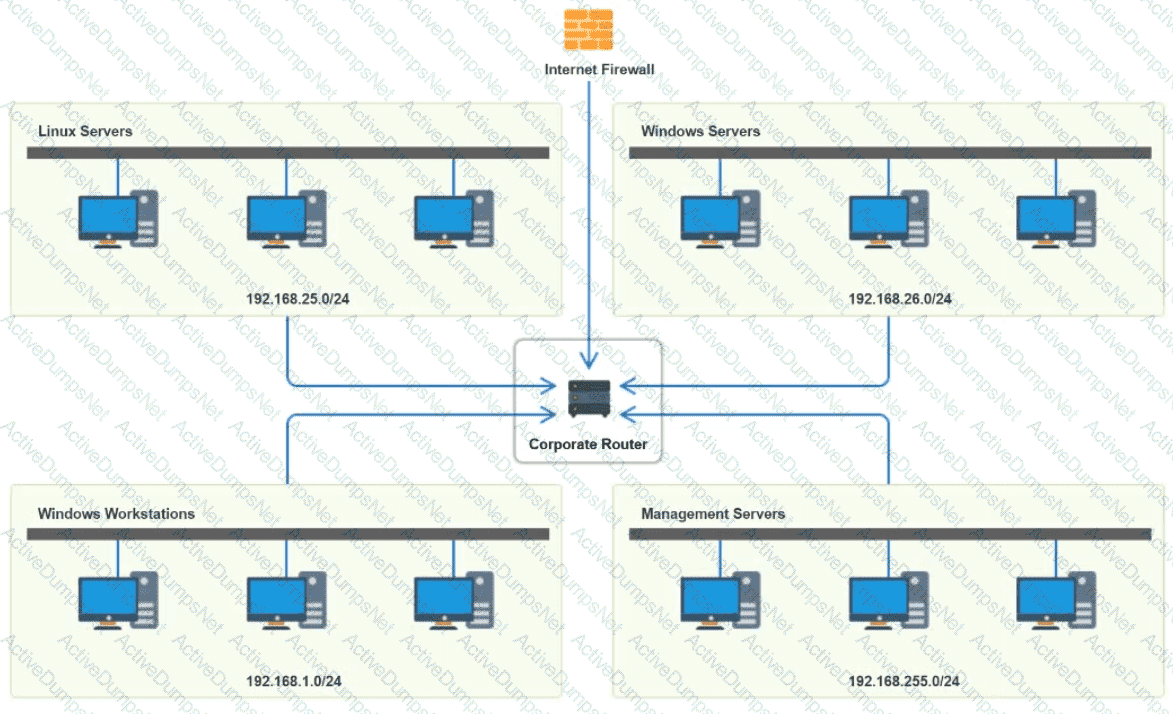

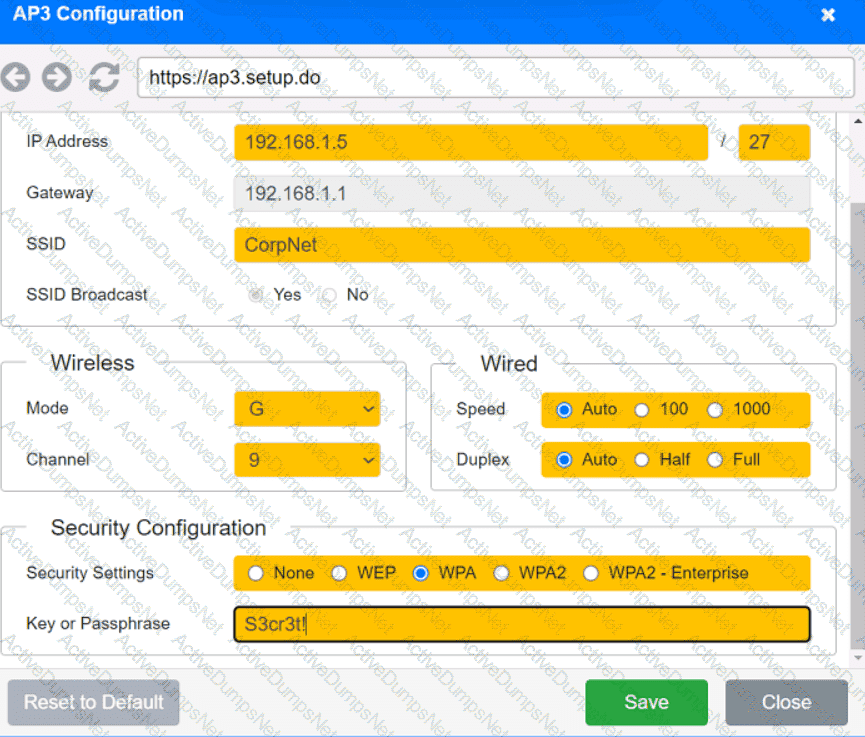

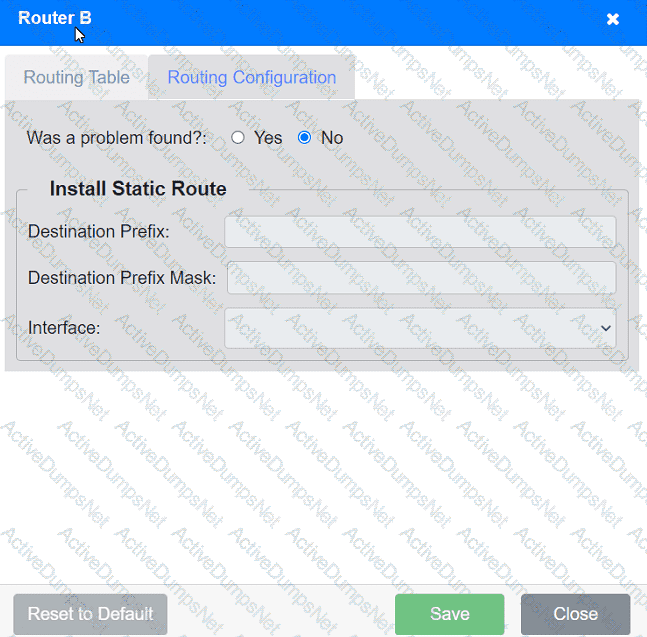

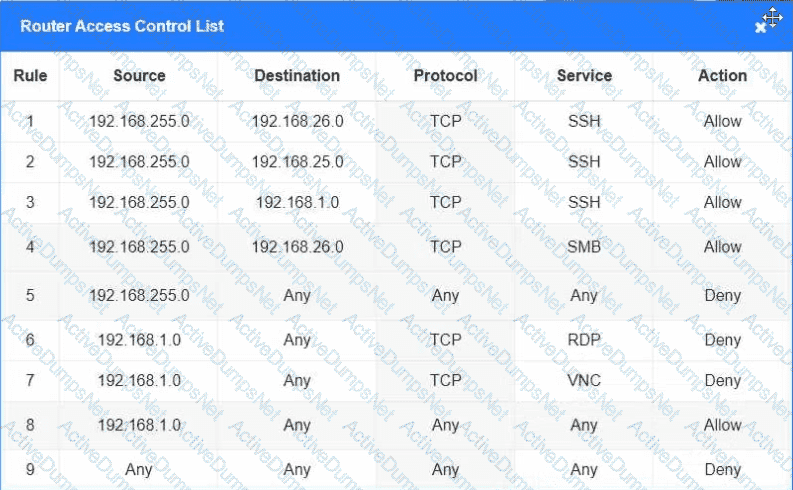

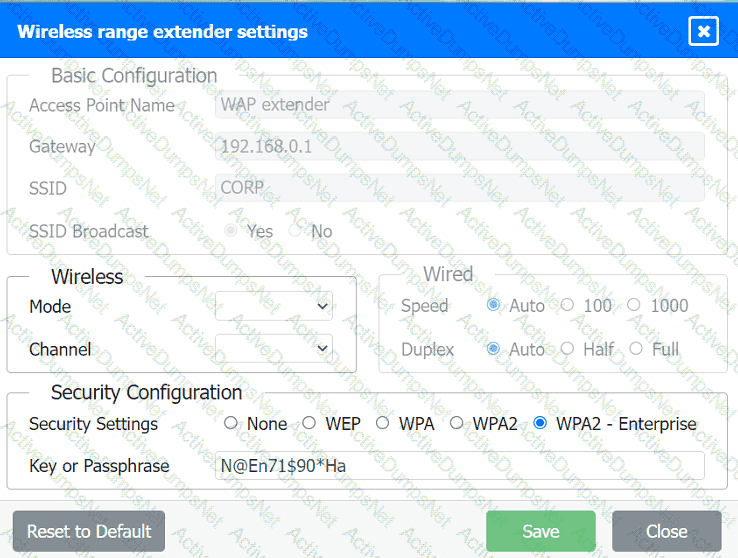

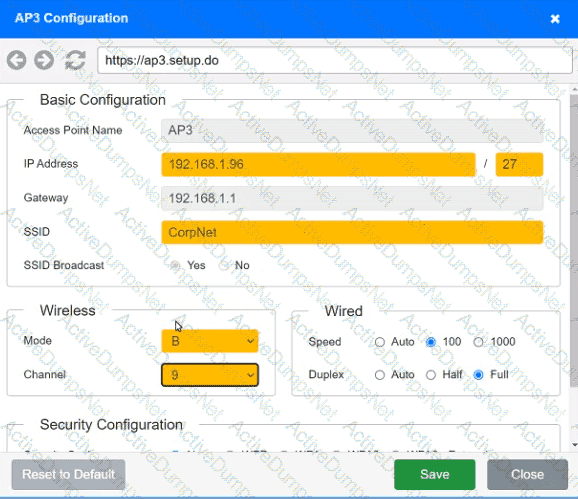

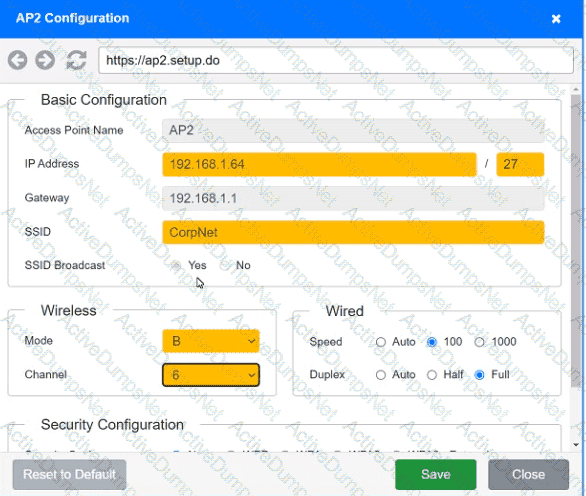

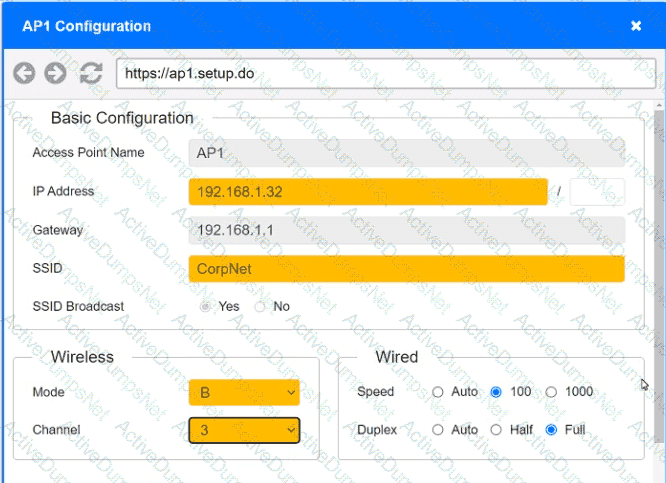

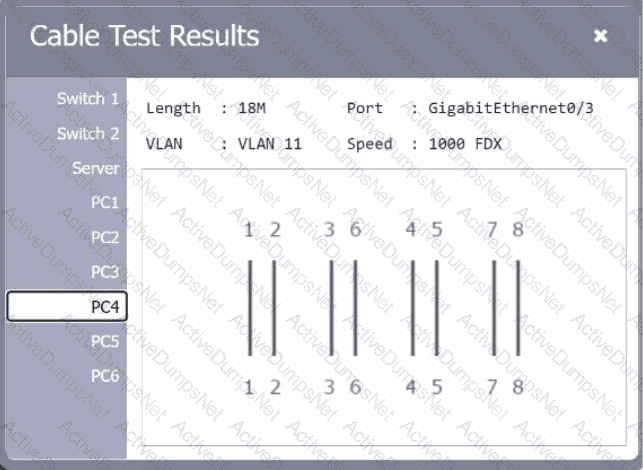

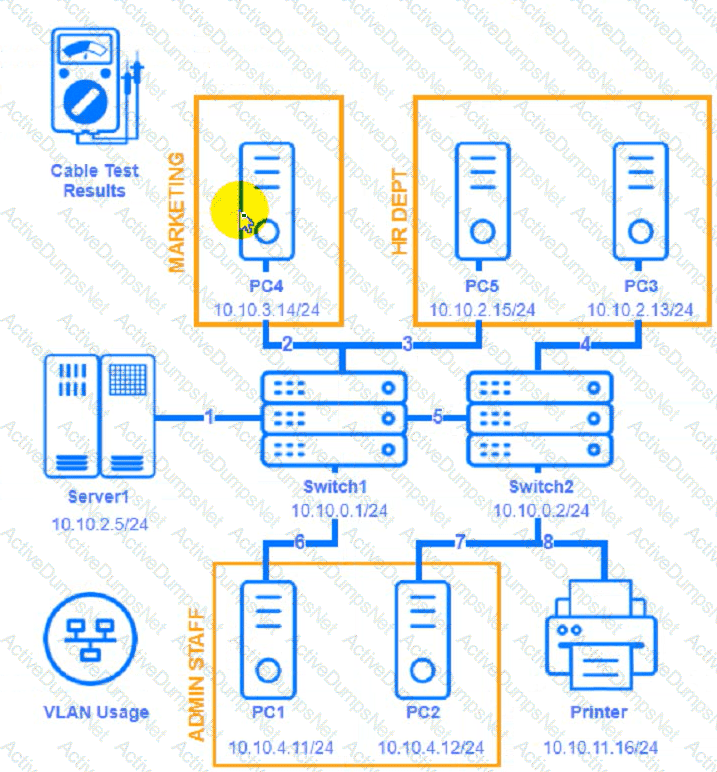

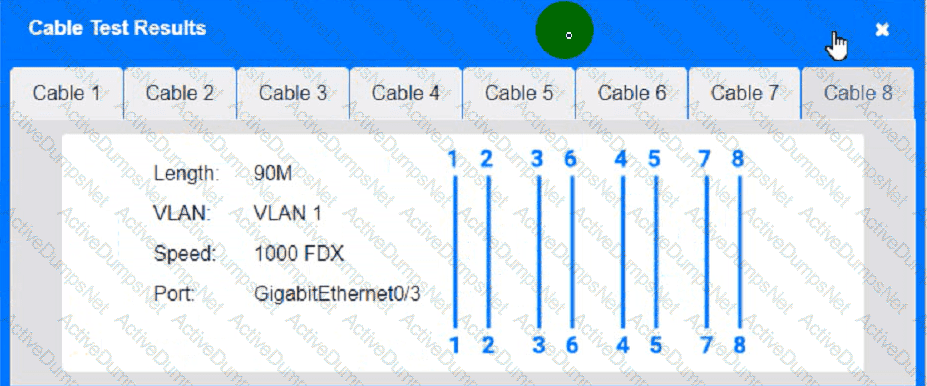

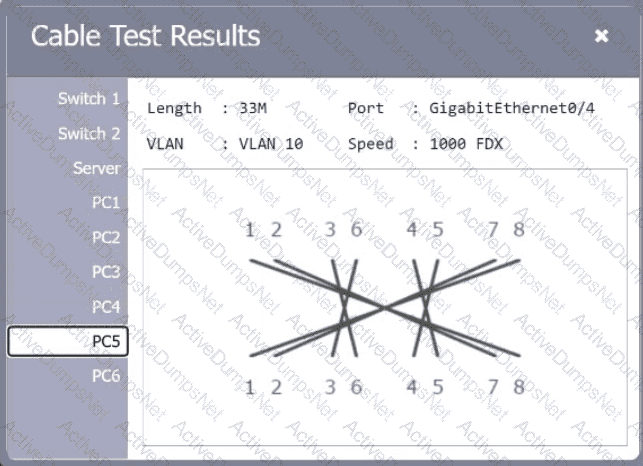

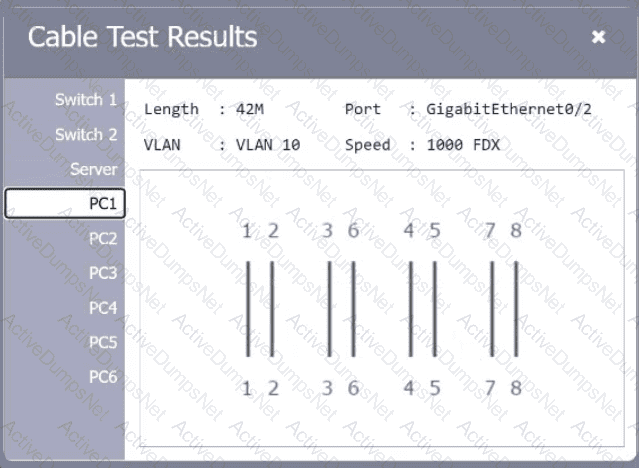

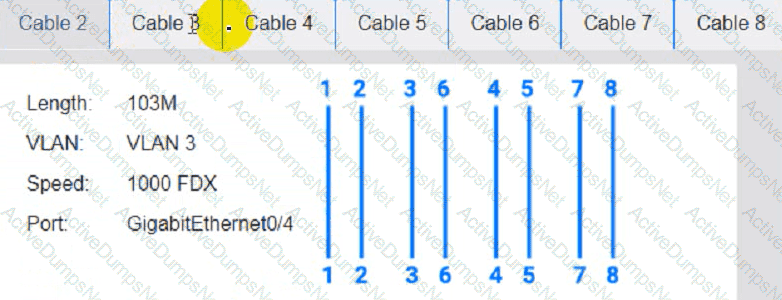

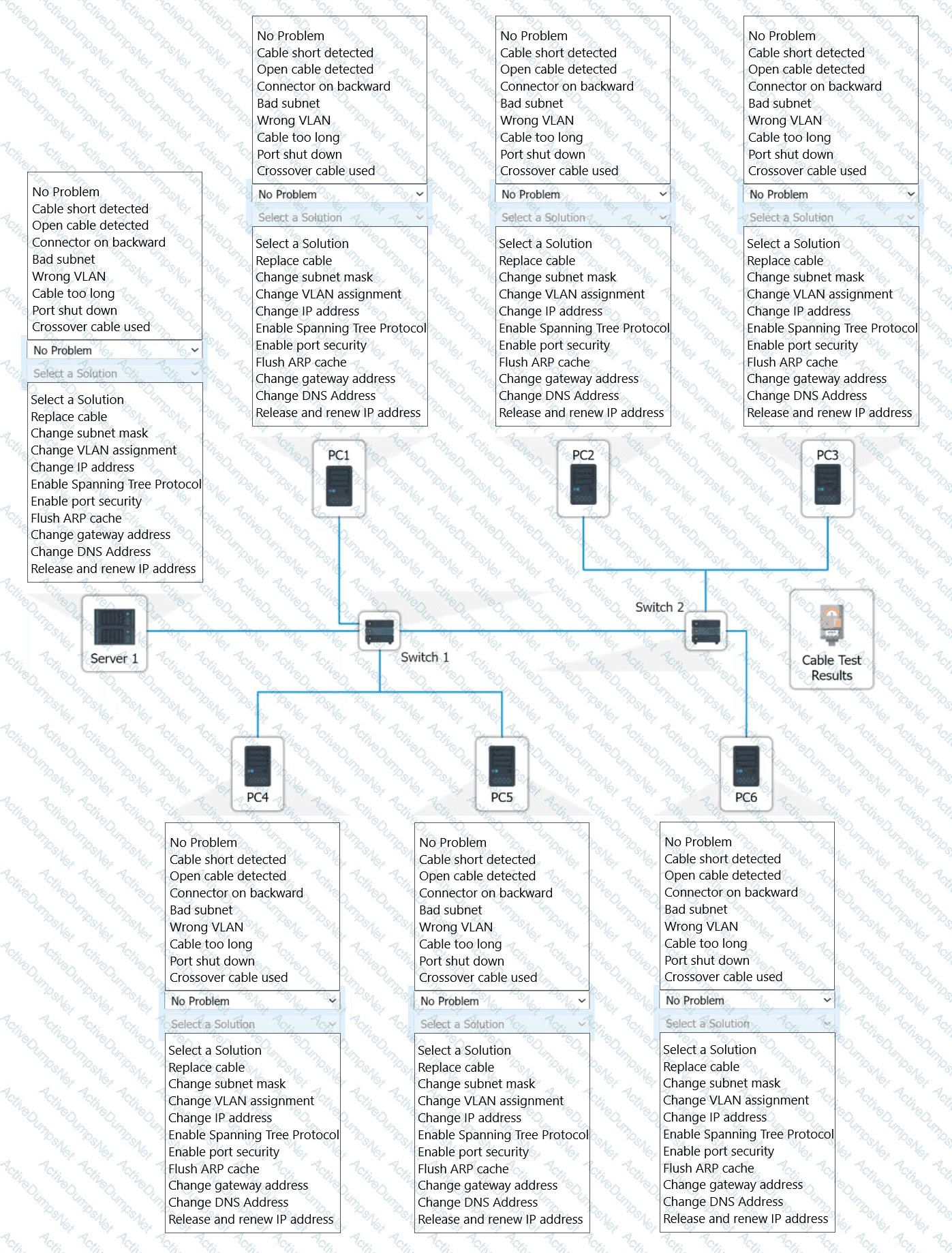

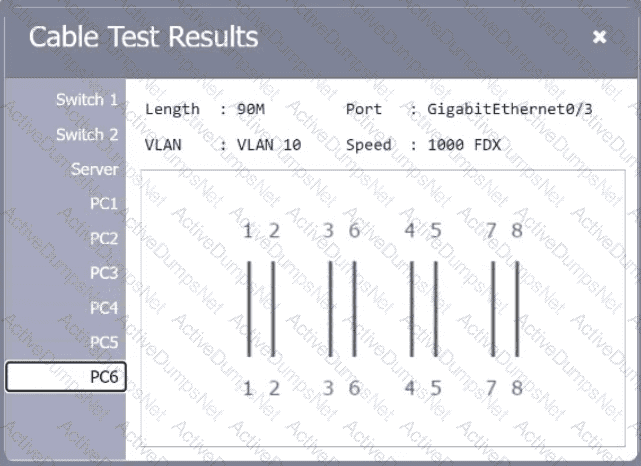

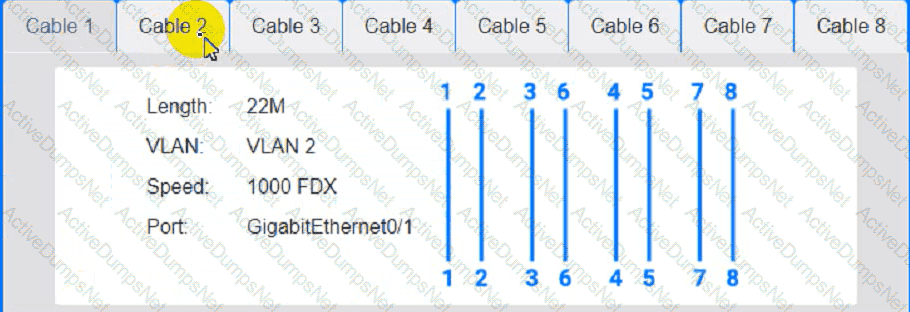

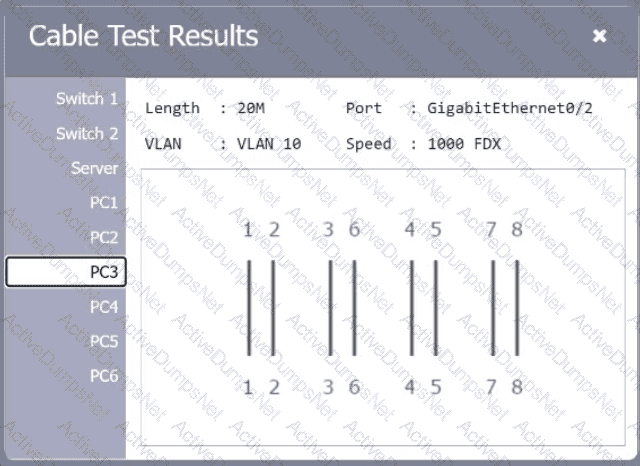

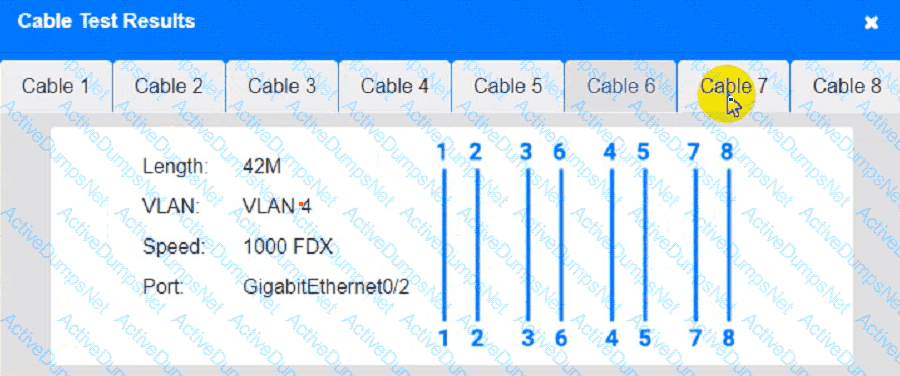

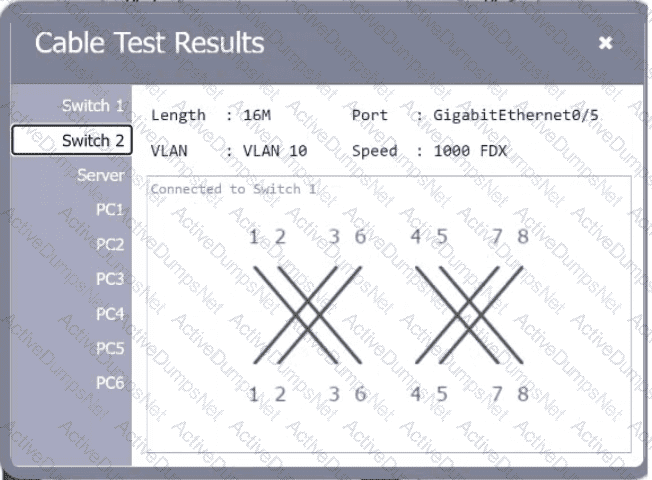

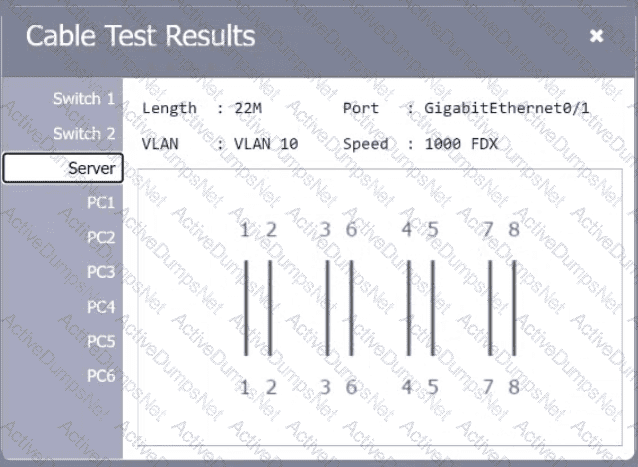

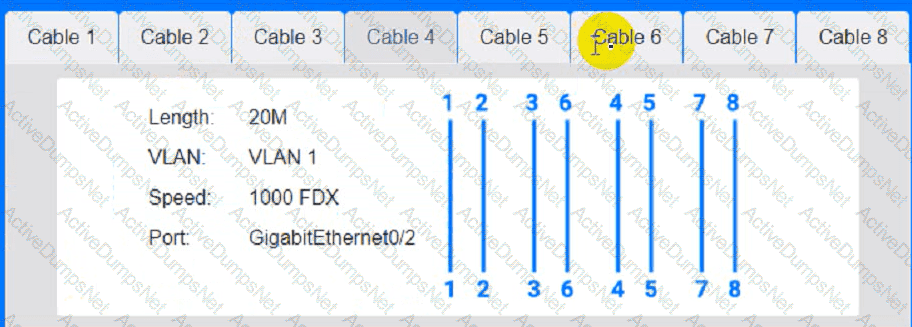

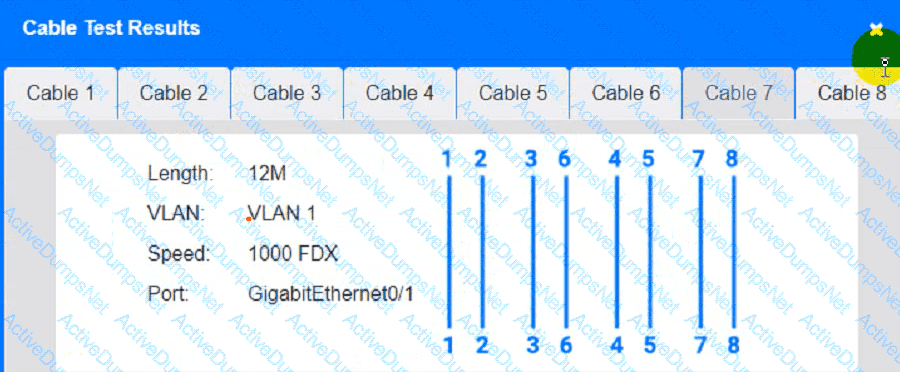

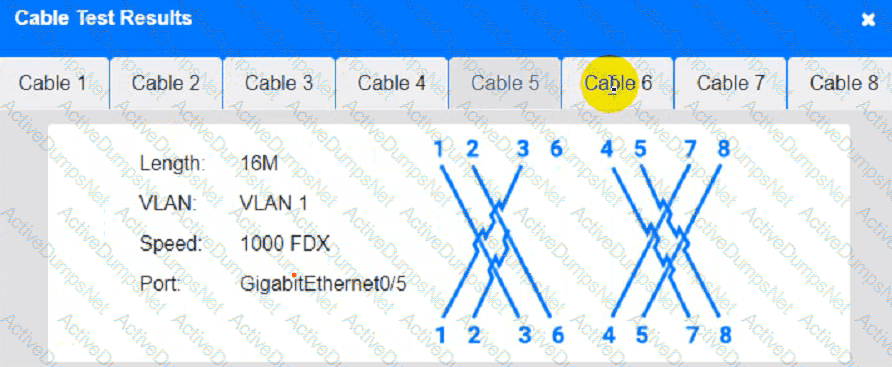

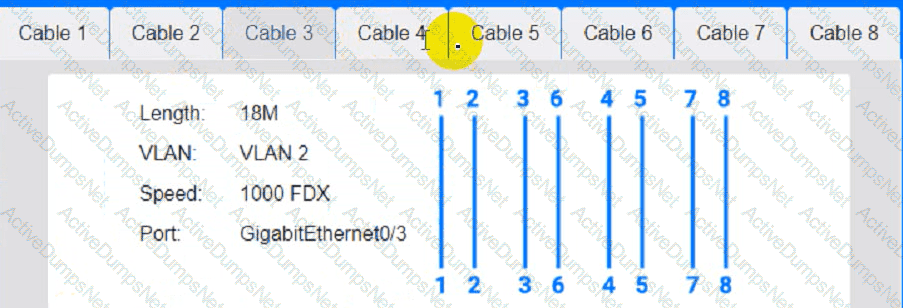

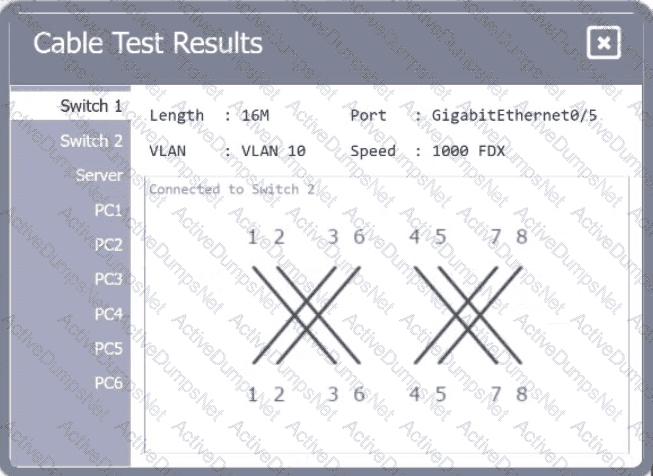

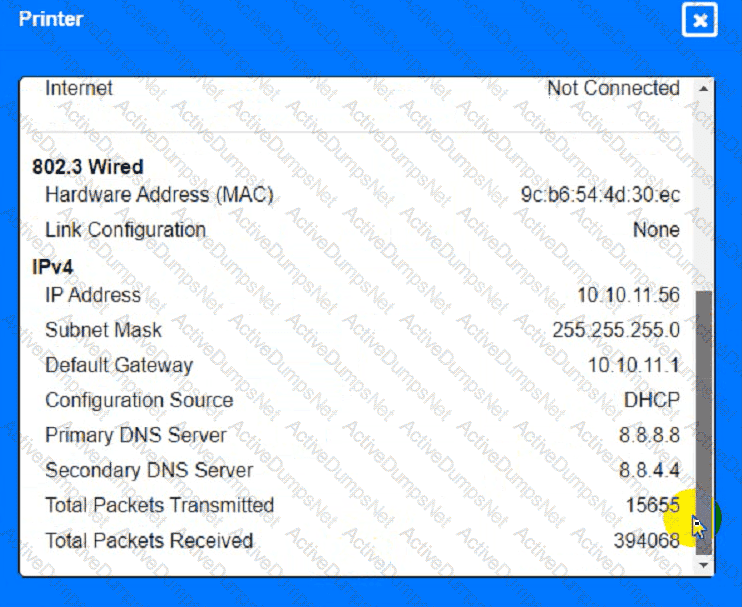

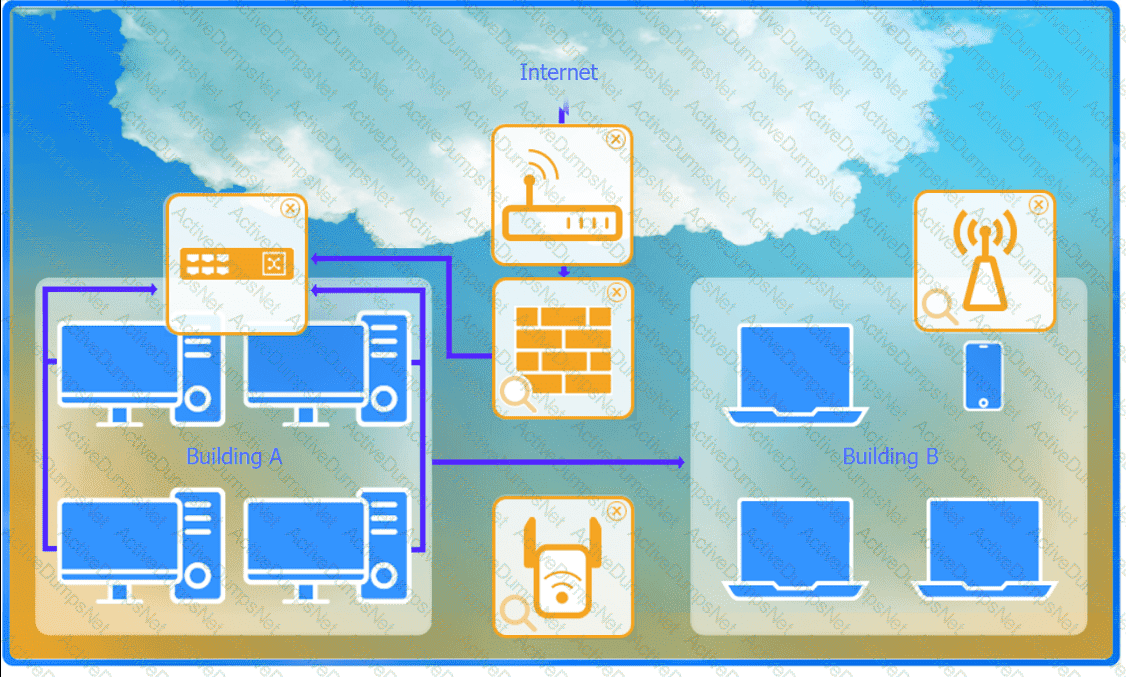

To troubleshoot all the network components and review the cable test results, you can use the following steps:

Click on each device and cable to open its information window.

Review the information and identify any problems or errors that may affect the network connectivity or performance.

Diagnose the appropriate component(s) by identifying any components with a problem and recommend a solution to correct each problem.

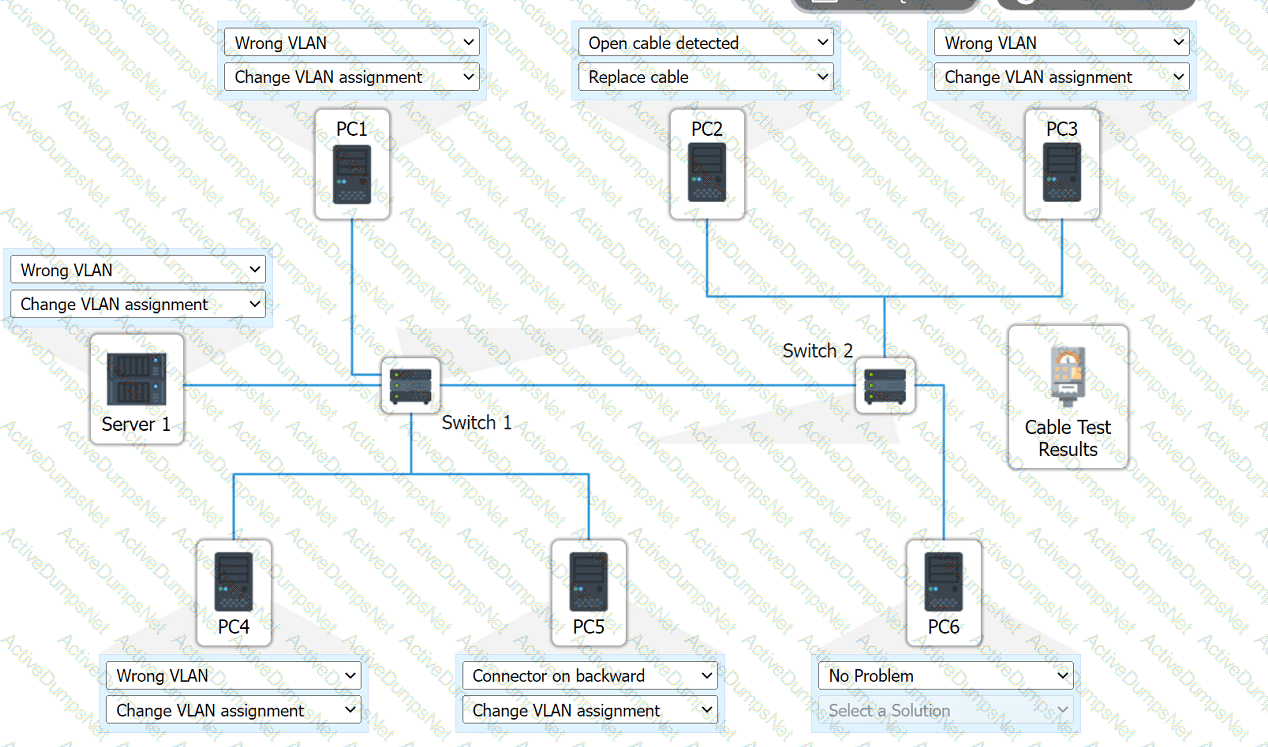

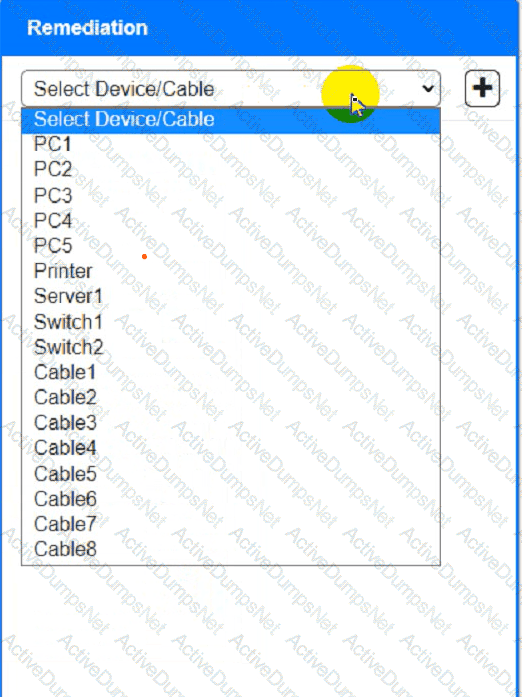

Fill in the remediation form using the drop-down menus provided.

Here is an example of how to fill in the remediation form for PC1:

The component with a problem is PC1.

The problem is Incorrect IP address.

The solution is Change the IP address to 192.168.1.10.

You can use the same steps to fill in the remediation form for other components.

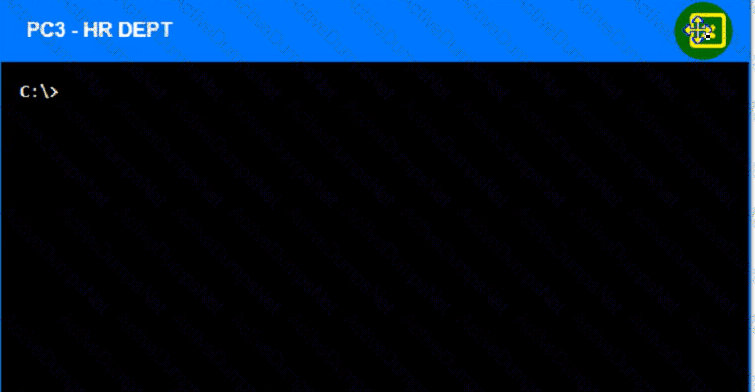

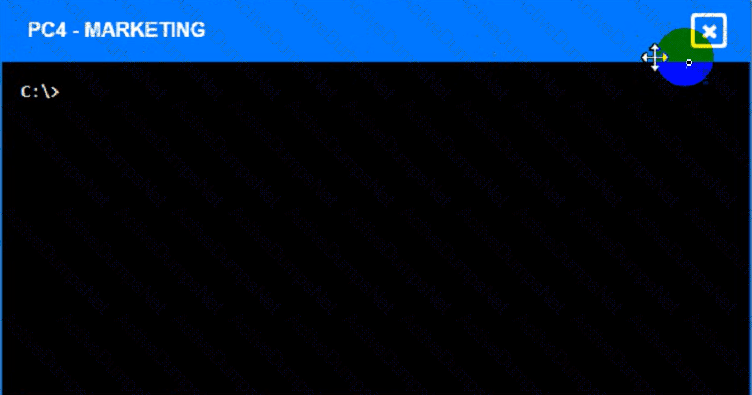

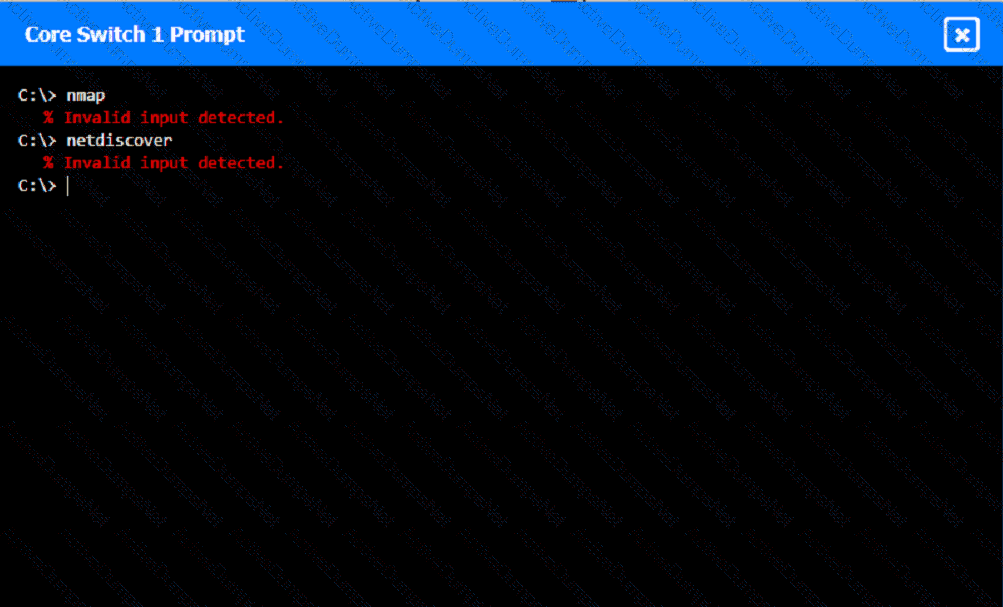

To enter commands in each device, you can use the following steps:

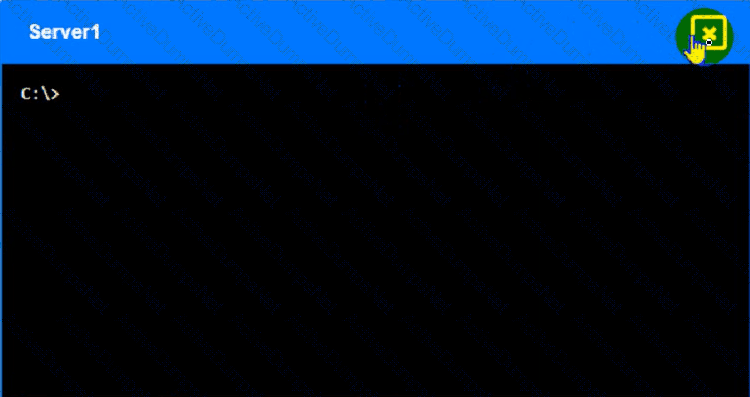

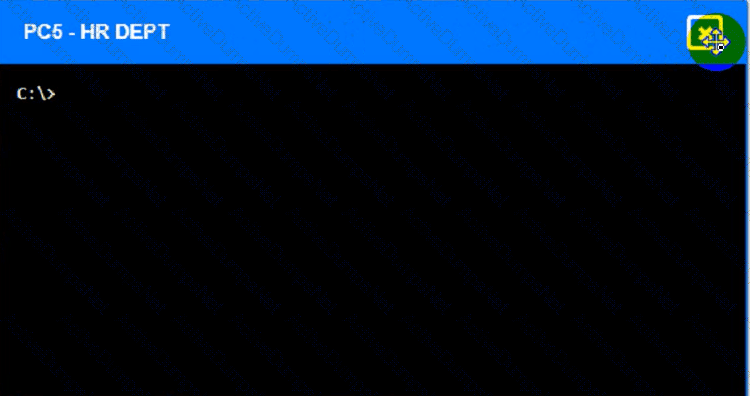

Click on the device to open its terminal window.

Enter the command ipconfig /all to display the IP configuration of the device, including its IP address, subnet mask, default gateway, and DNS servers.

Enter the command ping  to test the connectivity and reachability to another device on the network by sending and receiving echo packets. Replace with the IP address of the destination device, such as 192.168.1.1 for Core Switch 1.

Enter the command tracert  to trace the route and measure the latency of packets from the device to another device on the network by sending and receiving packets with increasing TTL values. Replace with the IP address of the destination device, such as 192.168.1.1 for Core Switch 1.

Here is an example of how to enter commands in PC1:

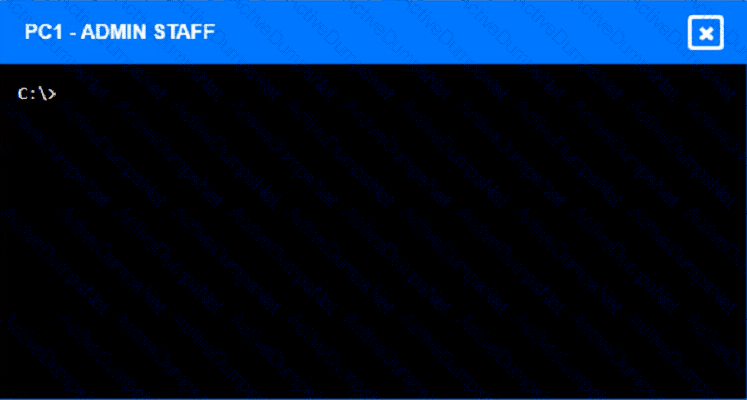

Click on PC1 to open its terminal window.

Enter the command ipconfig /all to display the IP configuration of PC1. You should see that PC1 has an incorrect IP address of 192.168.2.10, which belongs to VLAN 2 instead of VLAN 1.

Enter the command ping 192.168.1.1 to test the connectivity to Core Switch 1. You should see that PC1 is unable to ping Core Switch 1 because they are on different subnets.

Enter the command tracert 192.168.1.1 to trace the route to Core Switch 1. You should see that PC1 is unable to reach Core Switch 1 because there is no route between them.

You can use the same steps to enter commands in other devices, such as PC3, PC4, PC5, and Server 1.

Definition of ESP (Encapsulating Security Payload):

ESP is a part of the IPsec protocol suite designed to provide confidentiality, integrity, and authenticity of data by encrypting the payload and optional ESP trailer.

Ensuring Confidentiality:

Encryption: ESP encrypts the payload, ensuring that the data remains confidential during transmission. Only authorized parties with the correct decryption keys can access the data.

Modes of Operation: ESP can operate in transport mode (encrypts only the payload) or tunnel mode (encrypts the entire IP packet), both providing strong encryption to secure data between sites.

Comparison with Other Protocols:

GRE (Generic Routing Encapsulation): A tunneling protocol that does not provide encryption or security features.

IKE (Internet Key Exchange): A protocol used to set up a secure, authenticated communications channel, but it does not encrypt the data itself.

AH (Authentication Header): Provides integrity and authentication for IP packets but does not encrypt the payload.

Implementation:

Use ESP as part of an IPsec VPN configuration to encrypt and secure communication between two sites. This involves setting up IPsec policies and ensuring both endpoints are configured to use ESP for data encryption.

References:

CompTIA Network+ study materials on IPsec and secure communication protocols.

Changing default admin passwords is a fundamental first step in device hardening to prevent unauthorized access.

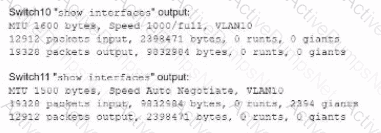

Definition of Jumbo Frames:

Jumbo frames are Ethernet frames with more than 1500 bytes of payload, typically up to 9000 bytes. They are used to improve network performance by reducing the overhead caused by smaller frames.

Why Switches Support Jumbo Frames:

Switches are network devices designed to manage data packets and can be configured to support jumbo frames. This capability enhances throughput and efficiency, particularly in high-performance networks and data centers.

Incompatibility of Other Devices:

Access Point: Primarily handles wireless communications and does not typically support jumbo frames.

Bridge: Connects different network segments but usually operates at standard Ethernet frame sizes.

Hub: A simple network device that transmits packets to all ports without distinguishing between devices, incapable of handling jumbo frames.

Practical Application:

Enabling jumbo frames on switches helps in environments where large data transfers are common, such as in storage area networks (SANs) or large-scale virtualized environments.

References:

CompTIA Network+ course materials and networking hardware documentation.

Understanding Subnetting:

Original Network: 192.168.1.0/24 has a subnet mask of 255.255.255.0, which allows for 256 IP addresses (including network and broadcast addresses).

Objective: Divide this network into two equal subnets.

Calculating Subnet Mask:

New Subnet Mask: To divide 192.168.1.0/24 into two equal halves, we need to borrow one bit from the host portion of the address, changing the subnet mask to 255.255.255.128 (/25).

Subnet Breakdown:

First Subnet: 192.168.1.0/25 (192.168.1.0 - 192.168.1.127)

Second Subnet: 192.168.1.128/25 (192.168.1.128 - 192.168.1.255)

Verification:

Each subnet now has 128 IP addresses (126 usable IP addresses, excluding the network and broadcast addresses).

Comparison with Other Options:

255.255.0.0 (/16): Provides a much larger network, not dividing the original /24 network.

255.255.254.0 (/23): Also creates a larger subnet, encompassing more than the original /24 network.

255.255.255.0 (/24): Maintains the original subnet size, not dividing it.

References:

CompTIA Network+ study materials on subnetting and IP addressing.

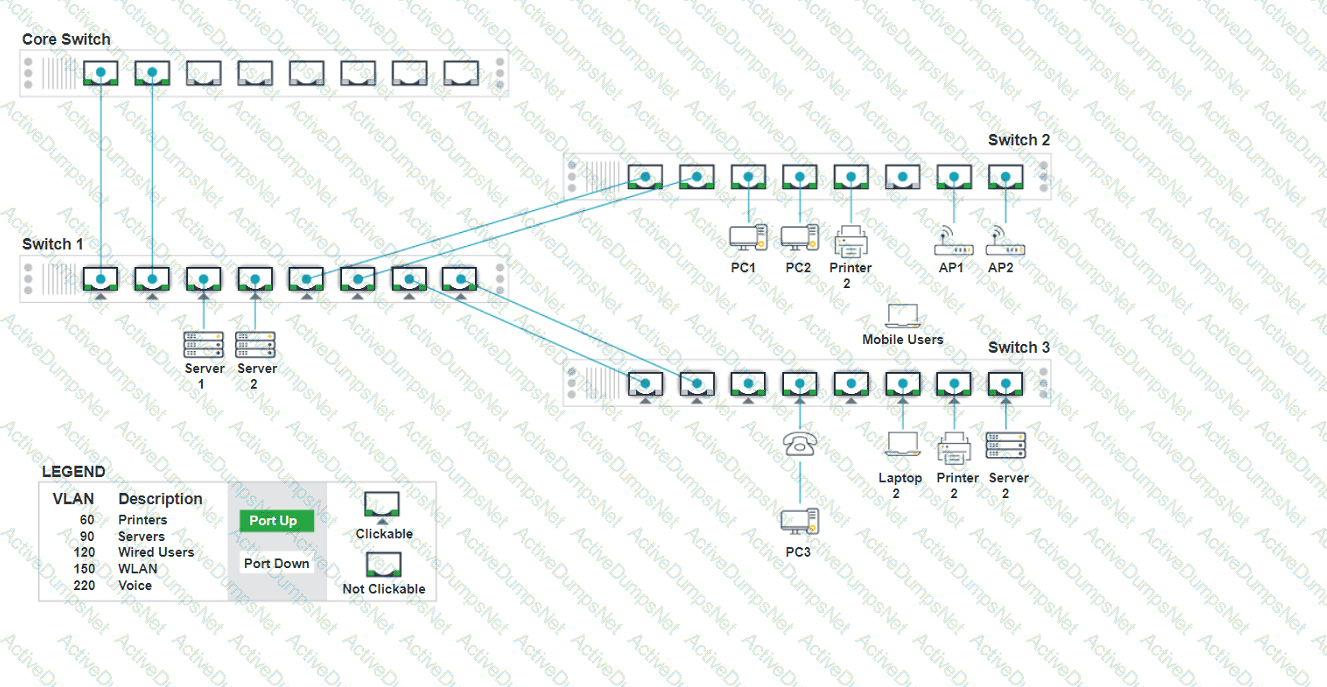

To provide a complete solution for configuring the access layer switches, let's proceed with the following steps:

Identify the correct VLANs for each device and port.

Enable necessary ports and disable unused ports.

Configure fault-tolerant connections between the switches.

Port 1 Configuration (Uplink to Core Switch)

Status: Enabled

LACP: Enabled

Speed: 1000

Duplex: Full

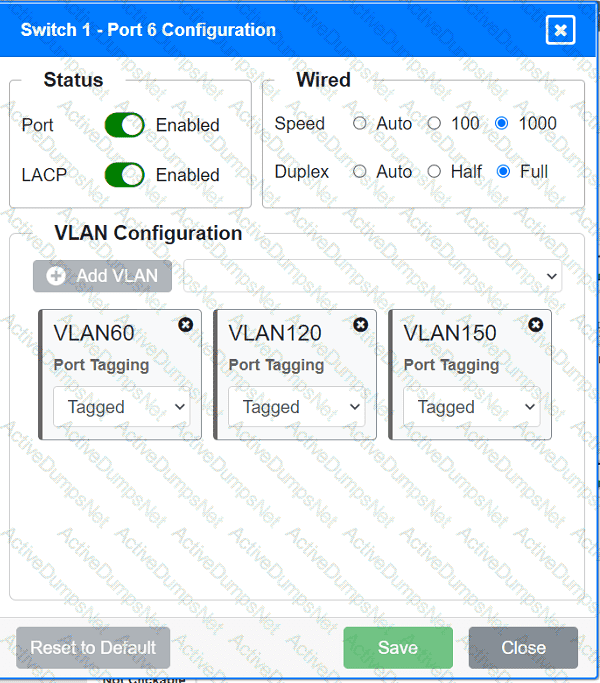

VLAN Configuration: Tagged for VLAN60, VLAN90, VLAN120, VLAN150, VLAN220

Port 2 Configuration (Uplink to Core Switch)

Status: Enabled

LACP: Enabled

Speed: 1000

Duplex: Full

VLAN Configuration: Tagged for VLAN60, VLAN90, VLAN120, VLAN150, VLAN220

Port 3 Configuration (Server Connection)

Status: Enabled

LACP: Disabled

Speed: 1000

Duplex: Full

VLAN Configuration: Untagged for VLAN90 (Servers)

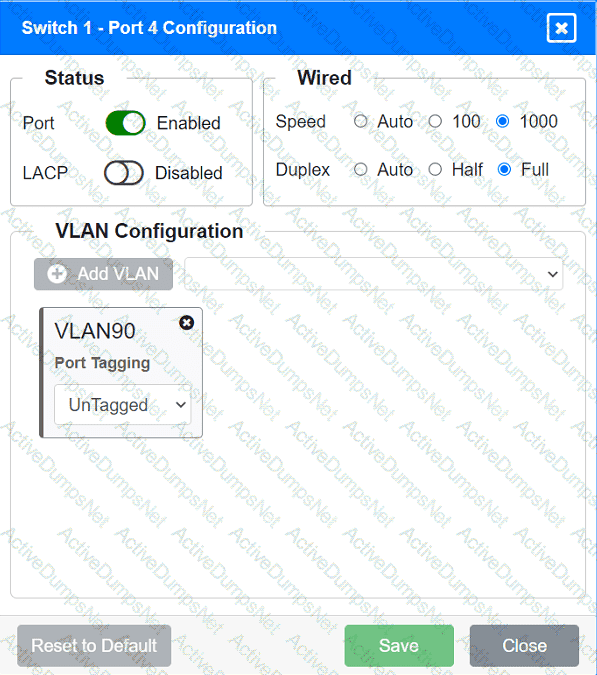

Port 4 Configuration (Server Connection)

Status: Enabled

LACP: Disabled

Speed: 1000

Duplex: Full

VLAN Configuration: Untagged for VLAN90 (Servers)

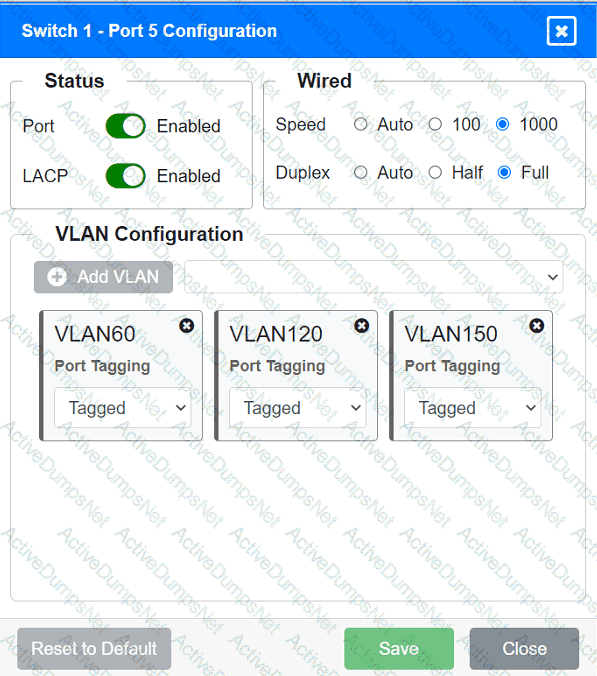

Port 5 Configuration (Wired Users and WLAN)

Status: Enabled

LACP: Enabled

Speed: 1000

Duplex: Full

VLAN Configuration: Tagged for VLAN60, VLAN120, VLAN150

Port 6 Configuration (Wired Users and WLAN)

Status: Enabled

LACP: Enabled

Speed: 1000

Duplex: Full

VLAN Configuration: Tagged for VLAN60, VLAN120, VLAN150

Port 7 Configuration (Voice and Wired Users)

Status: Enabled

LACP: Enabled

Speed: 1000

Duplex: Full

VLAN Configuration: Tagged for VLAN60, VLAN90, VLAN120, VLAN220

Port 8 Configuration (Voice, Printers, and Wired Users)

Status: Enabled

LACP: Enabled

Speed: 1000

Duplex: Full

VLAN Configuration: Tagged for VLAN60, VLAN90, VLAN120, VLAN220

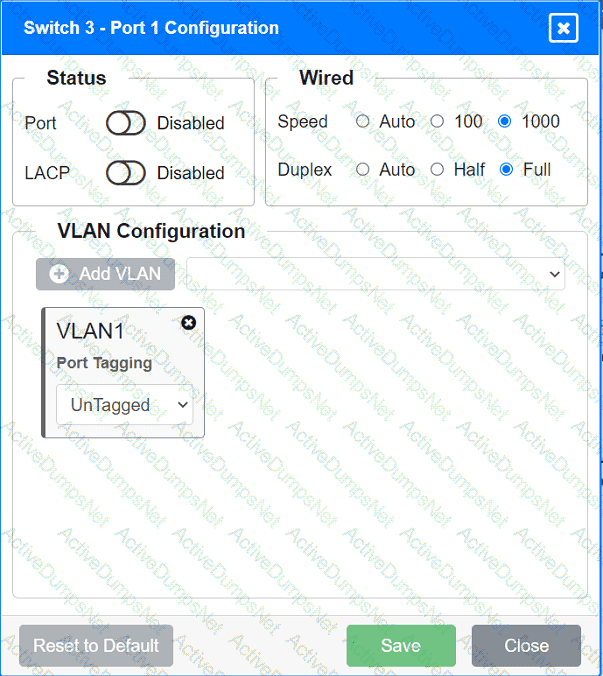

Port 1 Configuration (Unused)

Status: Disabled

LACP: Disabled

Port 2 Configuration (Unused)

Status: Disabled

LACP: Disabled

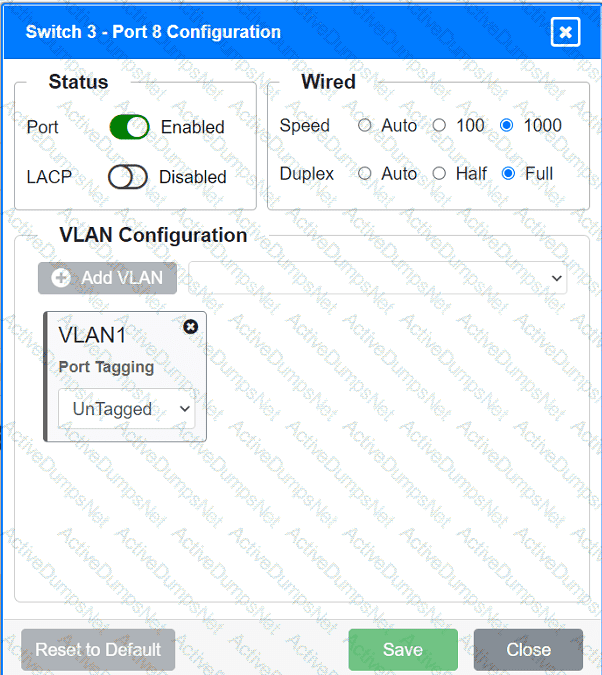

Port 3 Configuration (Connection to Device)

Status: Enabled

LACP: Disabled

Speed: 1000

Duplex: Full

VLAN Configuration: Untagged for VLAN1 (Default)

Port 4 Configuration (Connection to Device)

Status: Enabled

LACP: Disabled

Speed: 1000

Duplex: Full

VLAN Configuration: Untagged for VLAN1 (Default)

Port 5 Configuration (Connection to Device)

Status: Enabled

LACP: Disabled

Speed: 1000

Duplex: Full

VLAN Configuration: Untagged for VLAN1 (Default)

Port 6 Configuration (Connection to Device)

Status: Enabled

LACP: Disabled

Speed: 1000

Duplex: Full

VLAN Configuration: Untagged for VLAN1 (Default)

Port 7 Configuration (Connection to Device)

Status: Enabled

LACP: Disabled

Speed: 1000

Duplex: Full

VLAN Configuration: Untagged for VLAN1 (Default)

Ports 1 and 2 on Switch 1 are configured as trunk ports with VLAN tagging enabled for all necessary VLANs.

Ports 3 and 4 on Switch 1 are configured for server connections with VLAN 90 untagged.

Ports 5, 6, 7, and 8 on Switch 1 are configured for devices needing access to multiple VLANs.

Unused ports on Switch 3 are disabled.

Ports 3, 4, 5, 6, and 7 on Switch 3 are enabled for default VLAN1.

Core Switch Ports should be configured as needed for uplinks to Switch 1.

Ensure LACP is enabled for redundancy on trunk ports between switches.

By following these configurations, each device will access only its correctly associated network, unused switch ports will be disabled, and fault-tolerant connections will be established between the switches.

Importance of Proper Termination:

Cat 8 cabling requires precise termination practices to ensure signal integrity and reduce interference. One common requirement is to wrap the end connections in copper tape to maintain shielding and reduce electromagnetic interference (EMI).

Interference Troubleshooting:

Interference in high-frequency cables like Cat 8 can be caused by improper shielding or grounding. Checking the end connections for proper wrapping in copper tape is a crucial step.

Why Other Options are Less Likely:

Passthrough modular crimping plugs: Not specifically related to interference issues and are typically used for ease of cable assembly.

Connecting RX/TX wires to different pins: Would likely result in no connection or incorrect data transmission rather than interference.

Running a speed test on a device that can only achieve 100Mbps speeds: This would not diagnose interference and would not provide relevant information for Cat 8 cabling rated for higher speeds.

Corrective Actions:

Verify that all end connections are properly wrapped with copper tape before termination.

Ensure that the shielding is continuous and properly grounded throughout the installation.

Retest the cabling for interference after making corrections.

References:

CompTIA Network+ study materials and structured cabling installation guides.

Explanation: A cable tester is a tool that can help identify issues with the physical cabling, such as breaks or improper terminations, which may prevent the access point from reaching the internet.

=================

When working with fiber optic cables, one common issue is that the transmit (TX) and receive (RX) fibers might be reversed. The first step in troubleshooting should be to reverse the fibers at one end to ensure they are correctly aligned (TX to RX and RX to TX). This is a simple and quick step to rule out a common issue before moving on to more complex troubleshooting.References: CompTIA Network+ study materials.

Multitenancy is a cloud computing architecture where a single instance of software serves multiple customers or tenants. Each tenant's data is isolated and remains invisible to other tenants. Hosting a company application in the cloud to be available for both internal and third-party users fits this concept, as it allows shared resources and infrastructure while maintaining data separation and security. References: CompTIA Network+ Exam Objectives and official study guides.

X.509 certificates are most commonly associated with Public Key Infrastructure (PKI). These certificates are used for a variety of security functions, including digital signatures, encryption, and authentication.

PKI: X.509 certificates are a fundamental component of PKI, used to manage encryption keys and authenticate users and devices.

Digital Certificates: They are used to establish secure communications over networks, such as SSL/TLS for websites and secure email communication.

Authentication and Encryption: X.509 certificates provide the means to securely exchange keys and verify identities in various applications, ensuring data integrity and confidentiality.

Network References:

CompTIA Network+ N10-007 Official Certification Guide: Covers PKI and the role of X.509 certificates in network security.

Cisco Networking Academy: Provides training on PKI, certificates, and secure communications.

Network+ Certification All-in-One Exam Guide: Explains PKI, X.509 certificates, and their applications in securing network communications.

Link Layer Discovery Protocol (LLDP) is a network protocol used for discovering devices and their capabilities on a local area network, primarily at the data link layer (Layer 2). It helps in identifying the connected switch and the specific port to which a device is connected. When troubleshooting a VoIP handset connection, the technician can use LLDP to determine the exact switch and port where the handset is connected. This protocol is widely used in network management to facilitate the discovery of network topology and simplify troubleshooting.

Other options such as IKE (Internet Key Exchange), VLAN (Virtual LAN), and netstat (network statistics) are not suitable for identifying the switch and port information. IKE is used in setting up secure IPsec connections, VLAN is used for segmenting networks, and netstat provides information about active connections and listening ports on a host but not for discovering switch port details.

When a DHCP server is installed and not enough IP addresses are provisioned, users may start experiencing network outages once the available IP addresses are exhausted. DHCP servers assign IP addresses to devices on the network, and if the pool of addresses is too small, new devices or those renewing their lease may fail to obtain an IP address, resulting in network connectivity issues.References: CompTIA Network+ study materials.

Microwaves are known to interfere with the 2.4GHz frequency, which is the same frequency used by many wireless networks. This can cause signal degradation and intermittent connectivity issues, especially if the WAP is placed near such devices.

=================

Definition of GDPR:

General Data Protection Regulation (GDPR) is a regulation in EU law on data protection and privacy for all individuals within the European Union and the European Economic Area. It also addresses the transfer of personal data outside the EU and EEA areas.

Scope and Objectives:

GDPR aims to give individuals control over their personal data and to simplify the regulatory environment for international business by unifying the regulation within the EU.

It enforces rules about data protection, requiring companies to protect the personal data and privacy of EU citizens for transactions that occur within EU member states.

Comparison with Other Options:

SCADA (Supervisory Control and Data Acquisition): Refers to control systems used in industrial and infrastructure processes, not related to personal data protection.

SAML (Security Assertion Markup Language): A standard for exchanging authentication and authorization data between parties, not specifically for personal data protection.

PCI DSS (Payment Card Industry Data Security Standard): A set of security standards designed to ensure that all companies that accept, process, store or transmit credit card information maintain a secure environment, not specific to personal data protection in Europe.

Key Provisions:

GDPR includes provisions for data processing, data subject rights, obligations of data controllers and processors, and penalties for non-compliance.

References:

CompTIA Network+ study materials on regulatory and compliance standards.

At the transport layer, connectionless communication is typically handled using the User Datagram Protocol (UDP), which transmits data in units called datagrams. Unlike TCP, UDP does not establish a connection before sending data and does not guarantee delivery, making datagrams the correct term for the transmission format in this context. References: CompTIA Network+ Exam Objectives and official study guides.

Console Access:

Purpose: Console access to a switch allows administrators to configure and manage the device directly. This is typically done using a terminal emulator program on a computer.

RJ45 Connector:

Common Use: The RJ45 connector is widely used for Ethernet cables and also for console connections to network devices like switches and routers.

Console Cables: Console cables often have an RJ45 connector on one end (for the switch) and a DB9 serial connector on the other end (for the computer).

Comparison with Other Connectors:

ST (Straight Tip): A fiber optic connector used for networking, not for console access.

BNC (Bayonet Neill-Concelman): A connector used for coaxial cable, typically in older network setups and not for console access.

SFP (Small Form-factor Pluggable): A modular transceiver used for network interfaces, not for console access.

Practical Application:

Connection Process: Connect the RJ45 end of the console cable to the console port of the switch. Connect the DB9 end (or USB via adapter) to the computer. Use a terminal emulator (e.g., PuTTY, Tera Term) to access the switch’s command-line interface (CLI).

References:

CompTIA Network+ study materials on network devices and connectors.

802.1X is a port-based network access control (PNAC) protocol that provides an authentication mechanism to devices wishing to connect to a LAN or WLAN. It is widely used for secure network access, ensuring that only authenticated devices can access the network, whether they are connecting via wired or wireless means. 802.1X works in conjunction with an authentication server, such as RADIUS, to validate the credentials of devices trying to connect.References: CompTIA Network+ study materials.

A captive portal is a web page that users must view and interact with before being granted access to a network. It is commonly used in guest networks to enforce terms of use agreements. When a user connects to the network, they are redirected to this portal where they must accept the terms of use before proceeding. This method ensures that users are aware of and agree to the network's policies, making it the best choice for this scenario. References: CompTIA Network+ Exam Objectives and official study guides.

A toner probe, often referred to as a toner and probe kit, is the easiest and most effective tool for identifying individual cables in a bundle, especially in situations where the patch panel is not labeled. The toner sends an audible tone through the cable, and the probe detects the tone at the other end, allowing the technician to quickly identify the correct cable.

Functionality: The toner generates a tone that travels along the cable. When the probe is placed near the correct cable, it detects the tone and emits a sound.

Ease of Use: Toner probes are straightforward to use, even in environments with many cables, making them ideal for identifying cables in unlabeled patch panels.

Efficiency: This method is much faster and more reliable than manual tracing, especially in complex setups.

Network References:

CompTIA Network+ N10-007 Official Certification Guide: Details tools used for cable identification and troubleshooting.

Cisco Networking Academy: Provides training on using toner probes and other cable testing tools.

Network+ Certification All-in-One Exam Guide: Explains the use of different tools for network cable identification and management.

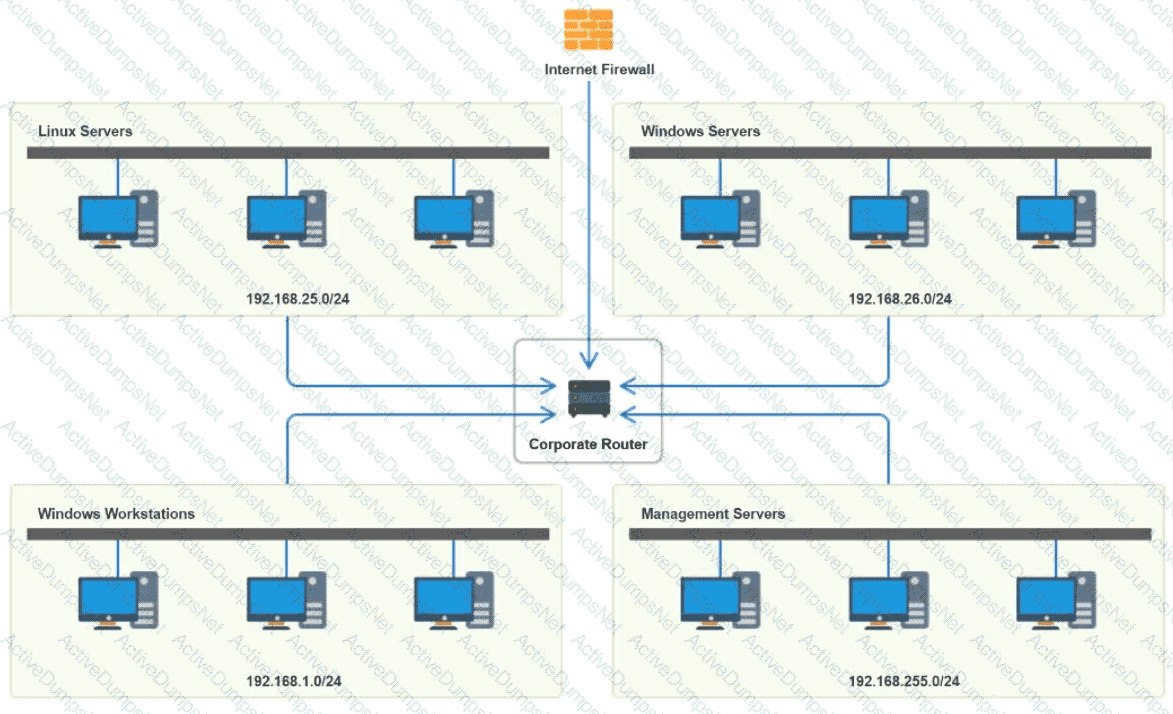

Introduction to Administrative Distance

Administrative distance (AD) is a value used by routers to rank routes from different routing protocols. AD represents the trustworthiness of the source of the route. Lower AD values are more preferred. If a router has multiple routes to a destination from different sources, it will choose the route with the lowest AD.

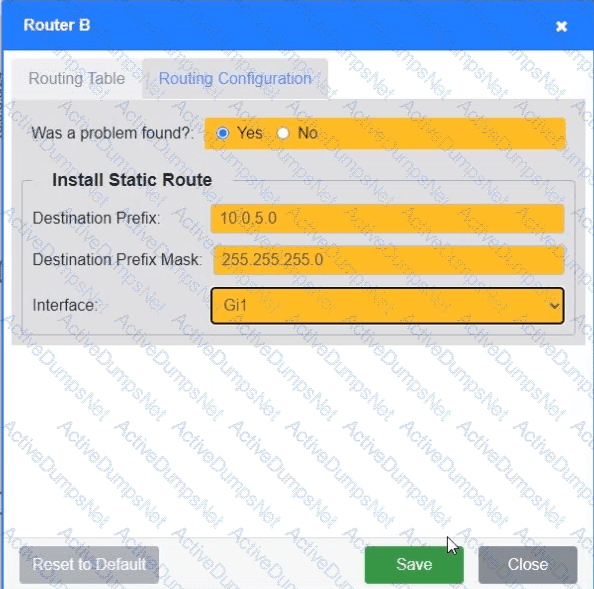

Static Routes and Backup Routes

When a dynamic routing protocol is not used, static routes can be employed. Static routes are manually configured routes. To ensure a backup route, multiple static routes to the same destination can be configured with different AD values.

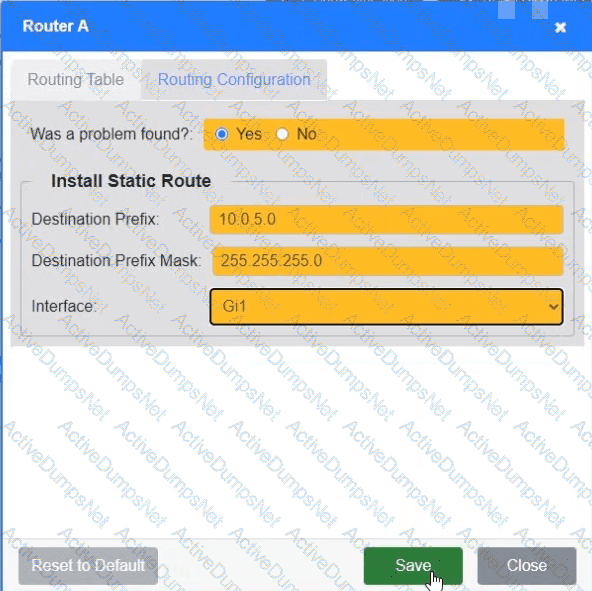

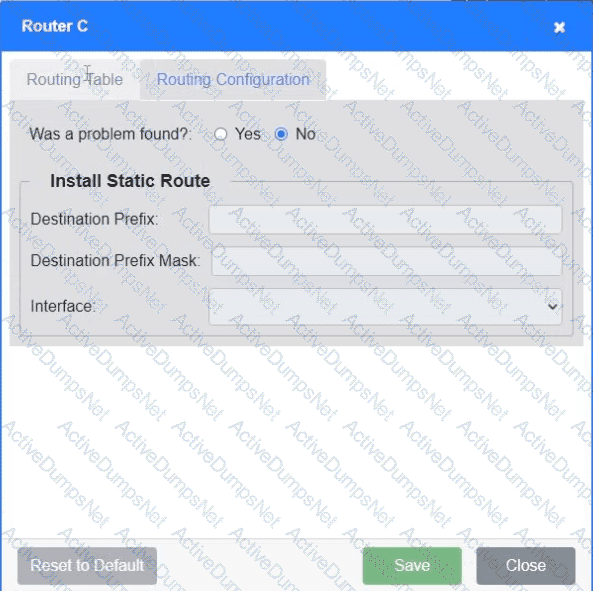

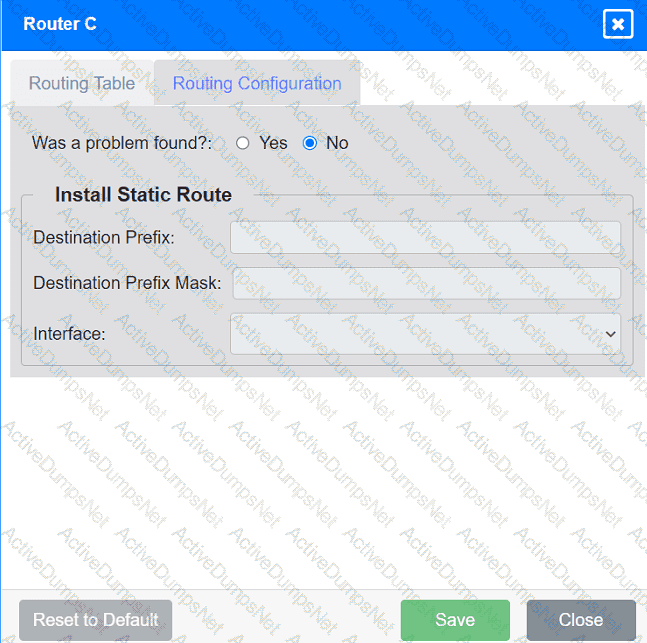

Configuring Static Routes with Administrative Distance

The primary route is configured with a lower AD value, making it the preferred route. The backup route is configured with a higher AD value. In the event of the primary route failure, the router will then use the backup route.

Example Configuration:

plaintext

Copy code

ip route 192.168.1.0 255.255.255.0 10.0.0.1 1

ip route 192.168.1.0 255.255.255.0 10.0.0.2 10

In the above example, 192.168.1.0/24 is the destination network.

10.0.0.1 is the next-hop IP address for the primary route with an AD of 1.

10.0.0.2 is the next-hop IP address for the backup route with an AD of 10.

Verification:

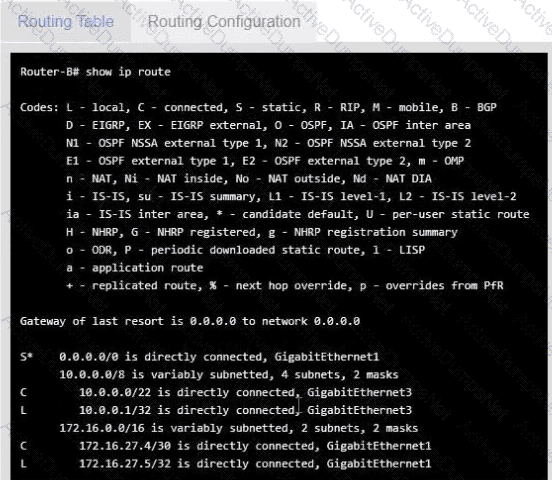

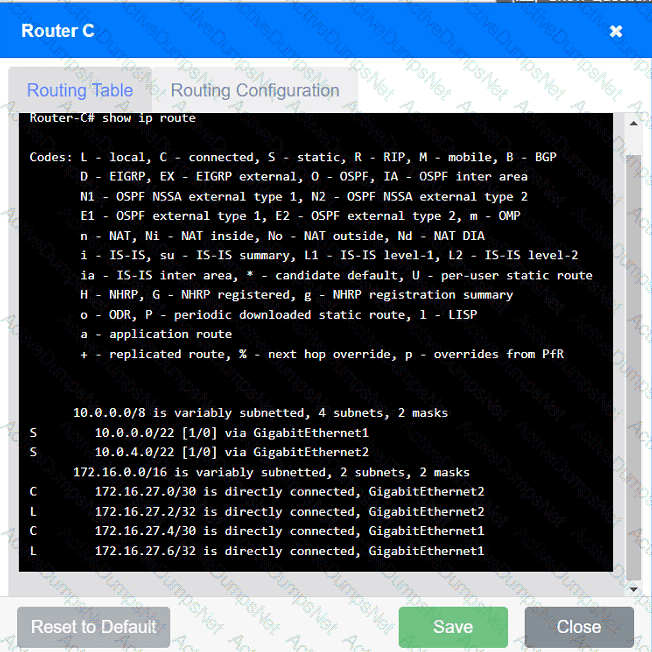

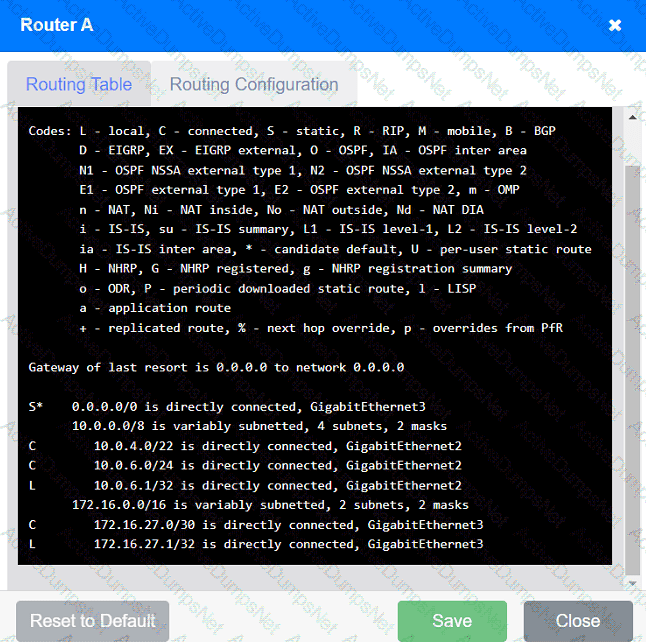

After configuration, use the show ip route command to verify that the primary route is in use and the backup route is listed as a candidate for use if the primary route fails.

References:

CompTIA Network+ guide explains the concept of administrative distance and its use in static routing configuration (see page Ref 9†Basic Configuration Commands).

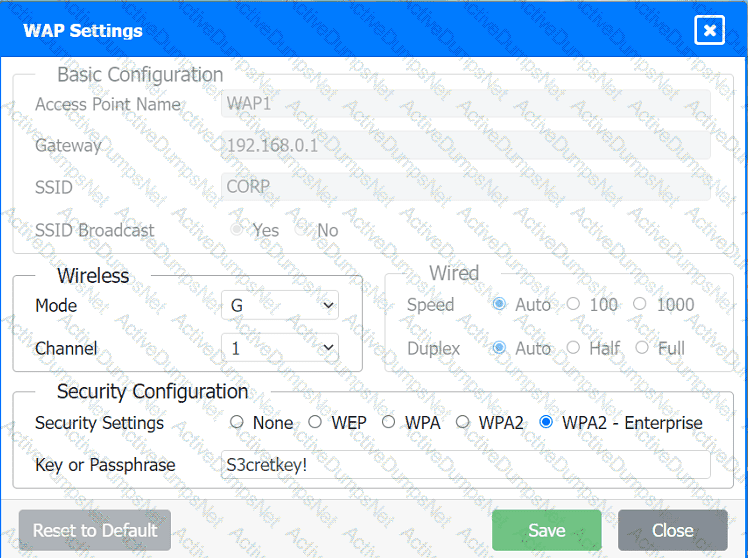

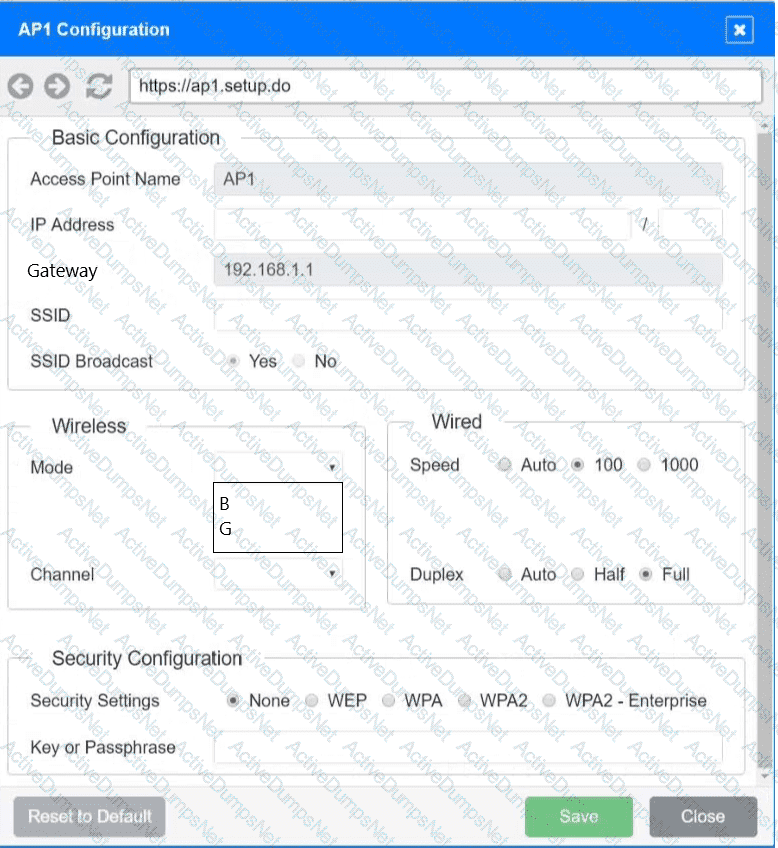

Enterprise authentication (such as WPA2-Enterprise) utilizes unique credentials for each user, typically integrating with an authentication server like RADIUS. This allows for tracking and logging user activity, ensuring that all connections can be traced back to individual users. PSKs (Pre-Shared Keys) are shared among users and do not provide individual accountability. Captive portals can identify users but are less secure than enterprise authentication, and Wired Equivalent Privacy (WEP) is outdated and not recommended for security purposes.

SNMPv3 (Simple Network Management Protocol version 3) provides device monitoring with authentication and encryption. This enhances network visibility and security by ensuring that monitoring data is securely transmitted and access to network devices is authenticated.

Authentication: SNMPv3 includes robust mechanisms for authenticating users accessing network devices.

Encryption: It provides encryption to protect the integrity and confidentiality of the data being transmitted.

Network Management: SNMPv3 allows for detailed monitoring and management of network devices, ensuring better control and security.

Network References:

CompTIA Network+ N10-007 Official Certification Guide: Covers SNMP versions, their features, and security enhancements in SNMPv3.

Cisco Networking Academy: Provides training on implementing and securing SNMP for network management.

Network+ Certification All-in-One Exam Guide: Explains the benefits and security features of SNMPv3 for network monitoring.

(Note: Ips will be change on each simulation task, so we have given example answer for the understanding)

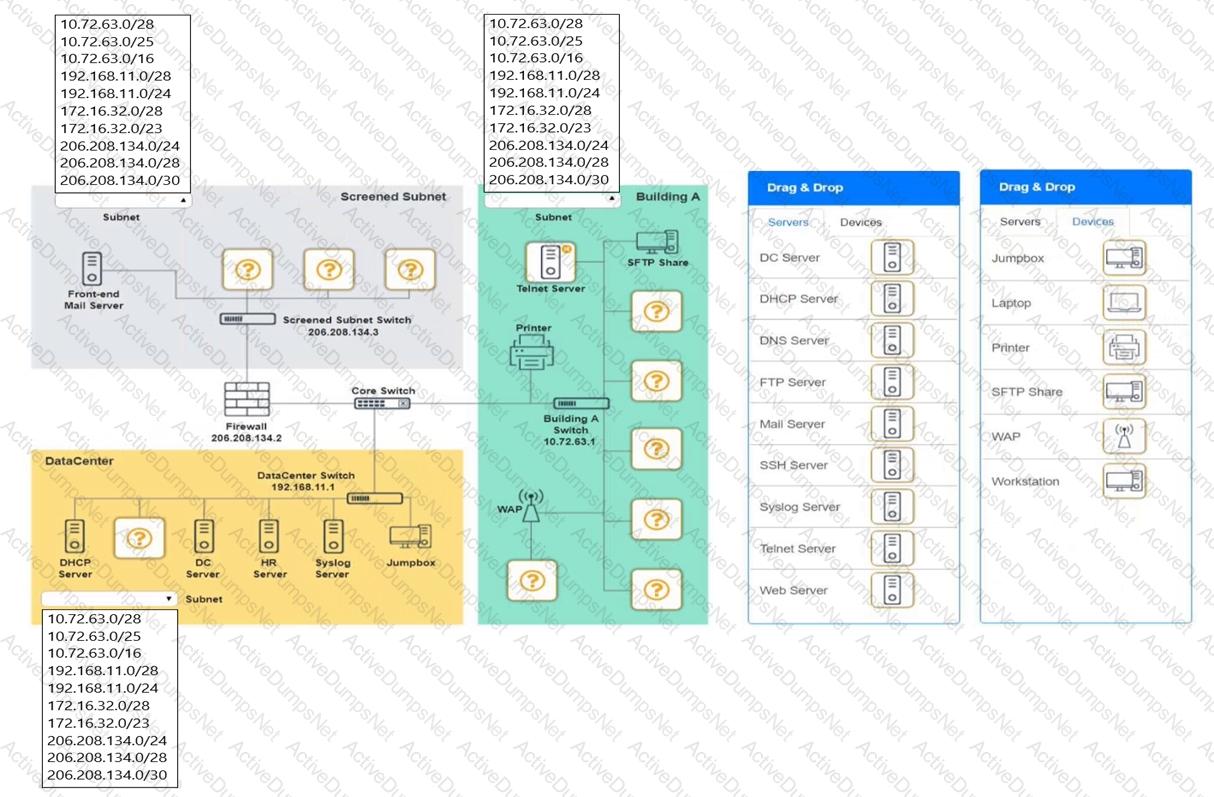

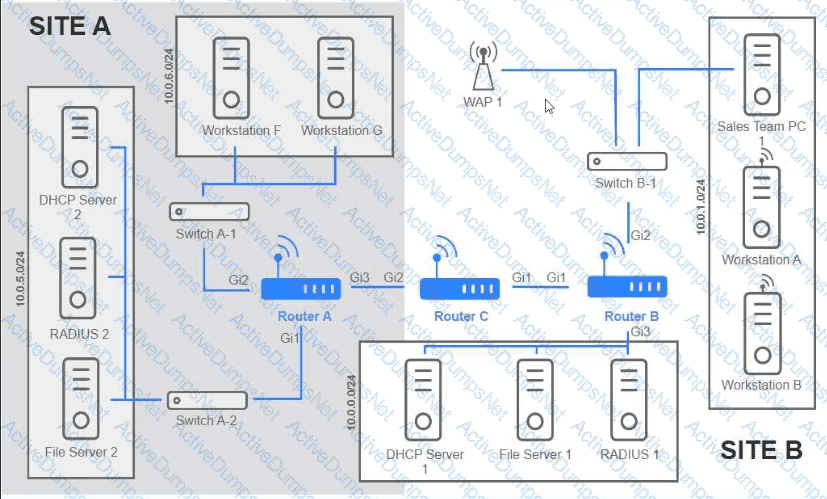

To perform a network discovery by entering commands into the terminal, you can use the following steps:

Click on each switch to open its terminal window.

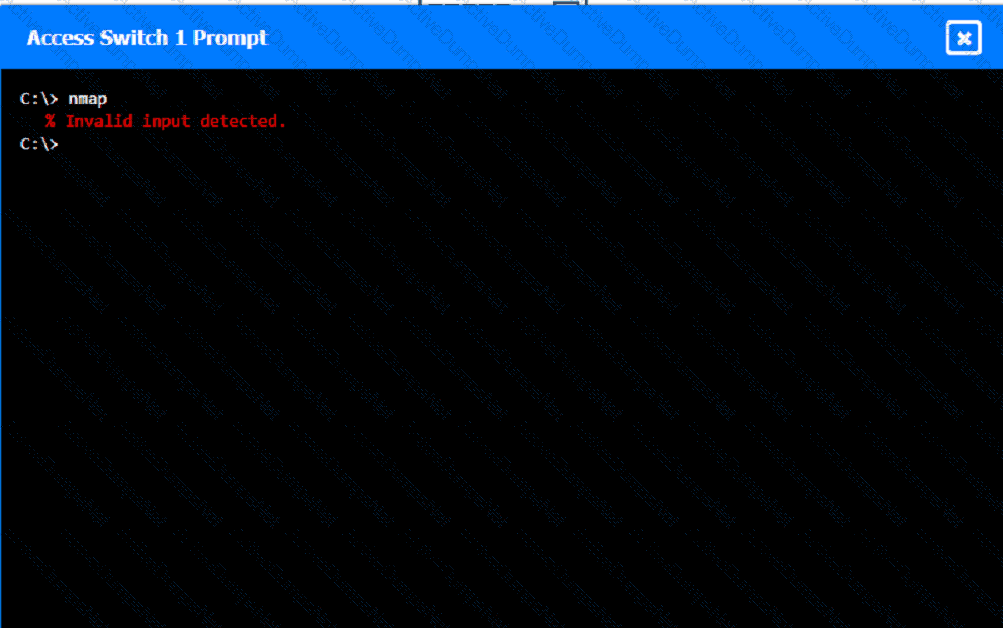

Enter the command show ip interface brief to display the IP addresses and statuses of the switch interfaces.

Enter the command show vlan brief to display the VLAN configurations and assignments of the switch interfaces.

Enter the command show cdp neighbors to display the information about the neighboring devices that are connected to the switch.

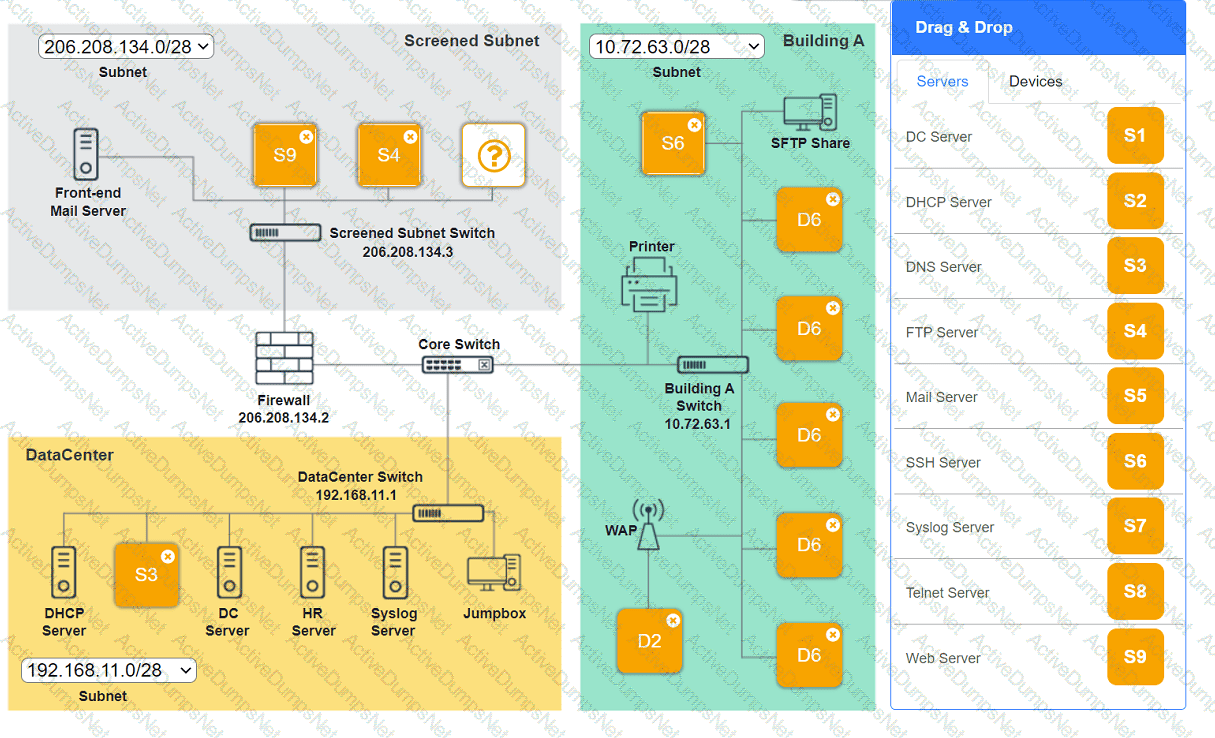

Fill in the missing information in the diagram using the drop-down menus provided.

Here is an example of how to fill in the missing information for Core Switch 1:

The IP address of Core Switch 1 is 192.168.1.1.

The VLAN configuration of Core Switch 1 is VLAN 1: 192.168.1.0/24, VLAN 2: 192.168.2.0/24, VLAN 3: 192.168.3.0/24.

The neighboring devices of Core Switch 1 are Access Switch 1 and Access Switch 2.

The interfaces that connect Core Switch 1 to Access Switch 1 are GigabitEthernet0/1 and GigabitEthernet0/2.

The interfaces that connect Core Switch 1 to Access Switch 2 are GigabitEthernet0/3 and GigabitEthernet0/4.

You can use the same steps to fill in the missing information for Access Switch 1 and Access Switch 2.

A warm site is a compromise between a hot site and a cold site, providing a balance between cost and recovery time. It is partially equipped with the necessary hardware, software, and infrastructure, allowing for a quicker recovery compared to a cold site but at a lower cost than a hot site.

Recovery Time: Warm sites can be operational within hours to a day, making them suitable for non-critical applications that can tolerate short downtimes.

Cost-Effectiveness: Warm sites are more economical than hot sites as they do not require all systems to be fully operational at all times.

Network References:

CompTIA Network+ N10-007 Official Certification Guide: Discusses disaster recovery strategies and the different types of recovery sites.

Cisco Networking Academy: Provides training on disaster recovery planning and site selection.

Network+ Certification All-in-One Exam Guide: Explains the characteristics of hot, warm, and cold sites and their use cases in disaster recovery planning.

Warm sites offer a practical solution for maintaining business continuity for non-critical applications, balancing the need for availability with cost considerations.

BGP (Border Gateway Protocol) is used for routing data between different ISPs, making it essential for the functioning of the internet. Its primary use is for exchanging routing information between autonomous systems, especially different ISPs. Preventing loops within a LAN is handled by protocols like Spanning Tree Protocol (STP), while improving reconvergence times and sharing routes with a Layer 3 switch are functions of other protocols or internal mechanisms.

When installing equipment in a building, environmental factors are critical to ensure the safety and longevity of the equipment. A fire suppression system is essential to protect the equipment from fire hazards. Humidity control is crucial to prevent moisture-related damage, such as corrosion and short circuits, which can adversely affect electronic components. Both factors are vital for maintaining an optimal environment for networking equipment.References: CompTIA Network+ study materials.

Multimode fiber optic cables involve the transmission of light signals that bounce off the core's cladding as they travel down the fiber. This characteristic differentiates it from single-mode fiber, where the light travels directly down the fiber without reflecting off the cladding.

Here are some detailed points about multimode fiber cables:

Construction: Multimode fibers have a larger core diameter, typically 50 or 62.5 microns, compared to single-mode fibers, which have a core diameter of about 9 microns.

Light Propagation: The larger core of multimode fiber allows multiple light modes to propagate. These modes travel at different angles, leading to reflections off the core-cladding boundary.

Distance and Bandwidth: Due to modal dispersion, where different light modes arrive at the receiver at different times, multimode fibers are suited for shorter distance applications compared to single-mode fibers. Typical distances are up to 550 meters for 10 Gbps Ethernet using OM4 multimode fiber.

Applications: Multimode fibers are commonly used in LANs (Local Area Networks), data centers, and for shorter distance data transmission due to their cost-effectiveness and ease of installation.

Network References:

CompTIA Network+ N10-007 Official Certification Guide, which covers fiber optic technologies, including the differences between multimode and single-mode fibers.

Cisco Networking Academy: Provides training materials and reference guides on the properties of different fiber optic cables.

Fiber Optic Association (FOA): A professional society dedicated to fiber optics, offering extensive information and certification on fiber optic technologies.

Multimode fibers are specifically designed for short-range communication with higher data rates and are typically used in environments like data centers, where high bandwidth over shorter distances is crucial. The reflections off the cladding, inherent to multimode fiber, facilitate this high-capacity communication.

Definition of Fiber Connector Types:

LC (Lucent Connector): A small form-factor fiber optic connector with a push-pull latching mechanism, commonly used for high-density applications.

SC (Subscriber Connector or Standard Connector): A larger form-factor connector with a push-pull latching mechanism, often used in datacom and telecom applications.

ST (Straight Tip): A bayonet-style connector, typically used in multimode fiber optic networks.

MPO (Multi-fiber Push On): A connector designed to support multiple fibers (typically 12 or 24 fibers), used in high-density cabling environments.

Common Usage:

LC Connectors: Due to their small size, LC connectors are widely used in network interface cards (NICs) and high-density environments such as data centers. They allow for more connections in a smaller space compared to SC and ST connectors.

SC and ST Connectors: These are larger and more commonly used in patch panels and older fiber installations but are less suitable for high-density applications.

MPO Connectors: Primarily used for trunk cables in data centers and high-density applications but not typically on individual network interface cards.

Selection Criteria:

The small form-factor and high-density capabilities of LC connectors make them the preferred choice for network interface cards, where space and connection density are critical considerations.

References:

CompTIA Network+ study materials on fiber optics and connector types.

Introduction to Disaster Recovery Concepts:

Disaster recovery involves strategies and measures to ensure business continuity and data recovery in the event of a disaster.

Mean Time Between Failures (MTBF):

MTBF is a reliability metric used to predict the time between failures of a system during operation. It is calculated by dividing the total operational time by the number of failures.

Formula: MTBF=Total Operational TimeNumber of Failures\text{MTBF} = \frac{\text{Total Operational Time}}{\text{Number of Failures}}MTBF=Number of FailuresTotal Operational Time​

This metric helps in understanding the reliability and expected lifespan of systems and components.

Example Calculation:

If a server operates for 1000 hours and experiences 2 failures, the MTBF is: MTBF=1000 hours2=500 hours\text{MTBF} = \frac{1000 \text{ hours}}{2} = 500 \text{ hours}MTBF=21000 hours​=500 hours

Explanation of the Options:

A. MTTR (Mean Time to Repair): The average time required to repair a system after a failure.

B. MTBF (Mean Time Between Failures): The correct answer, representing the average time between failures.

C. RPO (Recovery Point Objective): The maximum acceptable amount of data loss measured in time.

D. RTO (Recovery Time Objective): The target time set for the recovery of IT and business activities after a disaster.

Conclusion:

MTBF is a crucial metric in disaster recovery and system reliability, helping organizations plan maintenance and predict system performance.

References:

CompTIA Network+ guide explaining MTBF, MTTR, RPO, and RTO concepts and their calculations (see page Ref 10†How to Use Cisco Packet Tracer).

When installing multiple Power over Ethernet (PoE) devices like security cameras, it is crucial to ensure that the total power requirement does not exceed the power budget of the PoE switch. Each PoE switch has a maximum power capacity, and exceeding this capacity can cause some devices to fail to receive power.

PoE Standards: PoE switches conform to standards such as IEEE 802.3af (PoE) and 802.3at (PoE+), each with specific power limits per port and total power capacity.

Power Calculation: Adding up the power requirements of all connected PoE devices can help determine if the total power budget of the switch is exceeded.

Symptoms: When the power budget is exceeded, some devices, typically those farthest from the switch or connected last, may not power up or function correctly.

Network References:

CompTIA Network+ N10-007 Official Certification Guide: Covers PoE standards and troubleshooting power issues.

Cisco Networking Academy: Discusses PoE technologies, power budgeting, and managing PoE devices.

Network+ Certification All-in-One Exam Guide: Provides information on PoE setup, including power budget considerations.

Network segmentation involves dividing a network into smaller segments or subnets. This is particularly important when integrating OT (Operational Technology) devices to ensure that these devices are isolated from other parts of the network. Segmentation helps protect the OT devices from potential threats and minimizes the impact of any security incidents. It also helps manage traffic and improves overall network performance.References: CompTIA Network+ study materials.

802.1x is a network access control protocol that provides an authentication mechanism to devices trying to connect to a LAN or WLAN. This ensures that only authorized devices can access the network, making it ideal for mitigating the risk of unknown devices connecting to the network, especially in accessible areas.

802.1x Authentication: Requires devices to authenticate using credentials (e.g., username and password, certificates) before gaining network access.

Access Control: Prevents unauthorized devices from connecting to the network, enhancing security in public or semi-public areas.

Implementation: Typically used in conjunction with a RADIUS server to manage authentication requests.

Network References:

CompTIA Network+ N10-007 Official Certification Guide: Covers 802.1x and its role in network security.

Cisco Networking Academy: Provides training on implementing 802.1x for secure network access control.

Network+ Certification All-in-One Exam Guide: Explains the benefits and configuration of 802.1x authentication in securing network access.

The most likely reason an insurance brokerage would enforce VPN usage is to encrypt sensitive data in transit. VPNs (Virtual Private Networks) create a secure tunnel between the user's device and the corporate network, ensuring that data is encrypted and protected from interception.

Encryption: VPNs encrypt data, preventing unauthorized access and ensuring data privacy during transmission over public or unsecured networks.

Data Protection: Essential for industries handling sensitive information, such as insurance brokerages, to protect customer data and comply with regulatory requirements.

Security: Enhances overall network security by providing secure remote access for employees.

Network References:

CompTIA Network+ N10-007 Official Certification Guide: Discusses the role of VPNs in securing data in transit.

Cisco Networking Academy: Provides training on VPN technologies and their importance in data security.

Network+ Certification All-in-One Exam Guide: Explains VPN usage and its benefits in protecting sensitive information.

Understanding the Vulnerability:

Vulnerabilities in the router CPU can be exploited to cause performance degradation, unauthorized access, or other security issues.

Firmware Update:

Firmware Role: The firmware is low-level software that controls the hardware of a device. Updating the firmware can address vulnerabilities by providing patches and enhancements from the manufacturer.

Procedure: Download the latest firmware from the vendor’s website, follow the manufacturer's instructions to apply the update, and verify that the update resolves the vulnerability.

Comparison with Other Options:

Replace the System Board: This is a costly and often unnecessary step if the issue can be resolved with a firmware update.

Patch the OS: Patching the OS is relevant for devices with a full operating system but not directly applicable to addressing a CPU vulnerability on a router.

Isolate the System: Temporarily isolating the system can mitigate immediate risk but does not resolve the underlying vulnerability.

Best Practice:

Regularly check for and apply firmware updates to ensure that network devices are protected against known vulnerabilities.

References:

CompTIA Network+ study materials on network security and device management.

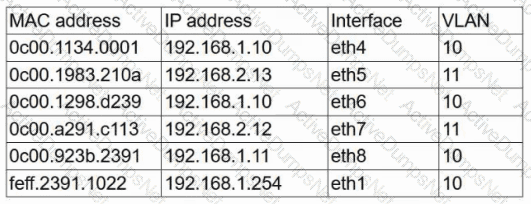

Definition of a Rogue DHCP Server:

A rogue DHCP server is an unauthorized DHCP server on a network, which can assign IP addresses to devices without proper control, leading to IP address conflicts.

Impact of a Rogue DHCP Server:

IP Address Conflicts: Multiple devices may receive the same IP address from different DHCP servers, causing network connectivity issues.

Network Disruption: Devices may be assigned incorrect network configuration settings, disrupting network services and connectivity.

Comparison with Other Attacks:

DNS poisoning: Alters DNS records to redirect traffic to malicious sites, but does not cause IP address conflicts.

Social engineering: Involves manipulating individuals to gain unauthorized access or information, not directly related to IP address conflicts.

Denial-of-service (DoS): Floods a network or service with excessive traffic to disrupt operations, but does not cause duplicate IP addresses.

Prevention and Detection:

Implement network access control measures to prevent unauthorized devices from acting as DHCP servers.

Use DHCP snooping on switches to allow DHCP responses only from authorized DHCP servers.

References:

CompTIA Network+ study materials on network security threats and mitigation techniques.
