CompTIA 220-1201 CompTIA A+ Core 1Exam (2025) Exam Practice Test

Check the exhibit diagram for both parts.

A close-up of several cables AI-generated content may be incorrect.

Part 2

A group of different colored rectangular objects AI-generated content may be incorrect.

solution as

A screenshot of a network settings AI-generated content may be incorrect.

A screenshot of a computer AI-generated content may be incorrect.

A screenshot of a computer AI-generated content may be incorrect.

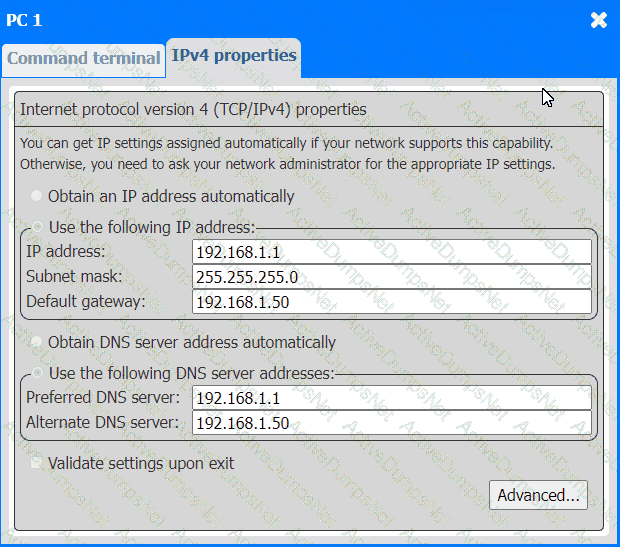

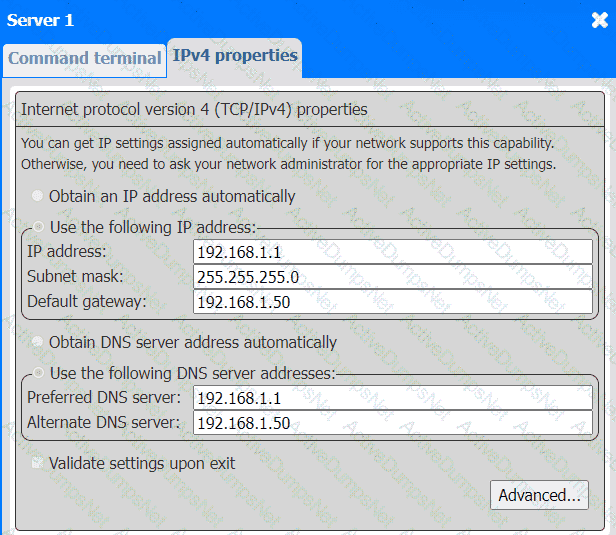

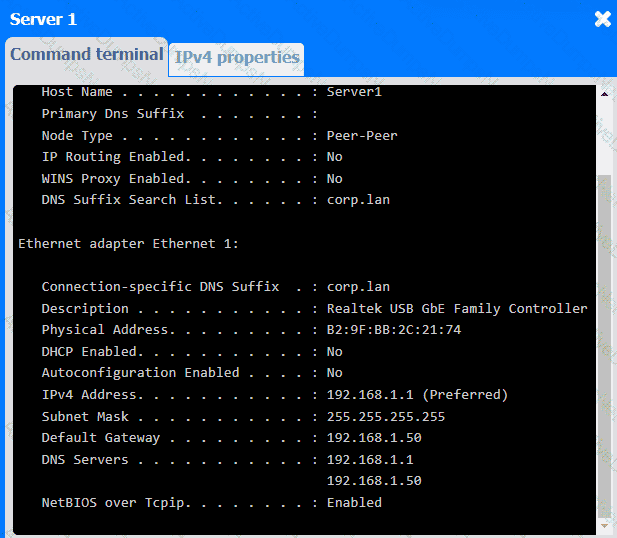

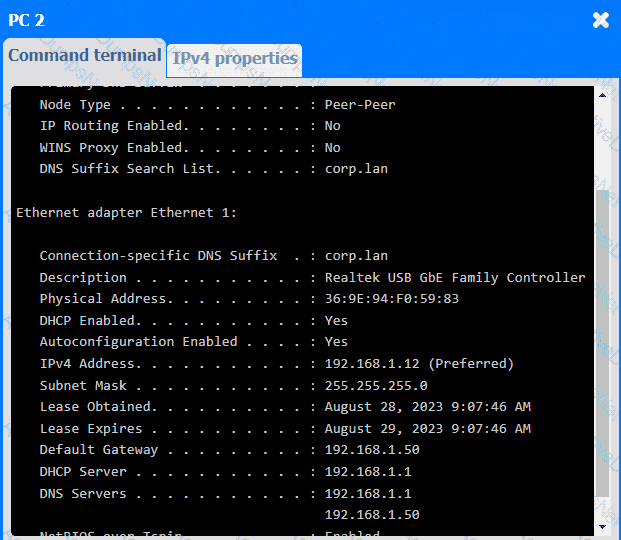

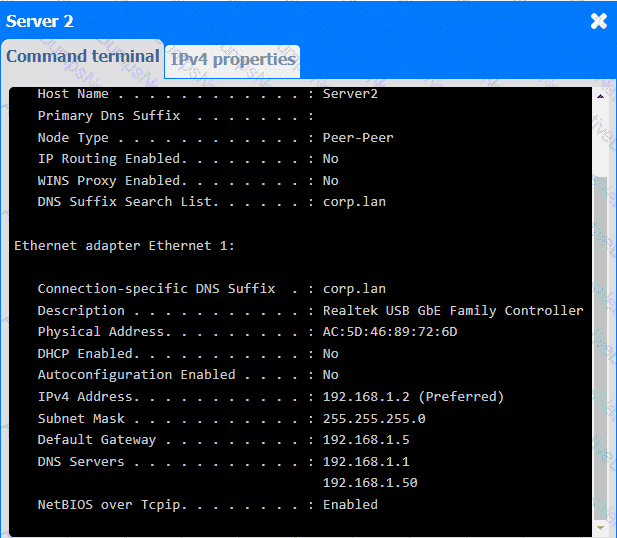

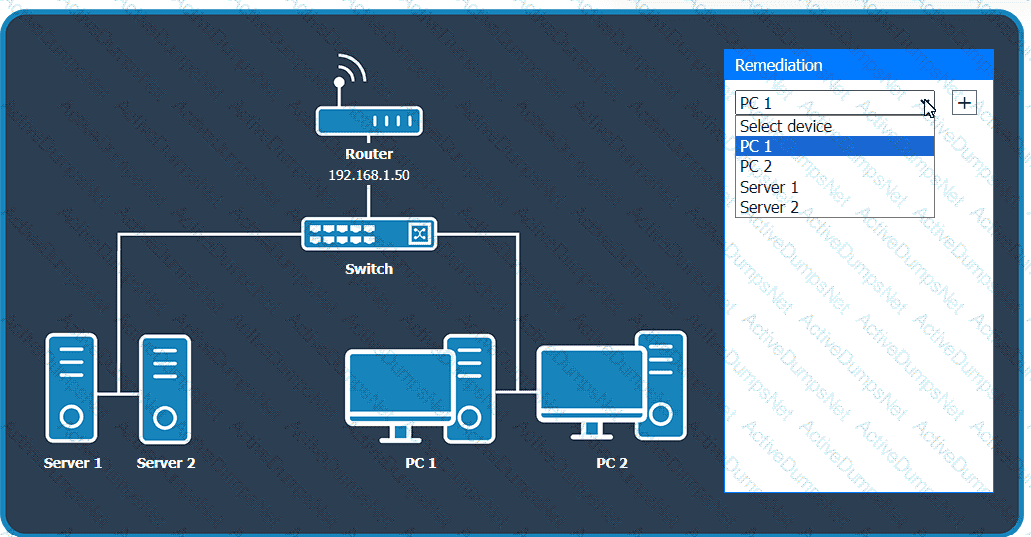

Looking at the network configurations and outputs from both PCs and servers, here are the possible issues and solutions:

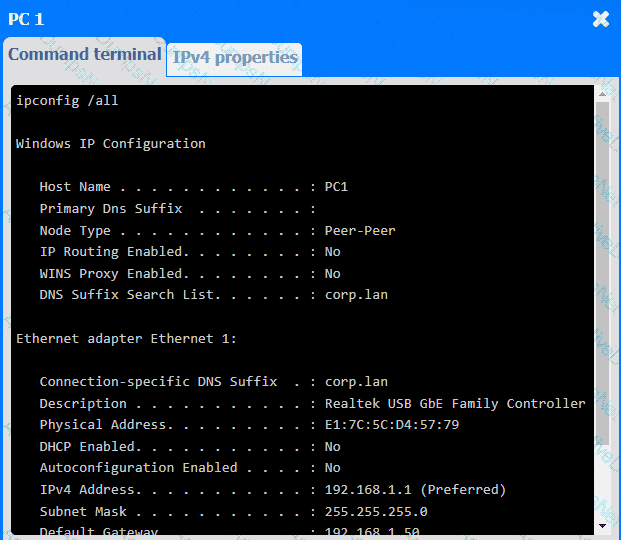

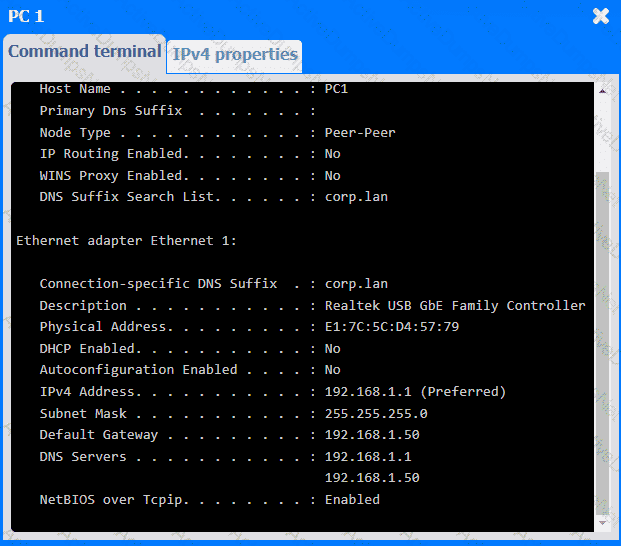

1. PC 1

Issue: The IP address for PC1 is 192.168.1.1, which conflicts with Server 1 (which also uses 192.168.1.1).

Solution: Change the IP address on PC1 to a unique one within the range, like 192.168.1.3.

2. PC 2

Issue: PC 2 is configured with 192.168.1.2, which conflicts with Server 2 that has the same IP address.

Solution: Update the IP address on PC 2 to something unique, like 192.168.1.4.

3. Server 1

Issue: The IP address for Server 1 is 192.168.1.1, which conflicts with PC1.

Solution: Since Server 1 and PC1 are using the same IP address, change one of them. For Server 1, you could change the IP address to 192.168.1.5.

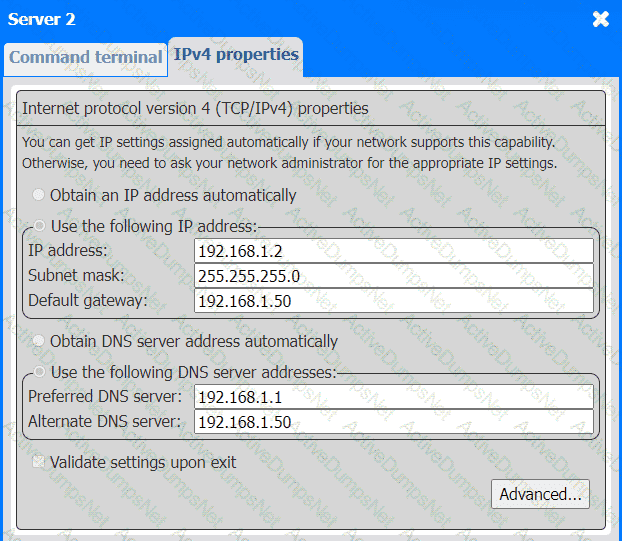

4. Server 2

Issue: Server 2 is using the IP address 192.168.1.2, which conflicts with PC2.

Solution: Update Server 2 to use a different IP address, such as 192.168.1.6.

General Remediation:

The primary problem here is overlapping IP addresses, leading to connectivity issues. Each device on the network must have a unique IP address. After making these changes, ensure that all devices can communicate properly by testing the connection between devices and verifying they can access shared resources.

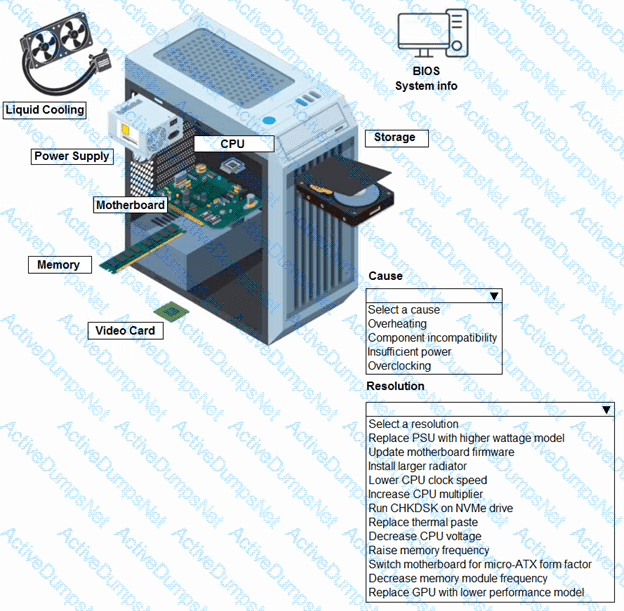

correct answer is "Overclocking" and "Reduce CPU Clock speed" CPU is at 4.5 Ghz when normal is 3.2 Ghz. Overclocking too much can cause freezes, and this is a gaming computer sothe user probably took it too far. http://blog.logicalincrements.com/2018/12/4-troubleshooting-tips-overclocking-pc/

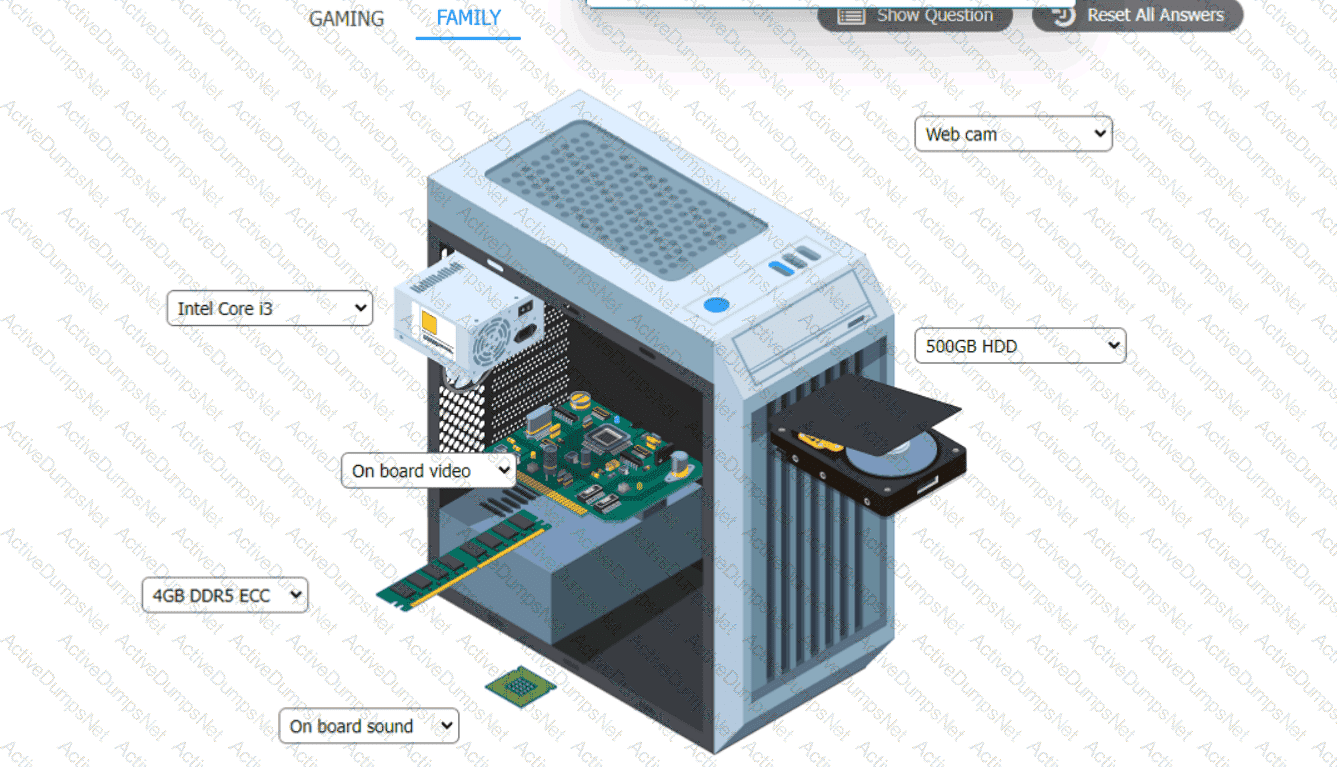

A computer tower with a hard drive and a hard drive AI-generated content may be incorrect.

A computer tower with a computer and a hard drive AI-generated content may be incorrect.

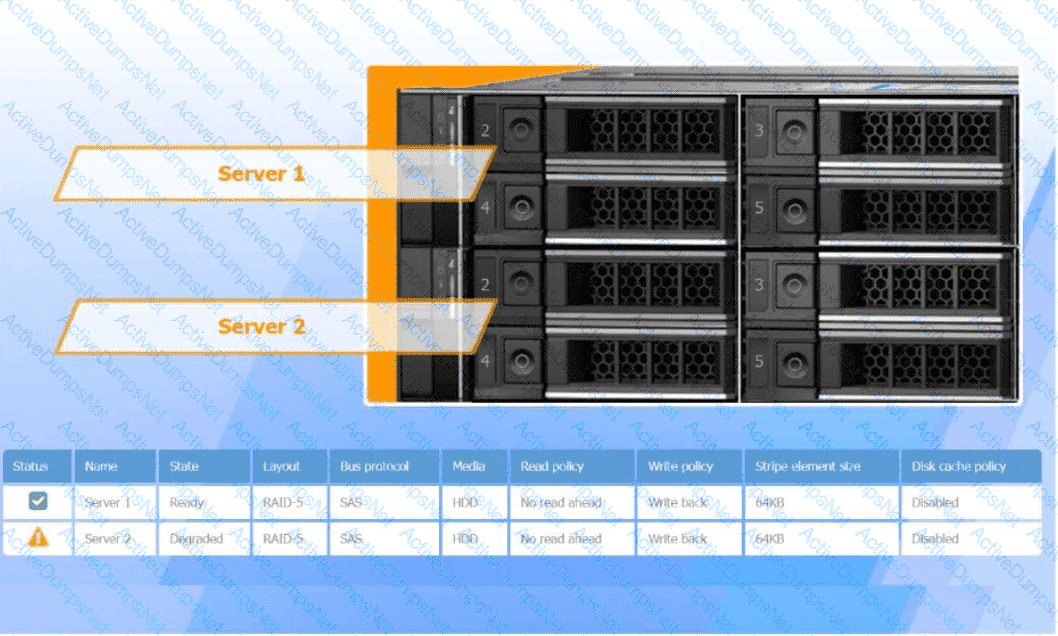

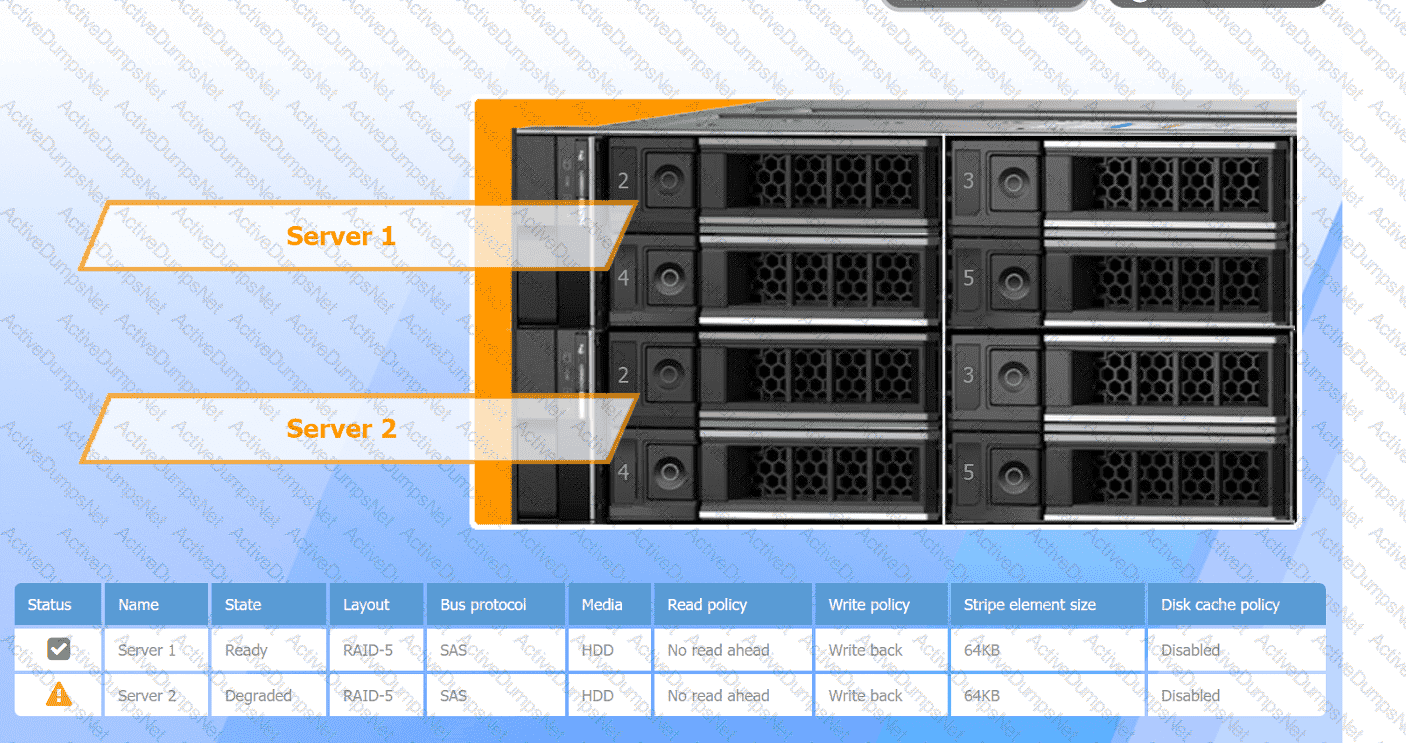

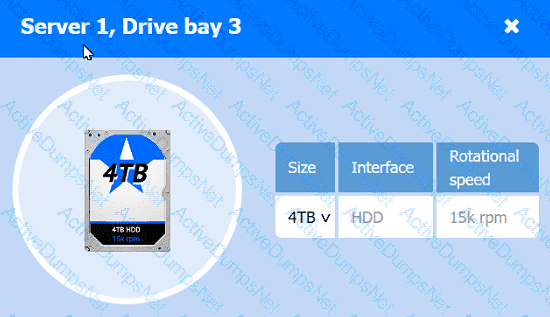

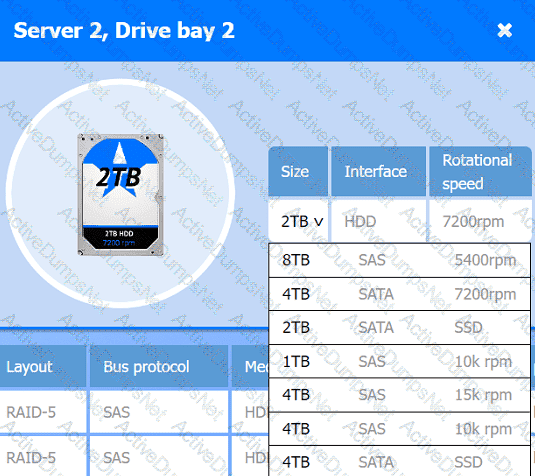

The degraded status on Server 2 indicates a RAID-5 issue, typically due to a failed or failing drive. In RAID-5 configurations, when one drive fails, the system can still operate but with reduced performance as parity data is used to rebuild missing data on-the-fly.

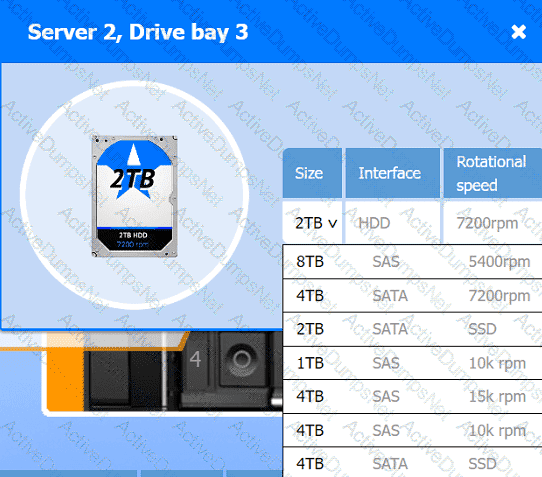

Recommended Replacement Drive:

To minimize performance degradation, the replacement drive should be:

SAS HDD with the same specifications (64KB stripe size, no read-ahead, and write-back policy).

Matching the configuration exactly ensures seamless integration and optimizes recovery speed in the RAID-5 array.

In RAID-5, degraded performance is expected when one drive fails, as parity data needs to rebuild missing information during each read/write process. Replacing the failed drive restores the RAID array to optimal status, reducing the load on existing drives and returning the system to normal read/write performance. The write-back policy and disabled disk cache settings are designed to reduce latency and increase efficiency, essential for handling real-time applications.

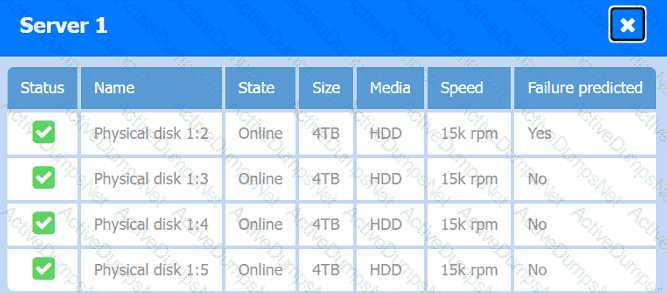

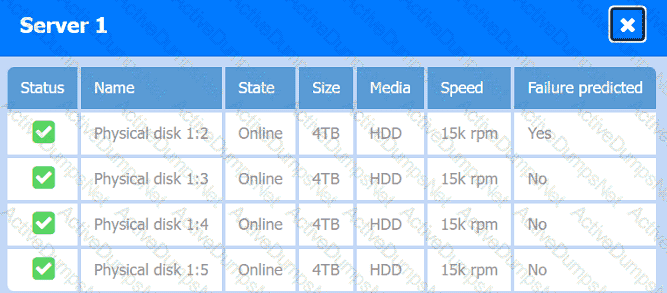

A user reports poor performance on the

application server.

INSTRUCTIONS

Click on Server 1 and Server 2 and review

the information presented in each chart to

determine which drives need to be replaced.

Select the appropriate replacement drive

that should be used, for the least

performance degradation to the server.

A computer server with many black and silver parts AI-generated content may be incorrect.A computer server with many black boxes Description automatically generated with medium confidence

A screen shot of a computer AI-generated content may be incorrect.A screen shot of a computer Description automatically generated

A computer screen shot of a computer AI-generated content may be incorrect.A computer screen shot of a computer Description automatically generated

A computer screen shot of a computer AI-generated content may be incorrect.A computer screen shot of a computer Description automatically generated

A computer screen shot of a computer AI-generated content may be incorrect.A computer screen shot of a computer Description automatically generated

A screenshot of a computer AI-generated content may be incorrect.A screenshot of a computer Description automatically generated

A screenshot of a computer AI-generated content may be incorrect.A screenshot of a computer Description automatically generated

A screenshot of a computer AI-generated content may be incorrect.

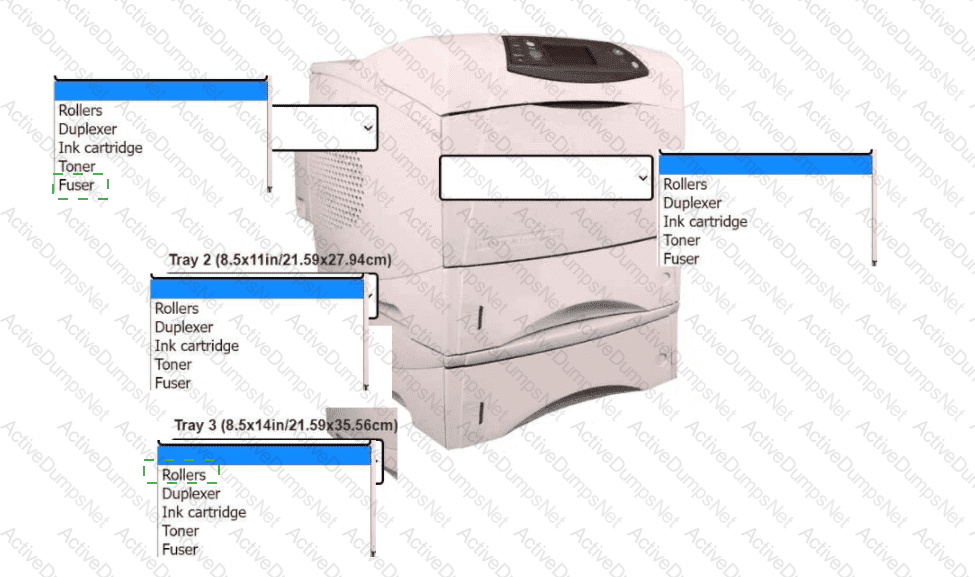

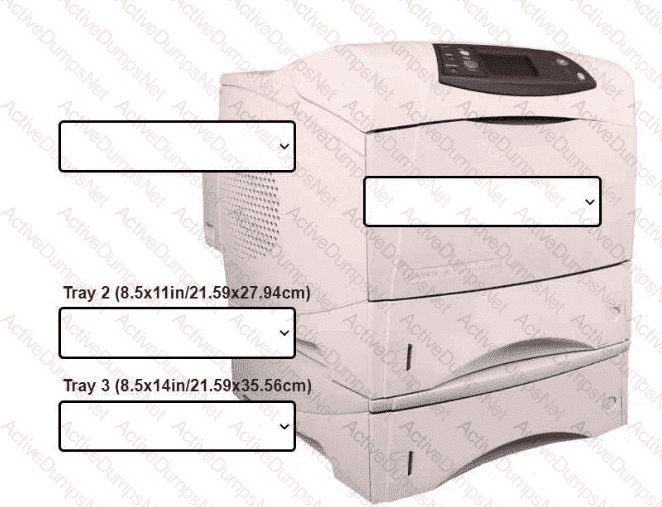

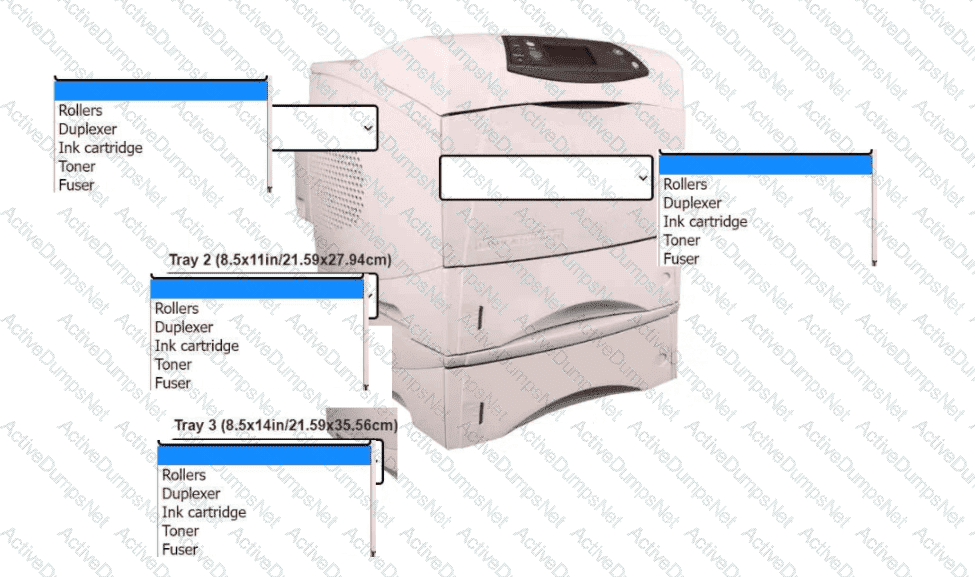

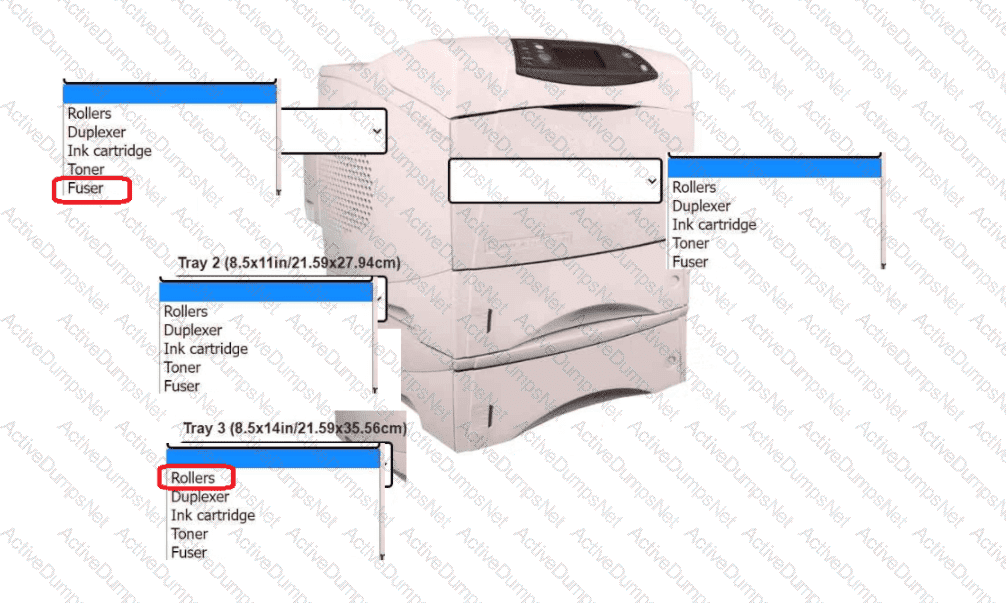

A printer with text boxes AI-generated content may be incorrect.

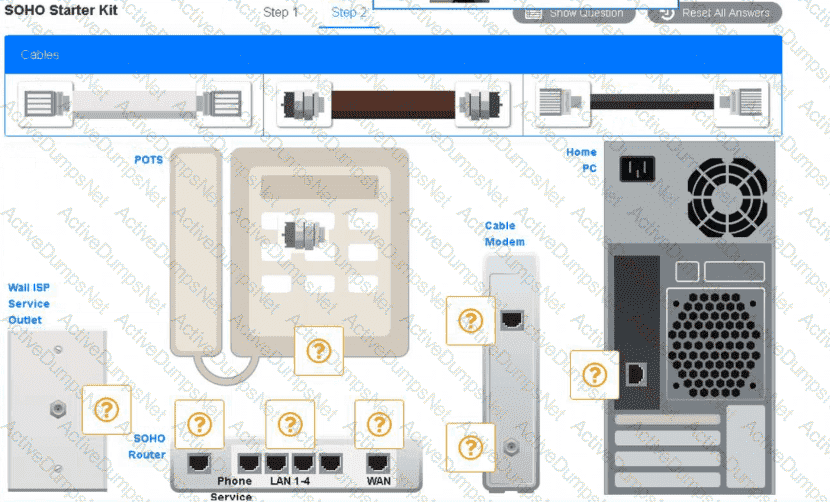

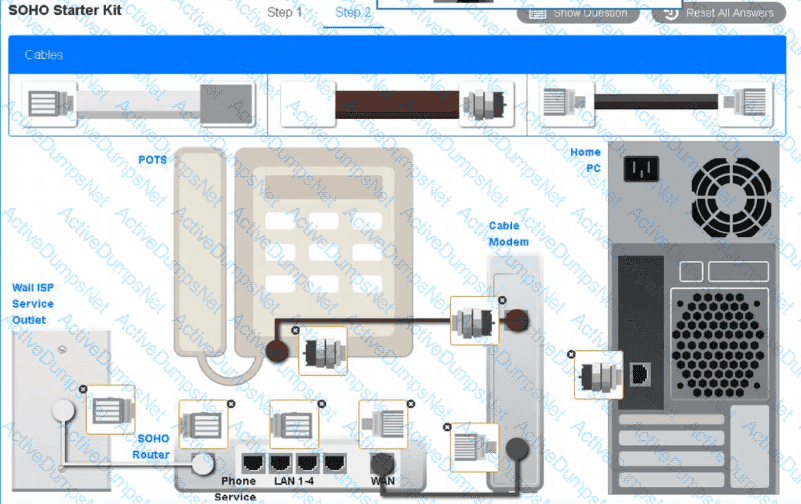

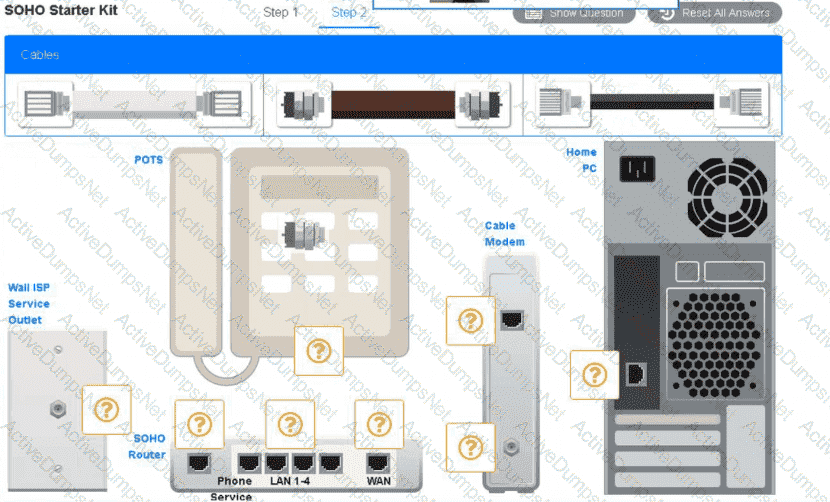

Answer of both steps below.

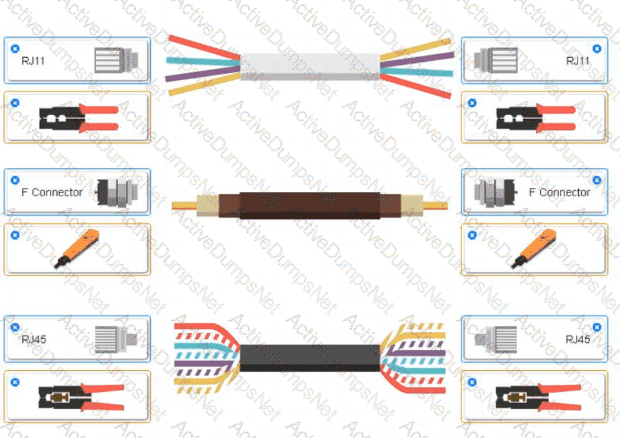

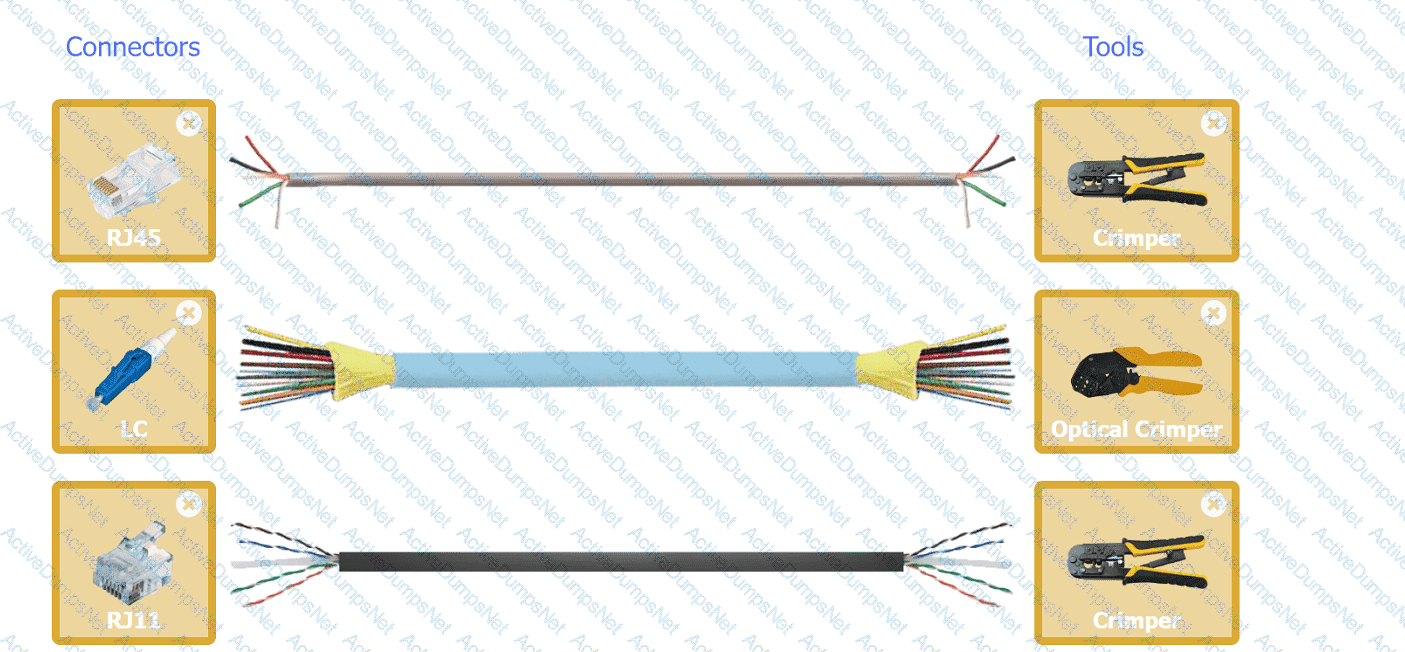

A group of wires with different colors AI-generated content may be incorrect.

A screenshot of a computer AI-generated content may be incorrect.

Comprehensive and Detailed Explanation From Exact Extract:

BitLocker Drive Encryption in Windows requires aTrusted Platform Module (TPM)to encrypt the boot drive securely. The TPM is a dedicated microcontroller designed to secure hardware through integrated cryptographic keys. It validates system integrity during boot and securely stores the encryption keys. If BitLocker cannot find a TPM or it is disabled in BIOS/UEFI, drive encryption cannot proceed.

BitLocker can function without TPM using a USB startup key, but this compromises some security and is not recommended for managed enterprise environments.

????Reference:

"CompTIA A+ Certification All-in-One Exam Guide, Eleventh Edition" by Travis Everett and Andrew Hutz – Chapter 13, page 536–537​.

"CompTIA A+ Guide to Managing and Troubleshooting PCs" by Mark Soper – Chapter 13, page 446–447​.

"CompTIA A+ Complete Study Guide" by Quentin Docter – Chapter 1, page 36–38​.

Comprehensive and Detailed Step-by-Step Explanation:

LC Connector (Lucent Connector):

LC is a type of fiber optic connector commonly used in optical networking cables. It is small, compact, and widely used for high-speed data transfer over fiber optic networks.

LC connectors are specifically designed for fiber optic cables, making them the correct answer.

Incorrect Options:

A. RJ45: RJ45 connectors are used for Ethernet cables (twisted-pair copper cabling) and are not compatible with optical networking cables.

C. USB-C: USB-C is a connector type used for general-purpose data transfer, charging, and video output, not for optical networking.

D. Lightning: Lightning connectors are proprietary to Apple devices and are not used in optical networking.

Key Takeaway:

The LC connector is specifically designed for fiber optic cables, making it the correct answer for optical networking.

Badging is a form of authentication that requires employees to use a badge or ID card to release print jobs. This solution reduces unnecessary printing by ensuring only authorized users print.

Why Not A (Access control list): While ACLs manage permissions, they are not used for physical authentication at printers.

Why Not B (Audit logging): Audit logs track actions but do not restrict printer access.

Why Not D (Print server): A print server manages print jobs but doesn’t enforce authentication.

CompTIA A+ Exam Reference: Core 2 (220-1102), Section 2.5, authentication mechanisms​.

Comprehensive and Detailed Explanation From Exact Extract:

Since the issue only occurs during scanning and copying (not printing or faxing), the problem is isolated to the document feeder. A vertical line is typically caused by debris or damage on theglass under the ADF (Automatic Document Feeder), not on components related to printing.

????Reference: "CompTIA A+ Complete Study Guide" by Quentin Docter – Chapter 4, page 261​.

Plenum cabling is designed for use in commercial spaces where cables run through air ducts or plenum spaces, as it has fire-resistant properties and emits less toxic smoke.

Why Not A (USB 3.1 Gen 2): USB is for peripheral connections, not large-scale commercial installations.

Why Not B (Straight tip fiber connector): Fiber connectors are for high-speed connections but are not specifically for commercial spaces.

Why Not D (Cat 8): While Cat 8 is high-speed, it is not uniquely suited for commercial spaces like plenum cabling.

CompTIA A+ Exam Reference: Core 1 (220-1201), Section 3.1, cabling standards​.

Comprehensive and Detailed Explanation From Exact Extract:

NFC (Near-Field Communication) is a subset of RFID technology designed for very short-range wireless communication, typically within a few centimeters. It is primarily used for contactless transactions, like mobile payments, and can also support peer-to-peer data exchanges. NFC operates at 13.56 MHz and enables devices to communicate when placed near each other.

????Reference: "CompTIA A+ Complete Study Guide" by Quentin Docter – Chapter 7, "Wireless and SOHO Networks", page 400​.

Dynamic Host Configuration Protocol (DHCP) is a network service used to automatically assign IP addresses and other network configuration details (such as subnet masks and default gateways) to devices on an enterprise-wide network.

Why Not A (DNS): DNS resolves domain names to IP addresses but does not allocate IP addresses.

Why Not B (Syslog): Syslog is used for logging system events, not IP address management.

Why Not C (Telnet): Telnet is a protocol for remote access, not for IP allocation.

CompTIA A+ Exam Reference: Core 1 (220-1201), Section 2.6, DHCP concepts​.

Comprehensive and Detailed Explanation From Exact Extract:

The system date/time is maintained by the CMOS battery when the PC is powered off. If this battery fails, time resets will occur. Additionally, since the system is connected to a UPS, ensuring the UPS is functioning correctly (i.e., the backup power source) is essential.

????Reference: "CompTIA A+ Complete Study Guide" by Quentin Docter – Chapter 1, page 40​.

Comprehensive and Detailed Explanation From Exact Extract:

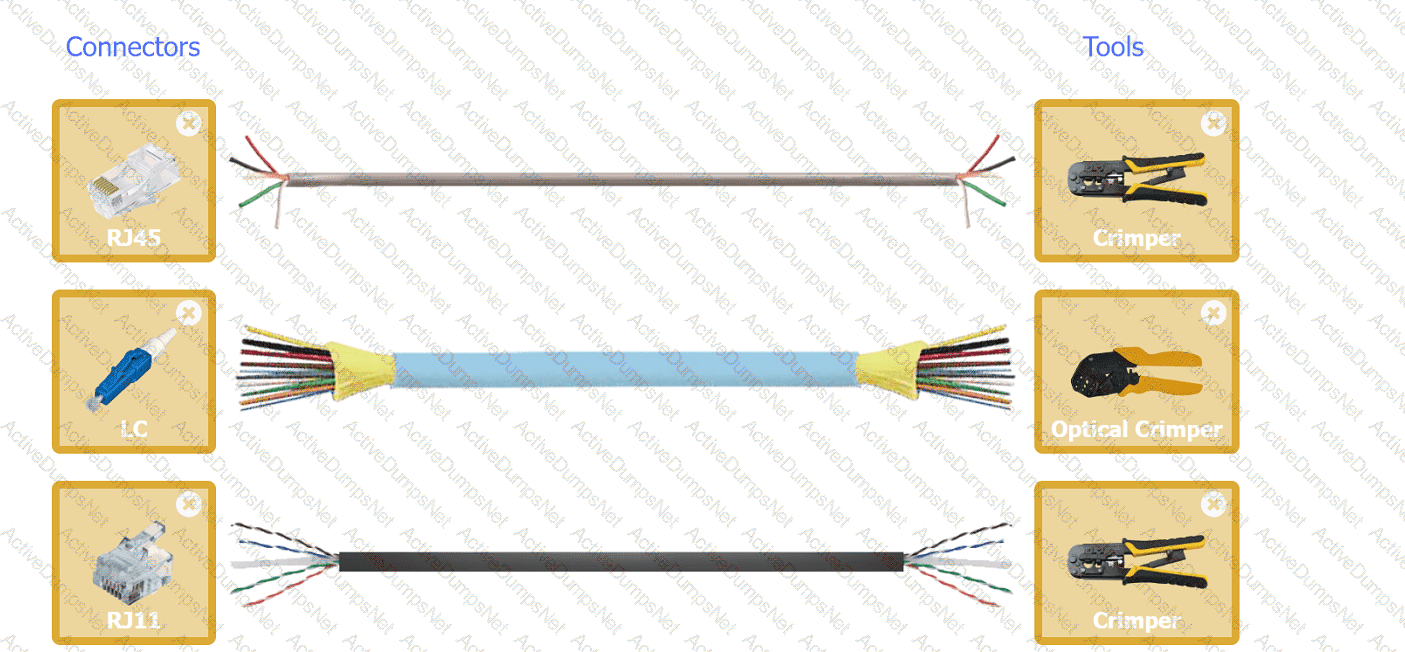

A crimper is specifically used to attach RJ45 connectors to the ends of network cables. It pressesthe connector pins into the cable's wires, establishing a secure electrical connection. A punchdown tool is used for wiring patch panels or keystone jacks, not for attaching connectors.

????Reference: "CompTIA A+ Complete Study Guide" by Quentin Docter – Chapter 3, "Cables and Connectors", page 162. Also outlined in the220-1201objectives under 3.1.

Comprehensive and Detailed In-Depth Explanation:

If performance isnot a primary concernand the user requireslarge, cost-effective storage, a2TB 5400rpm SATA HDDis ideal. It offers high capacity at a lower price point than SSDs and faster HDDs.

Option A:NVMe drives offer exceptional speed but are significantly more expensive per GB and not necessary when read/write speed is not a concern.

Option B:RAID 1 improves redundancy but cuts usable capacity in half and uses expensive SSDs.

Option D:SAS drives are fast and reliable but are enterprise-grade and expensive — overkill for desktop use.

CompTIA A+ Core 1 Exam Objective Reference:

Objective 1.3: Given a scenario, install and configure storage devices.

Comprehensive and Detailed Step-by-Step Explanation:

Wi-Fi Analyzer:

A Wi-Fi analyzer is a tool used to detect and analyze wireless networks, even those that are not broadcasting their SSIDs (hidden networks).

It provides detailed information about nearby networks, including signal strength, channel usage, and security protocols.

In this case, the Wi-Fi analyzer can identify the hidden networks that users are connected to, which are not visible on the standard user interface.

Incorrect Options:

A. Cable tester: A cable tester is used to test the integrity of physical network cables. It does not detect wireless networks or SSIDs.

B. Toner probe: A toner probe is used to trace and identify cables within a wiring system. It is not applicable to wireless network analysis.

D. Loopback plug: A loopback plug is used to test the functionality of a network port or NIC. It is unrelated to identifying hidden wireless networks.

Key Takeaway:

The most effective tool for identifying hidden wireless networks is a Wi-Fi analyzer, as it can detect networks that are not broadcasting their SSIDs.
