You have a four-switch Brocade VCS Fabric operating in fabric mode. You make an interface level configuration change on the principal switch.
Which statement is true?

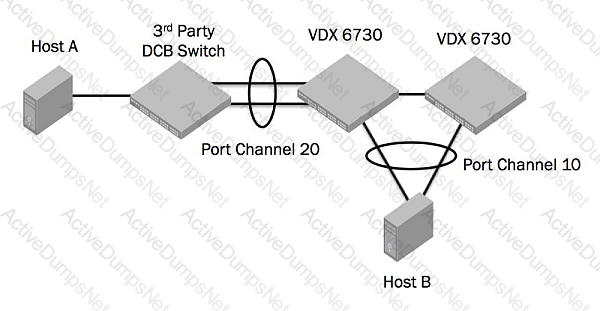

You need to provision FCoE connectivity for the servers shown in the exhibit.
Which two configuration actions must be taken? (Choose two.)
Referring to the exhibit, you are experiencing latency issues on interface Te 27/0/60.
switch# show interface tengigabitethernet 27/0/60
TenGigabitEthernet 27/0/60 is up, line protocol is up (connected)
Hardware is Ethernet, address is 0005.3367.26d8
Current address is 0005.3367.26d8
Pluggable media present
Interface index (ifindex) is 283874428169
MTU 2500 bytes
LineSpeed Actual : 10000 Mbit
LineSpeed Configured : Auto, Duplex: Full
Flowcontrol rx: off, tx: off
Last clearing of show interface counters: 22:07:59
Queueing strategy: fifo
Receive Statistics:
15254 packets, 1395269 bytes
Unicasts: 10641, Multicasts: 2637, Broadcasts: 1976
64-byte pkts: 10874, Over 64-byte pkts: 3294, Over 127-byte pkts: 117
Over 255-byte pkts: 969, Over 511-byte pkts: 0, Over 1023-byte pkts: 0
Over 1518-byte pkts(Jumbo): 0
Runts: 0, Jabbers: 0, CRC: 1128350, Overruns: 0
Errors: 1128350, Discards: 0
Transmit Statistics:
12633 packets, 1155963 bytes
Unicasts: 18, Multicasts: 12615, Broadcasts: 0
Underruns: 0
Errors: 0, Discards: 0
Rate info (interval 299 seconds):
Input 0.000128 Mbits/sec, 0 packets/sec, 0.00% of line-rate
Output 0.000000 Mbits/sec, 0 packets/sec, 0.00% of line-rate
Time since last interface status change: 0d00h40m
What are two reasons for the problem? (Choose two.)
You want to remove one of your Brocade VDX 6740s from your VCS fabric in Logical Chassis mode. You issue the no vcs enable command on the VDX 6740 but the switch is not removed.
What would you do to resolve the problem?

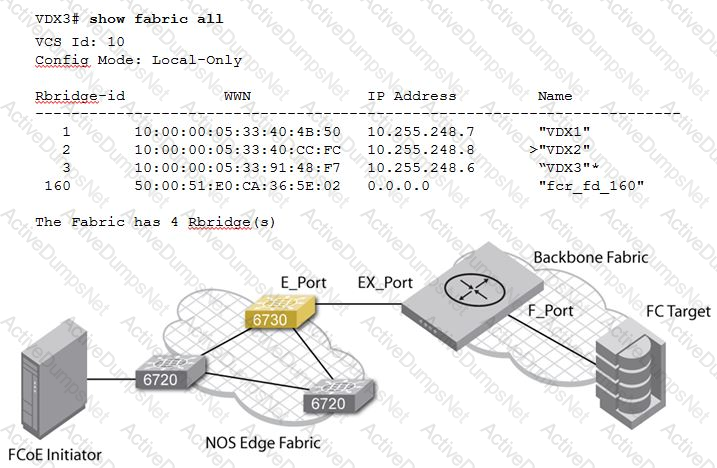

The FCoE initiator is unable to communicate with the FC target as shown in the exhibit.
What are two reasons? (Choose two.)
Which three features are provided when you enable Brocade NOS Virtual Fabrics? (Choose three.)
Which extension to the TRILL protocol allows a Brocade VCS Fabric to scale beyond 4096 VLANs?

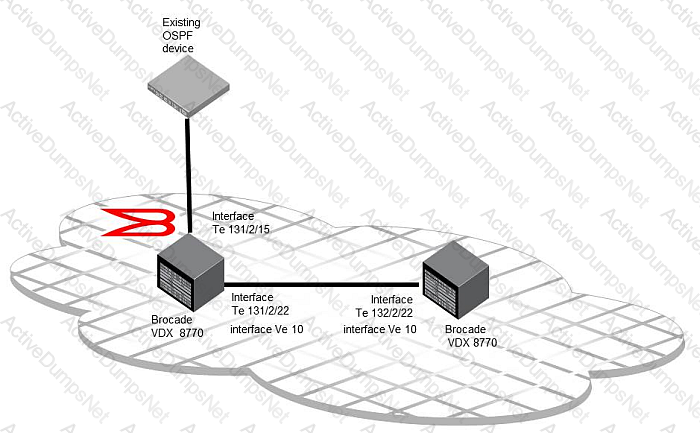

You are configuring OSPF in a Brocade VCS Fabric. The implementation will integrate with an existing OSPF network. The fabric is in logical chassis mode.
Referring to the exhibit, which three actions are correct? (Choose three.)
Exhibit:
RB10# show mac-address-table port-profile
VlanId Mac-address Type State AMPP Ports
100 0050.65bf.0001 Dynamic Active Profiled (T) 2/0/1
100 0050.65bf.0002 Dynamic Active Profiled (UC) 2/0/1
Exhibit:
Referring to the exhibit, what would you determine about this interface?
After connecting a new server to your four-switch Brocade VCS Fabric, you notice that all the switches have learned the new server's MAC address.
Which VCS feature is responsible for this behavior?
Which three steps are required for a firmware upgrade from a USB flash drive? (Choose three.)
You are providing cloud-based virtual desktops to businesses from your data center. Each business needs to be completely segmented from each other; however, to keep costs down, you decide to use a single DHCP and DNS server with the least amount of configuration.
Which three features must be configured in the Brocade VCS Fabric? (Choose three.)
During the Brocade VCS Fabric distributed MAC learning process, what information is learned and shared throughout the fabric? (Choose three.)

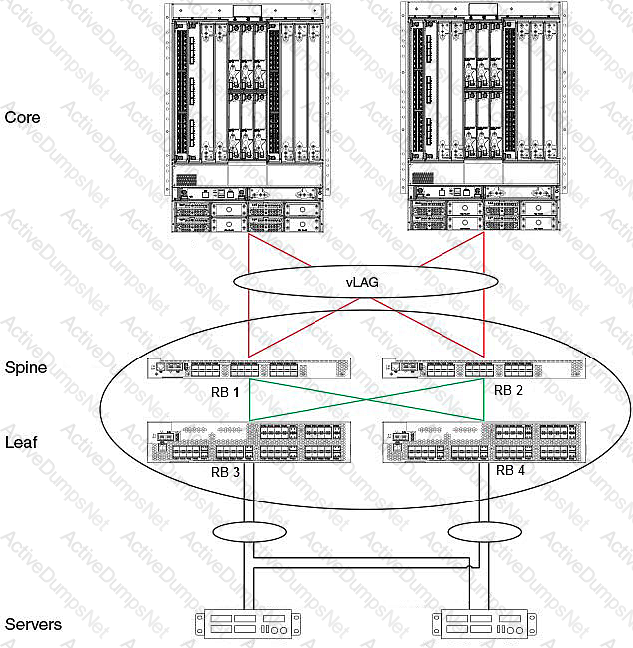

Referring to the exhibit,
to minimize downtime, what is the Brocade recommended approach to fabric node upgrades?
You want to protect your Brocade VCS Fabric from excessive multicast traffic.
Which two features would you enable? (Choose two.)
Which three parameters are required when configuring a working vLAG on Brocade VDX switches? (Choose three.)
You are not receiving any encrypted SNMP notify messages from your Brocade VCS Fabric.
Which two actions must be configured in the fabric? (Choose two.)
You are configuring a Brocade VDX 6730-76 and only 50 of the Ethernet ports are currently working.
What is the reason for this happening?
In NOS 3.x and later, how many maximum ISLs can exist in a trunk group between a Brocade VDX 8710 and a Brocade Mi10K in a Brocade VCS Fabric?
You want to enable a Service Virtual Fabric to provide 802.1Q VLAN virtualization.
Which two statements are correct? (Choose two.)
What are two primary features of Data Center Bridging (DCB)? (Choose two.)
You are asked to connect a Brocade VDX 8770 to a Brocade VDX 6740 in logical chassis mode using four 40 Gbps links.
Which license is required?
You want to implement VRRP-E between a Brocade VDX 6740, and a Brocade VDX 6730 with the protocol vrrp command.
Which two statements are true? (Choose two.)
You receive a replacement Brocade VDX 6740T that has no management IP address configured on it.
Which port would you use to set the management IP?
You want to design a Brocade VCS Fabric that can automatically classify and prioritize traffic for NAS storage.
Which two platforms would be used? (Choose two.)
Your customer has performance problems and suspects dropped packets between the core router and the Brocade VCS Fabric. You determine that port Te 1/0/5 is connected to an old database server with a high transaction rate.
VDX1# show interface stats brief
Packets Error Discards CRC
Interface rx tx rx tx rx tx rx
Po 10 2013637 13726949 0 0 21668 0 0
Po 20 2215053 15608689 0 0 0 2 0
Te 1/0/1 1130905 12884896 0 0 21463 0 0
Te 1/0/5 39857 63074 0 0 0 0 0
Referring to the exhibit, what is the cause of the discarded packets on the port channel from the core?
Your customer has just implemented a Brocade VCS Fabric at the aggregation layer that interfaces with core and edge switches running RSTP. The Linux servers are detecting BPDUs at their interfaces confirmed by using the tcpdump command from a server. You want to prevent this traffic.
Which two parameters should be configured to accomplish this task? (Choose two.)
