The AXIS M3204 is a cost-effective mini dome camera with a varifocal lens. It does not include DC-iris or audio capabilities, making it suitable for the specified requirements. The other options either include additional features that are not needed or do not meet the cost-effectiveness criteria. For detailed product specifications, refer to Axis Communications' datasheets and product catalogs.

When initiating a surveillance project, the first and most critical step is to understand the customer's goals and requirements. This involves gathering detailed information about what the customer aims to achieve with the surveillance system, the specific areas they need to monitor, and any unique challenges or constraints they might have. This understanding helps in designing a tailored solution that meets the customer's expectations and operational needs. [Reference: Axis Communications - Surveillance Installation and Configuration Guide]

Gatekeeper is a feature in Axis PTZ cameras that allows the camera to automatically zoom in on an object when motion is detected within a predefined area. This function is useful for focusing on areas of interest, such as entry points or sensitive zones, enhancing security monitoring by providing detailed views of potential security events. Axis Network Video documentation explains that Gatekeeper uses video motion detection to trigger the zoom function, ensuring that important details are captured without manual intervention.

When installing a camera outdoors to an existing pole, the most important consideration is that the camera has to be ruggedized. Outdoor environments expose cameras to harsh weather conditions, varying temperatures, and potential physical impacts. Ruggedized cameras are designed to withstand these conditions, ensuring reliable performance and longevity.

Infrared (IR) illuminators with a wavelength of 940 nm do not produce any visible glow. This wavelength is completely invisible to the human eye, making it ideal for covert surveillance applications where the presence of IR illumination needs to be undetectable. Other wavelengths like 650 nm, 750 nm, and 850 nm can produce a faint red glow that may be visible in low light conditions.

When using a wireless network for video surveillance, protecting the video stream is crucial to prevent unauthorized access and ensure data integrity. VPN (Virtual Private Network) encrypts the data transmitted over the network, providing a secure tunnel between the camera and the viewing/recording device. WPA2 (Wi-Fi Protected Access 2) is a security protocol that encrypts wireless traffic, ensuring that only authorized users can access the network.

The IP51 and IP52 ratings indicate that the camera is protected against dust and dripping water. IP51 means the camera is protected against dust ingress to a level that would interfere with the operation and against vertically dripping water. IP52 offers the same dust protection but also protects against dripping water when tilted up to 15 degrees. These ratings make the cameras suitable for indoor use where dust and minor water exposure might occur. Axis Network Video documentation specifies the IP rating system and the levels of protection provided by different ratings.

When setting up PTZ control for an Axis encoder, after connecting the communication wires, it is crucial to set the Baud Rate to match the analog PTZ's. This step ensures proper communication between the encoder and the PTZ camera. The Baud Rate must align with the camera's communication settings to function correctly. For more detailed setup instructions, refer to the Axis Communications installation guides and user manuals for PTZ configuration.

To reduce the impact on recorded video during server maintenance, Video Management Software (VMS) partners can incorporate local storage at the camera. This feature allows the camera to continue recording video on its internal storage (such as an SD card) during network or server downtime, ensuring continuous video capture. Once the server is back online, the recorded footage can be transferred back to the central storage. Axis cameras support local storage options, which are detailed in Axis Communications' product documentation and VMS integration guides.

Top of Form

Bottom of Form

A camera lens with a low f-stop value, such as 1.2, has a larger aperture, allowing more light to enter the camera. This improves the camera's performance in low-light conditions by increasing its sensitivity to light, resulting in clearer and more detailed images when lighting is poor. [Reference: Axis Communications - Camera Lens and Aperture]

When controlling an analog PTZ camera using the Pelco D protocol, the Device ID (sometimes referred to as the address or camera ID) is crucial for ensuring that the correct commands are sent to the intended camera. If channel 1 is controlling the wrong analog PTZ camera, adjusting the Device ID will correct this without the need to change physical cables. Each PTZ camera must have a unique Device ID to ensure proper control within the system. Axis Network Video documentation details the setup and configuration of PTZ control protocols, including the importance of correctly assigning Device IDs.

Axis Coverage Shapes is a tool within Axis' design software that helps determine the optimal placement and specifications of cameras to ensure that identification and surveillance goals are met. It allows the designer to visualize the camera's coverage area and assess the distance at which a person can be identified, ensuring that the camera's placement and specifications align with the security requirements. For more detailed information, refer to Axis Communications' resources on Axis Coverage Shapes.

Axis P-iris technology is designed to optimize the camera's aperture to achieve better image quality. By precisely controlling the iris opening, P-iris technology can maintain the ideal aperture size for various lighting conditions. This helps limit optical artifacts such as diffraction and spherical aberration, ensuring sharp and clear images. While it can contribute to improved low light performance and reduce motion blur, its main advantage is optimizing the aperture to limit artifacts. Axis Network Video documentation explains that P-iris provides more precise iris control compared to traditional DC-iris, leading to enhanced image quality.

The main purpose of the remote focus function is to eliminate the need for an installer to manually set focus at the camera. This feature allows the camera to be focused remotely, saving time and effort during installation and setup. The installer can adjust the focus using the camera’s web interface or a video management system, ensuring optimal image sharpness without physically accessing the camera.

The AXIS M3114-R is designed specifically for use in environments with vibrations, such as transportation. It is rugged and can withstand shocks and vibrations inherent in mobile applications. Other models like the AXIS P3344-VE, AXIS M3014, and AXIS P1344 do not have the same level of vibration resistance. Detailed specifications and use cases for the AXIS M3114-R can be found in the Axis Communications product catalog and datasheets.

When using the view area functionality in Axis cameras, each view area can have its own independent video stream. Additionally, each view area can have its own exposure control setting and text overlay setting. This allows for customized video streams with different exposure settings tailored to specific areas within the camera's field of view, as well as unique text overlays for each view area, providing flexibility in video management and presentation.

When a camera is zoomed out, the field of view increases, causing each object or movement to cover fewer pixels. As a result, more pixels need to change to trigger motion detection. This means the motion detection sensitivity may be reduced unless adjustments are made to the detection settings. For more information, refer to Axis Communications' motion detection setup guides.

The AXIS Camera Application Platform (ACAP) is a powerful tool that allows users to install and run third-party applications directly on Axis cameras. This capability transforms the cameras into intelligent devices that can perform a variety of tasks, such as video analytics, object recognition, and event detection, without the need for additional hardware. By running applications directly on the camera, ACAP enhances the flexibility and functionality of surveillance systems. Axis Network Video documentation explains how ACAP leverages the processing power of the cameras to deliver advanced features and capabilities.

Axis HDTV cameras conform to the SMPTE (Society of Motion Picture and Television Engineers) standards, which ensure that the cameras provide excellent color fidelity and maintain a minimum frame rate of 25/30 frames per second. These standards are critical for ensuring high-quality video with accurate color representation and smooth motion, essential for security and surveillance applications.

AXIS Design Tool is used for determining camera coverage and creating a bill of materials. This tool helps system designers and installers to accurately plan camera placements, ensuring optimal coverage of the surveillance area, and to generate a comprehensive list of required components, facilitating project planning and budgeting.

Axis cameras that have model numbers ending with -E are specifically designed for extreme environments, including those with high temperatures. These cameras are built to withstand harsh conditions and provide reliable performance in challenging environments. The -E designation indicates enhanced durability and temperature tolerance, making them suitable for installations in locations where standard cameras might fail. Axis Network Video documentation highlights the features and specifications of these ruggedized camera models.

Making a list of the Axis network video product serial numbers in an installation is recommended because it makes it easier to identify the camera in AXIS Camera Management. The serial number is a unique identifier that allows administrators to quickly locate, configure, and manage specific devices within the management software, streamlining maintenance and troubleshooting processes.

VAPIX® is an open API from Axis Communications that allows for the integration of Axis products with other system components. This openness facilitates the development of customized applications and solutions, making it easier for integrators to incorporate Axis products into broader security and surveillance systems, ensuring compatibility and flexibility. [Reference: Axis Communications - VAPIX API Documentation]

Top of Form

Bottom of Form

The Arctic Temperature Control functionality in Axis cameras is designed to protect the camera electronics by ensuring the device can operate in extremely cold temperatures. This feature helps maintain the internal temperature of the camera, preventing the electronics from freezing and ensuring reliable performance in harsh environments. Detailed information on Arctic Temperature Control can be found in Axis Communications product specifications and user manuals.

IEEE 802.1X is a network access control protocol that provides an authentication mechanism for devices wishing to connect to a LAN or WLAN. It ensures that only approved devices are granted access to the network, thereby preventing unauthorized devices from connecting. This makes it impossible for someone to disconnect a camera and connect another device to eavesdrop on the network. Therefore, the correct answer is B. For more detailed information, refer to Axis Communications' documentation on network security features and IEEE 802.1X.

Axis' Corridor Format is designed to provide a vertically oriented video stream, which is ideal for monitoring narrow areas such as aisles. This format minimizes wasted space in the field of view and focuses on the desired area. For a retailer wanting to capture more of the aisle and less of the shelves, enabling Corridor Format on the AXIS M3204 camera would be the best solution. Detailed setup instructions can be found in Axis Communications' user manuals and configuration guides for Corridor Format.

Existing coaxial cables can be repurposed for use with network cameras through the use of media converters. These devices convert the analog signals transmitted over coaxial cables into digital signals that can be used by network cameras, allowing for the continued use of existing cabling infrastructure. This approach can be cost-effective and less disruptive compared to installing new network cables. Axis Network Video documentation provides detailed guidance on the use of media converters to leverage existing coaxial cabling for network camera installations.

The AXIS P3301 is a fixed mini dome camera that features a DC-iris lens, a 2.8-10 mm varifocal lens, and wide dynamic range (WDR). This combination of features makes it the only suitable choice among the listed options to meet the customer's requirements for a fixed mini dome camera with these specific capabilities. More details can be found in the Axis Communications product specifications and data sheets for the AXIS P3301.

Multicast is a method of data transmission in which a single stream of data is sent from a source to multiple destinations simultaneously. This technique is especially useful in video surveillance because it allows multiple viewers to receive the same video stream without duplicating the data sent across the network. In other words, the video stream only needs to be sent once from the camera, even though there are multiple viewers, reducing network bandwidth usage. This makes option C correct. For more detailed information, refer to Axis Communications' official documentation on network video fundamentals and multicast usage.

A camera with a fixed iris is best mounted outside in a shadowed position. Fixed iris lenses do not adjust to changes in light levels, making them less suitable for environments with varying lighting conditions. By placing the camera in a shadowed position, you minimize the impact of direct sunlight and glare, which can cause overexposure and poor image quality. Therefore, the correct answer is C. For more detailed information, refer to Axis Communications' documentation on camera installation and fixed iris lenses.

DHCP (Dynamic Host Configuration Protocol) is a network management protocol used on IP networks. It automates the process of configuring devices on IP networks by assigning IP addresses to devices, allowing them to communicate on the network. The DHCP server dynamically assigns IP addresses from a predefined pool and leases them to devices for a specified period. This eliminates the need for manual IP configuration and helps avoid IP address conflicts. References to Axis documentation confirm that DHCP is essential for managing and automating IP address allocation in networked environments.

When connecting and powering a PIR sensor from an Axis camera's I/O port, the output DC voltage provided is 3.3 V. This is a standard output voltage for many Axis network cameras, which allows integration of various low-power devices and sensors directly with the camera’s I/O ports.

Changing the capture mode on an AXIS P1346 from 2048x1536 (3 MP) to 1920x1080 (HDTV) affects both the minimum illumination and maximum frame rate. When switching to a lower resolution (HDTV), the camera's sensitivity to light improves, resulting in a decrease in the minimum illumination required to produce a clear image. Additionally, the maximum frame rate increases as the camera processes fewer pixels, allowing it to capture and transmit frames at a higher rate. Axis Network Video documentation provides detailed information on how different capture modes impact camera performance, including light sensitivity and frame rates.

Top of Form

Bottom of Form

When zooming in on an object with a varifocal or zoom lens, the light sensitivity of the camera generally decreases. This is because zooming in reduces the amount of light reaching the sensor due to the longer focal length and narrower aperture, which can result in a darker image. This effect is more pronounced in cameras with lower-quality lenses or insufficient lighting. Axis Network Video documentation explains how lens properties and zoom settings can impact light sensitivity and overall image quality.

Top of Form

Bottom of Form

Axis P-iris technology is designed to optimize the iris position for optimal depth of field, resolution, and image contrast. It also helps in managing challenging lighting conditions such as backlighting by controlling the amount of light reaching the image sensor. This allows the camera to produce clear images even when facing direct sunlight or other bright light sources.

The inverse square law of light intensity states that the intensity of light is inversely proportional to the square of the distance from the light source. Given that the light intensity is 1024 lux at 1 meter, we can calculate the distance at which the intensity would be 256 lux.

Since 256 lux is one-fourth of 1024 lux, and the inverse square law states that intensity is proportional to 1/d21/d^21/d2, the distance must be doubled to reduce the intensity by a factor of four. Therefore, the distance at which the light intensity is 256 lux is 2 meters. [Reference: Axis Communications - Illumination Basics]

The AXIS Design Tool helps users estimate bandwidth and storage usage by using a statistical model based on the selected camera model. This tool takes into account factors such as scene complexity and motion to provide accurate estimates, enabling users to plan their surveillance system more effectively. [Reference: Axis Communications - AXIS Design Tool User Guide]

Top of Form

Bottom of Form

A DNS (Domain Name System) server translates human-readable domain names (like www.axis.com ) into IP addresses that computers use to identify each other on the network. This process is essential for accessing websites and other resources on the Internet using user-friendly domain names instead of numerical IP addresses. [Reference: Axis Communications - Networking Basics]

Fluorescent lighting can cause flickering effects in video due to the way these lights operate. Fluorescent lamps typically flicker at twice the power line frequency (50 Hz or 60 Hz), which can interfere with the camera's frame rate and shutter speed, leading to visible flickering in the recorded video. This effect is more pronounced when the camera's exposure settings are not synchronized with the frequency of the lighting. Axis Network Video documentation discusses the importance of using cameras with anti-flicker settings or adjusting the shutter speed to match the lighting frequency to mitigate this issue.

For the best accuracy in a people counting application, the camera should be mounted directly above the entrance. This overhead position provides a clear view of the individuals entering and ensures accurate counting by minimizing obstructions and capturing each person as they cross the threshold. Axis’s guidelines for people counting applications recommend this mounting position to achieve the highest accuracy and reliability in the data collected.

Video motion detection (VMD) in PTZ (Pan-Tilt-Zoom) cameras is feasible but primarily when the camera is used as a stationary camera. PTZ cameras can activate motion detection when they are not moving, as movement of the camera itself would otherwise trigger the VMD. When the camera is stationary, it can effectively detect motion within its field of view similar to a fixed camera. Therefore, option B is correct. For more detailed information, refer to Axis Communications' guidelines on VMD functionality in PTZ cameras.

Arctic Temperature Control is a feature designed to ensure the longevity and reliable performance of network cameras in extremely low-temperature environments. This feature allows the camera to perform a stepped start-up at low ambient temperatures, gradually warming up the camera to avoid potential damage caused by sudden exposure to extreme cold. This controlled start-up process helps protect the camera's internal components and ensures consistent performance. Therefore, option D is correct. For more detailed information, refer to Axis Communications' product documentation on Arctic Temperature Control technology.

According to Johnson's criteria, the detection range for a person with an AXIS Q1921 with a 60 mm lens in clear weather is 1200 meters (3900 feet). This means that a human observer is able to detect a person at this distance with a 50% probability. Johnson's criteria is a widely accepted method for calculating the probability of detection, recognition, and identification of objects in surveillance imagery.

The capability to view and record up to four different areas of the whole image of an AXIS P1346 camera is called Multi-view streaming. This feature allows multiple cropped views to be created from a single high-resolution video stream, enabling more efficient use of bandwidth and storage while focusing on specific areas of interest within the full image. For more information, refer to the Axis Communications product documentation and technical notes on Multi-view streaming capabilities.

In an Ethernet network, broadcast traffic is sent to all devices within the network segment. This means every device receives and processes the broadcast packets, which can lead to high network load and congestion, making it inefficient for applications like network video where large amounts of data need to be transmitted reliably and efficiently. Axis documentation advises against relying on broadcast traffic for video streams, as it can degrade network performance and the quality of the video feed due to the excessive load on the network.

Increased noise levels in a scene typically result in higher bandwidth usage. Noise introduces additional variations in the video signal, which the compression algorithm must encode, leading to increased data rates. This is particularly noticeable in low-light conditions where electronic noise can significantly impact the video stream. Axis Network Video documentation explains that noise reduction techniques and proper lighting can help manage and reduce the bandwidth impact caused by increased noise levels in surveillance video.

Top of Form

Bottom of Form

Color temperature is measured in Kelvin (K). This unit of measurement describes the hue of a specific type of light source, ranging from warm (yellow/red) to cool (blue). Understanding color temperature is crucial for setting up cameras in varying lighting conditions to ensure accurate color reproduction. Axis provides detailed guidance on configuring cameras for optimal performance based on color temperature in their user manuals and technical documentation.

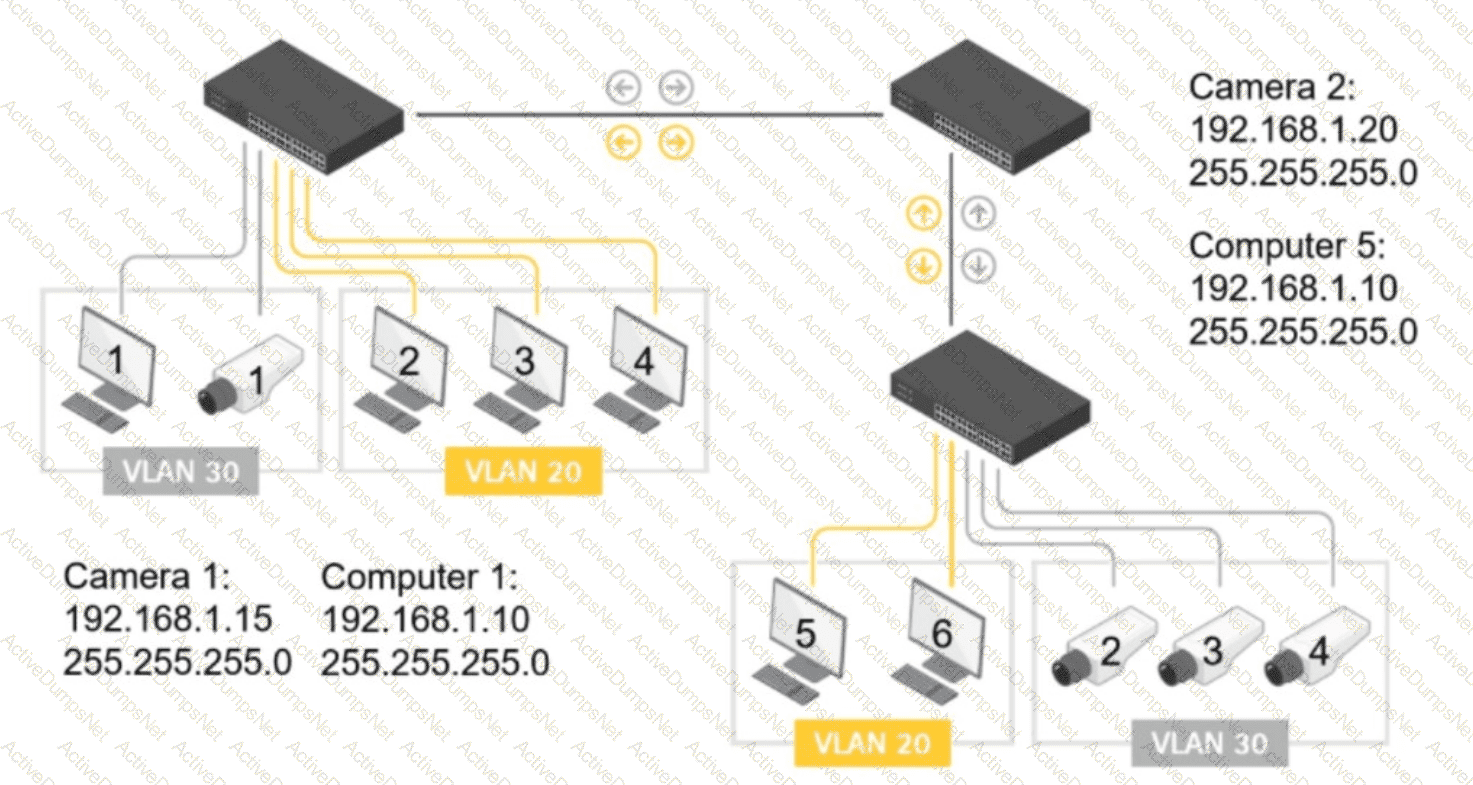

"Both Computer 1 (192.168.1.10) and Computer 5 (192.168.1.10) have the same IP address assigned within the same network (192.168.1.0/24). This creates an IP address conflict, causing communication errors on the network."

— Axis Communications Academy, Network Video Fundamentals, 2022

"An IP address conflict occurs when two devices share the same IP address, resulting in communication issues for both devices."

— Axis Networking Basics Guide

A router is a device used to forward data from one Local Area Network (LAN) to another. It operates at the network layer (Layer 3) of the OSI model and uses IP addresses to determine the best path for data packets to travel between networks. Routers connect multiple networks, manage traffic, and facilitate communication between different network segments. References: Axis Communications network design documentation and standard networking resources.

AXIS Device Manager is the tool that enables easy upgrade of device firmware. It provides a comprehensive solution for managing multiple Axis devices, including firmware upgrades, configuration, and maintenance. AXIS Device Manager allows administrators to schedule and deploy firmware updates efficiently across multiple devices, ensuring that all devices are running the latest firmware with minimal downtime. This information is confirmed by Axis Communications' documentation on device management tools.

“Shutter speed determines how long the camera sensor is exposed to light. A fast shutter speed minimizes motion blur, while a slow shutter speed increases the likelihood of motion blur in moving objects.”

— Axis Communications Academy, Network Video Fundamentals, 2022

“Motion blur in surveillance footage is primarily affected by the camera’s shutter speed setting, not the frame rate or compression.”

— Axis Communications, Shutter and Exposure

As a person enters the scene, P-frames (Predictive frames) increase in size. P-frames contain only the changes in the image from the previous frame (I-frame or another P-frame). When there is movement or new objects enter the scene, more data is needed to describe the changes, resulting in larger P-frames. References: Axis Communications documentation on video compression and frame types in H.264.

The field of view of a camera is determined by the focal length of the lens and the size of the sensor. The focal length affects how wide or narrow the view appears, while the sensor size impacts the overall field of view captured by the camera. Axis technical specifications detail how different combinations of focal length and sensor size influence the camera's field of view, allowing for precise control over what is captured in the frame.

A 1080p camera with a 1/2" sensor typically has larger pixels compared to a 4K camera with a 1/2" sensor. Larger pixels can capture more light, which improves performance in low-light conditions and enhances image quality by reducing noise. This is a critical advantage when clear image capture in various lighting conditions is necessary. Axis documentation on camera sensors and image quality highlights that larger pixels provide better light sensitivity and dynamic range.

A MAC (Media Access Control) address is a unique physical address assigned to network interfaces for communication on the physical network segment. It is used for direct data exchange within a network, ensuring that data packets are delivered to the correct device. Unlike IP addresses, MAC addresses operate at the data link layer (Layer 2) of the OSI model and are hard-coded into the network interface card (NIC) by the manufacturer. References: Axis Communications networking guides and standard networking principles.

"A solid amber (orange) status LED indicates that the device is starting up."

— Axis LED Indicators Guide

"During startup, the status indicator is amber."

— Axis Communications Academy, Network Video Fundamentals, 2022

"AXIS Device Manager gives you access to important device information, including warranty status, device age, and more. This helps users plan for maintenance and replacements."

— Axis Device Manager User Manual

"With AXIS Device Manager, you can view the warranty status of your Axis devices in your network."

— Axis Communications Academy, Network Video Fundamentals, 2022

Axis cameras offer several advanced focus technologies to enhance image clarity and ease of use. Focus Pinpoint allows for precise manual focus adjustments, ensuring sharpness in critical areas. Focus Recall enables cameras to remember and quickly return to pre-set focus positions, which is useful for surveillance scenarios where the camera frequently moves between different points of interest. According to Axis documentation, these technologies are designed to improve the accuracy and efficiency of camera setup and operation.

When replacing an analog camera with an IP camera, a video encoder is useful because it allows the integration of analog cameras into an IP-based system. The encoder converts analog video signals into digital streams that can be transmitted over an IP network, enabling the continued use of existing analog cameras while transitioning to modern IP infrastructure. Axis provides detailed information on their video encoders and their applications in various scenarios in their technical documentation and product brochures.

Top of Form

Bottom of Form

"The AXIS Camera Application Platform (ACAP) enables the development and deployment of edge applications directly on Axis devices, allowing for advanced analytics and custom functionality."

— Axis Camera Application Platform Overview

"ACAP is an open platform that allows partners and users to develop and run applications on Axis network devices."

— Axis Communications Academy, Network Video Fundamentals, 2022

Configuring VLANs (Virtual Local Area Networks) in a network video system has several benefits. Firstly, VLANs keep network traffic separated from other networks, enhancing security and ensuring that video data does not mix with other types of traffic. This separation is crucial for maintaining the integrity and security of the video streams. Secondly, VLANs help avoid network congestion by logically segmenting the network, which improves overall network performance and reduces the likelihood of traffic bottlenecks. Axis documentation supports the use of VLANs to enhance network efficiency and security in video surveillance systems.

The background of the scene is slightly out of focus due to a shallow depth of field. Depth of field refers to the range of distance within a photo that appears acceptably sharp. A shallow depth of field results in a narrow focus area, causing objects outside this area to appear blurred. This can be influenced by the aperture setting of the lens, the focal length, and the distance to the subject. Axis documentation on camera setup and focus adjustments provides guidance on managing depth of field to ensure optimal image clarity.

In an IP-based video system, audio can be transmitted alongside video over the same network, allowing for integrated audio-video surveillance. This enables the simultaneous monitoring of both audio and visual data, enhancing situational awareness. Additionally, some Axis video encoders support audio functionality with analog cameras, allowing these older devices to be integrated into modern IP-based systems and take advantage of audio capabilities. Axis documentation highlights these features, emphasizing the seamless integration of audio and video in IP surveillance solutions and the extended functionality provided by video encoders.

The fisheye view from a 360° panoramic camera can be dewarped both on live video streams and stored video material. Dewarping is a process that corrects the distortion inherent in fisheye lenses to present a more natural-looking image. This feature is supported in Axis cameras and video management software, allowing users to view undistorted video in real-time and from recorded footage. Axis documentation confirms that dewarping functionality is available for both live and archived video streams.

Axis Official Documentation Extract:

"Axis products support the most widely used video compression formats, including Motion JPEG (MJPEG), H.264, and H.265 (HEVC). These formats allow Axis cameras to provide flexible, high-quality, and efficient video streams suitable for a variety of surveillance needs."

— Source: Axis Communications, Video Compression Technologies

Axis Study Guide Reference:

"The primary compression standards supported by Axis network video products are MJPEG, H.264, and H.265. These standards are designed for efficient transmission and storage while maintaining optimal image quality."

— Axis Communications Academy, Network Video Fundamentals, 2022

Explanation of Options:

A. H.264: Supported. H.264 is a widely used video compression standard in Axis products.

B. MJPEG: Supported. MJPEG (Motion JPEG) is supported for scenarios requiring individual frames.

F. H.265: Supported. H.265, also known as HEVC, is supported for more efficient compression.

C. DivX: Not supported. DivX is not used in professional surveillance.

D. SIP: Not a video compression format; it’s a communication protocol.

E. RTSP: Not a compression algorithm; it's a streaming protocol.

PTZ cameras use lasers to measure the distance to the target, which allows for quick and accurate focusing. The laser range finder determines the precise distance between the camera and the subject, enabling the camera to adjust its focus optimally. This technology ensures that the camera can focus rapidly and accurately, even in challenging lighting conditions or when the target is moving. Axis Communications' technical specifications for PTZ cameras confirm that laser technology is employed to enhance focus performance by providing target distance information.

The main purpose of an HDMI output on a camera is for connecting to a public view monitor (PVM). This allows live video feed from the camera to be displayed directly on monitors in public areas, which can act as a deterrent against theft or unwanted behavior. Axis documentation states that HDMI outputs are used to provide real-time video display for public viewing, enhancing security presence and situational awareness.

Secure boot is a security feature that ensures only authenticated and untampered firmware can run on Axis devices. During the start-up process, secure boot checks the digital signature of the firmware against a trusted certificate. If the firmware has been tampered with or is not authenticated, the device will block and reject it, preventing potential security breaches. This mechanism is part of Axis' commitment to cybersecurity and is detailed in their security white papers and firmware documentation.

Outdoor-ready cameras from Axis can be equipped with a cooling fan and a heater element to handle varying weather conditions. The cooling fan helps manage high temperatures by preventing overheating, while the heater element ensures the camera operates effectively in cold environments by preventing frost and condensation. These features allow the camera to maintain optimal performance and reliability regardless of the weather, as specified in Axis' product datasheets and technical specifications for outdoor models.

Top of Form

Bottom of Form

The main benefit of using Power over Ethernet (PoE) is cost reduction in installation. PoE allows network cables to carry both data and power, eliminating the need for separate power lines and reducing the amount of cabling required. This simplifies installation, reduces material costs, and allows greater flexibility in camera placement. Axis Communications notes that PoE significantly cuts down on installation expenses by streamlining the infrastructure needed for network devices.

An IR cut filter is used to block infrared light during daylight hours to prevent it from interfering with the camera's sensor. This ensures that the colors captured by the camera appear natural. Without an IR cut filter, the infrared light can cause color distortions, resulting in unnatural-looking images. Axis cameras equipped with IR cut filters switch between day and night modes to optimize image quality in various lighting conditions, as explained in their technical documents and user manuals.

"Scenes with large areas of uniform color and little movement, such as an empty office, are more compressible without noticeable loss in quality because there is less detail and fewer changes between frames."

— Axis Communications Academy, Network Video Fundamentals, 2022

"Static and simple scenes (e.g., an empty room) require less data and can be compressed more efficiently than complex or busy scenes."

— Axis Web Article: Video Compression

“When using fiber connections for network cameras that lack onboard SFP slots, a midspan with an SFP slot is recommended. This device can accept the fiber connection, provide PoE power to the camera, and transmit data over standard Ethernet.”

— Axis Communications, PoE Midspans and Network Accessories

“A PoE midspan with an SFP slot allows you to convert fiber to copper (Ethernet), power the camera via PoE, and handle data transmission all in one device.”

— Axis Communications Academy, Network Video Fundamentals, 2022

"Signed firmware guarantees that the installed operating system is genuinely from Axis and has not been tampered with. The camera verifies the firmware signature before installation or upgrade."

— Axis Communications, Signed Firmware

"With signed firmware, you are assured that the firmware is authentic and has not been modified."

— Axis Communications Academy, Network Video Fundamentals, 2022

"In Axis’ product naming convention, the suffix '-B' stands for 'Bullet camera,' indicating that the device is a bullet-style camera model."

— Axis Communications Academy, Network Video Fundamentals, 2022

“-B at the end of the model name typically refers to Bullet camera models, e.g., AXIS M2025-LE-B.”

— Axis Product Naming Guide

A system designer can compare the light sensitivity of network cameras from different manufacturers by checking the specified lux values of the cameras. Lux is a unit of measurement for illuminance, indicating how much light is needed for the camera to produce a usable image. Lower lux values indicate better low-light performance. While field testing can also be useful, lux values provide a standardized and quick reference for comparison. References: Axis Communications product specifications and industry standards on light sensitivity.

Top of Form

Bottom of Form

The product selector tool for Axis products enables system designers to design a complete surveillance system and generate a bill of materials. This tool helps in selecting the appropriate cameras, accessories, and software based on specific project requirements, ensuring all necessary components are included for a functional setup. Axis Communications offers this tool on their website, supported by detailed documentation and tutorials to assist users in the system design process.

Top of Form

Bottom of Form

Reducing the frames per second (FPS) by 50% will reduce the bitrate by less than 50%. This is because the bitrate is influenced not only by the frame rate but also by the complexity of the image content and the compression efficiency. While lowering the FPS reduces the amount of data being processed, other factors like scene complexity and motion still impact the overall bitrate. Axis documentation on video compression and bitrate management indicates that halving the FPS typically results in a less than proportional reduction in bitrate.

“When decommissioning an Axis device, always perform a factory restore to securely remove all configuration, user data, and stored information from the device.”

— Axis Decommissioning Guide

“A factory restore erases all user data and settings, returning the device to its original state, which is necessary before removing the device from service.”

— Axis Communications Academy, Network Video Fundamentals, 2022

"A key advantage of server-based storage is that the servers can be installed in secure, access-controlled locations, improving the physical security of recorded video data."

— Axis Video Surveillance Storage White Paper

"Server-based storage allows for secure placement and centralized management."

— Axis Communications Academy, Network Video Fundamentals, 2022

Fiber optic cables are ideal for long-distance data transmission due to their low signal attenuation and high bandwidth capabilities. Unlike copper cables, fiber optics can transmit data over several kilometers without significant loss of signal quality. They are also immune to electromagnetic interference, making them suitable for environments with high electrical noise. Axis technical references on networking confirm that fiber optic cables are preferred for long-distance and high-performance networking applications.

"If the IR-cut filter is stuck or not functioning properly, it can cause a color cast or unnatural tint in the image during daylight, similar to what is shown in the right image."

— Axis Communications Academy, Network Video Fundamentals, 2022

"A stuck IR-cut filter often causes an unnatural magenta or pinkish hue in daylight scenes."

— Axis Technical Note: IR-cut Filter Issues

Fixed box cameras typically use a CS-mount lens, which allows for easy installation and flexibility in changing lenses to meet different surveillance needs. The CS-mount standard is widely used in the security industry and provides compatibility with a variety of lens types. Axis Communications' fixed box cameras often feature CS-mount lenses, as detailed in their product specifications and installation guides.

"A midspan (PoE injector) can provide the necessary power level for PoE+ (Class 4) devices when the existing switch only supports standard PoE (Class 3). The midspan is placed between the switch and the device."

— Axis PoE Solutions Overview

"A midspan is recommended when extra power is needed but the switch does not support the higher class."

— Axis Communications Academy, Network Video Fundamentals, 2022

"Radar devices provide detection and tracking capabilities, including real-time geographical position and speed of people and vehicles within their coverage area."

— Axis Radar Technology Overview

"Axis security radars accurately detect, classify, and track moving people and vehicles, providing precise GPS coordinates."

— Axis Communications Academy, Network Video Fundamentals, 2022

"NAT (Network Address Translation) is used to translate private IP addresses to public IP addresses, allowing devices on a private network to access resources on the public Internet."

— Axis Communications Academy, Network Video Fundamentals, 2022

"NAT is used in routers/firewalls to expose internal devices to the Internet."

— Axis Networking Basics Guide

A decoder allows for displaying digital live video on a monitor. Axis decoders convert digital video streams from network cameras into standard video signals that can be displayed on monitors. This is particularly useful in surveillance setups where live monitoring on standard displays is required. Axis offers various decoders designed for seamless integration with their camera systems, as detailed in their product documentation and solution guides.

“The interval between two I-frames (intra-coded frames) in a compressed video stream is called the Group of Pictures (GOP). The GOP defines how many frames are between full image frames and is a key concept in video compression.”

— Axis Communications Academy, Network Video Fundamentals, 2022

“A GOP (Group of Pictures) consists of one I-frame followed by a series of P-frames and B-frames, until the next I-frame appears.”

— Axis Web Article: Video Compression

A video encoder effectively turns an analog camera into a network camera by converting the analog signal to a digital format, which can then be transmitted over a network. Additionally, video encoders add intelligent functionality found in network cameras, such as motion detection, event management, and video analytics capabilities. These features enable legacy analog systems to integrate with modern IP-based surveillance solutions. References: Axis Communications product documentation on video encoders.

"The Axis lens calculator helps users determine the pixel density at various distances, helping to ensure coverage meets surveillance requirements (such as detection, recognition, and identification)."

— Axis Lens Calculator Tool

"Pixel density calculations are essential for planning surveillance installations and the lens calculator provides this information based on camera and lens parameters."

— Axis Communications Academy, Network Video Fundamentals, 2022

Axis Sharpdome technology provides the advantage of enabling PTZ cameras to see above the horizon. This innovative design allows for 360-degree coverage and significantly enhances the field of view, making it possible to monitor areas both above and below the camera’s position without distortion. This feature is particularly beneficial for applications requiring extensive coverage and flexible monitoring angles. Axis Communications' product details on Sharpdome technology highlight this capability.

For a 1920x1080 camera, the pixel density at a distance of 3 meters (10 feet) can be calculated using the formula for pixel density (pixels per meter/foot). Given the resolution and distance, the pixel density is 162 pixels per meter (54 pixels per foot). Axis provides guidelines and tools for calculating pixel density to ensure the camera setup meets the required image quality for identification and recognition purposes in their technical resources and planning tools.

For outdoor cameras, not using the proper connectors, such as weatherproof or waterproof connectors, can lead to water ingress. This can damage the camera’s internal components, leading to malfunctions or complete failure of the device. Axis outdoor cameras are designed with specific connectors to ensure they are sealed against environmental factors like moisture, dust, and temperature extremes. According to Axis installation guides, ensuring the correct connectors are used is crucial for maintaining the camera's IP rating and long-term reliability.

To wire an external 12V relay to the output port of an Axis camera, the GND and I/O1 pins should be used. The GND (ground) provides the necessary electrical return path, and the I/O1 pin is used for the output signal to control the relay. According to Axis technical documentation, these connections allow for proper integration and control of external devices such as relays, ensuring they function correctly with the camera's output capabilities.

The camera shown in the image is an Axis multidirectional camera, which typically features multiple sensors to cover a wide area. Based on the design and common configurations of Axis multidirectional cameras, it has a total of 4 camera sensors. Each sensor can be independently adjusted to capture different angles and areas, providing comprehensive surveillance coverage. Axis documentation on multidirectional cameras confirms that these models generally come with four sensors for optimal monitoring.

Pixel density increases when the field of view decreases. By narrowing the field of view, the same number of pixels are concentrated over a smaller area, resulting in higher pixel density. This means that more detail can be captured in a given area, which is essential for applications requiring high image resolution and clarity. This concept is confirmed by Axis Communications' documentation on image quality and pixel density.

"An IR-corrected lens is designed to keep the image in focus for both visible and infrared light, ensuring the camera stays in focus when switching from day (color) mode to night (IR) mode."

— Axis Communications Academy, Network Video Fundamentals, 2022

"IR-corrected lenses prevent focus shift when the camera switches between visible and infrared illumination."

— Axis Lens Accessories Guide
